Fast Ethernet Hubs*
OfficeConnect
Fast Ethernet Hubs
Fast Ethernet networking quite simply
means faster networking—quicker
exchange of data between PCs and
swift downloading from the network.
OfficeConnect delivers these benefits
and more with a new range of Fast
Ethernet products designed specifically
for the small office. At last, Fast
Ethernet is affordable for all users.
Each product features plug-and-play
installation and requires no configura-
tion. An easy-to-read, front-panel
display includes diagnostic LEDs for
monitoring network activity. The Dual
Speed Hubs offer a smooth transition
from 10 to 100 Mbps for maximum
growth and flexibility.
OfficeConnect Hub TP400
3C16723
The OfficeConnect Hub TP400 is the
most cost-effective way to add Fast
Ethernet to small-business environ-
ments, branch offices, or independent
workgroups. Compact and reliable,
this hub provides four unmanaged
100BASE-TX ports.
Four 100BASE-TX ports
Class II Fast Ethernet repeater
lets you easily connect two
Fast Ethernet hubs
OfficeConnect Hub TP800
3C16722
The OfficeConnect Hub TP800 pro-
vides eight unmanaged 100BASE-TX
ports for high-bandwidth connectivity
to shared Fast Ethernet networks or for
direct 100 Mbps desktop connectivity
to power users.
Eight 100BASE-TX ports
Class II Fast Ethernet repeater
lets you easily connect two
Fast Ethernet hubs
OfficeConnect Hub TP1200
3C16721
The OfficeConnect Hub TP1200
provides 12 100BASE-TX ports for
allowing unmanaged Fast Ethernet
connectivity for up to 12 users while
enabling you to connect more users
if needed.
Twelve 100BASE-TX ports
Class II Fast Ethernet repeater
lets you easily connect two Fast
Ethernet hubs
OfficeConnect Dual Speed Hub 8
3C16750
The OfficeConnect Dual Speed Hub 8
lets you connect both Ethernet and Fast
Ethernet workstations and devices. Ideal
for those wishing to extend an existing
Ethernet network into Fast Ethernet,
the Dual Speed Hub 8 provides a
cost-effective migration path.
Eight autosensing 10BASE-T or
100BASE-TX shared ports
Built-in switch seamlessly connects
10 Mbps and 100 Mbps users
Class II Fast Ethernet repeater
lets you easily connect two
Fast Ethernet hubs
Fast Ethernet Hubs
(100 Mbps) Configuration
Rules

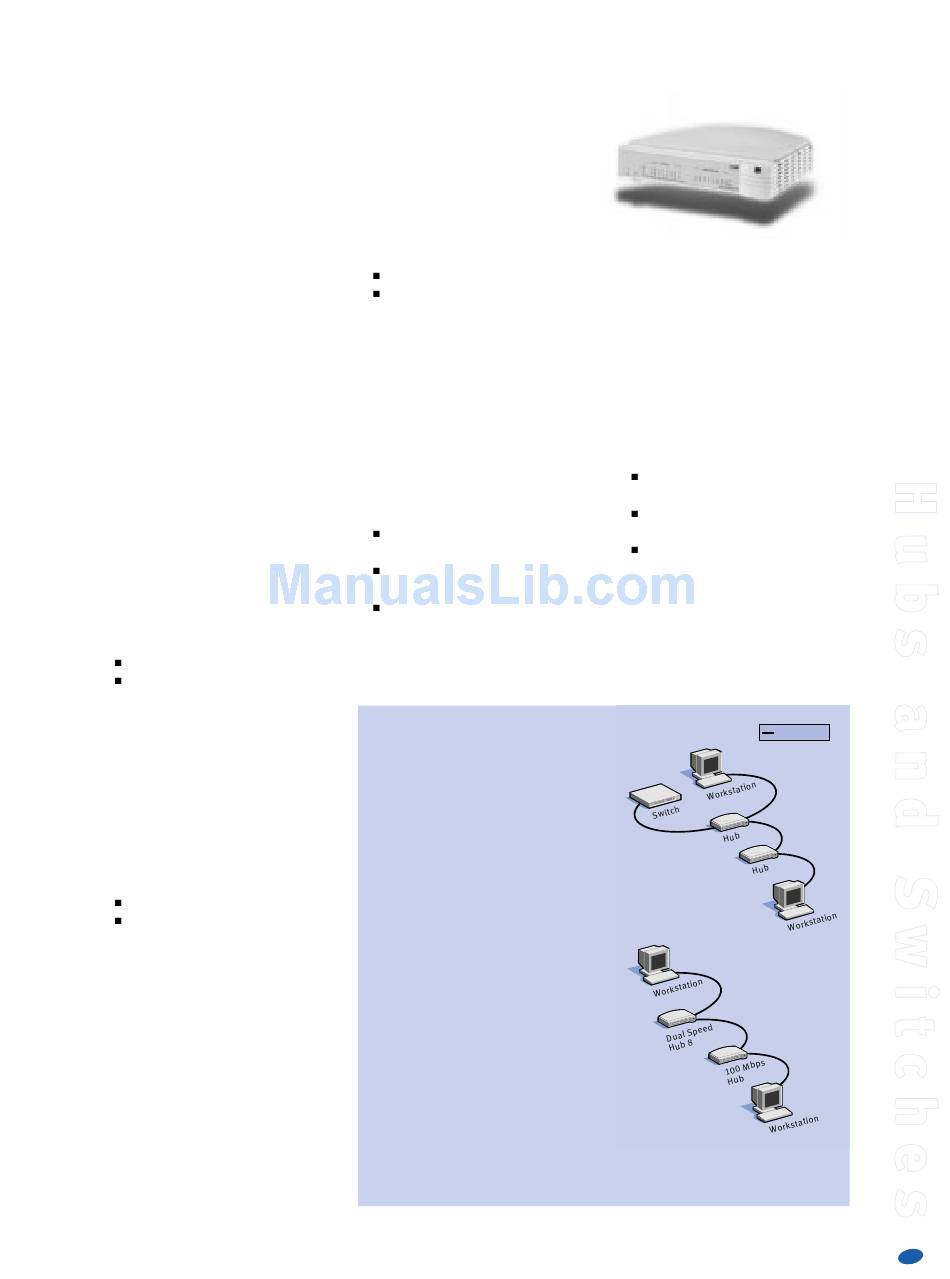

All OfficeConnect Fast Ethernet
hubs are Class II. You can directly
connect two Class II Fast Ethernet
hubs (Class I hubs cannot be
directly connected to other Fast
Ethernet hubs). The total length of
cable (A+B+C below) between two
workstations and a nonrepeater
piece of equipment (such as a
switch) must not exceed 205 m
(672 ft). Each cable (A, B, or C)
must not exceed 100 m (328 ft).
3Com recommends that Category 5
cables be used and that the cable
(B) between the Fast Ethernet
hubs is not longer than 5 m
(16.4 ft). This allows the maximum
hub-to-workstation cable length
(A or C) of 100 m (328 ft) to be
used, as shown in the example.
These rules do not apply to Fast Ethernet switches. You can connect as many OfficeConnect
switches together as your business requires.
OfficeConnect Dual Speed Hub 16
OfficeConnect Dual Speed Hub 16
3C16751
The OfficeConnect Dual Speed Hub
16 provides 16 10/100 autosensing
ports allowing you to mix and match
Ethernet and Fast Ethernet devices.
Ideal for those wishing to extend an
existing Ethernet network into Fast
Ethernet, the Dual Speed Hub 16
provides a cost-effective migration path.
Sixteen autosensing 10BASE-T or
100BASE-TX shared ports
Built-in switch seamlessly connects
10 Mbps and 100 Mbps users
Class II Fast Ethernet repeater
lets you easily connect two
Fast Ethernet hubs
*All OfficeConnect hubs now ship with
OfficeConnect Network Assistant.
100 Mbps link
A
B
Example
:
100 m
(328 ft)
5 m
(16.4 ft)
100 m
(328 ft)
C
