Page 1

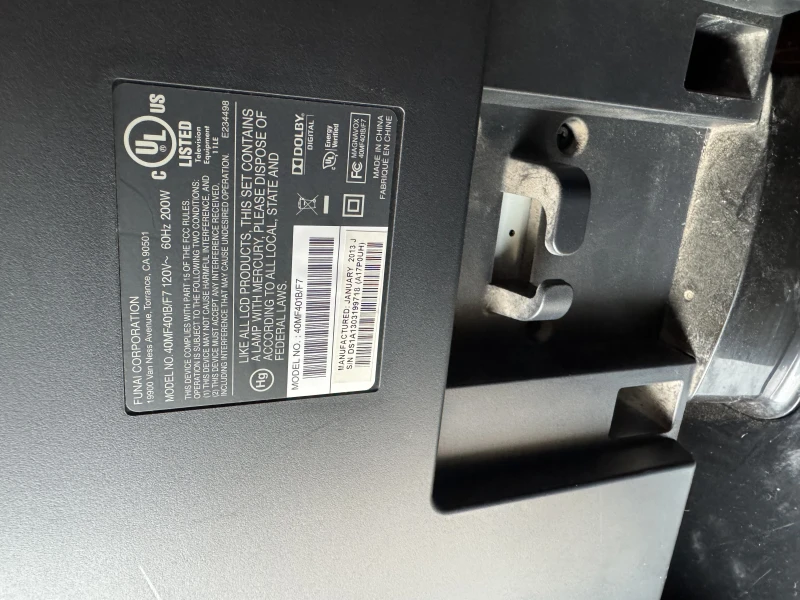

Owner’s Manual Manuel du Propriétaire Manual del Propietario 40 MF 4 01B LCD TV Necesita ayuda inmediata? 1-866-341-3738 1-866-341-3738 1-866-341-3738 Quick Use Guide Inside! Guide d’usage Rapide Incluse! Guía de Uso Rápido Incluida! MODEL NUMBER SERIAL NUMBER...
Page 2
Registering your model with MAGNAVOX makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once, or register online at www.magnavox.com/support to ensure:...
English IMPORTANT SAFETY INSTRUCTIONS Read before operating equipment Read these instructions. 16. Tilt/Stability - All televisions must comply with recommended Keep these instructions. international global safety standards for tilt Heed all warnings. and stability properties of its cabinet design. Follow all instructions. •...
United States and other countries. regulations concerning chemical wastes. • For product recycling information, please visit - www.magnavox.com WHEN CARRYING THIS UNIT • At least 2 people are required when carrying this unit.
Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law. MAGNAVOX is a registered trademark of Philips Electronics North America Corporation and is used by Funai Electric Co. Ltd. and Funai Corporation,...
Be sure the front and rear of the base match the proper direction. At least 2 people are required for these steps. If you have any questions, please visit our website at magnavox.com/support www. Check the text “FRONT” with “arrow“ on the Base’s...
Remote Control Function ➠ (power) p. 11 Press to turn the unit on and go into standby mode. To completely turn off the unit, you must unplug the AC power cord. ➠ 2 SAP p. 13 ➠ 3 SOURCE p. 12 ➠...
English Control Panel ➠ 1 VOLUME + / − p. 13 Press to adjust the volume up /down or move right ( + ) / left ( − ) through the main menu items. ➠ 2 CHANNEL + / − p.
Connection to Cable Receiver or PREPARATION Satellite Box Use an HDMI or Component Video cables to connect the HDMI or the Component Video Input jacks of the unit to the No supplied cables are used with these connections: HDMI or the Component Video output jacks of the cable •...
English Use ◄/► to select the desired location setting, then press These operations are accessible by remote control. Some may also be accessible by controls on the main unit. Initial Setup Initial Setup Select “Retail” or “Home” for your location. This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu Retail...
WATCHING TV Sleep Timer can set the unit to go into standby mode after an incremental period of time. Press SLEEP repeatedly to change the amount of time (increases Sleep 120min. the time by 30 minutes up to 120 minutes). Press SLEEP once to call up the display for checking the remaining time.
English TV Screen Display Mode 5 types of display modes can be selected when the broadcasting station is sending 16:9 or 4:3 video signal. And 3 types of display modes can be selected for PC input signal. Press FORMAT repeatedly to switch the TV aspect ratio. For 16:9 video signal Normal displays a 16:9 picture at its original size.
2 program guide To enjoy fun-Link, verifi ed and recommended devices are as ( The program guide added to broadcasting follows; information is displayed to a maximum of 4 lines.) MAGNAVOX SYLVANIA 3 broadcast station MBP5230 MRD723B NB620SL2...
English USING FUNCTIONS This section describes the overview of the main menu displayed when you press MENU. The main menu consists of the function setting items below. Use ▲/▼ to select a desired menu and an item, then Press MENU to display press OK to determine the setting.
Picture Sound Before you begin: Before you begin: You must set [Home] in [Location]. p. 23 You must set [Home] in [Location]. p. 23 ➠ ➠ Otherwise, the settings you adjusted will not be memorized Otherwise, the settings you adjusted will not be memorized after the unit goes into standby mode.
English TV Speakers Autoprogram Select the audio output from the unit’s speakers, or not. If your If you switch wires (e.g. between antenna and CATV) or if you amplifi er is HDMI link function compatible and connected by move the unit to a different area after the initial setting, or if an HDMI cable to this unit, some sound operations such as you restore the DTV channels you deleted, it is recommended volume up can be changed by using this unit’s remote control.
Channel List Antenna Confi rmation The channels selected here can be skipped when selecting the ATSC channels using CH + / −. This function lets you check the digital signal strength of each Those channels can still be selected with the Number buttons. channel.
Page 19
English Closed Caption Note • [Digital Caption Service] that you can switch differs depending on You can view closed captioning (CC) for TV programs, the broadcast description. movies and news. Closed caption refers to text of dialog or descriptions displayed on-screen. C.
Page 20
Note • Closed caption will not be displayed when you are using an HDMI Channel Lock connection. Picture • To show the closed caption on your TV screen, broadcast signal Sound US Movie Ratings Lock must contain the closed caption data. Setup US TV Ratings Lock •...
Page 21
English Picture Picture Sound Sound TV-MA NC-17 Setup Setup TV-14 Features Features TV-PG PG-13 Language Language TV-G TV-Y7 TV-Y BACK BACK Select View / Block Back Select View / Block Back Sub Rating Category Rating Rating Category Fantasy Violence TV-Y7 Mature audience only Violence NC-17...
Auto TV On This unit will turn on when the power on signal is sent from You can turn on ECO Mode to conserve power. your connected fun-Link device. Use ▲/▼ to select [ECO], then press OK. Use ▲/▼ to select the desired setting, then press OK. Use ▲/▼...
English Location Language You must set [Home] in this setting. Otherwise, [Picture] and [Sound] settings you adjusted will not be memorized after you Use ▲/▼ to select [English], [Español] or [Français], then turn off the unit. press OK. Use ▲/▼ to select [Location], then press OK. Picture Use ▲/▼...
Item Detail Press 1 to display file details below. ➀ [Name], [Album], [Date], [Size] and [Next]. More Detail This unit can play picture (JPEG) and video (Motion JPEG) fi les. Press 1 again to remove file details. Use the USB storage device that contains those fi les. Press 4 or OK to start the slide show.
English CONNECTING DEVICES Note • The unit recognizes only a USB storage device. • Do not use a USB hub or an extension cable to connect an external hard disk drive to the unit. (Not supported.) • A USB storage device is always inserted to this unit directly. No supplied cables are used with these connections: •...
S-Video Connection Note S-Video connection offers good picture quality for video • Use an HDMI cable with the HDMI logo (a certifi ed HDMI cable). High Speed HDMI cable is recommended for the better devices connected to the unit. compatibility. If you connect to the unit’s S-Video Input jack, connect audio For HDMI connection (use HDMI 1, 2 or 3 Input jack) cables to the Audio L/R Input jacks right below the Composite...
English Digital Audio Output Connection The following video signals can be displayed: (for digital broadcasting only) Format Resolution Refresh rate If you connect this unit to an external digital audio device, you 640 x can enjoy multi-channel audio like 5.1ch digital broadcasting SVGA 800 x sound.
USEFUL TIPS Question Answer • Check the antenna or cable connection to the main unit. • Check the batteries of the remote control. • Check if there is an obstacle between the infrared sensor window and the remote control. ➠ •...
Page 29
English Symptom Remedy • Check if the power is on. • Check if the correct input mode is selected. • Check whether all the cables to the unit are connected to the correct output jack of your device like Blu-ray / DVD recorder. •...
INFORMATION Glossary Maintenance ATSC Cabinet Cleaning Acronym that stands for Advanced Television Systems Committee and • Wipe the front panel and other exterior surfaces of the the name of the digital broadcasting standards. Aspect Ratio unit with a soft cloth. •...
English General Specifi cations Other Specifi cations TV format Terminals ATSC / NTSC-M TV standard Closed Caption system Antenna Input VHF / UHF / CATV 75 Ω unbalanced (F-type) §15.122 / FCC (digital CC) Audio Input RCA jack (L/R) x 8 500mV rms §15.119 / FCC (analog CC) Composite Video Input...
English LIMITED WARRANTY NINETY ( 90 ) DAY LABOR / ONE ( 1 ) YEAR PARTS WARRANTY COVERAGE: This warranty obligation is limited to the terms as set forth mission, or (d) if any serial number has been removed or defaced, below.
