MICROMAT KM9800E
Built-In Electric Oven
User information

Advertisement

Table of Contents
loading

Related Manuals for AEG MICROMAT KM9800E

Summary of Contents for AEG MICROMAT KM9800E

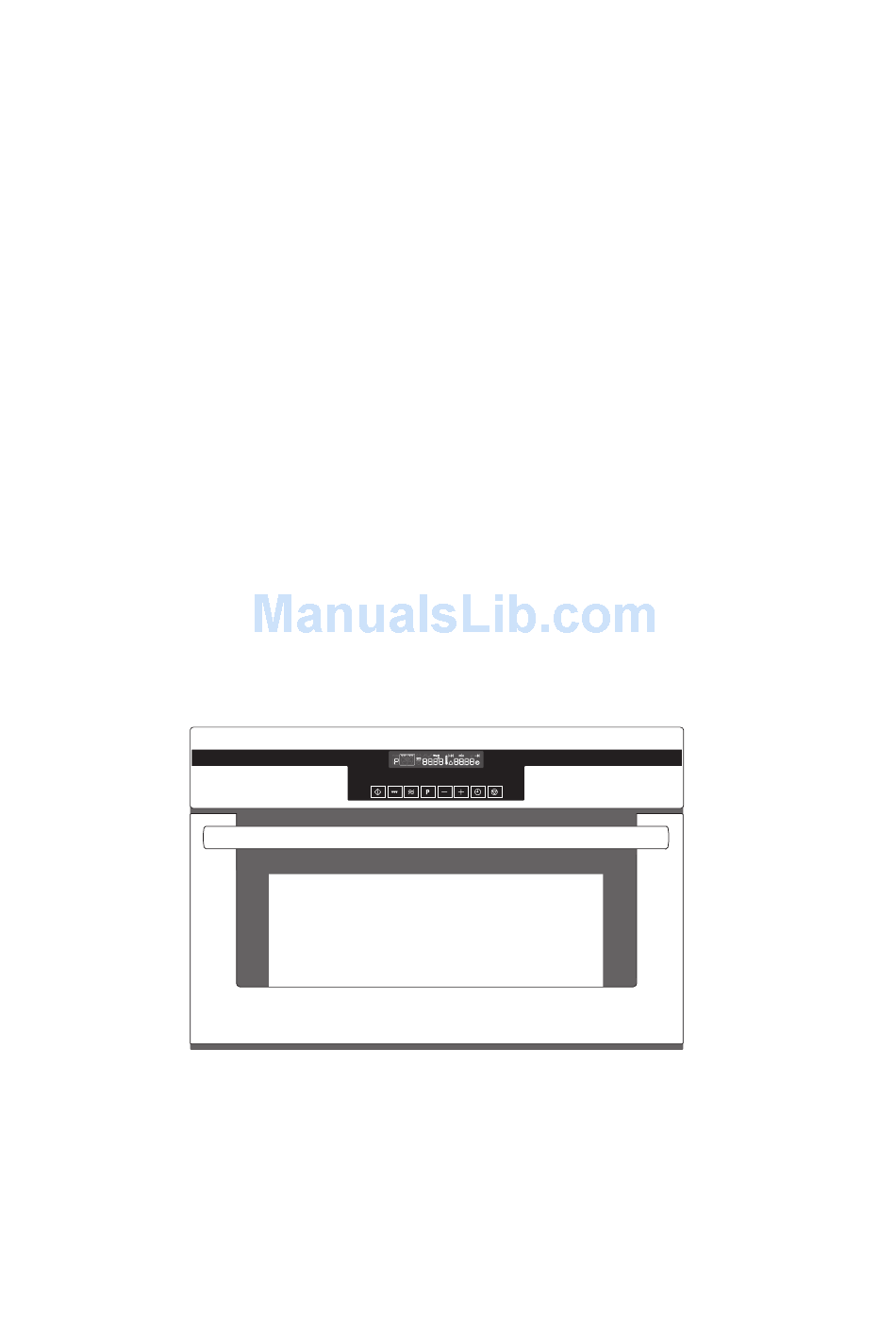

  • Page 1 MICROMAT KM9800E Built-In Electric Oven User information...

  • Page 2: Dear Customer

    Dear Customer, Please read this user information carefully and keep it to refer to later. Please pass the user information on to any future owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning! Information that affects your personal safety. Important! Information that prevents damage to the appliance.

  • Page 3: Table Of Contents

    The Electronic Oven Control ........
  • Page 4 Oven interior ........

  • Page 5: Operating Instructions

    • This appliance is intended to be used for cooking, roasting and baking food in the home. • Take care when connecting electric appliances to sockets nearby. Do not allow connecting leads to come into contact with or to catch be- neath the hot oven door.
  • Page 6 • Warning: Risk of burns! The interior of the oven becomes hot dur- ing use. • Using ingredients containing alcohol in the oven may create an alco- hol-air mixture that is easily ignited. In this case, open the door care- fully.
  • Page 7 Note on enamel coating Changes in the colour of the oven’s enamel coating as a result of use do not affect the appliance’s suitability for normal and correct use. They therefore do not constitute a defect in the sense of the warranty law.
  • Page 8 Do not use the appliance... • for cooking eggs in their shells (with fried eggs, pierce the yolks first) and snails, as otherwise these burst, • for heating large amounts of cooking oil (fondue, deep frying) and drinks with high alcohol con- tent.

  • Page 9: Disposal

    Disposal Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at your local waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this...

  • Page 10: Description Of The Appliance

    Description of the Appliance General Overview Control Panel Control panel Oven display Function buttons Oven Door handle Full glass door...

  • Page 11: Oven Features

    Oven Features Shelf positions Oven Accessories Shelf For dishes, cake tins, items for roasting and grilling. Crunch tray (not scratchproof and knifeproof) Grill heating element Oven shelf runners, removable Source of microwaves Oven lighting Bottom glass, removable...

  • Page 12: Before Using For The First Time

    Before using for the first time Setting and changing the current time The oven only operates when the time has been set. When the appliance is connected to the electrical supply or when there has been a power cut, the symbol for Time flashes automatically.

  • Page 13: Initial Cleaning

    For the metal surfaces, use commercially available cleaning agents. 1. Open the oven door. The oven light is lit. 2. Remove all oven accessories, and clean them with warm water and a scouring agent. 3. Wash the oven in the same way, and wipe dry.

  • Page 14: Operating The Oven

    Start button is not pressed within 30 seconds, the appliance switches off. • The oven light is switched on as long as an oven function is started or the oven door is opened. The oven light goes off after 10 minutes when the door is open and the appliance switched off.

  • Page 15: Switching The Oven On

    The setting changes in steps of 5°C. Thermometer symbol • The slowly rising thermometer symbol indicates how far the oven has already heated up. • When the selected temperature is reached, an audible signal sounds.

  • Page 16: Oven Functions

    Cooling fan The fan switches on automatically in order to keep the appliance’s sur- faces cool. When the oven is switched off, the fan continues to run to cool the appliance down, then switches itself off automatically. Oven Functions...

  • Page 17: Microwave

    Microwave 1. If necessary, switch off the appliance using the Stop 2. By repeatedly pressing the Microwave button, set the de- sired power. • The settings options offered are in 100 Watt steps from 1000 Watt to 100 Watt. • Repeatedly pressing the Microwave button makes the power display begin again at...
  • Page 18 4. When the Start pressed, the time set begins to count down. The symbol for Cook time illuminates. • While the time counts down, the power can be changed using the Microwave • While the time counts down, us- ing the buttons cook time can be increased or reduced.

  • Page 19: Combi Function

    Combi Function 1. If required, switch off the appliance using the Stop 2. Press Grill button. The oven function Single Economy Grill ap- pears. 3. Using the button, set the desired temperature. 4. By repeatedly pressing the Microwave button, set the desired microwave power (max.

  • Page 20: Microwave Quick Start

    7. When the time has elapsed, an au- dible signal sounds for 2 minutes. The appliance switches itself off. The symbol for Cook time es and the time display appears. To turn off the audible signal: Press any button. Microwave Quick Start 1.

  • Page 21: Information On The Power Setting

    Information on the power setting The overview shows at which power setting certain processes can be performed. The powers given are guidelines. Microwave power 1000 Watts 900 Watts 800 Watts 700 Watts 600 Watts 500 Watts 400 Watts 300 Watts 200 Watts 100 Watts Suitable for...

  • Page 22: Inserting The Oven Shelf

    Always insert insertable components so that this indentation is at the back of the oven interior. This indentation is also important for pre- venting the insertable components from tipping.
  • Page 23 3. By pressing the the weight display can be matched to the weight of the food, from a minimum of 100 g, to a maximum of 1500 g (P 5 to P10 maximum 1000 g). • By inputting the weight, the mi- crowave operating period is auto- matically controlled.

  • Page 24: Memory Function

    Memory function The Memory function can be used to save one setting which is used very frequently. 1. Set oven function, temperature and if necessary the clock functions Cook time set microwave power and Cook time 2. Press and hold the Baking and Roasting Programmes for approx.

  • Page 25: Clock Functions

    Microwave cook time To set how long the microwave is to operate. Cook time To set how long the oven is to be in use. End time To set when the oven is to switch off again. Time To set, change or check the time...
  • Page 26 General instructions • After a clock function has been selected, the corresponding symbol flashes for approx. 5 seconds. During this time, the desired times can be set or modified using the • When the desired time has been set, the symbol continues to flash for approx.
  • Page 27 Countdown 1. Press the Clock Functions repeatedly until the symbol for Countdown flashes. 2. Set the desired Countdown time us- ing the button (max. 99.00 minutes). After about 5 seconds the display shows the time remaining. The symbol for Countdown minates: When the time set has elapsed, an audible signal sounds for 2 minutes.
  • Page 28 Microwave cook time 1. Select microwave function and by repeatedly pressing the Microwave M button set the power. 2. Using the desired cooking time. The symbol for Cook time 3. When the Start pressed, the time set begins to count down. The symbol for Cook time illuminates.
  • Page 29 Cook time 1. Select oven function and using button select temperature. 2. Press the Clock Functions repeatedly until the symbol for Cook time flashes. 3. Using the desired cooking time. 4. When the Start pressed, the time set begins to count down.
  • Page 30 End time 1. Select oven function and using button, select temperature. 2. Press the Clock Functions repeatedly until the symbol for End time flashes. 3. Using the desired switch-off time. The symbols for End time Cook time illuminate. The oven automatically switches it- self on.
  • Page 31 The oven switches itself on auto- matically at the time calculated, e. g. 13:05. When the set cooking time has elapsed, an audible signal sounds for 2 minutes and the oven switches itself off, e. g. 14:05. combined can be used simultaneously, if the oven...

  • Page 32: Other Functions

    Activating the child safety device 1. If necessary, switch on the appli- ance using the Stop oven function must be selected. 2. Press and hold the Baking/Roasting Programme button button at the same time, until SAFE appears in the display.

  • Page 33: Button Beep

    The button beep is switched on again. The oven's safety cut-out function The oven automatically switches itself off if it is not switched off after a certain period of time or if the temperature is not adjusted. The last temperature to have been set flashes in the temperature dis- play and a signal sounds.

  • Page 34: Usage, Tables And Tips

    Usage, Tables and Tips Microwave Information about operation General • After switching off the appliance let the food stand for a few minutes (see Microwave Tables: Standing Time). • Remove aluminium foil packaging, metal containers, etc. before pre- paring the food. Cooking –...

  • Page 35: Suitable Cookware And Material

    Cookware/Material Ovenproof glass and porcelain (with no metal components, e. g. Pyrex, heatproof glass) Non-ovenproof glass and porcelain Glass and glass ceramic made of oven- proof/frostproof material (e. g. Arco- flam), Grill shelf Ceramic , stoneware Heat-resistant plastic to 200°C...

  • Page 36: Microwave Cooking Table

    To be taken into consideration... • Foods have different shapes and compositions. They are prepared in different amounts. Therefore the necessary times and powers for de- frosting, heating and cooking are all different. As a rough guide: Double the amount = almost double the time •...
  • Page 37 Dish Size (g) Sausage Sliced sausage Dairy products Quark Butter Cheese Cream Cakes/Biscuits Yeast dough 1 item Cheesecake 1 item Cake (Cream ga- 1 item teau) Dry cake 1 item (e.g. stirred cake) Fruit flan 1 item Bread 1 kg Bread in slices 0.5 kg Rolls...
  • Page 38 Dish Heating Baby food in jars Baby milk (180 ml bottle) Ready meal Frozen ready meal Milk Water Sauce Soup Microwave M Cook- Power Size (g) ing time (Watts) (Mins.) 1000 0:20- 0:40 400-500 400-500 14-20 1 cup 1000 1:15- approx.
  • Page 39 Cooking Dish Size (g) Fish generally Fish fillet Vegetables, short cooking time, fresh Vegetables, short cooking time, frozen Vegetables, long cooking time, fresh Vegetables, long cooking time, frozen Boiled potatoes 800 g + 600 ml Rice 300 g + 600 ml Cook all vegetables covered.

  • Page 40: Combi-Function Table

    Combi-Function Table Oven Functions: Single Economy Grill Bakeware/ Dish Roasting dishes Chicken halves 2 x 600 g Potatoes Ovenproof au gratin glassware on 1000 g oven shelf Roast neck of pork 1100 g Crunch plate on bottom glass, pre- Apple...
  • Page 41 2 x 90 g Frozen pizza Ø 26cm 320 g The cooking times and temperatures given are guidelines only and depend upon the type and the qualities of the food. Temp. Microwave Oven °C Watt Time Oven Comments level mins. Turn...

  • Page 42: Tips For The Microwave

    Set longer cooking time or select higher microwave power. Please note that taller dishes need longer. Next time select a lower power and a longer time. Stir liquids, e.g. soup, part way through. Cook Power Oven time (Watts) level (Mins.) Glass 30-40 floor...

  • Page 43: Single Economy Grill

    Important: Always grill with the oven door closed. • When grilling, use the oven shelf and drip pan together. • The grilling times are for guidance only. • Grilling is particularly suitable for flat pieces of meat or fish.

  • Page 44: Programmes

    Programmes The appliance has 10 programmed functions which can be selected one after the other via the Baking and Roasting Programmes For settings, see chapter Options: Microwave Programmes. Pro- Func- gramme tion Defrost Weight Recipe Pre- setting Poultry 1,000 g 100 g 1,500 g Meat 800 g Fish...
  • Page 45 Pro- Func- gramme Recipe tion Frozen vegeta- bles (small) + 50 ml water Frozen vegeta- bles (large) + 50 ml water Fresh Boil vegetable s (small) + 50 ml water Fresh vegetable s (large) + 50 ml water Potatoes + 100 ml water Fish With the functions Defrost and Boil turn the food several times...

  • Page 46: Cleaning And Care

    Clean the appliance after each use. In this way, dirt is easier to clean off and is not allowed to burn on. 1. When the oven door is opened, the oven light switches itself on auto- matically. 2. After every use, wipe the oven with a solution of washing-up liquid and allow to dry.

  • Page 47: Side Rails

    Side rails For cleaning of the sides of the oven, the left and right side rails can be removed from the oven. Taking out the side rails To remove rails, take hold of them and then raise and lift them out of the mounts.

  • Page 48: Oven Lighting

    Warning: There is a danger of electric shock! Prior to changing the oven light bulb: • Switch off the oven! • Disconnect from the electricity supply. Place a cloth on the oven floor to protect the oven light and glass cover. Changing side oven light/ Cleaning glass cover 1.

  • Page 49: What To Do If

    Advice on cookers with metal fronts: Because of the cooler surface at the front of the cooker, opening the oven door during (or just after) baking or roasting may cause the glass to steam up. Possible cause The oven has not been...

  • Page 50: Installation Instructions

    Installation Instructions Attention: The new appliance may only be installed and connected by a registered expert. Please comply with this. If you do not, any damage resulting is not cov- ered by the warranty. Safety information for the installer • The electrical installation is to be set up so that the appliance can be isolated from the mains with a minimum 3mm all-pole contact sepa- ration.

  • Page 54: Warranty Conditions

    Warranty conditions Great Britain Standard guarantee conditions We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •...

  • Page 55: Service And Spare Parts

    0870 5 929 929 For Customer Service in the Republic of Ireland please contact us at the ad- dress below: AEG/ Electrolux Group (Ire) Ltd Long Mile Road/ Dublin 12 Republic of Ireland Tel: +353 (0) 1 4090754 Email: service.eid@electrolux.ie...
  • Page 56 From the Electrolux Group. The world´s No.1 choice. The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
