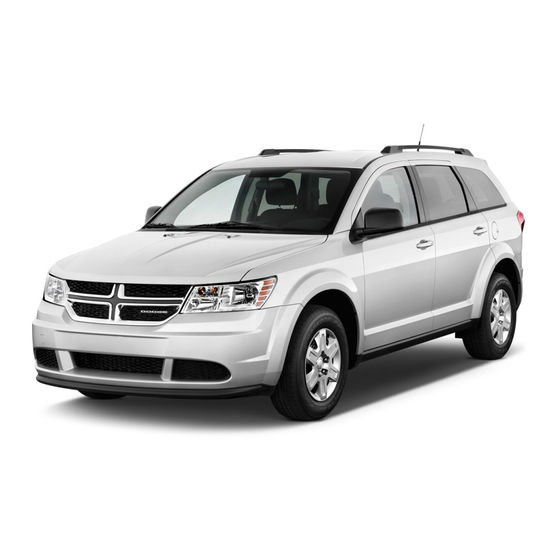

Page 1 Journey 2 0 1 1 O W N E R ’ S M A N U A L...
Page 2 VEHICLES SOLD IN CANADA With respect to any Vehicles Sold in Canada, the name This manual illustrates and describes the operation of Chrysler Group LLC shall be deemed to be deleted and features and equipment that are either standard or op- the name Chrysler Canada Inc.
Page 3: Introduction
TABLE OF CONTENTS SECTION PAGE ............3 INTRODUCTION .
Page 5: Table Of Contents
INTRODUCTION CONTENTS Introduction ......4 Vehicle Identification Number ....6 How To Use This Manual .
Page 6: Introduction
4 INTRODUCTION INTRODUCTION When it comes to service, remember that your authorized Congratulations on selecting your new Chrysler Group dealer knows your vehicle best, has factory-trained tech- LLC vehicle. Be assured that it represents precision nicians and genuine MOPAR parts, and cares about workmanship, distinctive styling, and high quality - all your satisfaction.
Page 7 INTRODUCTION 5...
Page 8: Vehicle Identification Number
6 INTRODUCTION WARNINGS AND CAUTIONS This Owners Manual contains WARNINGS against op- erating procedures that could result in a collision or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire Owners Manual, you may miss important information.
Page 9: Vehicle Modifications/Alterations
INTRODUCTION 7 VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to a accident resulting in serious injury or death. Stamped VIN Location NOTE: It is illegal to remove or alter the VIN.
Page 11: Things To Know Before Starting Your Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS A Word About Your Keys ....12 Vehicle Security Alarm — If Equipped ..17 Keyless Ignition Node (KIN) .
Page 12 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Remote Open Window Feature ... . 23 Windows ......38 Using The Panic Alarm .
Page 13 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11 Enhanced Seat Belt Use Reminder System Child Restraints ..... . 75 (BeltAlert ) ......58 Engine Break-In Recommendations .
Page 14: A Word About Your Keys
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS The Keyless Ignition Node (KIN) has four operating Your vehicle uses a keyless ignition system. This system positions, three of which are labeled and will illuminate consists of a Key Fob with Remote Keyless Entry (RKE) when in position.
Page 15: Key Fob
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 Key Fob The Key Fob also contains the Remote Keyless Entry (RKE) transmitter and an emergency key, which stores in the rear of the Key Fob. The emergency key allows for entry into the vehicle should the battery in the vehicle or the Key Fob go dead.
Page 16: Ignition Or Accessory On Message
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To remove the emergency key, slide the mechanical latch Ignition Or Accessory On Message on the back of the Key Fob sideways with your thumb Opening the driver’s door when the ignition is in ACC or and then pull the key out with your other hand.
Page 17: Sentry Key
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15 WARNING! CAUTION! • Never leave children alone in a vehicle. Leaving An unlocked car is an invitation to thieves. Always children in a vehicle unattended is dangerous for a remove the Key Fob from vehicle, cycle the ignition number of reasons.
Page 18: Replacement Keys
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE After cycling the ignition to the ON/RUN position, the CAUTION! Vehicle Security Light will turn on for three seconds for a bulb check. If the light remains on after the bulb check, it The Sentry Key Immobilizer system is not compat- indicates that there is a problem with the electronics.
Page 19: Customer Key Programming
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17 Customer Key Programming CAUTION! Programming Key Fobs or RKE transmitters may be performed at an authorized dealer. Always remove the keys from the vehicle and lock all doors when leaving the vehicle unattended. General Information The Sentry Key system complies with FCC rules Part 15 At the time of purchase, the original owner is provided...
Page 20: Rearming Of The System
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • For vehicles equipped with Keyless Enter-N-Go, make switches for door locks are disabled. If something trig- gers the alarm, the Vehicle Security Alarm will prevent sure the vehicle ignition system is OFF . the vehicle from starting and provide the following •...
Page 21: To Disarm The System
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19 • For vehicles not equipped with Keyless Enter-N-Go, 3. If any doors are open, close them. insert a valid key into the ignition switch and turn To Disarm The System the key to the ON position. The Vehicle Security Alarm can be disarmed using any of the following methods: NOTE:...
Page 22: Security System Manual Override
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE system will give you a false alarm. If one of the previ- Security System Manual Override ously described arming sequences has occurred, the The Vehicle Security Alarm will not arm if you lock the Vehicle Security Alarm will arm regardless of whether doors using the manual door lock plunger.
Page 23: Remote Keyless Entry (Rke)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21 NOTE: • The front courtesy overhead console and door cour- tesy lights do not turn on if the dimmer control is in the Dome ON position (extreme top position). • The Illuminated Entry system will not operate if the dimmer control is in the “Dome defeat”...
Page 24: To Lock The Doors And Liftgate
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If the vehicle is equipped with Passive Entry, refer to Turn Headlights On With Remote Key Unlock “Keyless Enter-N-Go” under “Things To Know Before This feature activates the headlights for up to 90 seconds Starting Your Vehicle”...
Page 25: Remote Open Window Feature
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23 Sound Horn With Remote Key Lock headlights and park lights will flash, the horn will pulse This feature will cause the horn to chirp when the doors on and off, and the interior lights will turn on. are locked with the RKE transmitter.
Page 26: Programming Additional Transmitters
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Programming Additional Transmitters 2. Insert the tip of the emergency key or a #2 flat blade Programming Key Fobs or RKE transmitters may be screwdriver into the slot and gently pry the two halves of performed at an authorized dealer.
Page 27: General Information
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25 solid surface such as a table or similar, then replace the NOTE: Changes or modifications not expressly ap- battery. When replacing the battery, match the + sign on proved by the party responsible for compliance could the battery to the + sign on the inside of the battery clip, void the user’s authority to operate the equipment.
Page 28: How To Use Remote Start
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • RKE PANIC button not pressed. NOTE: • The vehicle must be equipped with an automatic • System not disabled from previous remote start event transmission to be equipped with Remote Start. •...
Page 29 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27 Remote Start Abort Message On Electronic Vehicle To Enter Remote Start Mode Information Center (EVIC) — If Equipped Press and release the REMOTE START button The following messages will display in the EVIC if the on the RKE transmitter twice within five sec- vehicle fails to remote start or exits remote start prema- onds.
Page 30 28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • The engine can be started two consecutive times (two NOTE: The message “Push Start Button” will display in 15-minute cycles) with the RKE transmitter. However, the EVIC until you push the START button. the ignition must be cycled to the RUN position before Remote Start Comfort Systems —...
Page 31: Door Locks
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 DOOR LOCKS If the door lock knob is down when you shut the door, the door will lock. Therefore, make sure the Key Fob is Manual Door Locks not inside the vehicle before closing the door. To lock each door, push the door lock knob on each door trim panel downward.
Page 32: Power Door Locks
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • Never leave children alone in a vehicle. Leaving children in a vehicle unattended is dangerous for a number of reasons. A child or others could be seriously or fatally injured. Children should be warned not to touch the parking brake, brake pedal or the shift lever.
Page 33: Child-Protection Door Lock System - Rear Doors
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 power locks will not operate. This prevents you from 2. The transmission was in gear and the vehicle speed accidentally locking the Key Fob in the vehicle. Remov- returned to 0 mph (0 km/h). ing the Key Fob or closing the door will allow the locks to 3.
Page 34 32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Engage The Child-Protection Door Lock System 1. Open the rear door. 2. Insert the tip of the emergency key (or alike) into the child lock control and rotate it to the LOCK position. Child-Protection Door Lock Function 3.
Page 35 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 To Disengage The Child-Protection Door Lock WARNING! System Avoid trapping anyone in a vehicle in a collision. 1. Open the rear door. Remember that the rear doors can only be opened 2. Insert the tip of the emergency key (or alike) into the from the outside when the Child-Protection locks are child lock control and rotate it to the UNLOCK position.
Page 36: Keyless Enter-N-Go
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • If wearing gloves on your hands, or if it has been 3. Repeat Steps 1 and 2 for the opposite rear door. raining on the Passive Entry door handle, the unlock NOTE: After disengaging the Child-Protection Door sensitivity can be affected, resulting in a slower re- Lock system, always test the door from the inside to...
Page 37 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 NOTE: If “Unlock All Doors 1st Press” is programmed all doors will unlock when you grab hold of the driver’s front door handle. To select between “Unlock Driver Door 1st Press” and “Unlock All Doors 1st Press”, refer to “Uconnect Touch™...
Page 38 36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Enter The Liftgate Preventing Inadvertent Locking Of Passive Entry RKE With a valid Passive Entry RKE transmitter within 3 ft Transmitter In Vehicle (1.0 m) of the liftgate, press the button underneath the left To minimize the possibility of unintentionally locking a side of the accent bar, which is located on the liftgate Passive Entry RKE transmitter inside your vehicle, the...
Page 39 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 To Lock The Vehicle’s Doors NOTE: • After pressing the door handle LOCK button, you The front door handles have LOCK buttons located on the outside of the handles. must wait two seconds before you can lock or unlock the doors, using either Passive Entry door handle.
Page 40: Windows
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WINDOWS There are single window controls on each passenger door trim panel, which operate the passenger door windows. Power Windows The window controls will operate when the ignition is in The window controls on the driver’s door trim panel the ON/RUN or ACC position.
Page 41 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 Auto-Down Feature To close the window part way, pull the window switch The driver’s power window switch has an Auto-down up to the first detent and release it when you want the feature.
Page 42 40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Push the window switch down firmly to the second WARNING! detent to open the window completely and continue to hold the switch down for an additional two seconds after There is no anti-pinch protection when the window the window is fully open.
Page 43: Wind Buffeting
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 open or partially open positions. This is a normal occur- rence and can be minimized. If the buffeting occurs with the rear windows open, then open the front and rear windows together to minimize the buffeting. If the buffeting occurs with the sunroof open, adjust the sun- roof opening to minimize the buffeting or open any window.
Page 44: Occupant Restraints
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To open the unlocked liftgate, squeeze the handle and WARNING! pull the liftgate toward you. Gas props will raise and • Driving with the liftgate open can allow poison- support the liftgate in the open position. ous exhaust gases into your vehicle.
Page 45 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43 • Supplemental Active Head Restraints (AHR) located • All seat belt systems (except the driver’s) include on top of the front seats (integrated into the head Automatic Locking Retractors (ALRs) or a cinching restraint) —...
Page 46 44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: The Advanced Front Air Bags have a multistage secured in the rear seat in child restraints or belt- inflator design. This allows the air bag to have different positioning booster seats. Older children who do not use rates of inflation based on the severity and type of child restraints or belt-positioning booster seats should collision.
Page 47 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 4. Do not lean against the door or window. If your WARNING! (Continued) vehicle has side air bags, and deployment occurs, the • Being too close to the steering wheel or instrument side air bags will inflate forcefully into the space panel during Advanced Front Air Bag deployment between you and the door.
Page 48: Lap/Shoulder Belts
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Buckle up even though you are an excellent driver, even normal conditions. However, in an accident, the belt will on short trips. Someone on the road may be a poor driver lock and reduce your risk of striking the inside of the and cause an accident that includes you.
Page 49 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 2. The seat belt latch plate is located on the pillar near the WARNING! (Continued) back of your seat. Grasp the latch plate and pull out the • Wearing your belt in the wrong place could make belt.
Page 50 48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. When the belt is long enough to fit, insert the latch WARNING! plate into the buckle until you hear a “click.” • A belt that is buckled into the wrong buckle will not protect you properly.
Page 51 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49 4. Position the lap belt across your thighs, below your WARNING! (Continued) abdomen. To remove slack in the lap belt portion, pull up • A belt that is worn under your arm is dangerous. a bit on the shoulder belt.
Page 52 50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 6. To release the belt, push the red button on the buckle. WARNING! The belt will automatically retract to its stowed position. • A lap belt worn too high can increase the risk of If necessary, slide the latch plate down the webbing to allow the belt to retract fully.
Page 53: Lap/Shoulder Belt Untwisting Procedure
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 Adjustable Upper Shoulder Belt Anchorage As a guide, if you are shorter than average you will In the driver’s seat and front passenger’s seat, the shoul- prefer a lower position and if you are taller than average der belt can be adjusted upward or downward to posi- you will prefer a higher position.
Page 54: Seat Belts In Passenger Seating Positions
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • ALR — Automatic Locking Retractor 3. Slide the latch plate upward over the folded webbing. The folded webbing must enter the slot at the top of the If the passenger seating position is equipped with an latch plate.
Page 55: Energy Management Feature
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53 anytime a child safety seat is installed in a seating WARNING! position that has a belt with this feature. Children • The belt and retractor assembly must be replaced 12 years old and under should always be properly restrained in the rear seat.
Page 56: Seat Belt Pretensioners
54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: These devices are not a substitute for proper seat WARNING! belt placement by the occupant. The seat belt still must be • The belt and retractor assembly must be replaced worn snugly and positioned properly. if the seat belt assembly Automatic Locking Re- The pretensioners are triggered by the Occupant Re- tractor (ALR) feature or any other seat belt func-...
Page 57 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55 How The Active Head Restraints (AHR) Work The Occupant Restraint Controller (ORC) determines whether the severity, or type of rear impact will require the Active Head Restraints (AHR) to deploy. If a rear impact requires deployment, both the driver and front passenger seat AHRs will be deployed.
Page 58 56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 1. Grasp the deployed AHR from the rear seat. CAUTION! All occupants, including the driver, should not oper- ate a vehicle or sit in a vehicle’s seat until the head restraints are placed in their proper positions in order to minimize the risk of neck injury in the event of an accident.
Page 59 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 1 — Downward Movement 3 — Final Downward Movement To Engage Locking Mechanism 2 — Rearward Movement...
Page 60: Enhanced Seat Belt Use Reminder System (Beltalert )
58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • For safety reasons, have the Active Head Restraints 4. The AHR front soft foam and trim half should lock into the back decorative plastic half. checked by a qualified specialist at an authorized dealer.
Page 61 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59 BeltAlert will chime as a single notification and illumi- The BeltAlert can be enabled or disabled by your nate the Seat Belt Reminder Light, then will proceed to authorized dealer or by performing the following steps: the 96 second reminder sequence.
Page 62: Seat Belts And Pregnant Women
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 4. Cycle the ignition to the OFF position. A single chime Seat Belt Extender will sound to signify that you have successfully com- If a seat belt is too short even when fully extended and pleted the programming.
Page 63: Supplemental Restraint System (Srs) - Air Bags
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61 Supplemental Restraint System (SRS) — Air Bags This vehicle has Advanced Front Air Bags for both the driver and front passenger as a supplement to the seat belt restraint systems. The driver’s Advanced Front Air Bag is mounted in the center of the steering wheel.
Page 64 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The Advanced Front Air Bags have a multistage inflator This vehicle is equipped with Supplemental Seat- design. This allows the air bag to have different rates of Mounted Side Air Bags (SAB). The SABs are marked with inflation based on the severity and type of collision.
Page 65: Advanced Front Air Bag Features
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63 • Driver Side Knee Air Bag Advanced Front Air Bag Features The Advanced Front Air Bag system has multistage • Knee Impact Bolster driver and front passenger air bags. This system provides •...
Page 66 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Supplemental Seat-Mounted Side Air Bags (SAB) WARNING! Supplemental Seat-Mounted Side Air Bags may provide • No objects should be placed over or near the air enhanced protection to help protect an occupant during a bag on the instrument panel, because any such side impact.
Page 67 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65 When the air bag deploys, it opens the seam between the front and side of the seat’s trim cover. Each air bag deploys independently; a left side impact deploys the left air bag only and a right-side impact deploys the right air bag only.
Page 68 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Being too close to the SAB and SABIC air bags during Supplemental Driver Side Knee Air Bag deployment could cause you to be severely injured or The Supplemental Driver Side Knee Air Bag provides killed.
Page 69: Air Bag Deployment Sensors And Controls
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 Air Bag Deployment Sensors And Controls The Advanced Front Air Bags and Supplemental Driver Side Knee Air Bag will not deploy in all frontal collisions, Occupant Restraint Controller (ORC) including some that may produce substantial vehicle The ORC is part of a Federally regulated safety system damage —...
Page 70 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Seat belts are necessary for your protection in all acci- turns on the Air Bag Warning Light, either momentarily dents, and also are needed to help keep you in position, or continuously. A single chime will sound if the light away from an inflating air bag.
Page 71 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69 Driver And Passenger Advanced Front Air Bag The Advanced Front Air Bag gas is vented through the Inflator Units vent holes in the sides of the air bag. In this way, the air The Driver and Passenger Advanced Front Air Bag bags do not interfere with your control of the vehicle.
Page 72 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Supplemental Seat-Mounted Side Air Bag (SAB) Supplemental Side Air Bag Inflatable Curtain Inflator Units (SABIC) Inflator Units The Supplemental Seat-Mounted Side Air Bags (SAB) are During collisions where the impact is confined to a designed to activate only in certain side collisions.
Page 73 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71 • Flash hazard lights as long as the battery has power or Because air bag sensors estimate deceleration over time, vehicle speed and damage are not good indicators of until the ignition is cycled to off. whether or not an air bag should have deployed.
Page 74 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE front passenger as the air bags deploy and unfold. The Do not drive your vehicle after the air bags have de- abrasions are similar to friction rope burns or those ployed. If you are involved in another collision, the air you might get sliding along a carpet or gymnasium bags will not be in place to protect you.
Page 75 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73 Maintaining Your Air Bag System WARNING! (Continued) • Do not attempt to modify any part of your air bag WARNING! system. The air bag may inflate accidentally or • Modifications to any part of the air bag system may not function properly if modifications are could cause it to fail when you need it.
Page 76: Event Data Recorder (Edr)
74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Air Bag Warning Light NOTE: If the speedometer, tachometer, or any engine You will want to have the air bags ready to related gauges are not working, the Occupant Restraint inflate for your protection in a collision. The Controller (ORC) may also be disabled.
Page 77: Child Restraints
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75 • Whether or not the driver and passenger safety belts To read data recorded by an EDR, special equipment is were buckled/fastened; required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, •...
Page 78 76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Infants And Child Restraints WARNING! • Safety experts recommend that children ride In a collision, an unrestrained child, even a tiny baby, rearward-facing in the vehicle until they are at least can become a projectile inside the vehicle. The force one year old and weigh at least 20 lbs (9 kg).
Page 79 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77 The belt-positioning booster seat is for children weighing WARNING! more than 40 lbs (18 kg), but who are still too small to fit the vehicle’s seat belts properly. If the child cannot sit Rearward-facing child seats must never be used in with knees bent over the vehicle’s seat cushion while the the front seat of a vehicle with the front passenger air...
Page 80 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: The second row bench with Integrated Child 3. Lift the seat cushion up and push back to lock it in the Booster Seat must remain in the full rear position during booster seat position.
Page 81 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79 6. Slide the latch plate up the webbing as far as necessary 8. To remove the slack from the lap belt, pull upward on to allow the seat belt to go around the child’s lap. the shoulder portion of the seat belt.
Page 82 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • The lap portion should be low on the hips and as snug WARNING! as possible. • Improper installation can lead to failure of an • Check belt fit periodically. A child’s squirming or infant or child restraint.
Page 83 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81 you make sure that you can install the child restraint in Lower Anchors and Tether for CHildren (LATCH) the vehicle where you will use it before you buy it. Your vehicle’s second row passenger seats are equipped with the child restraint anchor system called LATCH.
Page 84 82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE kits or retrofit kits. You are urged to take advantage of all the available attachments provided with your child re- straint in any vehicle. All three second-row passenger seating positions have lower anchors that are capable of accommodating LATCH-compatible child seats.
Page 85 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 83 Installing The LATCH-Compatible Child Restraint System We urge you to follow the manufacturer’s directions carefully when installing your child restraint. Not all child restraint systems will be installed as described here. Again, carefully follow the installation instructions that are provided with the child restraint system.
Page 86 84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE In addition, there are tether strap anchors located behind means of adjusting the tension in the strap. Forward- each rear seatback, near to the floor. facing toddler restraints and some rear-facing infant restraints will also be equipped with a tether strap, a hook for attachment to the tether strap anchor and a means of adjusting the tension of the strap.
Page 87 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 85 Finally, tighten all three straps as you push the child WARNING! restraint rearward and downward into the seat, remov- ing slack in the straps according to the child restraint Improper installation of a child restraint to the manufacturer’s instructions.
Page 88 86 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE “Automatic Locking Mode”. The chart below defines the retracts, you will hear a ratcheting sound. This indicates seating positions with an Automatic Locking Retractor the safety belt is now in the Automatic Locking mode. (ALR) or a cinching latch plate.
Page 89 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 87 Tether Strap Mounting Seat Track Release Lever 2. If necessary, move the seat forward to provide better 3. Attach the tether strap hook of the child restraint to the access to the tether anchor. tether anchor and remove slack in the tether strap according to the child restraint manufacturer’s instruc- tions.
Page 90: Engine Break-In Recommendations
88 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: Ensure that the tether strap does not slip into the ENGINE BREAK-IN RECOMMENDATIONS opening between the seatbacks as you remove slack in A long break-in period is not required for the engine and the strap.
Page 91: Safety Tips
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 89 A new engine may consume some oil during its first few WARNING! (Continued) thousand miles (kilometers) of operation. This should be • It is extremely dangerous to ride in a cargo area, considered a normal part of the break-in and not inter- inside or outside of a vehicle.
Page 92: Exhaust Gas
90 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Do not run the engine in a closed garage or in confined WARNING! (Continued) areas any longer than needed to move your vehicle in or • On seven passenger models, do not allow a pas- out of the area.
Page 93: Safety Checks You Should Make Inside The Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 91 damaged, have a competent mechanic inspect the com- Air Bag Warning Light plete exhaust system and adjacent body areas for broken, The light should turn on and remain on for four to six damaged, deteriorated, or mispositioned parts.
Page 94 92 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! WARNING! (Continued) • Check mounting of mats on a regular basis. Al- Pedals that cannot move freely can cause loss of ways properly reinstall and secure floor mats that vehicle control and increase the risk of serious per- have been removed for cleaning.
Page 95: Periodic Safety Checks You Should Make Outside The Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 93 Periodic Safety Checks You Should Make Outside Door Latches The Vehicle Check for positive closing, latching, and locking. Tires Fluid Leaks Examine tires for excessive tread wear and uneven wear Check area under vehicle after overnight parking for fuel, patterns.
Page 97 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS Mirrors ......101 Uconnect™ Phone ..... 105 Inside Day/Night Mirror .
Page 98 96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Uconnect™ Phone ..... 127 Seats ......167 Uconnect Touch™...
Page 99 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97 50/50 Split Third-Row Passenger Seats With Multifunction Lever ....195 Fold-Flat Feature — Seven Turn Signals ......195 Passenger Models .
Page 100 98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Headlights With Wipers (Available With Parksense Display ....208 Automatic Headlights Only) ... . 202 Enabling And Disabling Parksense .
Page 101 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99 Power Sunroof Switch — If Equipped ..220 Closing Sunroof — Express ... . . 228 Garage Door Opener — If Equipped ..220 Closing Sunroof —...
Page 102 100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Cupholders ......237 In-Floor Storage Bin With Removable Liner . . 243 Storage .
Page 103: Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101 MIRRORS Inside Day/Night Mirror A two-point pivot system allows for horizontal and vertical adjustment of the mirror. Adjust the mirror to center on the view through the rear window. Headlight glare can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle).
Page 104: Automatic Dimming Mirror - If Equipped
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Automatic Dimming Mirror — If Equipped CAUTION! This mirror automatically adjusts for headlight glare from vehicles behind you. This feature will be defaulted To avoid damage to the mirror during cleaning, never on, and only be disabled when the vehicle is moving in spray any cleaning solution directly onto the mirror.
Page 105: Power Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103 WARNING! Vehicles and other objects seen in the passenger side convex mirror will look smaller and farther away than they really are. Relying too much on your passenger side convex mirror could cause you to collide with another vehicle or other object.
Page 106: Power Folding Mirrors - If Equipped
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Models With Express Window Feature If the mirrors are in the folded position, and vehicle Press and release the mirror select button marked L (left) speed is equal or greater than 5 mph (8 km/h), they will or R (right) and then press one of the four arrow buttons automatically unfold.
Page 107: Uconnect™ Phone
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105 mirror cover upward. The light will turn on automati- 2. Unclip the visor from the center clip. cally. Closing the mirror cover will turn off the light. 3. Pull the sun visor toward the inside rearview mirror to extend it.
Page 108 • Dialing via Keypad using touch-screen, • www.chrysler.com/uconnect • Viewing and Calling contacts from Phonebooks dis- • www.dodge.com/uconnect played on the touch-screen, • Setting Favorite Contact Phone numbers so the are • www.jeep.com/uconnect easily accessible on the Main Phone screen, •...
Page 109 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107 If your mobile phone only supports the Headset Profile Uconnect™ features Bluetooth technology - the global you may not be able to use any Uconnect™ Phone standard that enables different electronic devices to con- features.
Page 110: Operation
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Uconnect™ Voice Command Button 2. Say the individual commands and allow the system to The Uconnect™ Voice Command Button guide you to complete the task. is only used for “barge in” and when you are You will be prompted for a specific command and then already in a call and you want to send Tones or guided through the available options.
Page 111 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109 for it. For example, you can use the compound com- The system handles multiple inputs in the same phrase mand form voice command “Search for John Smith”, or sentence such as “make a phone call” and “to Kelly or you can break the compound command form into Smith”.
Page 112 110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To activate the Uconnect™ Phone from idle, simply press To complete the pairing process, you will need to refer- button and say a command or say “help”. All ence your mobile phone Owner’s Manual. The Uconnect™...
Page 113 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111 • Change the Source to Bluetooth , select “Yes” you will go the “Paired Phones” screen, if you select “No” you will return to the Uconnect™ • Touch the “Add Device” soft-key, Phone main menu. •...
Page 114 112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE You can also use the following VR command to bring up Disconnecting A Phone Or Audio Device a list of paired audio devices. • Touch the “Settings” hard-key, • “Show Paired Audio Devices” •...
Page 115 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 • To call a name from a downloaded mobile phonebook, Making A Phone Or Audio Device A Favorite follow the procedure in “Call by Saying a Name” • Touch the “Settings” hard-key, section. •...
Page 116: Phone Call Features
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • This downloaded phonebook cannot be edited or • Follow the on-screen prompts to complete the task. deleted on the Uconnect™ Phone. These can only be Phone Call Features edited on the mobile phone. The changes are trans- The following features can be accessed through the ferred and updated to Uconnect™...
Page 117 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115 • Mobile Phonebook, • The Uconnect™ Phone will dial the number associated with John Doe, or if there are multiple numbers it will • Recent Call Log. ask which number you want to call for John Doe. NOTE: All of the above operations except Redial can be Call Controls done with 1 call or less active.
Page 118 116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Missed Calls Touch-Tone Number Entry • Touch the “Phone” soft-key, • All Calls • Touch the “Dial” soft-key, These can be accessed by touching the recent calls soft-key on the Phone main screen. •...
Page 119 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117 Answer Or Reject An Incoming Call — Call by the phone number or phonebook entry you wish to Currently In Progress call. The first call will be on hold while the second call is If a call is currently in progress and you have another in progress.
Page 120: Uconnect™ Phone Features
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • The Uconnect™ Phone will call the last number that Join Calls When two calls are in progress (one active and one on was dialed from your mobile phone. hold), touch the “Join Calls” soft-key on the Phone main Call Continuation screen to combine all calls into a Conference Call.
Page 121 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 • The Uconnect™ Phone does slightly lower your If the phone is not reachable and the Uconnect™ Phone is operational, you may reach the emergency number as chances of successfully making a phone call as to that follows: for the mobile phone directly.
Page 122 120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: You can use your Uconnect™ Phone to access a voice • The towing assistance number dialed is based on the mail system or an automated service, such as a paging country where the vehicle is purchased (1-800-528- service or automated customer service line.
Page 123 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121 • Pauses, wait or other characters that are supported by You can also send stored mobile phonebook entries as tones for fast and easy access to voice mail and pager some phones are not supported over Bluetooth . entries.
Page 124 122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Touch the “Display” soft-key, then scroll down to audio system. The Uconnect™ Phone will work the same Voice Response Length, as if you dial the number using voice command. • Select either “Brief” or “Detailed” by touching the box NOTE: Certain brands of mobile phones do not send the next to the selection.
Page 125: Advanced Phone Connectivity
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123 Advanced Phone Connectivity Things You Should Know About Your Uconnect™ Phone Transfer Call To And From Mobile Phone The Uconnect™ Phone allows ongoing calls to be trans- Voice Command ferred from your mobile phone to the Uconnect™ Phone •...
Page 126 124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • low road noise, • You can say “O” (letter “O”) for “0” (zero). • smooth road surface, • Even though international dialing for most number combinations is supported, some shortcut dialing • fully closed windows, number combinations may not be supported.
Page 127 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125 • Performance, such as audio clarity, echo, and loudness Bluetooth Communication Link to a large degree rely on the phone and network, and Mobile phones have been found to lose connection to the not the Uconnect™...
Page 128 126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Tree...
Page 129: General Information
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127 General Information Uconnect™ Phone supports the following features: This device complies with Part 15 of the FCC rules and Voice Activated Features: RSS 210 of Industry Canada. Operation is subject to the • Hands Free dialing via Voice (“Call John Smiths Mo- following conditions: bile”...
Page 130 • Setting Favorite Contact Phone numbers so the are • www.chrysler.com/uconnect easily accessible on the Main Phone screen. • www.dodge.com/uconnect • Viewing and Calling contacts from Recent Call logs. • www.jeep.com/uconnect • Reviewing your recent Incoming SMS. • or call 1–877–855–8400 •...
Page 131 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129 phone and one audio device can be used with the system WARNING! at a time. The system is available in English, Spanish, or French languages. Any voice commanded system should be used only in safe driving conditions following local laws and Uconnect™...
Page 132: Operation
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE if your vehicle is equipped. Please see the Uconnect™ 2. Say the individual commands and allow the system to Voice Command section for direction on how to use the guide you to complete the task. button.
Page 133 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131 for it. For example, you can use the compound com- The system handles multiple inputs in the same phrase mand form voice command “Search for John Smith”, or sentence such as “make a phone call” and “to Kelly or you can break the compound command form into Smith”.
Page 134 132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To activate the Uconnect™ Phone from idle, simply press Pair (Link) Uconnect™ Phone To A Mobile Phone button and say a command or say “help”. All To begin using your Uconnect™ Phone, you must pair your compatible Bluetooth enabled mobile phone.
Page 135 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 phone. When prompted on the phone, enter the name and PIN shown on the Uconnect Touch™ screen. • If No is selected, touch the “Settings” soft-key from the Uconnect™ Phone main screen, • Touch the “Add Device” soft-key, •...
Page 136 134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 4. Uconnect™ Phone will display an in process screen Pair Additional Mobile Phones while the system is connecting. • Touch the “More” soft-key to begin, • Touch the “Settings” soft-key, • Next, touch the “Phone/Bluetooth ” soft-key, •...
Page 137 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 • “Show Paired Phones” or • “Connect My Phone” Pair A Bluetooth Streaming Audio Device • Touch the “Player” soft-key to begin, • Change the Source to Bluetooth , • Touch the “Bluetooth ” soft-key, •...
Page 138 136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • When the pairing process has successfully completed, • Touch the “Settings” soft-key, the system will prompt you to choose whether or not • Touch the “Phone/Bluetooth ” soft-key, this is your favorite device. Selecting Yes will make •...
Page 139 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137 • The options pop-up will be displayed, Deleting A Phone Or Audio Device • Touch the “Settings” soft-key, • Touch the “Make Favorite” soft-key; you will see the chosen device move to the top of the list, •...
Page 140 138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Automatic download and update, if supported, begins • This downloaded phonebook cannot be edited or as soon as the Bluetooth wireless phone connection is deleted on the Uconnect™ Phone. These can only be made to the Uconnect™...
Page 141 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139 touch “Add from Mobile”. You will then be asked which contact and number to choose from your mobile phone- book. When complete the new favorite will be shown. NOTE: If the Favorites list is full, you will be asked to remove an existing favorite.
Page 142 140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Next select Favorites on the left side of the screen and Emergency And Towing Assistance then touch the + Options soft-key. The Emergency and Towing Favorite numbers can only be altered. These cannot be deleted and the names cannot •...
Page 143: Phone Call Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141 For example, if your mobile service plan provides three- way calling, this feature can be accessed through the Uconnect™ Phone. Check with your mobile service pro- vider for the features that you have. Ways To Initiate A Phone Call Listed below are all the ways you can initiate a phone call with Uconnect™...
Page 144 142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: All of the above operations except Redial can be Call Controls done with 1 call or less active. The touch-screen allows you to control the following call features: Dial By Saying A Number •...
Page 145 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143 Touch-Tone Number Entry Recent Calls You may browse up to 34 of the most recent of each of the • Touch the “Phone” soft-key, following call types: • Touch the “Dial” soft-key, • The Touch-Tone screen will be displayed, •...
Page 146 144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE These can be accessed by touching the “recent calls” Answer Or Ignore An Incoming Call — Call soft-key on the Phone main screen. Currently In Progress If a call is currently in progress and you have another You can also press the button and say “Show my incoming call, you will hear the same network tones for...
Page 147 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145 in progress. Or you can place a call on hold by touching Join Calls the Hold soft-key on the Phone main screen, then dial a When two calls are in progress (one active and one on number from the dialpad, recent calls, SMS Inbox or from hold), touch the “Join Calls”...
Page 148: Uconnect™ Phone Features
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • The Uconnect™ Phone will call the last number that If the phone is not reachable and the Uconnect™ Phone is was dialed from your mobile phone. operational, you may reach the emergency number as follows: Call Continuation •...
Page 149 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147 • The Uconnect™ Phone does slightly lower your NOTE: • The towing assistance call may also be initiated by chances of successfully making a phone call as to that for the mobile phone directly. touch.
Page 150 148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE You can use your Uconnect™ Phone to access a voice You can also send stored mobile phonebook entries as mail system or an automated service, such as a paging tones for fast and easy access to voice mail and pager service or automated customer service line.
Page 151 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149 • Pauses, wait or other characters that are supported by • Touch the “Display” soft-key, then scroll down to some phones are not supported over Bluetooth . Voice Response Length, These additional symbols will be ignored in the dial- •...
Page 152: Advanced Phone Connectivity
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE audio system. The Uconnect™ Phone will work the same Advanced Phone Connectivity as if you dial the number using voice command. Transfer Call To And From Mobile Phone NOTE: Certain brands of mobile phones do not send the The Uconnect™...
Page 153: Things You Should Know About Your Uconnect™ Phone
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151 • low road noise, Things You Should Know About Your Uconnect™ Phone • smooth road surface, Voice Command • fully closed windows, • For best performance, adjust the rearview mirror to • dry weather condition. provide at least ⁄...
Page 154 152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Even though international dialing for most number • Performance, such as audio clarity, echo, and loudness combinations is supported, some shortcut dialing to a large degree rely on the phone and network, and number combinations may not be supported.
Page 155 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153 NOTE: Uconnect™ Phone SMS is only available when the vehicle is not in moving. Once a message is received and viewed or listened to, you will have the following options: Read Messages: • Send a Reply If you receive a new text message while your phone is •...
Page 156 154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Send Messages Using Soft-Keys: You can send messages using Uconnect™ Phone. To send a new message: • Touch the “Phone” soft-key, • Touch the “messaging” soft-key then “New Message”, • Touch one of the 18 preset messages and the person you wish to send the message to, •...
Page 157 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155 Send Messages Using Voice Commands: • Press the button, • After the “Listening” prompt and the following beep, say “Send message to John Smith mobile”, • After the system prompts you for what message you want to send, say the message you wish to send or say “List”.
Page 158 156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE List of Preset Messages: 13. Start without me. 1. Yes. 14. Where are you? 2. No. 15. Are you there yet? 3. Okay. 16. I need directions. 4. I can’t talk right now. 17.
Page 159 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157 Voice Tree...
Page 160 158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 161: General Information
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159 General Information VOICE COMMAND This device complies with Part 15 of the FCC rules and Uconnect Touch™ 8.4/8.4 Nav RSS 210 of Industry Canada. Operation is subject to the The Uconnect™ Voice Command system al- following conditions: lows you to control your AM, FM radio, satel- •...
Page 162 160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE If a command is not spoken a second time, the system WARNING! will respond with an error and give some direction as what can be said based on the context you are in. After Any voice commanded system should be used only three consecutive failures of a spoken command the VR in safe driving conditions following local laws.
Page 163: Uconnect™ Voice Commands
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161 The system will best recognize your speech if the win- Smith”. For multiple inputs in the same phrase or sen- dows are closed, and the heater/air conditioning fan is tence, the system identifies the topic or context and set to low.
Page 164 162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Changing the Volume Starting Voice Recognition (VR) Session in Radio/Player Modes 1. Start a dialogue by pressing the Voice Command In this mode, you can say the following commands: button. NOTE: The commands can be said on any screen when 2.
Page 165: Voice Tree
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163 Voice Tree...
Page 166 164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 167 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165...
Page 168 166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 169: Seats
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167 SEATS Driver’s Power Seat — If Equipped Seats are a part of the Occupant Restraint System of the The power seat switch is on the outboard side of the seat vehicle. near the floor. Use this switch to move the seat up, down, forward, rearward or to tilt the seat.
Page 170 168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Adjusting The Seat Forward Or Rearward WARNING! The seat can be adjusted both forward and rearward. • Adjusting a seat while driving may be dangerous. Push the seat switch forward or rearward; the seat will move in the direction of the switch.
Page 171: Power Lumbar - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169 CAUTION! Do not place any article under a power seat or impede its ability to move as it may cause damage to the seat controls. Seat travel may become limited if movement is stopped by an obstruction in the seat’s path.
Page 172 170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE For Vehicles Equipped With Uconnect Touch™ 4.3: Touch the CLIMATE hard-key (located on the left side of the Uconnect Touch™ display) to enter the climate con- trol screen. Touch the “Driver” or “Pass” seat soft-key (located on the Uconnect Touch™...
Page 173 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171 system will automatically switch to LO-level after a maximum of 60 minutes of continuous operation. At that time, the display will change from HI to LO, indicating the change. The LO-level setting will turn OFF automati- cally after a maximum of 45 minutes.
Page 174: Manual Front Seat Adjustments
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Manual Front Seat Adjustments WARNING! (Continued) For models equipped with manual seats, the driver and • Do not place anything on the seat that insulates passenger seats can be adjusted forward or rearward by against heat, such as a blanket or cushion.
Page 175: Recliner Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173 While sitting in the seat, lift up on the bar located and lever, lean back to the desired position and release the move the seat forward or rearward. Release the bar once lever. To return the seatback to its normal upright posi- the desired position has been reached.
Page 176: Driver's Seat Height Adjustment - If Equipped
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! • Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of the seat could cause you to lose control. The seat belt might not be adjusted properly and you could be injured. Adjust the seat only while the vehicle is parked.
Page 177: Head Restraints
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175 hardback surface that you can use as a work surface WARNING! when the seat is folded flat and the vehicle is not in motion. Adjusting a seat while the vehicle is moving is dangerous.
Page 178 176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE When AHRs deploy during a rear impact, the front half WARNING! of the head restraint extends forward to minimize the gap between the back of the occupant’s head and the AHR. The head restraints for all occupants must be prop- This system is designed to help prevent or reduce the erly adjusted prior to operating the vehicle or occu- extent of injuries to the driver and front passenger in...
Page 179 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177 Push Button Active Head Restraint (Normal Position) For comfort, the Active Head Restraints can be tilted forward and backward. To tilt the head restraint closer to the back of your head, pull forward on the bottom of the head restraint.
Page 180 178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • In the event of deployment of an Active Head Re- straint, refer to “Occupant Restraints/Supplemental Active Head Restraints (AHR)/Resetting Active Head Restraints (AHR)” in “Things To Know Before Starting Your Vehicle” for further information. WARNING! •...
Page 181 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179 WARNING! (Continued) • Active Head Restraints may be deployed if they are struck by an object such as a hand, foot or loose cargo. To avoid accidental deployment of the Ac- tive Head Restraint ensure that all cargo is se- cured, as loose cargo could contact the Active Head Restraint during sudden stops.
Page 182: Third Row Passenger Seats - Seven Passenger Models
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • For proper routing of a Child Seat Tether, refer to WARNING! “Occupant Restraints” in “Things To Know Before Starting Your Vehicle”. Do not allow a passenger to sit in a third row seat without having the head restraint unfolded and WARNING! locked in place.
Page 183 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181 To Fold The Seat WARNING! 1. Locate the control lever on the lower outboard side of • It is extremely dangerous to ride in a cargo area, the seat. inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seri- ously injured or killed.
Page 184 182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 3. Lift the control lever with the other hand, allow the To Unfold The Seat seatback to move forward slightly, and then release the Raise the seatback and lock it in place. lever. WARNING! WARNING! Be certain that the seatback is locked securely into...
Page 185 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183 WARNING! Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of the seat could cause you to lose control. The seat belt might not be adjusted properly and you could be injured. Adjust any seat only while the vehicle is parked.
Page 186 184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Recliner Adjustment WARNING! The recline lever is on the outboard side of the seat. To • Adjusting a seat while the vehicle is moving is recline the seatback, lean back, lift the lever, position the seatback as desired, and then release the lever.
Page 187 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185 WARNING! Keep the latch clean and free of objects and be certain that the seatback/armrest is locked securely into position. Otherwise, the seat will not provide the proper stability for child seats and/or passengers. An improperly latched seat could cause serious injury.
Page 188 186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Move the control lever on the upper outboard side of the seatback forward. Then, in one fluid motion, the seat cushion flips upward and the seat moves forward on its tracks. Tip n Slide Seat™ NOTE: A hand-grip is molded into the front of each quarter trim panel near the door opening to assist entry and exit from the third-row passenger seats.
Page 189: 50/50 Split Third-Row Passenger Seats With Fold-Flat Feature - Seven Passenger Models
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187 WARNING! WARNING! Do not drive the vehicle with the seat in this posi- Be certain that the seatback and seat are locked tion, as it is only intended for entering and exiting securely into position. Otherwise, the seat will not the third row seats.
Page 190 188 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Fold The Seatback To Unfold The Seatback Pull the latch release-loop located at the top of the Grasp the assist strap loop on the seatback and pull it seatback upward, push the seatback forward slightly, and toward you to raise the seatback.
Page 191 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189 The seatback can also be locked in the reclined position. WARNING! (Continued) To do so, pull the latch release-loop located at the top of • Do not allow a passenger to sit in a third row seat the seatback upward, allow the seatback to recline, and without having the head restraint unfolded and release the release-loop.
Page 192: To Open And Close The Hood
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE TO OPEN AND CLOSE THE HOOD 2. Outside of the vehicle, locate the safety latch lever Two latches must be released to open the hood. near the center of the grille between the grille and hood opening.
Page 193 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191 Use the hood prop rod to secure the hood in the open CAUTION! position. Place the upper end of the prop rod in the hole on the underside of the hood. To prevent possible damage: •...
Page 194: Lights
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE LIGHTS Rotate the headlight switch clockwise to the first detent for parking lights and instrument panel light operation. Headlight Switch Rotate the headlight switch to the second detent for The headlight switch is located on the left side of the headlight, parking light and instrument panel light instrument panel.
Page 195: Headlights On With Wipers (Available With Automatic Headlights Only)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193 Headlights On With Wipers To activate the delay feature, turn OFF the ignition switch (Available With Automatic Headlights Only) while the headlights are still on. Then, turn off the When this feature is active, the headlights will turn on headlights within 45 seconds.
Page 196: Daytime Running Lights (Drl) - If Equipped
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Daytime Running Lights (DRL) — If Equipped Fog Lights — If Equipped The Daytime Running Lights will turn ON the first time The front fog light switch is built into the headlight the vehicle is shifted out of PARK, and remain ON unless switch.
Page 197: Multifunction Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195 To activate the front fog lights, turn on the parking lights or the low beam headlights and press the headlight switch. To turn off the front fog lights, either press the headlight switch a second time or turn off the headlight switch.
Page 198: Lane Change Assist
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Flash-To-Pass • If either light remains on and does not flash, or there is You can signal another vehicle with your headlights by a very fast flash rate, check for a defective outside light lightly pulling the multifunction lever toward you.
Page 199 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 197 Rotating the left dimmer control upward with the park- Dome Light Position ing lights or headlights on will increase the brightness of Rotate the dimmer control completely upward to the the instrument panel lights. second detent to turn on the interior lights.
Page 200: Map/Reading Lights
198 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Map/Reading Lights These lights are mounted between the sun visors on the overhead console. Refer to “Overhead Console” in “Un- derstanding The Features Of Your Vehicle” for further information. WINDSHIELD WIPERS AND WASHERS The windshield wiper/washer control lever is located on the left side of the steering column.
Page 201: Intermittent Wiper System
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 199 Intermittent Wiper System There are five delay settings, which allow you to regulate Use the intermittent wiper system when weather condi- the wipe interval from a minimum of one cycle every two tions make a single wiping cycle, with a variable pause seconds to a maximum of approximately 36 seconds between cycles, desirable.
Page 202: Windshield Wiper Operation
200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Windshield Wiper Operation NOTE: The wipers will automatically return to the Rotate the end of the lever upward, to the first detent past “park” position if you turn OFF the ignition switch while the intermittent settings for low-speed wiper operation.
Page 203: Windshield Washers
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 201 If you activate the washer while the wiper control is in CAUTION! (Continued) the OFF position, the wipers will operate for two or three • Always remove any buildup of snow that prevents wipe cycles and then turn OFF.
Page 204: Headlights With Wipers (Available With Automatic Headlights Only)
202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: The mist feature does not activate the washer TILT/TELESCOPING STEERING COLUMN pump; therefore, no washer fluid will be sprayed on the This feature allows you to tilt the steering column windshield. The wash function must be used in order to upward or downward.
Page 205: Electronic Speed Control - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203 To unlock the steering column, push the control handle ELECTRONIC SPEED CONTROL — IF EQUIPPED downward. To tilt the steering column, move the steering When engaged, the Electronic Speed Control takes over wheel upward or downward as desired. To lengthen or accelerator operations at speeds greater than 25 mph shorten the steering column, pull the steering wheel (40 km/h).
Page 206: To Activate
204 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The Electronic Speed Control buttons are located on the the same time. If this occurs, the Electronic Speed Control right side of the steering wheel. System can be reactivated by pushing the Electronic Speed Control ON/OFF button and resetting the desired vehicle set speed.
Page 207: To Set A Desired Speed
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 205 To Set A Desired Speed To Resume Speed Turn the Electronic Speed Control ON. When the vehicle To resume a previously set speed, push the RES (+) has reached the desired speed, press the SET (-) button button and release.
Page 208: To Accelerate For Passing
206 UNDERSTANDING THE FEATURES OF YOUR VEHICLE decrease until the button is released. Release the button On steep hills, a greater speed loss or gain may occur so when the desired speed is reached, and the new set speed it may be preferable to drive without Electronic Speed will be established.
Page 209: Parksense Sensors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 207 Usage Precautions” for limitations of this system and (200 cm) from the rear fascia/bumper in the horizontal recommendations. direction, depending on the location, type and orienta- tion of the obstacle. ParkSense will retain the last system state (enabled or disabled) from the last ignition cycle when the ignition is ParkSense Warning Display changed to the ON/RUN position.
Page 210: Parksense Display
208 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ParkSense Display When the vehicle is in REVERSE, the warning display will turn ON indicating the system status. Rear Park Assist OFF The system will indicate a detected obstacle by showing three solid arcs and will produce a one-half second tone. As the vehicle moves closer to the object, the EVIC Rear Park Assist Display display will show fewer arcs and the sound tone will...
Page 211 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209 Slow Tone Fast Tone...
Page 212 210 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The vehicle is close to the obstacle when the warning display shows one flashing arc and sounds a continuous tone. The following chart shows the warning alert opera- tion when the system is detecting an obstacle: Continuous Tone...
Page 213: Enabling And Disabling Parksense
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211 WARNING ALERTS Rear Distance Greater than 79-39 in 39-25 in 25-12 in Less than (in/cm) 79 in (200 cm) (200-100 cm) (100-65 cm) (65-30 cm) 12 in (30 cm) Audible Alert None Single 1/2- Slow Fast Continuous...
Page 214: Service The Parksense Rear Park Assist System
212 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The ParkSense system uses four sensors located in the If “CLEAN PARK ASSIST SENSORS” appears in the rear bumper fascia to scan for obstacles up to 79 in EVIC and the rear fascia/bumper is clean and clear of (200 cm) away from the rear bumper fascia.
Page 215 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 213 • Jackhammers, large trucks, and other vibrations could • Objects such as bicycle carriers, trailer hitches, etc., affect the performance of ParkSense . must not be placed within 12 in (30 cm) from the rear fascia/bumper while driving the vehicle.
Page 216 214 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! (Continued) WARNING! • The vehicle must be driven slowly when using • Drivers must be careful when backing up even ParkSense in order to be able to stop in time when using the ParkSense Rear Park Assist sys- when an obstacle is detected.
Page 217: Parkview Rear Back Up Camera - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 215 PARKVIEW REAR BACK UP CAMERA — IF WARNING! (Continued) EQUIPPED • Before using the ParkSense Rear Park Assist Your vehicle may be equipped with the ParkView Rear system, it is strongly recommended that the ball Back Up Camera that allows you to see an on-screen mount and hitch ball assembly is disconnected image of the rear surroundings of your vehicle whenever...
Page 218 216 UNDERSTANDING THE FEATURES OF YOUR VEHICLE When displayed, static grid lines will illustrate the width of the vehicle while a dashed center-line will indicate the center of the vehicle to assist with parking or aligning to a hitch/receiver. The static grid lines will show separate zones that will help indicate the distance to the rear of the vehicle.
Page 219: Turning Parkview On Or Off - With Touch Screen Radio
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 217 WARNING! CAUTION! (Continued) • To avoid vehicle damage, the vehicle must be Drivers must be careful when backing up even when driven slowly when using ParkView to be able to using the ParkView Rear Back Up Camera. Always stop in time when an obstacle is seen.
Page 220: Overhead Console
218 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 5. Press the check box soft key next to “Parkview Courtesy/Reading Lights Backup Camera” to enable/disable. The overhead console has two courtesy lights. The lights turn on when a front door, a sliding door or the liftgate is OVERHEAD CONSOLE opened.
Page 221: Sunglasses Storage
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 219 Courtesy/Reading Light Sunglass Storage Compartment Sunglasses Storage Interior Observation Mirror To access the storage compartment, press on the raised The convex interior observation mirror provides the bars on the compartment door in the center of the console driver and front seat passenger a wide field of view to and release and the door will swing downward.
Page 222: Power Sunroof Switch - If Equipped
220 UNDERSTANDING THE FEATURES OF YOUR VEHICLE door will swing downward), then raise the door until it is Power Sunroof Switch — If Equipped almost closed and release. The door will latch in position Refer to “Power Sunroof” in “Understanding the Fea- to use the interior observation mirror.
Page 223 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 221 WARNING! • Your motorized door or gate will open and close while you are training the Universal Transceiver. Do not train the transceiver if people, pets or other objects are in the path of the door or gate. Only use this transceiver with a garage door opener that has a “stop and reverse”...
Page 224: Programming Homelink
222 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Programming HomeLink Place the handheld transmitter 1–3 in (3-8 cm) away from the HomeLink button you wish to program while Before You Begin keeping the indicator light in view. If you have not trained any of the HomeLink buttons, erase all channels before you begin training.
Page 225 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 223 • After training a HomeLink channel, if the garage This can usually be found where the hanging antenna door does not operate with HomeLink and the ga- wire is attached to the garage door opener motor (it is rage door opener was manufactured after 1995, the NOT the button normally used to open and close the garage door opener may have a rolling code.
Page 226: Gate Operator/Canadian Programming
224 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 6. Firmly press and release the LEARN or TRAINING Gate Operator/Canadian Programming button. The name and color of the button may vary by Canadian radio-frequency laws require transmitter sig- manufacturer. nals to “time-out” (or quit) after several seconds of transmission –...
Page 227: Using Homelink
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 225 successfully accepted the frequency signal. The indica- Reprogramming A Single HomeLink Button tor light will flash slowly and then rapidly when fully To reprogram a channel that has been previously trained, trained. follow these steps: If you unplugged the device for training, plug it back in 1.
Page 228: Troubleshooting Tips
226 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The HomeLink Universal Transceiver is disabled when General Information the Vehicle Security Alarm is active. This device complies with FCC rules Part 15 and Industry Canada RSS-210. Operation is subject to the following Troubleshooting Tips two conditions: If you are having trouble programming HomeLink , here...
Page 229: Power Sunroof - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 227 POWER SUNROOF — IF EQUIPPED WARNING! The power sunroof switch is located between the sun • Never leave children in a vehicle with the key in visors on the overhead console. the ignition switch. Occupants, particularly unat- tended children, can become entrapped by the power sunroof while operating the power sunroof switch.
Page 230: Opening Sunroof - Express
228 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Opening Sunroof — Express position. The sunroof will close fully and stop automati- Press the switch rearward and release it within one-half cally. This is called “Express Close”. During Express second and the sunroof will open automatically from any Close operation, any movement of the switch will stop position.
Page 231: Pinch Protect Override
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 229 NOTE: If three consecutive sunroof close attempts re- Sunshade Operation sult in Pinch Protect reversals, the fourth close attempt The sunshade can be opened manually. However, the will be a Manual Close movement with Pinch Protect sunshade will open automatically as the sunroof opens.
Page 232: Sunroof Maintenance
230 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Sunroof Maintenance Sunroof Fully Closed Use only a nonabrasive cleaner and a soft cloth to clean Press the switch forward and release to ensure that the the glass panel. sunroof is fully closed. Ignition Off Operation ELECTRICAL POWER OUTLETS For vehicles not equipped with the Electronic Vehicle...
Page 233 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 231 A second 12 Volt (13 Amp) power outlet is located inside the center console storage area. Power is available with the ignition switch in the ON/RUN, ACC or LOCK position. Front 12 Volt Power Outlet This power outlet will also operate a conventional cigar lighter unit.
Page 234 232 UNDERSTANDING THE FEATURES OF YOUR VEHICLE A third fused 12 Volt power outlet is located on the back A fourth fused 12 Volt power outlet is located on the left of the center console. This power outlet has power quarter trim panel in the cargo area.
Page 235 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 233 CAUTION! • Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded the fuse protecting the system will need to be replaced. •...
Page 236 234 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! CAUTION! • Many accessories that can be plugged in draw To avoid serious injury or death: • Only devices designed for use in this type of power from the vehicle’s battery, even when not in use (i.e., cellular phones, etc.).
Page 237: Power Inverter - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 235 CAUTION! (Continued) • Power outlets are designed for accessory plugs only. Do not hang any type of accessory or acces- sory bracket from the plug. POWER INVERTER — IF EQUIPPED Your vehicle may be equipped with a 115 Volt AC (150 Watt maximum) power outlet located on the back of the center console.
Page 238: Power Inverter Operation
236 UNDERSTANDING THE FEATURES OF YOUR VEHICLE may have to be reset manually. To reset the inverter Power Inverter Operation manually press the power inverter button OFF and ON. The power inverter is turned on and off using the To avoid overloading the circuit, check the power ratings Uconnect Touch™...
Page 239: Cupholders
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 237 2. Press the “Outlet” soft-key to turn the power inverter For passengers in the second row there are two cuphold- On or Off. ers, located in the center armrest between the two seats. When the armrest is folded flat the cupholders are in the CUPHOLDERS back of the Head Restraint.
Page 240 238 UNDERSTANDING THE FEATURES OF YOUR VEHICLE For vehicles equipped with third row seating, there are WARNING! additional cupholders located in the trim panels. If containers of hot liquid are placed in the bottle In addition to cupholders, vehicles may also be equipped holder, they can spill when the door is closed, burn- with bottle holders.
Page 241: Storage
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 239 STORAGE Floor Console Storage An open storage area, or cubby bin, is located in the floor Glovebox Storage console. The glovebox storage compartment is located on the passenger side of the instrument panel. Pull on the release handle to open the glovebox storage compart- ment.
Page 242: Center Console Storage
240 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Center Console Storage There is a storage compartment located under the center console armrest. Opened Storage Compartment Sliding Armrest The center console armrest can also be slid rearward for easy access to the storage area. Center Console Pull upward on the release handle, located on the front of the lid, to open the storage compartment.
Page 243 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 241 WARNING! Do not operate this vehicle with a console compart- ment lid in the open position. Cellular phones, music players, and other handheld electronic devices should be stowed while driving. Use of these devices while driving can cause an accident due to distrac- tion, resulting in death or injury.
Page 244: Flip 'N Stow™ Front Passenger Seat Storage - If Equipped
242 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Flip ’n Stow™ Front Passenger Seat Storage — If NOTE: Make sure that objects inside the bin do not Equipped interfere with the latch before closing the seat. Push the The seat latch release-loop is located in the center of the seat cushion downward after closing it to make sure it seat cushion between the seat cushion and the seatback.
Page 245: Second-Row Map Pocket And Grocery Retainers - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 243 Second-Row Map Pocket And Grocery In-Floor Storage Bin With Removable Liner Retainers — If Equipped NOTE: Position the front seat to at least a mid-track A map storage pocket and grocery retainers are located position to provide easier access to the storage bin.
Page 246 244 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To access the bin, position the floor mat aside (if The liner can be removed for easy cleaning by lifting on equipped). Pull the door latch release-loop upward to the notches as shown. release the latch and then forward to open the bin door.
Page 247: Cargo Area Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 245 CARGO AREA FEATURES To operate the flashlight, press the switch once for high, twice for low, and a third time to return to off. Rechargeable Flashlight — If Equipped The rechargeable LED flashlight stores in its charging station in the left rear quarter trim panel.
Page 248: Cargo Management System
246 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Cargo Management System Seven Passenger System Features • A large built-in storage bin with a hinged hardcover Five Passenger System Features located in the floor behind the third-row passenger • A raised load floor that sits on top of a large built-in seats.
Page 249 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 247 Cargo Tie-Downs WARNING! Cargo tie-downs are not safe anchors for a child seat tether strap. In a sudden stop or collision, a tie-down could pull loose and allow the child seat to come loose.
Page 250 248 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Do not pile luggage or cargo higher than the top of the WARNING! seatback. This could impair visibility or become a dangerous projectile in a sudden stop or collision. The weight and position of cargo and passengers can change the vehicle center of gravity and vehicle •...
Page 251 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 249 The cover, when extended, covers the cargo area to keep items out of sight. Notches in the trim panels near the liftgate opening secure the extended cover in place. The cover rolls away neatly inside its housing when not in use.
Page 252: Rear Window Features
250 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Grab the cover handle and pull it toward you. As the WARNING! cover nears the liftgate opening, guide the rear attach- ment posts (on both ends of the cover) into the notches in A cargo cover that is unsecured in the vehicle could the trim panels.
Page 253 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 251 pump will continue to operate as long as the switch is held. Upon release, the wiper will cycle three times before returning to the set position. Rear Wiper/Washer Rotate the switch upward to the first detent posi- tion for rear wiper operation.
Page 254: Rear Window Defroster
252 UNDERSTANDING THE FEATURES OF YOUR VEHICLE to the “Park” position. When the vehicle is restarted, the CAUTION! (Continued) wiper will resume function at whichever position the • Always remove any buildup of snow that prevents switch is set at. the rear wiper blade from returning to the park position.
Page 255: Roof Luggage Rack - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 253 ROOF LUGGAGE RACK — IF EQUIPPED CAUTION! The roof rack side rails on your vehicle are NOT designed to carry a load without the addition of crossbars. Cross- Failure to follow these cautions can cause damage to bars can be purchased from MOPAR accessories to the heating elements:...
Page 256 254 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! CAUTION! (Continued) • Travel at reduced speeds and turn corners care- • To avoid damage to the roof rack and vehicle, do fully when carrying large or heavy loads on the not exceed the maximum roof rack load capacity of roof rack.
Page 257: Understanding Your Instrument Panel
UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS Instrument Panel Features ....257 Oil Change Required ....275 Instrument Cluster .
Page 258 256 UNDERSTANDING YOUR INSTRUMENT PANEL Customer Programmable Features — CD/DVD Disc Maintenance ....310 Uconnect Touch™ 4.3 Settings ... 280 Radio Operation And Mobile Phones .
Page 259: Instrument Panel Features
UNDERSTANDING YOUR INSTRUMENT PANEL 257 INSTRUMENT PANEL FEATURES 1 — Side Window Demist Outlet 6 — Switch Bank 11 — Engine Start/Stop Button 2 — Air Outlet 7 — Uconnect Touch™ Hard Controls 12 — Hood Release Lever 3 — Instrument Cluster 8 —...
Page 260: Instrument Cluster
258 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER...
Page 261: Instrument Cluster Descriptions
UNDERSTANDING YOUR INSTRUMENT PANEL 259 INSTRUMENT CLUSTER DESCRIPTIONS 3. Malfunction Indicator Light (MIL) The Malfunction Indicator Light (MIL) is part of 1. Tachometer an onboard diagnostic system, called OBD, that The red segments indicate the maximum permissible monitors engine and automatic transmission con- engine revolutions per minute (RPM x 1000) for each gear trol systems.
Page 262 260 UNDERSTANDING YOUR INSTRUMENT PANEL 4. Electronic Stability Control (ESC) Activation/ CAUTION! Malfunction Indicator Light — If Equipped The “ESC Activation/Malfunction Indicator Prolonged driving with the MIL on could cause Light” in the instrument cluster will come on damage to the engine control system. It also could when the ignition switch is turned to the affect fuel economy and drivability.
Page 263 UNDERSTANDING YOUR INSTRUMENT PANEL 261 • Each time the ignition is turned to ON/RUN, the ESC to switch the headlights to high beam, and pull toward system will be ON, even if it was turned off previously. yourself (normal position) to return to low beam. •...
Page 264 262 UNDERSTANDING YOUR INSTRUMENT PANEL be placed in the door jamb stating what the mileage was 10. Tire Pressure Monitoring Telltale Light — If before the repair or service. It is a good idea for you to Equipped make a record of the odometer reading before the repair/ Each tire, including the spare (if provided), service, so that you can be sure that it is properly reset, or should be checked monthly when cold and...
Page 265 UNDERSTANDING YOUR INSTRUMENT PANEL 263 reduces fuel efficiency and tire tread life, and may affect alternate tires or wheels on the vehicle that prevent the the vehicle’s handling and stopping ability. TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more Please note that the TPMS is not a substitute for proper tires or wheels on your vehicle, to ensure that the tire maintenance, and it is the driver’s responsibility to...
Page 266 264 UNDERSTANDING YOUR INSTRUMENT PANEL 11. Seat Belt Reminder Light If the light remains on when the parking brake has been When the ignition switch is first turned to ON/ disengaged, and the fluid level is at the full mark on the RUN, this light will turn on for four to eight master cylinder reservoir, it indicates a possible brake seconds as a bulb check.
Page 267 UNDERSTANDING YOUR INSTRUMENT PANEL 265 NOTE: The light may flash momentarily during sharp Operation of the Brake Warning Light can be checked by cornering maneuvers, which change fluid level condi- turning the ignition switch from the OFF position to the tions.
Page 268 266 UNDERSTANDING YOUR INSTRUMENT PANEL If the ABS light remains on or turns on while driving, it 16. Fuel Gauge indicates that the Anti-Lock portion of the brake system The pointer shows the level of fuel in the fuel tank when is not functioning and that service is required.
Page 269 UNDERSTANDING YOUR INSTRUMENT PANEL 267 CAUTION! WARNING! Driving with a hot engine cooling system could A hot engine cooling system is dangerous. You or damage your vehicle. If the temperature gauge reads others could be badly burned by steam or boiling “H”...
Page 270: Electronic Vehicle Information Center (Evic)
268 UNDERSTANDING YOUR INSTRUMENT PANEL ELECTRONIC VEHICLE INFORMATION CENTER This system allows the driver to select a variety of useful (EVIC) information by pressing the switches mounted on the The Electronic Vehicle Information Center (EVIC) fea- steering wheel. The EVIC consists of the following: tures a driver-interactive display that is located in the •...
Page 271 UNDERSTANDING YOUR INSTRUMENT PANEL 269 The system allows the driver to select information by UP Button pressing the following buttons mounted on the steering Press and release the UP button to scroll up- wheel: ward through the main menus (Fuel Economy, Vehicle Info, Tire PSI, Cruise, Messages, Units) and sub-menus.
Page 272: Electronic Vehicle Information Center (Evic) Displays
270 UNDERSTANDING YOUR INSTRUMENT PANEL • Damaged Key BACK Button Press the BACK button to scroll back to a • Key not programmed previous menu or sub-menu. • Vehicle Not in Park • Key Left Vehicle Electronic Vehicle Information Center (EVIC) •...
Page 273 UNDERSTANDING YOUR INSTRUMENT PANEL 271 • Right Rear Turn Signal Light Out (with a single chime) • Service TPM System (with a single chime). Refer to information on “Tire Pressure Monitor” in “Starting • RKE Battery Low (with a single chime) And Operating”.
Page 274: Evic White Telltale Lights
272 UNDERSTANDING YOUR INSTRUMENT PANEL • Electronic Speed Control SET EVIC White Telltale Lights This area will show reconfigurable white caution tell- This light will turn on when the electronic tales. These telltales include: speed control is SET. For further information, refer to “Electronic Speed Control”...
Page 275: Evic Red Telltale Lights
UNDERSTANDING YOUR INSTRUMENT PANEL 273 • Oil Pressure Warning Light to turn off the message. If the problem continues, the message will appear the next time the vehicle is started. This light indicates low engine oil pressure. If the light turns on while driving, stop the vehicle and A loose, improperly installed, or damaged fuel filler cap shut off the engine as soon as possible.
Page 276 274 UNDERSTANDING YOUR INSTRUMENT PANEL vehicle is experiencing a problem with the charging If the light remains lit with the engine running, your system. Obtain SERVICE IMMEDIATELY. See an autho- vehicle will usually be drivable. However, see an autho- rized dealer. rized dealer for service as soon as possible.
Page 277: Oil Change Required
UNDERSTANDING YOUR INSTRUMENT PANEL 275 shift the transmission into NEUTRAL and idle the ve- WARNING! hicle. If the temperature reading does not return to normal, turn the engine off immediately and call for If the Transmission Temperature Warning Light is service.
Page 278: Fuel Economy
276 UNDERSTANDING YOUR INSTRUMENT PANEL turn off the message temporarily, press and release the Fuel Economy MENU button. To reset the oil change indicator system Press and release the UP or DOWN button until “Fuel (after performing the scheduled maintenance), perform Economy”...
Page 279 UNDERSTANDING YOUR INSTRUMENT PANEL 277 The ECO indicator will illuminate in the EVIC display. Distance To Empty (DTE) This ECO indicator will appear when you are driving in Shows the estimated distance that can be traveled with a fuel efficient manner and can be used to modify driving the fuel remaining in the tank.
Page 280: Vehicle Speed
278 UNDERSTANDING YOUR INSTRUMENT PANEL • Trip B Vehicle Speed Press and release the UP or DOWN button until “Vehicle • Elapsed Time Speed” displays highlighted in the EVIC and press the SELECT button. Press the SELECT button to display the Press the UP/DOWN buttons to cycle through all the current speed in mph or km/h.
Page 281: Vehicle Info
UNDERSTANDING YOUR INSTRUMENT PANEL 279 • Coolant Temp Elapsed Time Shows the total elapsed time of travel since the last reset Displays the actual coolant temperature. when the ignition is in the ACC position. Elapsed time • Oil Temperature will increment when the ignition is in the ON/RUN Displays the actual oil temperature.
Page 282: Hard-Keys
280 UNDERSTANDING YOUR INSTRUMENT PANEL Hard-Keys & Locks, Heated Seats, Engine Off Operation, Compass Hard-Keys are located on the left and right side of the Settings, Audio, Phone/Bluetooth and SIRIUS Setup Uconnect Touch™ 4.3 screen. In addition, there is a through hard-keys and soft-keys.
Page 283 UNDERSTANDING YOUR INSTRUMENT PANEL 281 Press the Settings hard-key to access the Settings screen, Display use the Page Up/Down soft-keys to scroll through the • Brightness following settings. Touch the desired setting soft key to Touch the Brightness soft-key to change this display. change the setting using the description shown on the When in this display, you may select display brightness following pages for each setting...
Page 284 282 UNDERSTANDING YOUR INSTRUMENT PANEL • Touch Screen Beep functions and the navigation system (if equipped). Touch the English, French (Français) or Spanish (Español) soft- Touch the Touch Screen Beep soft-key to turn on or shut key to select the language preferred. Then touch the off the sound heard when a touch screen button (soft- arrow back soft-key.
Page 285 UNDERSTANDING YOUR INSTRUMENT PANEL 283 soft-keys, select AM or PM, select 12 hr or 24 hr. Then Safety / Assistance touch the arrow back soft-key when all selections are • Front Collision Warning — If Equipped complete. Touch the Front Collision Warning soft-key to change this •...
Page 286 284 UNDERSTANDING YOUR INSTRUMENT PANEL • Park Assist alert in the outside mirrors. When “Lights & Chime” Touch the Park Assist soft-key to change this display. The mode is activated, the Blind Spot Monitor (BSM) will Rear Park Assist system will scan for objects behind the show a visual alert in the outside mirrors as well as an vehicle when the transmission shift lever is in REVERSE audible alert when the turn signal is on.
Page 287 UNDERSTANDING YOUR INSTRUMENT PANEL 285 on the windshield. To make your selection, touch the Headlight Off Delay status, touch the 0, 30, 60 or 90 Rain Sensing soft-key and select ON or OFF. Then touch soft-key. Then touch the arrow back soft-key. the arrow back soft-key.
Page 288 286 UNDERSTANDING YOUR INSTRUMENT PANEL your selection, touch the Headlights With Wipers soft- your selection, touch the Daytime Running Lights soft- key and select ON or OFF. Then touch the arrow back key and select ON or OFF. Then touch the arrow back soft-key.
Page 289 UNDERSTANDING YOUR INSTRUMENT PANEL 287 feature selected. To make your selection, touch the Flash unlocked with the Remote Keyless Entry (RKE) transmit- Headlights With Lock soft-key and select ON or OFF. ter. To make your selection, touch the Flash Lights With Then touch the arrow back soft-key.
Page 290 288 UNDERSTANDING YOUR INSTRUMENT PANEL • Remote Door Unlock Order touching the handle more than once will only result in Touch the Remote Door Unlock Order soft-key to change the driver’s door opening. If Unlock Driver Door Only this display. When Unlock Driver Door Only On 1st Press On 1st Press is selected, once the driver door is opened, is selected, only the driver’s door will unlock on the first the interior door lock/unlock switch can be used to...
Page 291 UNDERSTANDING YOUR INSTRUMENT PANEL 289 • Passive Entry (Keyless Enter-N-Go) Engine Off Options Touch the Passive Entry soft-key to change this display. • Headlight Off Delay This feature allows you to lock and unlock the vehicle’s Touch the Headlight Off Delay soft-key to change this door(s) without having to press the RKE transmitter lock display.
Page 292 290 UNDERSTANDING YOUR INSTRUMENT PANEL Engine Off Power Delay status, touch the 0 seconds, 45 seconds, 5 minutes or 10 minutes soft-key. Then touch the arrow back soft-key. Compass Settings • Variance Touch the Variance soft-key to change this display. Com- pass Variance is the difference between Magnetic North and Geographic North.
Page 293 UNDERSTANDING YOUR INSTRUMENT PANEL 291 calibrate the compass by touching the ON soft-key and NOTE: Bass/Mid/Treble allow you to simply slide your completing one or more 360-degree turns (in an area free finger up or down to change the setting as well as press from large metal or metallic objects) until the CAL directly on the desired setting.
Page 294 292 UNDERSTANDING YOUR INSTRUMENT PANEL • Subscription Info mode. To make your selection, press the Surround Sound soft-key and select ON or OFF. Then touch the arrow New vehicle purchasers or lessees will receive a free back soft-key. limited time subscription to SIRIUS Satellite Radio with your radio.
Page 295: Customer Programmable Features - Uconnect Touch™ System 8.4 Settings
UNDERSTANDING YOUR INSTRUMENT PANEL 293 Customer Programmable Features — Uconnect Touch™ System 8.4 Settings Touch the More soft-key, then touch the Settings soft-key to display the menu setting screen. In this mode the Uconnect Touch™ system allows you to access program- mable features that may be equipped such as Display, Clock, Safety/Assistance, Lights, Doors &...
Page 296 294 UNDERSTANDING YOUR INSTRUMENT PANEL Once the setting is complete touch the Back Arrow setting soft-keys or by selecting any point on the scale soft-key to return to the previous menu or touch the X between the + and – soft-keys. Then touch the arrow back soft-key to close out of the settings screen.
Page 297 UNDERSTANDING YOUR INSTRUMENT PANEL 295 • Units check-mark appears next to the setting, showing that When in this display, you may select to have the EVIC, setting has been selected. Touch the back arrow soft-key odometer, and navigation system (if equipped) changed to return to the previous menu.
Page 298 296 UNDERSTANDING YOUR INSTRUMENT PANEL • Set Time Minutes Clock After pressing the Clock soft-key the following settings When in this display, you may adjust the minutes. The will be available. Sync with GPS Time soft-key must be unchecked. To make your selection touch the + or - soft-keys to adjust •...
Page 299 UNDERSTANDING YOUR INSTRUMENT PANEL 297 until a check-mark appears next to setting, showing that driving experience. To change the FCW status, touch and setting has been selected. Touch the back arrow soft-key release the OFF, Near or Far button. Then touch the arrow to return to the previous menu.
Page 300 298 UNDERSTANDING YOUR INSTRUMENT PANEL • Blind Spot Alert Take your vehicle to an authorized dealer to verify sensor When this feature is selected, the Blind Spot Alert feature alignment. Having a sensor that is misaligned will result can be set to Off, Lights or Lights and Chime. The Blind in the BSM not operating to specification.
Page 301 UNDERSTANDING YOUR INSTRUMENT PANEL 299 • Rain Sensing Auto Wipers Lights When this feature is selected, the system will automati- After pressing the Lights soft-key the following settings cally activate the windshield wipers if it senses moisture will be available. on the windshield.
Page 302 300 UNDERSTANDING YOUR INSTRUMENT PANEL • Headlights With Wipers — If Equipped • Daytime Running Lights When this feature is selected, and the headlight switch is When this feature is selected, the headlights will turn on in the AUTO position, the headlights will turn on ap- whenever the engine is running.
Page 303 UNDERSTANDING YOUR INSTRUMENT PANEL 301 • Flash Headlight With Lock selected with or without the sound horn on lock feature selected. To make your selection, touch the Flash Head- When this feature is selected, the headlights will flash lights with Lock soft-key, until a check-mark appears when the doors are locked or unlocked with the Remote next to setting, showing that setting has been selected.
Page 304 302 UNDERSTANDING YOUR INSTRUMENT PANEL touch the Sound Horn With Remote Start soft-key, until a Entry, if Driver Door 1st Press is programmed touching check-mark appears next to setting, showing that setting the handle more than once will only result in the driver’s has been selected.
Page 305 UNDERSTANDING YOUR INSTRUMENT PANEL 303 • Horn With Remote Start Engine Off Options When this feature is selected, the horn will sound when After pressing the Engine Off Options soft-key the fol- the remote start is activated. To make your selection, lowing settings will be available.
Page 306 304 UNDERSTANDING YOUR INSTRUMENT PANEL Delay status touch the + or - soft-key to select your module is located, and it can cause interference with the desired time interval. Touch the back arrow soft-key to compass sensor, and it may give false readings. return to the previous menu.
Page 307 UNDERSTANDING YOUR INSTRUMENT PANEL 305 compass may appear erratic and the EVIC will display setting soft-keys or by selecting any point on the scale CAL until the compass is calibrated. You may also between the + and – soft-keys. Then touch the arrow back calibrate the compass by pressing the ON soft-key and soft-key.
Page 308 306 UNDERSTANDING YOUR INSTRUMENT PANEL • Subscription Information Phone/Bluetooth After pressing the Phone/Bluetooth soft-key the follow- New vehicle purchasers or lessees will receive a free ing settings will be available. limited time subscription to SIRIUS Satellite Radio with your radio. Following the expiration of the free services, •...
Page 309: Video Entertainment System (Ves)™ - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 307 VIDEO ENTERTAINMENT SYSTEM (VES)™ — IF EQUIPPED The optional Video Entertainment System (VES)™ in- cludes the following components for rear seat entertain- ment: • A diagonal 9 in (22 cm) Liquid Crystal Display (LCD) screen integrated into the center overhead console. The screen features brightness control for optimum daytime and nighttime viewing.
Page 310: Ipod /Usb/Mp3 Control - If Equipped
308 UNDERSTANDING YOUR INSTRUMENT PANEL • Two wireless infrared headsets allow rear seat passen- iPod /USB/MP3 CONTROL — IF EQUIPPED gers to listen to the same or individual audio sources. This feature allows an iPod or external USB device to be plugged into the USB port.
Page 311: Right-Hand Switch Functions
UNDERSTANDING YOUR INSTRUMENT PANEL 309 Left-Hand Switch Functions For Radio Operation • Press the top of the switch to SEEK the next listenable station up from the current setting. • Press the bottom of the switch to SEEK the next listenable station down from the current setting.
Page 312: Cd/Dvd Disc Maintenance
310 UNDERSTANDING YOUR INSTRUMENT PANEL • Press the switch up or down twice to listen to the 5. Store the disc in its case after playing. second track, three times to listen to the third track, 6. Do not expose the disc to direct sunlight. and so forth.
Page 313: Climate Controls
UNDERSTANDING YOUR INSTRUMENT PANEL 311 turned down or off during mobile phone operation when Hard-Keys not using Uconnect™ (if equipped). Hard-keys are located on the left and right side of the Uconnect Touch™ 4.3 screen in the center of the instru- CLIMATE CONTROLS ment panel.
Page 314 312 UNDERSTANDING YOUR INSTRUMENT PANEL Automatic Temperature Controls — Hard-Keys Automatic Temperature Controls — Hard-Keys...
Page 315 UNDERSTANDING YOUR INSTRUMENT PANEL 313 Soft-Keys Soft-keys are accessible on the Uconnect Touch™ system screen. Uconnect Touch™ System 8.4 Automatic Temperature Controls — Soft-Keys Button Descriptions (Applies To Both Hard-keys And Soft-keys) Uconnect Touch™ System 4.3 Manual Temperature Controls — Soft-Keys 1.
Page 316 314 UNDERSTANDING YOUR INSTRUMENT PANEL If equipped with ATC, performing this function will Soft-Key — Uconnect Touch™ System 4.3 cause the automatic operation to switch into manual Press the blower soft-key to enter the blower setting mode and the AUTO indicator will turn off. screen.
Page 317 UNDERSTANDING YOUR INSTRUMENT PANEL 315 4. Front Defrost Button CAUTION! Press and release to change the current airflow setting to Defrost mode. The indicator illuminates when this fea- Failure to follow these cautions can cause damage to ture is ON. Performing this function will cause the ATC the heating elements: to switch into manual mode (if equipped).
Page 318 316 UNDERSTANDING YOUR INSTRUMENT PANEL 6. Passenger Temperature Control Up Button this function will cause the ATC to switch between Provides the passenger with independent temperature manual mode and automatic modes. Refer to “Automatic control. Push the button for warmer temperature set- Operation”...
Page 319 UNDERSTANDING YOUR INSTRUMENT PANEL 317 12. Modes NOTE: BI-LEVEL mode is designed under comfort The airflow distribution mode can be adjusted so air conditions to provide cooler air out of the panel outlets comes from the instrument panel outlets, floor outlets, and warmer air from the floor outlets.
Page 320: Climate Control Functions
318 UNDERSTANDING YOUR INSTRUMENT PANEL 13. SYNC Climate Control Functions Press the Sync soft-key to toggle the Sync feature On/Off. A/C (Air Conditioning) The Sync indicator is illuminated when this feature is The Air Conditioning (A/C) button allows the operator enabled.
Page 321: Automatic Temperature Control (Atc)
UNDERSTANDING YOUR INSTRUMENT PANEL 319 dirt or insects. Clean with a gentle water spray from Attempting to use Recirculation while in these modes behind the radiator and through the condenser. Fabric will cause the LED in the control button to blink and then front fascia protectors may reduce airflow to the turn off.
Page 322 320 UNDERSTANDING YOUR INSTRUMENT PANEL 3. When the system is set up for your comfort level, it is Manual Operation not necessary to change the settings. You will experience The system allows for manual selection of blower speed, the greatest efficiency by simply allowing the system to air distribution mode, A/C status and recirculation con- function automatically.
Page 323: Rear Automatic Temperature Control (Atc) - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 321 Rear Automatic Temperature Control (ATC) — If Equipped The rear ATC system has floor air outlets at the rear right side of the 3rd Row seats and overhead outlets at each outboard rear seating position. The system provides heated air through the floor outlets or cool, dehumidified air through the headliner outlets.
Page 324 322 UNDERSTANDING YOUR INSTRUMENT PANEL Rear Lock Pressing the Rear Temperature Lock soft-key on the Uconnect Touch™ screen, illuminates a lock symbol in the rear display. The rear temperature and air source are controlled from the front Uconnect Touch™ system. Rear second row occupants can only adjust the rear ATC control when the Rear Temperature Lock button is turned off.
Page 325: Rear Blower Control
UNDERSTANDING YOUR INSTRUMENT PANEL 323 • Rotate the Rear Blower, Rear Temperature and the Rear Mode Control knobs to suit your comfort needs. • ATC is selected by adjusting the rear blower knob counterclockwise to AUTO. Once the desired temperature is displayed, the ATC System will automatically achieve and maintain that comfort level.
Page 326: Rear Temperature Control
324 UNDERSTANDING YOUR INSTRUMENT PANEL to high. This allows the rear seat occupants to control the When rear controls are locked by the Uconnect Touch™ volume of air circulated in the rear of the vehicle. system, the Rear Temperature Lock symbol on the tem- perature knob is illuminated and any rear overhead CAUTION! adjustments are ignored.
Page 327: Operating Tips
UNDERSTANDING YOUR INSTRUMENT PANEL 325 NOTE: In many temperature positions, the BI-LEVEL glycol antifreeze coolant and 50% water is recommended. mode is designed to provide cooler air out of the head- Refer to “Maintenance Procedures” in “Maintaining Your liner outlets and warmer air from the floor outlets. Vehicle”...
Page 328 326 UNDERSTANDING YOUR INSTRUMENT PANEL Window Fogging Outside Air Intake Interior fogging on the windshield can be quickly re- Make sure the air intake, located directly in front of the moved by turning the mode selector to Defrost. The windshield, is free of obstructions such as leaves. Leaves Defrost/Floor mode can be used to maintain a clear collected in the air intake may reduce airflow, and if they windshield and provide sufficient heating.
Page 329 UNDERSTANDING YOUR INSTRUMENT PANEL 327 Manual Control Setting Suggestions For Various Weather Conditions...
Page 331: Starting And Operating
STARTING AND OPERATING CONTENTS Starting Procedures ....334 Automatic Transmission ....338 Automatic Transmission .
Page 332 330 STARTING AND OPERATING Driving On Slippery Surfaces ... . . 345 Brake Assist System (BAS) ....356 Acceleration .
Page 333 STARTING AND OPERATING 331 Tires — General Information ... . . 371 Tire Chains ......380 Tire Pressure .
Page 334 332 STARTING AND OPERATING Fuel System Cautions ....396 Adding Fuel ......401 Carbon Monoxide Warnings .
Page 335 STARTING AND OPERATING 333 Trailer Towing Weights Towing Requirements ....413 (Maximum Trailer Weight Ratings) ..411 Towing Tips .
Page 336: Starting Procedures
334 STARTING AND OPERATING STARTING PROCEDURES Automatic Transmission Before starting your vehicle, adjust your seat, adjust the The shift lever must be in the NEUTRAL or PARK inside and outside mirrors, fasten your seat belt, and if position before you can start the engine. Apply the brakes present, instruct all other occupants to buckle their seat before shifting into any driving gear.
Page 337: Keyless Enter-N-Go
STARTING AND OPERATING 335 Keyless Enter-N-Go 10 seconds. If you wish to stop the cranking of the engine This feature allows the driver to oper- prior to the engine starting, press the button again. ate the ignition switch with the push To Turn Off The Engine Using ENGINE of a button, as long as the Remote START/STOP Button...
Page 338: Extreme Cold Weather (Below -20°F Or 29°C)
336 STARTING AND OPERATING • Starting with the ignition switch in the OFF position: display a “Vehicle Not In Park” message and the engine will remain running. Never leave a vehicle out of the • Press the ENGINE START/STOP button once to PARK position, or it could roll.
Page 339: If Engine Fails To Start
STARTING AND OPERATING 337 If Engine Fails To Start Clearing A Flooded Engine (Using ENGINE START/STOP Button) WARNING! If the engine fails to start after you have followed the “Normal Starting” or “Extreme Cold Weather proce- • Never pour fuel or other flammable liquids into dures, it may be flooded.
Page 340: Engine Block Heater - If Equipped
338 STARTING AND OPERATING ENGINE BLOCK HEATER — IF EQUIPPED AUTOMATIC TRANSMISSION The engine block heater warms the engine, and permits CAUTION! quicker starts in cold weather. Connect the cord to a standard 110-115 Volt AC electrical outlet with a Damage to the transmission may occur if the follow- grounded, three-wire extension cord.
Page 341: Brake/Transmission Shift Interlock System
STARTING AND OPERATING 339 Brake/Transmission Shift Interlock System WARNING! This vehicle is equipped with a Brake Transmission Shift • It is dangerous to move the shift lever out of PARK Interlock System (BTSI) that holds the shift lever in the PARK position when the ignition switch is in the LOCK or NEUTRAL if the engine speed is higher than position (OFF position with Keyless Enter-N-Go).
Page 342: Four-Speed Or Six-Speed Automatic Transmission
340 STARTING AND OPERATING Four-Speed Or Six-Speed Automatic Transmission Gear Ranges The electronically controlled transmission provides a PARK precise shift schedule. The transmission electronics are This range supplements the parking brake by locking the self-calibrating; therefore, the first few shifts on a new transmission.
Page 343 STARTING AND OPERATING 341 REVERSE WARNING! This range is for moving the vehicle backward. Shift into • Never use the PARK position as a substitute for REVERSE only after the vehicle has come to a complete stop. the parking brake. Always apply the parking brake fully when parked to guard against vehicle NEUTRAL movement and possible injury or damage.
Page 344 342 STARTING AND OPERATING DRIVE – Six-Speed Transmission vehicle under heavy loading conditions, (i.e., in hilly This range should be used for most city and highway terrain, traveling into strong head winds or while towing driving. It provides the smoothest upshifts, downshifts, heavy trailers).
Page 345: Autostick - If Equipped
STARTING AND OPERATING 343 In the event of a momentary problem, the transmission AUTOSTICK — IF EQUIPPED can be reset to regain all forward gears by performing the AutoStick is a driver-interactive feature providing following steps: manual shift control, giving you more control of the vehicle.
Page 346: General Information
344 STARTING AND OPERATING • Avoid using speed control when AutoStick is en- NOTE: In AutoStick mode, the transmission will only shift up or down when the driver moves the shift lever to gaged. the right (+) or left (-), except as noted below. AutoStick •...
Page 347: All Wheel Drive (Awd) - If Equipped
STARTING AND OPERATING 345 ALL WHEEL DRIVE (AWD) — IF EQUIPPED DRIVING ON SLIPPERY SURFACES This feature provides on-demand All-Wheel Drive Acceleration (AWD). The system is automatic with no driver inputs or Rapid acceleration on snow covered, wet, or other slip- additional driving skills required.
Page 348: Traction
346 STARTING AND OPERATING Traction DRIVING THROUGH WATER When driving on wet or slushy roads, it is possible for a Driving through water more than a few inches/ wedge of water to build up between the tire and road centimeters deep will require extra caution to ensure surface.
Page 349: Shallow Standing Water
STARTING AND OPERATING 347 Shallow Standing Water CAUTION! (Continued) Although your vehicle is capable of driving through • Driving through standing water may cause dam- shallow standing water, consider the following Caution age to your vehicle’s drivetrain components. Al- and Warning before doing so. ways inspect your vehicle’s fluids (i.e., engine oil, transmission, axle, etc.) for signs of contamination CAUTION!
Page 350: Power Steering
348 STARTING AND OPERATING POWER STEERING WARNING! The standard power steering system will give you good • Driving through standing water limits your vehi- vehicle response and increased ease of maneuverability in tight spaces. The system will provide mechanical cle’s traction capabilities. Do not exceed 5 mph steering capability if power assist is lost.
Page 351: Power Steering Fluid Check
STARTING AND OPERATING 349 system. This noise should be considered normal, and it checked if a leak is suspected, abnormal noises are does not in any way damage the steering system. apparent, and/or the system is not functioning as antici- pated.
Page 352: Parking Brake
350 STARTING AND OPERATING If necessary, add fluid to restore to the proper indicated level. With a clean cloth, wipe any spilled fluid from all surfaces. Refer to “Fluids, Lubricants, and Genuine Parts” in “Maintaining Your Vehicle” for the correct fluid type.
Page 353 STARTING AND OPERATING 351 NOTE: WARNING! • When the parking brake is applied and the transmis- • Never use the PARK position as a substitute for sion is placed in gear, the “Brake Warning Light” will flash. If vehicle speed is detected, a chime will sound the parking brake.
Page 354: Brake System
352 STARTING AND OPERATING BRAKE SYSTEM WARNING! (Continued) Your vehicle is equipped with dual hydraulic • Always fully apply the parking brake when leav- brake systems. If either of the two hydraulic ing your vehicle or it may roll and cause damage or systems loses normal capability, the remaining injury.
Page 355: Anti-Lock Brake System (Abs)
STARTING AND OPERATING 353 hydraulic brake pressure to prevent wheel lock-up to WARNING! help avoid skidding on slippery surfaces during braking. • Riding the brakes can lead to brake failure and Refer to “Anti-Lock Brake System (ABS)” under “Elec- tronic Brake Control System” in this section for more possibly a collision.
Page 356: Electronic Brake Control System
354 STARTING AND OPERATING ELECTRONIC BRAKE CONTROL SYSTEM related motor noises. These noises are the system per- Your vehicle is equipped with an advanced electronic forming its self check cycle to ensure that the ABS is brake control system commonly referred to as ESC. This working properly.
Page 357 STARTING AND OPERATING 355 These are all normal characteristics of ABS. WARNING! (Continued) • The ABS cannot prevent the natural laws of phys- WARNING! ics from acting on the vehicle, nor can it increase • The ABS contains sophisticated electronic equip- braking or steering efficiency beyond that af- ment that may be susceptible to interference forded by the condition of the vehicle brakes and...
Page 358: Brake Assist System (Bas)
356 STARTING AND OPERATING Anti-Lock Brake Light If both the Brake System Warning Light and the ABS The Anti-Lock Brake Light monitors the ABS. Light remain on, the ABS and Electronic Brake Force The light will turn on when the ignition switch Distribution (EBD) systems are not functioning.
Page 359: Traction Control System (Tcs)
STARTING AND OPERATING 357 across a driven axle. If one wheel on a driven axle is WARNING! spinning faster than the other, the system will apply the brake of the spinning wheel. This will allow more engine BAS cannot prevent the natural laws of physics from torque to be applied to the wheel that is not spinning.
Page 360: Electronic Stability Control (Esc)
358 STARTING AND OPERATING driving maneuvers. It cannot prevent wheel lift due to applying the brake of the appropriate wheel. Engine other factors, such as road conditions, leaving the road- power may also be reduced to help the vehicle maintain way, or striking objects or other vehicles.
Page 361 STARTING AND OPERATING 359 Full On This is the normal operating mode for ESC. Whenever the vehicle is started the system will be in this mode. This mode should be used for most driving situations. ESC should only be turned to “Partial Off” for specific reasons as noted.
Page 362: Esc Activation/Malfunction Indicator Light And Esc Off Indicator Light
360 STARTING AND OPERATING mode is overcome, turn ESC back on by momentarily The “ESC Activation/Malfunction Indicator Light” (lo- pressing the “ESC OFF” button. This may be done while cated in the instrument cluster) starts to flash as soon as the vehicle is in motion.
Page 363: Trailer Sway Control (Tsc)
STARTING AND OPERATING 361 • The ESC system will make buzzing or clicking sounds WARNING! when it is active. This is normal; the sounds will stop • TSC cannot stop all trailers from swaying. Always when ESC becomes inactive following the maneuver that caused the ESC activation.
Page 364: Tire Safety Information
362 STARTING AND OPERATING TIRE SAFETY INFORMATION NOTE: • P (Passenger) - Metric tire sizing is based on U.S. Tire Markings design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. •...
Page 365 STARTING AND OPERATING 363 • High flotation tire sizing is based on U.S. design Tires designed to this standard have the letter “T” molded into the sidewall preceding the size designa- standards and it begins with the tire diameter molded tion.
Page 366 364 STARTING AND OPERATING EXAMPLE: Service Description: 95 = Load Index — A numerical code associated with the maximum load a tire can carry H = Speed Symbol — A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions —...
Page 367: Tire Identification Number (Tin)
STARTING AND OPERATING 365 Tire Identification Number (TIN) Look for the TIN on the outboard side of black sidewall The TIN may be found on one or both sides of the tire, tires as mounted on the vehicle. If the TIN is not found on however, the date code may only be on one side.
Page 368: Tire Terminology And Definitions
366 STARTING AND OPERATING Tire Terminology And Definitions Term Definition B-Pillar The vehicle B-Pillar is a structural member of the body located between the front and rear door (of a four-door vehicle) running from the sill to the roof. Cold Tire Pressure Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at least 3 hours, or driven less than 1 mile (1.6 km) after sitting for a three hour period.
Page 369: Tire Loading And Tire Pressure
STARTING AND OPERATING 367 Tire Loading And Tire Pressure Tire And Loading Information Placard Tire Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar. Tire and Loading Information Placard Tire Placard Location...
Page 370 368 STARTING AND OPERATING axles must not be exceeded. For further information on This placard tells you important information about GAWRs, vehicle loading, and trailer towing, refer to the: “Vehicle Loading” in this section. 1) number of people that can be carried in the vehicle 2) total weight your vehicle can carry To determine the maximum loading conditions of your vehicle, locate the statement “The combined weight of...
Page 371 STARTING AND OPERATING 369 3. Subtract the combined weight of the driver and pas- NOTE: • The following table shows examples on how to calcu- sengers from XXX lbs or XXX kg. late total load, cargo/luggage, and towing capacities 4. The resulting figure equals the available amount of of your vehicle with varying seating configurations cargo and luggage load capacity.
Page 372 370 STARTING AND OPERATING...
Page 373: Tires - General Information
STARTING AND OPERATING 371 Safety WARNING! WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and • Improperly inflated tires are dangerous and can increase your stopping distance. Use tires of the cause collisions. recommended load capacity for your vehicle.
Page 374: Tire Inflation Pressures
372 STARTING AND OPERATING Tire Inflation Pressures WARNING! (Continued) The proper cold tire inflation pressure is listed on the • Unequal tire pressures from one side of the ve- driver’s side B-Pillar or rear edge of the driver’s side hicle to the other can cause the vehicle to drift to door.
Page 375 STARTING AND OPERATING 373 Tire pressures change by approximately 1 psi (7 kPa) per CAUTION! 12°F (7°C) of air temperature change. Keep this in mind when checking tire pressure inside a garage, especially in After inspecting or adjusting the tire pressure, al- the winter.
Page 376: Radial-Ply Tires
374 STARTING AND OPERATING Tire Pressures For High Speed Operation Radial-Ply Tires The manufacturer advocates driving at safe speeds WARNING! within posted speed limits. Where speed limits or condi- tions are such that the vehicle can be driven at high Combining radial ply tires with other types of tires speeds, maintaining correct tire inflation pressure is very on your vehicle will cause your vehicle to handle...
Page 377: Compact Spare Tire - If Equipped
STARTING AND OPERATING 375 vehicle. If your vehicle has this option refer to an Compact Spare Tire – If Equipped authorized tire dealer for the recommended tire rotation The compact spare is for temporary emergency use only. pattern. You can identify if your vehicle is equipped with a compact spare by looking at the spare tire description on If your vehicle is not equipped with an original equip- the Tire and Loading Information Placard located on the...
Page 378: Full Size Spare - If Equipped
376 STARTING AND OPERATING your original equipment tire, replace (or repair) the WARNING! original equipment tire and reinstall on the vehicle at the first opportunity. Compact spares are for temporary emergency use only. With these spares, do not drive more than Limited-Use Spare –...
Page 379: Tire Spinning
STARTING AND OPERATING 377 Tire Spinning WARNING! When stuck in mud, sand, snow, or icy conditions, do not spin your vehicle’s wheels faster than 30 mph (48 km/h) Limited-use spares are for emergency use only. In- or for longer than 30 seconds continuously without stallation of this limited-use spare tire affects vehicle stopping.
Page 380: Tread Wear Indicators
378 STARTING AND OPERATING Tread Wear Indicators These indicators are molded into the bottom of the tread Tread wear indicators are in the original equipment tires grooves. They will appear as bands when the tread depth to help you in determining when your tires should be becomes 1/16 in (2 mm).
Page 381: Replacement Tires
STARTING AND OPERATING 379 Keep dismounted tires in a cool, dry place with as little It is recommended to replace the two front tires or two exposure to light as possible. Protect tires from contact rear tires as a pair. Replacing just one tire can seriously with oil, grease, and gasoline.
Page 382: Tire Chains
380 STARTING AND OPERATING WARNING! WARNING! (Continued) • Failure to equip your vehicle with tires having • Do not use a tire, wheel size or rating other than adequate speed capability can result in sudden tire that specified for your vehicle. Some combinations failure and loss of vehicle control.
Page 383 STARTING AND OPERATING 381 CAUTION! CAUTION! (Continued) • Install chains on the front wheels as tightly as To avoid damage to your vehicle or tires, observe the possible and then retighten after driving about following precautions: 0.5 mile (0.8 km). •...
Page 384: Snow Tires
382 STARTING AND OPERATING SNOW TIRES poorer than that of non-studded tires. Some states pro- Some areas of the country require the use of snow tires hibit studded tires; therefore, local laws should be during the winter. All season tires can be identified by the checked before using these tire types.
Page 385: Tire Pressure Monitor System (Tpms)
STARTING AND OPERATING 383 The suggested rotation method is the “rearward cross” TIRE PRESSURE MONITOR SYSTEM (TPMS) shown in the following diagram. This rotation pattern The Tire Pressure Monitor System (TPMS) will warn the does not apply to some directional tires that must not be driver of a low tire pressure based on the vehicle recom- reversed.
Page 386 384 STARTING AND OPERATING The TPMS will warn the driver of a low tire pressure if For example, your vehicle may have a recommended the tire pressure falls below the low-pressure warning cold (parked for more than three hours) placard pressure limit for any reason, including low temperature effects of 33 psi (227 kPa).
Page 387 STARTING AND OPERATING 385 NOTE: CAUTION! • The TPMS is not intended to replace normal tire care • The TPMS has been optimized for the original and maintenance, or to provide warning of a tire failure or condition. equipment tires and wheels. TPMS pressures and warning have been established for the tire size •...
Page 388: Base System
386 STARTING AND OPERATING • Seasonal temperature changes will affect tire pressure, Tire Pressure Monitoring Low Pressure Warnings and the TPMS will monitor the actual tire pressure in The “Tire Pressure Monitoring Telltale Light” will the tire. illuminate in the instrument cluster, a “LOW TIRE”...
Page 389 STARTING AND OPERATING 387 will also sound a chime. If the ignition switch is cycled, NOTE: this sequence will repeat, providing the system fault still 1. The compact spare tire does not have a tire pressure exists. The “Tire Pressure Monitoring Telltale Light” will monitoring sensor.
Page 390: Premium System - If Equipped
388 STARTING AND OPERATING 5. Once you repair or replace the original road tire and The TPMS consists of the following components: reinstall it on the vehicle in place of the compact spare, • Receiver module the TPMS will update automatically and the “Tire Pres- •...
Page 391 STARTING AND OPERATING 389 Should this occur, you should stop as soon as possible and inflate the tires with low pressure (those flashing in the EVIC graphic) to the vehicle’s recommended cold placard pressure value. Once the system receives the updated tire pressures, the system will automatically update, the graphic display in the EVIC will stop flash- ing, and the “Tire Pressure Monitoring Telltale Light”...
Page 392 390 STARTING AND OPERATING Service TPMS Warning When a system fault is detected, the “Tire Pressure Monitoring Telltale Light” will flash on and off for 75 seconds and then remain on solid. The system fault will also sound a chime. In addition, the EVIC will display a SERVICE TPM SYSTEM message for a mini- mum of five seconds and then display dashes (- -) in place of the pressure value to indicate which sensor is not...
Page 393 STARTING AND OPERATING 391 If the ignition switch is cycled, this sequence will repeat, The EVIC will also display a SERVICE TPM SYSTEM providing the system fault still exists. If the system fault message for a minimum of five seconds when a system no longer exists, the “Tire Pressure Monitoring Telltale fault related to an incorrect sensor location fault is Light”...
Page 394: General Information
392 STARTING AND OPERATING chime will sound. In addition, the graphic in the EVIC 5. Once you repair or replace the original road tire and will still display a flashing pressure value. reinstall it on the vehicle in place of the compact spare, the TPMS will update automatically.
Page 395: Fuel Requirements
STARTING AND OPERATING 393 The tire pressure sensors are covered under one of the as hard starting, stalling, and hesitations. If you experi- following licenses: ence these symptoms, try another brand of gasoline before considering service for the vehicle. United States ....MRXC4W4MA4 Over 40 auto manufacturers worldwide have issued and Canada .
Page 396: Gasoline/Oxygenate Blends
394 STARTING AND OPERATING The manufacturer supports the use of reformulated gaso- Problems that result from using gasoline containing line. Properly blended reformulated gasoline will pro- Methanol or gasoline containing more than 10% Ethanol vide excellent performance and durability of engine and are not the responsibility of the manufacturer and may fuel system components.
Page 397: Mmt In Gasoline
STARTING AND OPERATING 395 To fix a Non-FFV vehicle inadvertently fueled once with therefore, you should ask your gasoline retailer whether E-85 perform the following: the gasoline contains MMT. It is even more important to look for gasoline without MMT in Canada, because MMT •...
Page 398 396 STARTING AND OPERATING Fuel System Cautions CAUTION! (Continued) • The use of fuel additives, which are now being CAUTION! sold as octane enhancers, is not recommended. Follow these guidelines to maintain your vehicle’s Most of these products contain high concentra- performance: tions of methanol.
Page 399: Carbon Monoxide Warnings
STARTING AND OPERATING 397 Carbon Monoxide Warnings WARNING! (Continued) • Guard against carbon monoxide with proper WARNING! maintenance. Have the exhaust system inspected Carbon monoxide (CO) in exhaust gases is deadly. every time the vehicle is raised. Have any abnor- Follow the precautions below to prevent carbon mal conditions repaired promptly.
Page 400 398 STARTING AND OPERATING the other sections of this manual for information on CAUTION! features that are common between Flexible Fuel and gasoline-only powered vehicles. Only vehicles with the E-85 fuel filler door label can operate on E-85. E-85 Fuel Cap E-85 Badge...
Page 401: Ethanol Fuel (E-85)
STARTING AND OPERATING 399 Ethanol Fuel (E-85) When you do switch fuel types it is recommended that: E-85 is a mixture of approximately 85% fuel ethanol and • you do not switch when the fuel gauge indicates less 15% unleaded gasoline. than 1/4 full •...
Page 402: Selection Of Engine Oil For Flexible Fuel Vehicles (E-85) And Gasoline Vehicles
400 STARTING AND OPERATING • Some additives used in regular gasoline are not fully Starting compatible with E-85 and may form deposits in your The characteristics of E-85 fuel make it unsuitable for use engine. To eliminate driveability issues that may be when ambient temperatures fall below 0°F (-18°C).
Page 403: Replacement Parts
STARTING AND OPERATING 401 Replacement Parts ADDING FUEL Many components in your Flexible Fuel Vehicle (FFV) are Fuel Filler Cap (Gas Cap) designed to be compatible with ethanol. Always be sure The gas cap is located behind the fuel filler door on the that your vehicle is serviced with correct ethanol com- left side of the vehicle.
Page 404 402 STARTING AND OPERATING NOTE: When removing the fuel filler cap, lay the cap WARNING! tether in the hook, located on the fuel filler door rein- • Never have any smoking materials lit in or near forcement. the vehicle when the gas cap is removed or the CAUTION! tank is being filled.
Page 405: Loose Fuel Filler Cap Message
STARTING AND OPERATING 403 on if the gas cap is not secured properly. Make sure VEHICLE LOADING that the gas cap is tightened each time the vehicle is The load carrying capacity of your vehicle is shown on refueled. the “Vehicle Certification Label.” This information should be used for passenger and luggage loading as •...
Page 406: Gross Vehicle Weight Rating (Gvwr)
404 STARTING AND OPERATING • Gross Axle Weight Rating (GAWR) rear WARNING! • Vehicle Identification Number (VIN) Because the front wheels steer the vehicle, it is • Type of Vehicle important that you do not exceed the maximum front or rear GAWR. A dangerous driving condition can •...
Page 407: Loading
STARTING AND OPERATING 405 Figure out the weight on the front and rear of the vehicle TRAILER TOWING separately. It is important that you distribute the load In this section, you will find safety tips and information evenly over the front and rear axles. on limits to the type of towing you can reasonably do with your vehicle.
Page 408 406 STARTING AND OPERATING exceed the GVWR. Refer to “Vehicle Loading/Vehicle Gross Axle Weight Rating (GAWR) Certification Label” in “Starting and Operating” for The GAWR is the maximum capacity of the front and rear further information. axles. Distribute the load over the front and rear axles evenly.
Page 409 STARTING AND OPERATING 407 Frontal Area of hitches are the most popular on the market today and The frontal area is the maximum height multiplied by the they are commonly used to tow small- and medium- maximum width of the front of a trailer. sized trailers.
Page 410 408 STARTING AND OPERATING WARNING! • An improperly adjusted weight distributing hitch system may reduce handling, stability, braking performance, and could result in a collision. • Weight distributing systems may not be compat- ible with surge brake couplers. Consult with your hitch and trailer manufacturer or a reputable rec- reational vehicle...
Page 411 STARTING AND OPERATING 409 With Weight-Distributing Hitch (Correct) Improper Adjustment of Weight-Distributing Hitch (Incorrect)
Page 412: Trailer Hitch Classification
410 STARTING AND OPERATING Trailer Hitch Classification Trailer Hitch Classification Definitions Your vehicle may be factory equipped for safe towing of Class Max. Trailer Hitch Industry trailers weighing over 2,000 lbs (907 kg) with the optional Standards Trailer Tow Prep Package. See your authorized dealer for Class I - Light Duty 2,000 lbs (907 kg) package content.
Page 413: (Maximum Trailer Weight Ratings)
STARTING AND OPERATING 411 Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Engine/ GCWR (Gross Com- Max. GTW Frontal Area Max. Tongue Wt. Transmission bined Wt. Rating) (Gross Trailer Wt.) 1,000 lbs (454 kg) which 2.4L/...
Page 414: Trailer And Tongue Weight
412 STARTING AND OPERATING Trailer And Tongue Weight Always load a trailer with 60% to 65% of the weight in the front of the trailer. This places 10% to 15% of the Gross Trailer Weight (GTW) on the tow hitch of your vehicle.
Page 415: Trailer Towing Weights
STARTING AND OPERATING 413 NOTE: Remember that everything put into or on the CAUTION! (Continued) trailer adds to the load on your vehicle. Also, additional • Then, during the first 500 miles (805 km) that a factory-installed options or authorized dealer-installed trailer is towed, do not drive over 50 mph options must be considered as part of the total load on (80 km/h) and do not make starts at full throttle.
Page 416 414 STARTING AND OPERATING WARNING! (Continued) WARNING! (Continued) • Make certain that the load is secured in the trailer • Vehicles with trailers should not be parked on a and that it will not shift during travel. When grade. When parking, apply the parking brake on trailering cargo that is not fully secured, dynamic the tow vehicle.
Page 417 STARTING AND OPERATING 415 Towing Requirements – Tires on replacement tires and for the proper tire replace- ment procedures. Replacing tires with a higher load − Do not attempt to tow a trailer while using a compact carrying capacity will not increase the vehicle’s GVWR spare tire.
Page 418 416 STARTING AND OPERATING CAUTION! WARNING! (Continued) • Towing any trailer will increase your stopping If the trailer weighs more than 1,000 lbs (454 kg) distance. When towing, you should allow for ad- loaded, it should have its own brakes, and they ditional space between your vehicle and the ve- should be of adequate capacity.
Page 419 STARTING AND OPERATING 417 The electrical connections are all complete to the vehicle but you must mate the harness to a trailer connector. Refer to the following illustrations. Seven-Pin Connector 1 — Battery 5 — Ground 2 — Backup Lamps 6 —...
Page 420: Towing Tips
418 STARTING AND OPERATING Towing Tips the interval specified for “police, taxi, fleet, or frequent Before setting out on a trip, practice turning, stopping, trailer towing.” Refer to the “Maintenance Schedule” for and backing up the trailer in an area located away from the proper maintenance intervals.
Page 421 STARTING AND OPERATING 419 AutoStick – If Equipped Cooling System To reduce potential for engine and transmission over- − By using the AutoStick modes and selecting a specific heating, take the following actions: gear range, frequent shifting can be avoided. The highest gear range should be selected that allows for −...
Page 422: Recreational Towing
420 STARTING AND OPERATING RECREATIONAL TOWING CAUTION! (BEHIND MOTORHOME, ETC.) Recreational towing is not allowed. DO NOT flat tow Towing this vehicle in violation of the above require- this vehicle. Damage to the drivetrain will result. ments can cause severe transmission and/or transfer case damage.
Page 423: What To Do In Emergencies
WHAT TO DO IN EMERGENCIES CONTENTS Hazard Warning Flashers ....423 Spare Tire Stowage ....429 If Your Engine Overheats .
Page 424 422 WHAT TO DO IN EMERGENCIES Shift Lever Override ....443 Front-Wheel Drive (Fwd) ....446 With Keyless Enter-N-Go —...
Page 425: Hazard Warning Flashers
WHAT TO DO IN EMERGENCIES 423 HAZARD WARNING FLASHERS IF YOUR ENGINE OVERHEATS The Hazard Warning flasher switch is located in the In any of the following situations, you can reduce the instrument panel switch bank, above the climate controls. potential for overheating by taking the appropriate ac- tion.
Page 426: 2.4L Engine - If Equipped
424 WHAT TO DO IN EMERGENCIES 2.4L Engine — If Equipped CAUTION! On hot days the engine oil temperature may become too hot during sustained high-speed driving or if towing a Driving with a hot cooling system could damage trailer up long grades. If this happens, a HOTOIL mes- your vehicle.
Page 427: Jacking And Tire Changing
WHAT TO DO IN EMERGENCIES 425 JACKING AND TIRE CHANGING WARNING! (Continued) • The jack is designed to be used as a tool for WARNING! changing tires only. The jack should not be used to • Do not attempt to change a tire on the side of the lift the vehicle for service purposes.
Page 428: Jack Location
426 WHAT TO DO IN EMERGENCIES Jack Location Spare Tire Location The jack and jack-handle are stowed underneath a cover The spare tire is stowed underneath the rear of the in the rear storage bin in the cargo area. vehicle and is held in place by means of a cable winch mechanism.
Page 429: Spare Tire Removal
WHAT TO DO IN EMERGENCIES 427 4. Place the shift lever in PARK. 1. Remove the jack-handle components 1, 2 and 3 from storage and assemble them. 5. Turn OFF the ignition. 6. Block both the front and rear of the wheel diagonally opposite of the jack- ing position.
Page 430 428 WHAT TO DO IN EMERGENCIES nut socket at the end of component 1 faces upward when 4. Tilt the retainer at the end of the winch cable and seated on component 2. This will make it easier to rotate remove it from the center of the wheel.
Page 431: Spare Tire Stowage
WHAT TO DO IN EMERGENCIES 429 Spare Tire Stowage Jacking Instructions NOTE: Refer to “Spare Tire Removal” for information WARNING! on assembling the winch tools. Carefully follow these tire changing warnings to 1. Place the spare tire near to the winch cable. Hold the help prevent personal injury or damage to your spare upright so that the tire’s tread is on the ground and vehicle:...
Page 432 430 WHAT TO DO IN EMERGENCIES WARNING! (Continued) CAUTION! • Do not let anyone sit in the vehicle when it is on a Do not attempt to raise the vehicle by jacking on jack. locations other than those indicated in the Jacking •...
Page 433 WHAT TO DO IN EMERGENCIES 431 1. Remove the spare tire, jack, and jack-handle from stowage. 2. Loosen, but do not remove, the wheel nuts on the wheel with the flat tire. Turn the wheel nuts counter- clockwise one turn while the wheel is still on the ground. 3.
Page 434 432 WHAT TO DO IN EMERGENCIES WARNING! Raising the vehicle higher than necessary can make the vehicle less stable. It could slip off the jack and hurt someone near it. Raise the vehicle only enough to remove the tire. 5. Remove the wheel nuts. For vehicles so equipped, remove the wheel cover from the wheel by hand.
Page 435 WHAT TO DO IN EMERGENCIES 433 NOTE: CAUTION! • For vehicles so equipped, do not attempt to install a center cap or wheel cover on the compact spare. Be sure to mount the spare tire with the valve stem facing outward. The vehicle could be damaged if the •...
Page 436 434 WHAT TO DO IN EMERGENCIES 8. Lower the vehicle by turning the jack screw counter- 11. Place the deflated (flat) tire in the cargo area. Do not clockwise with the jack handle. stow the deflated tire in the spare tire stowage location. Have the deflated (flat) tire repaired or replaced as soon 9.
Page 437: Road Tire Installation
WHAT TO DO IN EMERGENCIES 435 Road Tire Installation Vehicles Equipped With Wheel Covers 1. Mount the road tire on the axle. 2. To ease the installation process for steel wheels with wheel covers, install two lug nuts on the mounting studs which are on each side of the valve stem.
Page 438 436 WHAT TO DO IN EMERGENCIES 3. Align the valve notch in the wheel cover with the 6. Finish tightening the lug nuts. Push down on the valve stem on the wheel. Install the cover by hand, wrench while at the end of the handle for increased snapping the cover over the two lug nuts.
Page 439: Jump-Starting
WHAT TO DO IN EMERGENCIES 437 5. After 25 miles (40 km) check the lug nut torque with a WARNING! torque wrench to ensure that all lug nuts are properly seated against the wheel. To avoid the risk of forcing the vehicle off the jack, do not tighten the wheel nuts fully until the vehicle JUMP-STARTING has been lowered.
Page 440: Preparations For Jump-Start
438 WHAT TO DO IN EMERGENCIES CAUTION! Do not use a portable battery booster pack or any other booster source with a system voltage greater than 12 Volts or damage to the battery, starter motor, alternator or electrical system may occur. WARNING! Do not attempt jump-starting if the battery is frozen.
Page 441 WHAT TO DO IN EMERGENCIES 439 3. Remove the protective cover over the remote positive WARNING! (+) battery post. To remove the cover, press the locking • Take care to avoid the radiator cooling fan when- tab and pull upward on the cover. ever the hood is raised.
Page 442: Jump-Starting Procedure
440 WHAT TO DO IN EMERGENCIES Jump-Starting Procedure 3. Connect the negative end (-) of the jumper cable to the negative (-) post of the booster battery. WARNING! 4. Connect the opposite end of the negative (-) jumper cable to the remote negative (-) post of the vehicle with Failure to follow this procedure could result in per- the discharged battery.
Page 443: Freeing A Stuck Vehicle
WHAT TO DO IN EMERGENCIES 441 6. Disconnect the negative (-) jumper cable from the CAUTION! remote negative (-) post of the vehicle with the dis- charged battery. Accessories that can be plugged into the vehicle power outlets draw power from the vehicle’s battery, 7.
Page 444 442 WHAT TO DO IN EMERGENCIES CAUTION! CAUTION! • When “rocking” a stuck vehicle by moving be- Racing the engine or spinning the wheels may lead to transmission overheating and failure. Allow the en- tween DRIVE and REVERSE, do not spin the gine to idle with the shift lever in NEUTRAL for at wheels faster than 15 mph (24 km/h), or drivetrain least one minute after every five rocking-motion...
Page 445: Shift Lever Override
WHAT TO DO IN EMERGENCIES 443 WARNING! Fast spinning tires can be dangerous. Forces gener- ated by excessive wheel speeds may cause damage, or even failure, of the axle and tires. A tire could explode and injure someone. Do not spin your vehi- cle’s wheels faster than 30 mph (48 km/h) or for longer than 30 seconds continuously without stop- ping when you are stuck and do not let anyone near...
Page 446: With Keyless Enter-N-Go - If Equipped
444 WHAT TO DO IN EMERGENCIES 6. Move the shift lever into the NEUTRAL position. With Keyless Enter-N-Go — If Equipped If the engine is running, press the START/STOP button to 7. The vehicle may then be started in NEUTRAL. turn it off.
Page 447: All-Wheel Drive (Awd)
WHAT TO DO IN EMERGENCIES 445 Proper towing or lifting equipment is required to prevent CAUTION! damage to your vehicle. Use only tow bars and other • Do not attempt to use sling type equipment when equipment designed for the purpose, following equip- ment manufacturer’s instructions.
Page 448: Front-Wheel Drive (Fwd)
446 WHAT TO DO IN EMERGENCIES • The towing speed must not exceed 25 mph (40 km/h). CAUTION! If the transmission is not operable, or the vehicle must Failure to follow these towing methods could result be towed faster than 25 mph (40 km/h) or farther than in damage to the transmission and/or transfer case.
Page 449: Without The Ignition Key
WHAT TO DO IN EMERGENCIES 447 Without The Ignition Key All-Wheel Drive (AWD) The manufacturer requires towing your vehicle with all Front-Wheel Drive (FWD) four wheels OFF the ground using a flatbed. Special care must be taken when the vehicle is towed with the ignition in the LOCK/OFF position.
Page 451: Maintaining Your Vehicle
MAINTAINING YOUR VEHICLE CONTENTS Engine Compartment — 2.4L ... . . 451 Maintenance Procedures ....456 Engine Compartment —...
Page 452 450 MAINTAINING YOUR VEHICLE Adding Washer Fluid ....469 Underhood Fuses (Power Distribution Center) ... . . 492 Exhaust System .
Page 453: Engine Compartment - 2.4L
MAINTAINING YOUR VEHICLE 451 ENGINE COMPARTMENT — 2.4L 1 — Engine Coolant Reservoir 7 — Totally Integrated Power Module (Fuses) 2 — Power Steering Fluid Reservoir 8 — Automatic Transmission Dipstick 3 — Engine Oil Fill 9 — Washer Fluid Reservoir 4 —...
Page 454: Engine Compartment - 3.6L
452 MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT — 3.6L 1 — Engine Coolant Reservoir 5 — Air Cleaner Filter 2 — Power Steering Fluid Reservoir 6 — Washer Fluid Reservoir 3 — Brake Fluid Reservoir 7 — Engine Oil Dipstick 4 — Totally Integrated Power Module (Fuses) 8 —...
Page 455: Onboard Diagnostic System - Obd Ii
MAINTAINING YOUR VEHICLE 453 ONBOARD DIAGNOSTIC SYSTEM — OBD II CAUTION! Your vehicle is equipped with a sophisticated onboard • Prolonged driving with the MIL on could cause diagnostic system called OBD II. This system monitors the performance of the emissions, engine, and automatic further damage to the emission control system.
Page 456: Emissions Inspection And Maintenance Programs
454 MAINTAINING YOUR VEHICLE A loose, improperly installed, or damaged fuel filler cap Your vehicle has a simple ignition key-actuated test, may also turn on the MIL. which you can use prior to going to the test station. To check if your vehicle’s OBD II system is ready, you must EMISSIONS INSPECTION AND MAINTENANCE do the following: PROGRAMS...
Page 457: Replacement Parts
MAINTAINING YOUR VEHICLE 455 the ignition or start the engine. This means that your before going to the I/M station. The I/M station can fail vehicle’s OBD II system is not ready and you should your vehicle because the MIL is on with the engine not proceed to the I/M station.
Page 458: Maintenance Procedures
456 MAINTAINING YOUR VEHICLE NOTE: Intentional tampering with emissions control Besides those maintenance items specified in the fixed systems may void your warranty and could result in civil maintenance schedule, there are other components which penalties being assessed against you. may require servicing or replacement in the future.
Page 459: Engine Oil
MAINTAINING YOUR VEHICLE 457 fully warmed engine is shut off. Do not check oil level CAUTION! (Continued) before starting the engine after it has sat overnight. • Your vehicle has been built with improved fluids Checking engine oil level when the engine is cold will that protect the performance and durability of give you an incorrect reading.
Page 460 458 MAINTAINING YOUR VEHICLE Engine Oil Selection CAUTION! For best performance and maximum protection under all types of operating conditions, the manufacturer only Do not overfill the engine. Overfilling the engine recommends engine oils that are API Certified and meet will cause oil aeration, which can lead to loss of oil the requirements of Chrysler Material Standard MS-6395.
Page 461 MAINTAINING YOUR VEHICLE 459 Engine Oil Viscosity – 3.6L Engine CAUTION! SAE 5W-30 engine oil is recommended for all operating temperatures. This engine oil improves low temperature Do not use chemical flushes in your engine oil as the starting and vehicle fuel economy. chemicals can damage your engine.
Page 462: Engine Oil Filter
460 MAINTAINING YOUR VEHICLE Materials Added To Engine Oil Engine Oil Filter Do not add any supplemental materials, other than leak The engine oil filter should be replaced with a new filter detection dyes, to your engine oil. Engine oil is an at every engine oil change.
Page 463: Maintenance-Free Battery
MAINTAINING YOUR VEHICLE 461 Maintenance-Free Battery WARNING! Your vehicle is equipped with a maintenance-free battery. You will never have to add water, nor is periodic main- The air induction system (air cleaner, hoses, etc.) can tenance required. provide a measure of protection in the case of engine backfire.
Page 464 462 MAINTAINING YOUR VEHICLE WARNING! CAUTION! • Battery fluid is a corrosive acid solution and can • It is essential when replacing the cables on the burn or even blind you. Do not allow battery fluid battery that the positive cable is attached to the to contact your eyes, skin, or clothing.
Page 465: Air Conditioner Maintenance
MAINTAINING YOUR VEHICLE 463 Air Conditioner Maintenance WARNING! For best possible performance, your air conditioner • Use only refrigerants and compressor lubricants should be checked and serviced by an authorized dealer at the start of each warm season. This service should approved by the manufacturer for your air condi- include cleaning of the condenser fins and a performance tioning system.
Page 466: A/C Air Filter - If Equipped
464 MAINTAINING YOUR VEHICLE Refrigerant Recovery And Recycling A/C Air Filter – If Equipped R-134a Air Conditioning Refrigerant is a hydrofluoro- Refer to the “Maintenance Schedule” for the proper carbon (HFC) that is endorsed by the Environmental maintenance intervals. Protection Agency and is an ozone-saving product. How- WARNING! ever, the manufacturer recommends that air conditioning service be performed by authorized dealers or other...
Page 467 MAINTAINING YOUR VEHICLE 465 Glove Box Removal A/C Air Filter Replacement 3. Pivot the glove box downward. 5. Remove the A/C air filter by pulling it straight out of the housing. 4. Disengage the two retaining tabs that secure the filter cover to the HVAC housing and remove the cover.
Page 468: Body Lubrication
466 MAINTAINING YOUR VEHICLE grit; after lubricating excess oil and grease should be CAUTION! removed. Particular attention should also be given to hood latching components to ensure proper function. The A/C air filter is identified with an arrow to When performing other underhood services, the hood indicate airflow direction through the filter.
Page 469 MAINTAINING YOUR VEHICLE 467 Operation of the wipers on dry glass for long periods Rear Wiper Blade Removal/Installation may cause deterioration of the wiper blades. Always use 1. Lift the pivot cap on the rear wiper arm upward, this washer fluid when using the wipers to remove salt or dirt will allow the rear wiper blade to be raised off of the from a dry windshield or rear window.
Page 470 468 MAINTAINING YOUR VEHICLE NOTE: The rear wiper arm cannot be raised fully upward unless the pivot cap is raised first. 2. Lift the rear wiper arm upward to raise the wiper blade off of the liftgate glass. 3. Grab the bottom of the wiper blade and rotate it forward to unsnap the blade pivot pin from the wiper blade holder.
Page 471: Adding Washer Fluid
MAINTAINING YOUR VEHICLE 469 5. Lower the wiper blade and snap the pivot cap into The fluid reservoir will hold nearly 1 gal (4 l) of washer place. fluid when the message “LoWASH” appears in the instrument cluster. Adding Washer Fluid The windshield washer and the rear window washer WARNING! share the same fluid reservoir.
Page 472 470 MAINTAINING YOUR VEHICLE have an authorized technician inspect the complete ex- WARNING! (Continued) haust system and adjacent body areas for broken, dam- • A hot exhaust system can start a fire if you park aged, deteriorated, or mispositioned parts. Open seams over materials that can burn.
Page 473 MAINTAINING YOUR VEHICLE 471 NOTE: Intentional tampering with emissions control CAUTION! (Continued) systems can result in civil penalties being assessed • Damage to the catalytic converter can result if your against you. vehicle is not kept in proper operating condition. In unusual situations involving grossly malfunctioning In the event of engine malfunction, particularly engine operation, a scorching odor may suggest severe...
Page 474: Cooling System
472 MAINTAINING YOUR VEHICLE • Do not idle the engine with any spark plug wires Coolant Checks disconnected or removed, such as when diagnostic Check the engine coolant (antifreeze) protection every testing, or for prolonged periods during very rough 12 months (before the onset of freezing weather, where idle or malfunctioning operating conditions.
Page 475 MAINTAINING YOUR VEHICLE 473 If the engine coolant (antifreeze) is dirty or contains a CAUTION! considerable amount of sediment, clean and flush with a • Mixing of engine coolant (antifreeze) other than reliable cooling system cleaner. Follow with a thorough rinsing to remove all deposits and chemicals.
Page 476 474 MAINTAINING YOUR VEHICLE Please review these recommendations for using Hybrid CAUTION! (Continued) Organic Additive Technology (HOAT) engine coolant • This vehicle has not been designed for use with (antifreeze). When adding engine coolant (antifreeze): propylene glycol-based engine coolant (anti- •...
Page 477 MAINTAINING YOUR VEHICLE 475 Please note that it is the owner’s responsibility to main- WARNING! tain the proper level of protection against freezing ac- • The warning words “DO NOT OPEN HOT” on cording to the temperatures occurring in the area where the vehicle is operated.
Page 478 476 MAINTAINING YOUR VEHICLE Disposal Of Used Coolant 3.6L Engine – the level of the coolant in the pressurized Used ethylene glycol-based engine coolant (antifreeze) is coolant bottle should be between the “COLD” and a regulated substance requiring proper disposal. Check “FULL”...
Page 479 MAINTAINING YOUR VEHICLE 477 • Maintain engine coolant (antifreeze) concentration at humidity accumulating on the radiator and being vapor- ized when the thermostat opens, allowing hot engine 50% HOAT engine coolant (antifreeze) (minimum) coolant (antifreeze) to enter the radiator. and distilled water for proper corrosion protection of your engine, which contains aluminum components.
Page 480: Brake System
478 MAINTAINING YOUR VEHICLE Brake System Check the fluid level in the master cylinder when per- In order to assure brake system performance, all brake forming underhood services. system components should be inspected periodically. Clean the top of the master cylinder area before removing Refer to the “Maintenance Schedule”...
Page 481 MAINTAINING YOUR VEHICLE 479 WARNING! WARNING! (Continued) • To avoid contamination from foreign matter or • Use only manufacturer’s recommended brake moisture, use only new brake fluid or fluid that fluid. Refer to “Fluids, Lubricants, and Genuine has been in a tightly closed container. Keep the Parts”...
Page 482: Automatic Transmission
480 MAINTAINING YOUR VEHICLE Selection Of Lubricant WARNING! (Continued) It is important that the proper lubricant is used in the • Do not allow petroleum based fluid to contami- transmission to assure optimum transmission perfor- nate the brake fluid. Brake seal components could mance.
Page 483 MAINTAINING YOUR VEHICLE 481 5. Wipe the area around the dipstick clean to eliminate CAUTION! the possibility of dirt entering the transmission. Do not use chemical flushes in your transmission as 6. Remove the dipstick and determine if the fluid is hot the chemicals can damage your transmission compo- or cold.
Page 484 482 MAINTAINING YOUR VEHICLE If the fluid level is low, add sufficient fluid through the CAUTION! (Continued) filler (dipstick) tube to bring it to the proper level. Do not • Dirt and water in the transmission can cause overfill. serious damage. To prevent dirt and water from entering the transmission after checking or replen- CAUTION! ishing fluid, make certain that the dipstick cap is...
Page 485: Rear Drive Assembly (Rda) - Awd Models Only
MAINTAINING YOUR VEHICLE 483 Rear Drive Assembly (RDA) – AWD Models Only Power Transfer Unit (PTU) – AWD Models Only Lubricant Selection Lubricant Selection Use only the manufacturer’s recommended fluid. Refer Use only the manufacturer’s recommended fluid. Refer to “Fluids, Lubricants, and Genuine Parts” in “Maintain- to “Fluids, Lubricants, and Genuine Parts”...
Page 486: Appearance Care And Protection From Corrosion
484 MAINTAINING YOUR VEHICLE Appearance Care And Protection From Corrosion The most common causes are: • Road salt, dirt, and moisture accumulation. Protection Of Body And Paint From Corrosion Vehicle body care requirements vary according to geo- • Stone and gravel impact. graphic locations and usage.
Page 487 MAINTAINING YOUR VEHICLE 485 • Use a high quality cleaner wax, such as MOPAR Special Care Cleaner Wax to remove road film, stains and to protect • If you drive on salted or dusty roads or if you drive your paint finish. Take care never to scratch the paint. near the ocean, hose off the undercarriage at least once •...
Page 488 486 MAINTAINING YOUR VEHICLE • If you carry special cargo such as chemicals, fertilizers, Avoid automatic car washes that use acidic solutions or de-icer salt, etc., be sure that such materials are well harsh brushes that may damage the wheels’ protective packaged and sealed.
Page 489 MAINTAINING YOUR VEHICLE 487 • Do not use any harsh solvents or any other form of Cleaning Leather Upholstery protectants on Stain Repel products. MOPAR Total Clean or equivalent is specifically recom- mended for leather upholstery. Interior Care Your leather upholstery can be best preserved by regular Instrument Panel Cover cleaning with a damp soft cloth.
Page 490 488 MAINTAINING YOUR VEHICLE Glass Surfaces WARNING! All glass surfaces should be cleaned on a regular basis with MOPAR Glass Cleaner or any commercial Do not use volatile solvents for cleaning purposes. household-type glass cleaner. Never use an abrasive type Many are potentially flammable, and if used in cleaner.
Page 491: Cleaning The Cupholders
MAINTAINING YOUR VEHICLE 489 1. Clean with a wet soft rag. A mild soap solution may be FUSES used, but do not use high alcohol content or abrasive Interior Fuses cleaners. If soap is used, wipe clean with a clean damp The interior fuse panel is located on the passenger side rag.
Page 492 490 MAINTAINING YOUR VEHICLE Cartridge Mini- Cartridge Mini- Cavity Description Cavity Description Fuse Fuse Fuse Fuse 20 Amp Rear Power Outlet 30 Amp Rear Defroster (EBL) F106 F116 Yellow Pink 10 Amp Rear Camera – If 10 Amp Heated Mirrors F107 F117 Equipped...
Page 493 MAINTAINING YOUR VEHICLE 491 Cartridge Mini- Cartridge Mini- Cavity Description Cavity Description Fuse Fuse Fuse Fuse 10 Amp Mirrors 15 Amp Video/DVD – If F124 F129 Blue Equipped 10 Amp Steering Column Con- 15 Amp Climate Control/ F125 F130 trol Module Blue Instrument Panel 10 Amp...
Page 494: Underhood Fuses (Power Distribution Center)
492 MAINTAINING YOUR VEHICLE Underhood Fuses (Power Distribution Center) Cartridge Mini- Cavity Description The power distribution center is located in the engine Fuse Fuse compartment. 60 Amp Interior Power Distri- F101 Yellow bution Center Rail 60 Amp Interior Power Distri- F102 Yellow bution Center Rail...
Page 495 MAINTAINING YOUR VEHICLE 493 Cartridge Mini- Cartridge Mini- Cavity Description Cavity Description Fuse Fuse Fuse Fuse 40 Amp Anti-Lock Brake Sys- 30 Amp Starter Solenoid F141 F149 Green Pink 40 Amp Glow Plugs – If 25 Amp Powertrain Control F142 F150 Green Equipped...
Page 496 494 MAINTAINING YOUR VEHICLE Cartridge Mini- Cartridge Mini- Cavity Description Cavity Description Fuse Fuse Fuse Fuse 10 Amp Spare 30 Amp Powertrain Shutdown F159 F167 Green 20 Amp Interior Lights 10 Amp Air Conditioner F160 F168 Yellow Clutch 20 Amp Horn Emissions –...
Page 497: Vehicle Storage
MAINTAINING YOUR VEHICLE 495 VEHICLE STORAGE Cartridge Mini- Cavity Description If you will not be using your vehicle for more than Fuse Fuse 21 days you may want to take steps to preserve your 30 Amp Spare F175 battery. You may: Green •...
Page 498 496 MAINTAINING YOUR VEHICLE LIGHT BULBS – Interior Bulb Number LIGHTS BULBS – Exterior Bulb No. Courtesy/Reading Lamps (Incandescent) ..578 Low Beam Headlamp..... 9006 Courtesy/Reading Lamps (Optional LED) .
Page 499: Bulb Replacement
MAINTAINING YOUR VEHICLE 497 BULB REPLACEMENT Front Low/High Beam Headlamp, Turn Signal/Park Lamp, And Side Marker Lamp 1. Open the hood. NOTE: It may be necessary to remove the air cleaner filter housing and position the Totally Integrated Power Module (TIPM) aside to replace certain lamps in the left headlamp housing.
Page 500: Front Fog Lamp
498 MAINTAINING YOUR VEHICLE 2. Remove the electrical connector from the fog lamp CAUTION! housing. Do not touch the new bulb with your fingers. Oil contamination will severely shorten bulb life. If the bulb comes in contact with any oily surface, clean the bulb with rubbing alcohol.
Page 501: Rear Turn Signal And Backup Lamp
MAINTAINING YOUR VEHICLE 499 Changing The Rear Turn Signal Lamp CAUTION! 1. Open the liftgate. Do not touch the new bulb with your fingers. Oil 2. Remove the two fasteners from the inboard side of the contamination will severely shorten bulb life. If the taillamp housing.
Page 502 500 MAINTAINING YOUR VEHICLE taillamp housing with one hand and grasp the flange on 2. Remove the two fasteners retaining the taillamp hous- the inboard side of the taillamp housing with the other ing to the liftgate from the inboard face of the liftgate. hand.
Page 503: License Plate Lamp
MAINTAINING YOUR VEHICLE 501 7. Reinstall the taillamp housing and fasteners. License Plate Lamp 1. Push the small locking tab sticking out of the end of the lens toward the side of the vehicle and hold it in that position. 4.
Page 504 502 MAINTAINING YOUR VEHICLE 2. Insert a small flat-blade tool between the end of the 5. Install the bulb and connector assembly into the lens lens with the locking tab and the surrounding housing and rotate the connector ⁄ turn clockwise to lock it in and then pivot the tool to separate the lens from the place.
Page 505: Fluid Capacities
MAINTAINING YOUR VEHICLE 503 FLUID CAPACITIES U.S. Metric Fuel (Approximate) Front Wheel Drive (FWD) Models 20.5 Gallons 77.6 Liters All-Wheel Drive Models 21 Gallons 79.8 Liters Engine Oil with Filter 2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts 4.26 Liters 3.6L Engine (SAE 5W-30, API Certified) 6 Quarts 5.6 Liters...
Page 506: Fluids, Lubricants, And Genuine Parts
504 MAINTAINING YOUR VEHICLE FLUIDS, LUBRICANTS, AND GENUINE PARTS Engine Component Fluid, Lubricant, or Genuine Part MOPAR Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy- Engine Coolant brid Organic Additive Technology) or equivalent. Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Engine Oil –...
Page 507: Chassis
MAINTAINING YOUR VEHICLE 505 Chassis Component Fluid, Lubricant, or Genuine Part MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed Automatic Transmission ATF+4 product. Power Transfer Unit (PTU) MOPAR Gear Lubricant 75W-90 or equivalent. Rear Drive Assembly (RDA) MOPAR Gear Lubricant 75W-90 or equivalent. MOPAR DOT 3, SAE J1703 or equivalent should be used.
Page 509 MAINTENANCE SCHEDULES CONTENTS Maintenance Schedule ....508 Required Maintenance Intervals ..510...
Page 510 508 MAINTENANCE SCHEDULES MAINTENANCE SCHEDULE Based on engine operation conditions the oil change The Scheduled Maintenance services listed in this indicator message will illuminate, this means that service manual must be done at the times or mileages specified is required for your vehicle. Have your vehicle serviced to protect your vehicle warranty and ensure the best as soon as possible, within the next 500 miles (805 km).
Page 511 MAINTENANCE SCHEDULES 509 Your authorized dealer will reset the oil change indicator At Each Stop For Fuel message after completing the scheduled oil change. If a • Check the engine oil level about five minutes after a scheduled oil change is performed by someone other fully warmed engine is shut off.
Page 512 510 MAINTENANCE SCHEDULES Once A Month At Each Oil Change • Check tire pressure and look for unusual wear or • Change the engine oil filter. damage. • Inspect the brake hoses and lines. • Inspect the battery and clean and tighten the terminals CAUTION! as required.
Page 513 MAINTENANCE SCHEDULES 511 8,000 Miles (13,000 km) or 16,000 Miles (26,000 km) or 12 Months Maintenance Service 6 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 514: Service Schedule
512 MAINTENANCE SCHEDULES 24,000 Miles (39,000 km) or 32,000 Miles (52,000 km) or 24 Months Maintenance Service 18 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 515 MAINTENANCE SCHEDULES 513 40,000 Miles (65,000 km) or 48,000 Miles (78,000 km) or 36 Months Maintenance Service 30 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 516 514 MAINTENANCE SCHEDULES 56,000 Miles (91,000 km) or 64,000 Miles (104,000 km) or 48 Months Maintenance Service 42 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 517 MAINTENANCE SCHEDULES 515 72,000 Miles (117,000 km) or 80,000 Miles (130,000 km) or 60 Months Maintenance Service 54 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 518 516 MAINTENANCE SCHEDULES 88,000 Miles (143,000 km) or 96,000 Miles (156,000 km) or 72 Months Maintenance Service 66 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 519 MAINTENANCE SCHEDULES 517 104,000 Miles (169,000 km) or 112,000 Miles (182,000 km) or 84 Months Maintenance Service 78 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 520 518 MAINTENANCE SCHEDULES 120,000 Miles (195,000 km) or 128,000 Miles (208,000 km) or 96 Months Maintenance Service 90 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 521 MAINTENANCE SCHEDULES 519 136,000 Miles (221,000 km) or 144,000 Miles (234,000 km) or 108 Months Maintenance Service 102 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 522 520 MAINTENANCE SCHEDULES 152,000 Miles (247,000 km) or WARNING! 114 Months Maintenance Service • You can be badly injured working on or around a Schedule ❏ Change the engine oil and engine oil filter. motor vehicle. Do only service work for which you ❏...
Page 523: If You Need Consumer Assistance
IF YOU NEED CONSUMER ASSISTANCE CONTENTS Suggestions For Obtaining Service For Your Customer Assistance For The Hearing Or Vehicle......523 Speech Impaired (TDD/TTY) .
Page 524 522 IF YOU NEED CONSUMER ASSISTANCE Department Of Transportation Uniform Tire Traction Grades ..... 529 Quality Grades ......529 Temperature Grades .
Page 525: Suggestions For Obtaining Service For Your Vehicle
IF YOU NEED CONSUMER ASSISTANCE 523 SUGGESTIONS FOR OBTAINING SERVICE FOR the service advisor and list the items in order of priority. YOUR VEHICLE At many authorized dealers, you may obtain a rental vehicle at a minimal daily charge. If you need a rental, it Prepare For The Appointment is advisable to make these arrangements when you call If you’re having warranty work done, be sure to have the...
Page 526: Chrysler Group Llc Customer Center
524 IF YOU NEED CONSUMER ASSISTANCE This is why you should always talk to an authorized Chrysler Group LLC Customer Center dealer’s service manager first. Most matters can be re- P.O. Box 21–8004 solved with this process. Auburn Hills, MI 48321–8004 Phone: (800) 423–6343 •...
Page 527: Customer Assistance For The Hearing Or Speech Impaired (Tdd/Tty)
IF YOU NEED CONSUMER ASSISTANCE 525 Customer Assistance For The Hearing Or Speech the manufacturer’s service contracts. If you purchased a Impaired (TDD/TTY) manufacturer’s service contract, you will receive Plan To assist customers who have hearing difficulties, the Provisions and an Owner Identification Card in the mail manufacturer has installed special TDD (Telecommuni- within three weeks of the vehicle delivery date.
Page 528: Warranty Information
526 IF YOU NEED CONSUMER ASSISTANCE We appreciate that you have made a major investment WARRANTY INFORMATION when you purchased the vehicle. An authorized dealer See the Warranty Information Booklet, located on the has also made a major investment in facilities, tools, and DVD, for the terms and provisions of Chrysler Group training to assure that you are absolutely delighted with LLC warranties applicable to this vehicle and market.
Page 529: In Canada
IF YOU NEED CONSUMER ASSISTANCE 527 If NHTSA receives similar complaints, it may open an In Canada investigation, and if it finds that a safety defect exists in If you believe that your vehicle has a safety defect, you a group of vehicles, it may order a recall and remedy should contact the Customer Service Department imme- campaign.
Page 530 528 IF YOU NEED CONSUMER ASSISTANCE • Service Manuals • Owner’s Manuals These comprehensive Service Manuals provide the These Owner’s Manuals have been prepared with the information that students and professional technicians assistance of service and engineering specialists to need in diagnosing/troubleshooting, problem solving, acquaint you with specific Chrysler Group LLC ve- maintaining, servicing, and repairing Chrysler Group hicles.
Page 531 IF YOU NEED CONSUMER ASSISTANCE 529 DEPARTMENT OF TRANSPORTATION UNIFORM significantly from the norm due to variations in driving TIRE QUALITY GRADES habits, service practices, and differences in road charac- The following tire grading categories were established by teristics and climate. the National Highway Traffic Safety Administration.
Page 532 530 IF YOU NEED CONSUMER ASSISTANCE Temperature Grades WARNING! The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat The temperature grade for this tire is established for and its ability to dissipate heat, when tested under a tire that is properly inflated and not overloaded.
Page 533 INDEX...
Page 534 532 INDEX About Your Brakes ....350,352 Airbag, Window (Side Curtain) ... 65,67,70 ABS (Anti-Lock Brake System) .
Page 535 INDEX 533 Automatic Oil Change Indicator ... . . 275 Battery ....... 461 Automatic Temperature Control (ATC) .
Page 536 534 INDEX Brightness, Interior Lights ....196 Cargo Load Floor ......246 Bulb Replacement .
Page 537 INDEX 535 Cleaning Coolant Capacity ..... 503 Wheels ......486 Coolant Level .
Page 538 536 INDEX Delay (Intermittent) Wipers ....199 Driving to Achieve Maximum Fuel Economy ..276 Diagnostic System, Onboard ....453 DVD Player (Video Entertainment System™) .
Page 539 INDEX 537 Emergency, In Case of Flooded, Starting ..... 337 Freeing Vehicle When Stuck ... . . 441 Fuel Requirements .
Page 540 538 INDEX Event Data Recorder ..... . 74 Flashers Exhaust Gas Caution ....42,90,397 Hazard Warning .
Page 541 INDEX 539 Power Steering ....349,505 Materials Added ..... 395 Fluid, Brake .
Page 542 540 INDEX Gasoline, Reformulated ....393 Hazard Gauges Driving Through Flowing, Rising, or Shallow Coolant Temperature ....266 Standing Water .
Page 543 INDEX 541 Heater, Engine Block ..... 338 Instrument Panel Lens Cleaning ... . . 488 High Beam/Low Beam Select (Dimmer) Switch .
Page 544 542 INDEX Keyless Go ......12 Lights ......93,192,497 Keys .
Page 545 INDEX 543 Headlights On Reminder ....194 Rear Tail ......499 Headlights On With Wipers .
Page 546 544 INDEX Automatic Door ..... . 31 Lubricant Selection ....483 Child Protection .
Page 547 INDEX 545 Monitor, Tire Pressure System ....383 Checking ......457 Mopar Parts .
Page 548 546 INDEX Paint Care ......484 Windows ......38 Panic Alarm .
Page 549 INDEX 547 Rear Drive Assembly ..... 483 Remote Control Rear Liftgate ......41 Starting System .
Page 550 548 INDEX Safety Checks Inside Vehicle ....91 Untwisting Procedure ....51 Safety Checks Outside Vehicle .
Page 551 INDEX 549 Service Assistance ..... . . 523 Specifications Service Contract ......525 Fuel (Gasoline) .
Page 552 550 INDEX Steering Wheel Mounted Tether Anchor, Child Restraint ....81 Sound System Controls ....308 Theft Alarm (Security Alarm) .
Page 553 INDEX 551 Jacking ......425 Behind a Motorhome ....420 Life of Tires .
Page 554 552 INDEX Transaxle Turn Signals ..... . 195,261,499 Additives ......480 Automatic .
Page 555 INDEX 553 Video Entertainment System™ Wheel and Wheel Trim Care ....486 (Rear Seat Video System) ....307 Wind Buffeting .
Page 556 INSTALLATION OF RADIO TRANSMITTING EQUIPMENT Special design considerations are incorporated into this The antenna cable should be as short as practical and vehicle’s electronic system to provide immunity to radio routed away from the vehicle wiring when possible. Use frequency signals. Mobile two-way radios and telephone only fully shielded coaxial cable.
Page 557 Chrysler Group LLC Sixth Edition 11JC49-126-AF Printed in U.S.A.

This manual is also suitable for:

Journey 2011

Dodge Journey Owner's Manual

Introduction 1

Things to Know before Starting Your Vehicle

Understanding the Features of Your Vehicle

Understanding Your Instrument Panel

Starting and Operating

Quick Links

Chapters

Related Manuals for Dodge Journey

Summary of Contents for Dodge Journey
