American DJ MARVEL Instruction Manual

User Instructions
American DJ Supply
4295 Charter Street
Los Angeles Ca. 90058
(323) 582-2650 (323) 582-2610
www.americandj.com

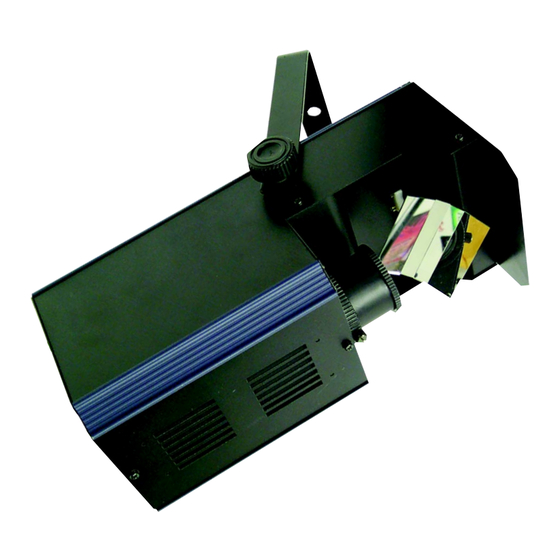

Marvel™ Introduction
Congratulations and thank you for purchasing the American DJ Marvel™ .
The Marvel™ is one of the finest pieces of its kind on the market
today. This unit use a single color/gobo wheel combination for vibrant
colors and extravagant gobo patterns. The Marvel™ is a semi intel-
ligent fixture that can run as a stand alone sound active piece or in a
Master/Slave mode. This fixture is sound active and can be linked via
XLR cables up to 16 pieces. The Marvel™ comes with several build in
programs that are best used in multiples of four or more. The Marvel™
also offers you the ability to run with a standard DMX controller. This
piece is best used with a fog or haze machine. The Marvel™ comes
with a swivel mirror that gives the allusion of X / Y movement, this mir-
ror can be adjusted by hand. The Marvel™ can operate in any of three
modes; Stand alone, Master/Slave, or DMX, these will be explained
later in this manual. An optional Marvel/C controller may be pur-
chased separately that allows the user to Black Out the Marvel™ when
used in stand-alone or master/slave modes. This unit is extremely light
weight and compact which makes it perfect for mobile DJs, but is also
great for small club, bars, bowling centers and roller rinks.
Customer Support:
American DJ provides a toll free customer support line, to provide set
up help and to answer any question should you encounter problems
during your set up or initial operation. You may also visit us on the web
at www.americandj.com for any comments or suggestions.
Service Hours are Monday through Friday 10:00 a.m. to 5:00 p.m.
Pacific Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
HALOGEN LAMP WARNING!
This fixture is fitted with a halogen lamp which is highly susceptible
to damage if improperly handled. Never touch lamp with your bare
fingers as the oil from your hands will shorten lamp life. Also, never
move the fixture until the lamp has had ample time to cool. Remember,
lamps are not covered under warranty conditions.
©American DJ Supply® www.americandj.com Marvel Instruction Manual Page 2
