Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS
CAREFULLY BEFORE INSTALLING OR OPERATING THIS
CONTROL COULD CAUSE PERSONAL INJURY AND/OR
PROPERTY DAMAGE.
APPLICATIONS
THERMOSTAT APPLICATION GUIDE
Description
Gas or Oil Heat
Electric Furnace
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (with Aux. or Emergency Heat)
Systems with up to 3 Stages Heat, 2 Stages Cool
Heat Only Systems
Millivolt Heat Only Systems - Floor or Wall Furnaces
Cool Only Systems
Hydronic (Hot Water) Zone Heat - 2 Wires
Hydronic (Hot Water) Zone Heat - 3 Wires
SPECIFICATIONS
Electrical Rating:
Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . mV to 30 VAC, NEC Class II, 50/60 Hz or DC
Input-Hardwire . . . . . . . . . . . . . . . . . . . . . . . . . 20 to 30 VAC
Terminal Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0 A per terminal, 1.5A maximum all terminals combined
Setpoint Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45° to 90°F (7° to 32°C)
Differential (Single Stage) . . . . . . . . . . . . . . . . . . . . Heat 0.6°F; Cool 1.2°F (adjustable)
Differential (Heat Pump) . . . . . . . . . . . . . . . . . . . . . Heat 1.2°F; Cool 1.2°F (adjustable)
Operating Ambient. . . . . . . . . . . . . . . . . . . . . . . . . . 32° to +105°F (0° to +41°C)
Operating Humidity . . . . . . . . . . . . . . . . . . . . . . . . . 90% non-condensing max.
Shipping Temperature Range . . . . . . . . . . . . . . . . . -40° to +150°F (-40° to +65°C)
Dimensions Thermostat. . . . . . . . . . . . . . . . . . . . . . 3.4"H x 4.4"W x 1.3"D
CAUTION
!
To prevent electrical shock and/or equipment damage,
disconnect electric power to system at main fuse or circuit
breaker box until installation is complete.
Index

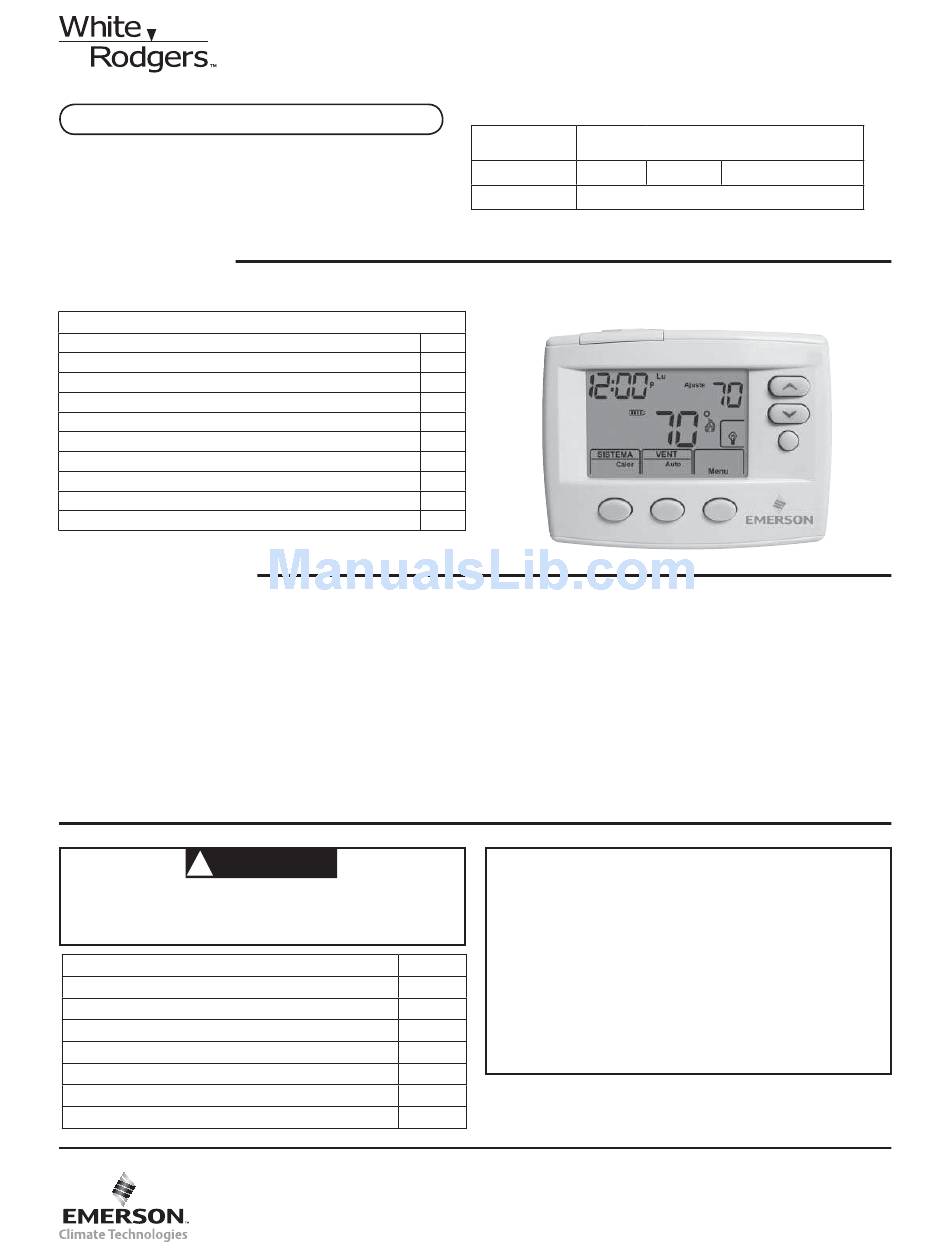

Blue Selecto Thermostat with
Automatic Heat/Cool Changeover Option
Single Stage or Heat Pump
Installation and Operating Instructions for Model:
Model
1F80ST-0471
1F86ST-0471
Yes
Yes
Yes
No
No
Yes
Yes
Yes
Yes
Yes
ATTENTION: MERCURY NOTICE
This product does not contain mercury. However, this
product may replace a product that contains mercury.
Mercury and products containing mercury must not be
discarded in household trash. Do not touch any spilled
mercury. Wearing non-absorbent gloves, clean up any
Page
spilled mercury and place in a sealed container. For proper
2
disposal of a product containing mercury or a sealed
3
container of spilled mercury, place it in a suitable shipping
3
container. Refer to www.white-rodgers.com for location to
4
send product containing mercury.
6
6
8
www.white-rodgers.com
Programming Choices
5/2 Day
5/1/1 Day
Non-Programmable
Non-Programmable
1F80ST-0471 Thermostat
with Spanish Display
PART NO. 37-6952B
Replaces 37-6952A
0905
Advertisement
Table of Contents
Related Manuals for Emerson 1F86ST-0471
Summary of Contents for Emerson 1F86ST-0471
-
Page 1: Table Of Contents
Blue Selecto Thermostat with Automatic Heat/Cool Changeover Option Single Stage or Heat Pump Installation and Operating Instructions for Model: Save these instructions for future use! Model Programming Choices FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS 1F80ST-0471 5/2 Day 5/1/1 Day... -
Page 2: Installation
INSTALLATION Batteries WARNING 2 "AA" alkaline batteries are included in the thermostat. To in- Thermostat installation and all components of the control stall the batteries, pull the battery door as shown by the arrow system shall conform to Class II circuits per the NEC and lift open. -
Page 3: Wiring Connections
WIRING CONNECTIONS Refer to equipment manufacturers' instructions for specifi c system wiring information. After wiring, see CONFIGURATION section for proper thermostat confi guration. Refer to 37-6754 for 1F80-0471/1F86-0471 wiring diagram specifi cations. TERMINAL DESIGNATION DESCRIPTIONS Terminal Designation Description Terminal Designation Description O/B.... -
Page 4: Installer Confi Guration Menu
INSTALLER/CONFIGURATION MENU With thermostat in Heat, Cool or Auto, in normal operation, press the Menu button for at least 5 seconds. The display will show item #1 in the table below. Press Menu to advance to the next menu item. Press to change an item option. - Page 5 INSTALLER/CONFIGURATION MENU 4. Energy Management Recovery: (this step is skipped if 9. System Mode Confi guration – This thermostat is confi gured to be non-programmable). confi gured for Calor and Frio with Auto changeover (SISTEMA switch with Frio Off Calor Auto) default. It can Energy Management Recovery (E) On enables the also be confi...
-
Page 6: Operating Your Thermostat
OPERATING YOUR THERMOSTAT IMPORTANT! Manual Operation (Bypassing the Program) Choose the Vent Setting (Auto or On) Programmable Thermostats Set the VENT Switch to Auto or On. Press and the Retener button and adjust the Vent Auto is the most commonly selected setting and runs temperature wherever you like. - Page 7 PROGRAMMING (For Programmable Model Only) Energy Saving Factory Pre-Program The 1F80ST-0471 thermostats are programmed with the energy saving settings shown in the table below for all days of the week. If this program suits your needs, simply set the thermostat clock and press the Arrancar button. The table below shows the factory set heating and cooling schedule for all days of the week.
-
Page 8: Troubleshooting
If an acceptable cycle rate is not achieved, contact a local service person for additional suggestions. HOMEOWNER HELP LINE: 1-800-284-2925 White-Rodgers is a division of Emerson Electric Co. The Emerson logo is a trademark and service mark St. Louis, Missouri of Emerson Electric Co. www.white-rodgers.com...
