- Page 1 CABINET PARTS REFRIGERATOR For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) 11−08 Litho In U.S.A. (mat) (eeb) Part No. W10207767 Rev. A...
-

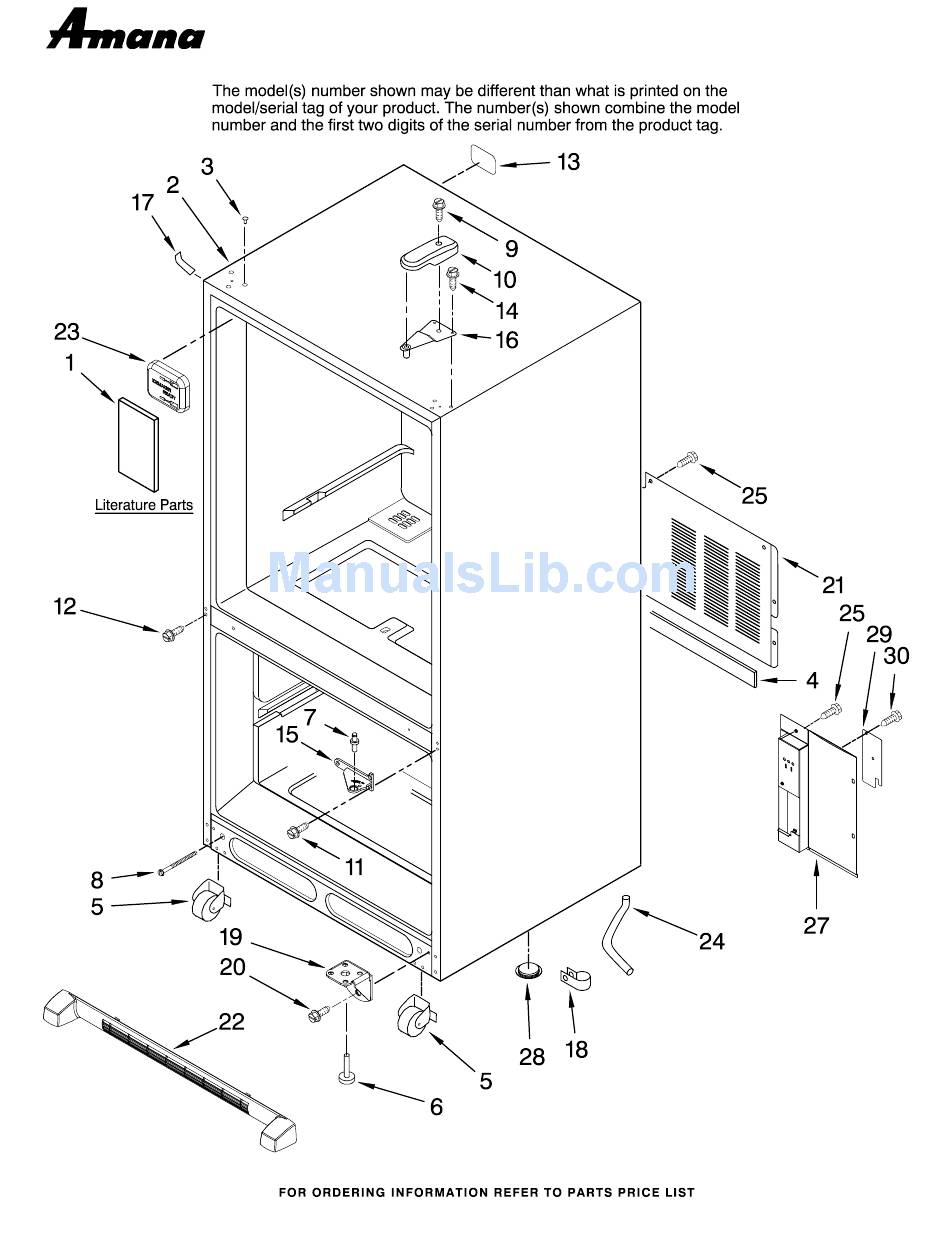

Page 2: Cabinet Parts
CABINET PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Literature Parts W10175445 Use & Care Guide W10184250 Energy Guide W10165418 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) M0310731 Black B5759649 Gasket 67006118 Roller Assembly 67003868 Foot, Brake 67006642 Pin, Center Hinge 67006611 Bolt, Adjusting... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) W10207767... - Page 4 FREEZER LINER PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 12002497 Gear (2) 67003905 Cover, Light 67004261 Shaft Y12570701 Socket, Light 67006530 Screw 67006473 Screw A0282812 Bulb, Light 67001035 Housing, Light 67005872 Cover, Evaporator 67006425 Screw...
-
Page 5: Freezer Door Parts
FREEZER DOOR PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Freezer Door Handle 67002935 Screw (w/ Insulation) W10136873 Stainless Plug, Button (2) 13092210SQ Stainless Steel Door Gasket, W10153326 Black Magnetic 67006113 Mount, Handle W10130587 Black W10207767... -
Page 6: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A 67003901 Housing, Light 12002355 Thermistor Serviceable Part) A0282812 Bulb, Light (2) 17 M0310731 Plug Button Y67003896 Module, Light Y12570701 Socket, Light (2) 67003900 Insert 67004279 Overlay... -
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) W10207767... - Page 8 REFRIGERATOR DOOR PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (w/Liner) 13023840SQ Left 13023839SQ Right 67002935 Screw 67003819 Door, Dairy 67001279 Tray, Dairy 67001021 Bucket, Medium (4) 67006113 Mount, Handle Plug, Button W10153326 Black Door Gasket, Magnetic W10131327 Black...
-
Page 9: Unit Parts
UNIT PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) W10207767... - Page 10 UNIT PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006433 Screw 67003719 Evaporator 2 W10162928 Blade, Fan Following Parts Not Illustrated 67005744 Basepan 67001084 Right Side and Optional Parts Not Included 67006425 Screw 67001083 Left Side 67005491 Block, Condenser...
-
Page 11: Shelf Parts
SHELF PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) W10207767... - Page 12 SHELF PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION 67001057 Rail, Center Crisper 67004420 Trim, Crisper 67005864 Slide, Humidity Control 67004986 Basket, Upper 5 W10143561 Basket, Freezer (Lower) 67006626 Screw 67006360 Screw 67006608 Screw 67001314 Pan, Deli 10459927 Trim, Front (4) 67006400 Screw (6) 67004127 Divider, Top...
-
Page 13: Icemaker Parts
ICEMAKER PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) W10207767... - Page 14 ICEMAKER PARTS For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) Illus. Part DESCRIPTION Mold & Heater Assembly (Not Available Order D7824706Q) 67004028 Arm, Shutoff 628356 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2195914 Support & Motor Assembly 2315522 Retainer, Thermostat Thermostat (Not Available Order D7824706Q)
- Page 15 OPTIONAL PARTS (NOT INCLUDED) For Models: ABL2222FES12, ABR2222FES12 (Stainless Steel) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION TORX SCREW WRENCH PAINT, BULK (1 qt.) PAINT, TOUCH−UP (1/2oz.) 1117510 Torx Key 72017 White 799344 White (Uncut) 72032 Black 799344 Black (Uncut) ACCESSORIES Miscellaneous...
