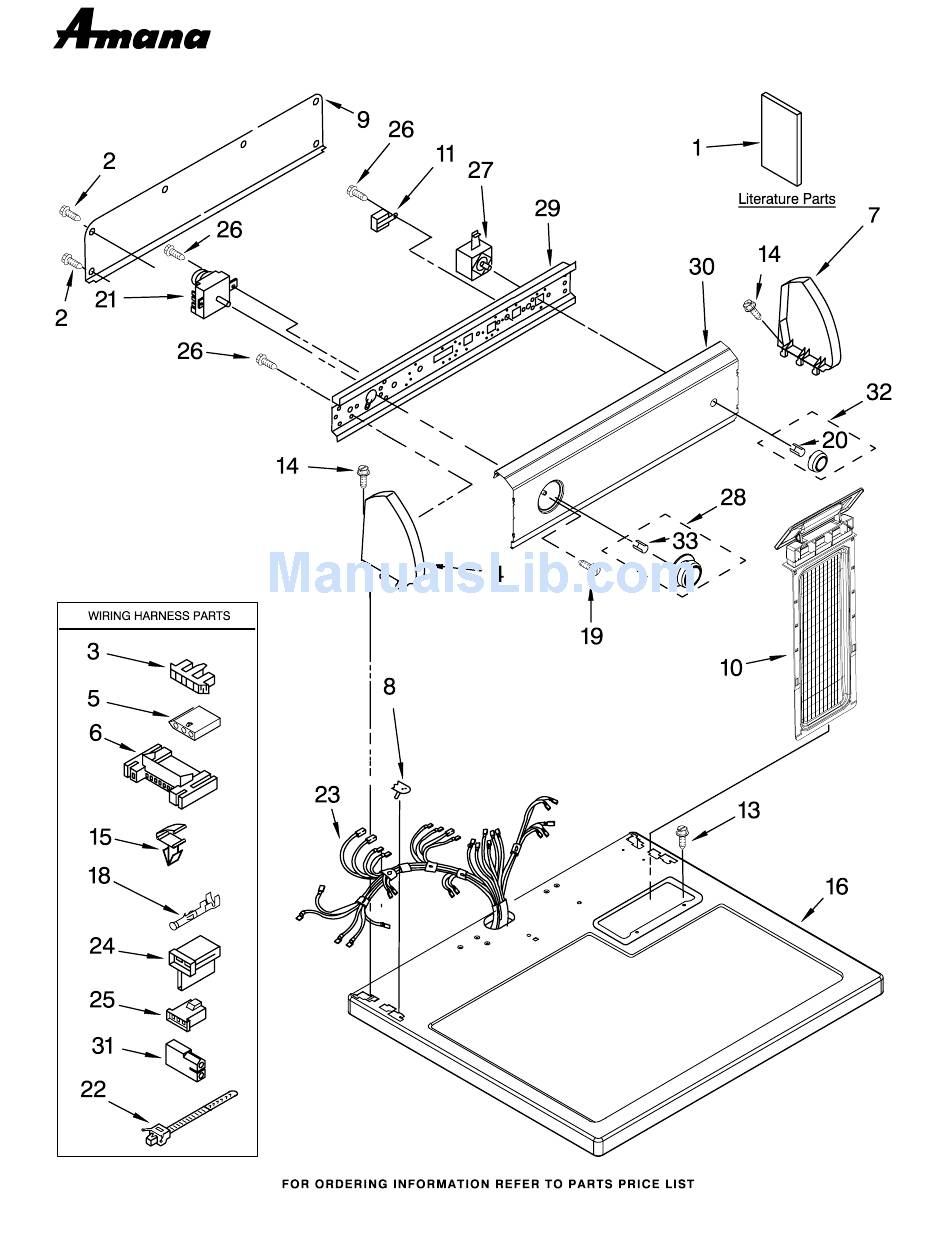

- Page 1 TOP AND CONSOLE PARTS 29" GAS DRYER For Model: NGD5100TQ1 (Designer White) 11−08 Litho in U.S.A.(mp)(bay) Part No. W10242832 Rev. A...
- Page 2 TOP AND CONSOLE PARTS For Model: NGD5100TQ1 (Designer White) Illus. Part DESCRIPTION Literature Parts W10232964 Guide, Use & Care Instructions, Installation W10150630 English W10150631 Spanish W10185979 Wiring Diagram Sheet, Cycle Feature W10150656 English W10150657 Spanish 693995 Screw, Hex Washer Head 3397269 Connector, Timer 8271359 Cap, End (L.H.) 3936144 Connector...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: NGD5100TQ1 (Designer White) W10242832... - Page 4 CABINET PARTS For Model: NGD5100TQ1 (Designer White) Illus. Part DESCRIPTION 697776 Screw, 10−32 x 5/8 343641 Screw, 10−16 x 1/2 693995 Screw, Hex Head 8541400 Bracket, Cabinet 3396795 Cover, Block 3394975 Plug, Front Panel 3396807 Panel, Rear 342055 Screw, 8−18 x 1/2 3980175 Clamp−Elbow 3406104 Door Switch Assembly...
-
Page 5: Burner Assembly
8318272 BURNER ASSEMBLY For Model: NGD5100TQ1 (Designer White) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−150 W10242832... - Page 6 8318272 BURNER ASSEMBLY For Model: NGD5100TQ1 (Designer White) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part DESCRIPTION 8318272 Burner Assembly 60 Hz. (Type 1) (White Rodgers) 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw &...
- Page 7 BULKHEAD PARTS For Model: NGD5100TQ1 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8577230 Housing, Blower 694283 Lint Chute 3399506 Shaft, L.H. 3398161 Clip Assembly 3399507 Shaft, R.H. 489463 Screw, 8−18 x 5/8 343641 Screw, 10−16 x 1/2 3397590 Roller, Support 8530285 Box, Heater 3406022 Bracket, Bulkhead...
- Page 8 OPTIONAL PARTS (NOT INCLUDED) For Model: NGD5100TQ1 (Designer White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 8522199 Kit, Dryer Vent Testing 346764 Kit, Hold−Down (Gas Dryer Mobile Home Installation) 689790 Dry Rack PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray...
