Summary of Contents for Asus VW248TLB
-
Page 1: User Guide

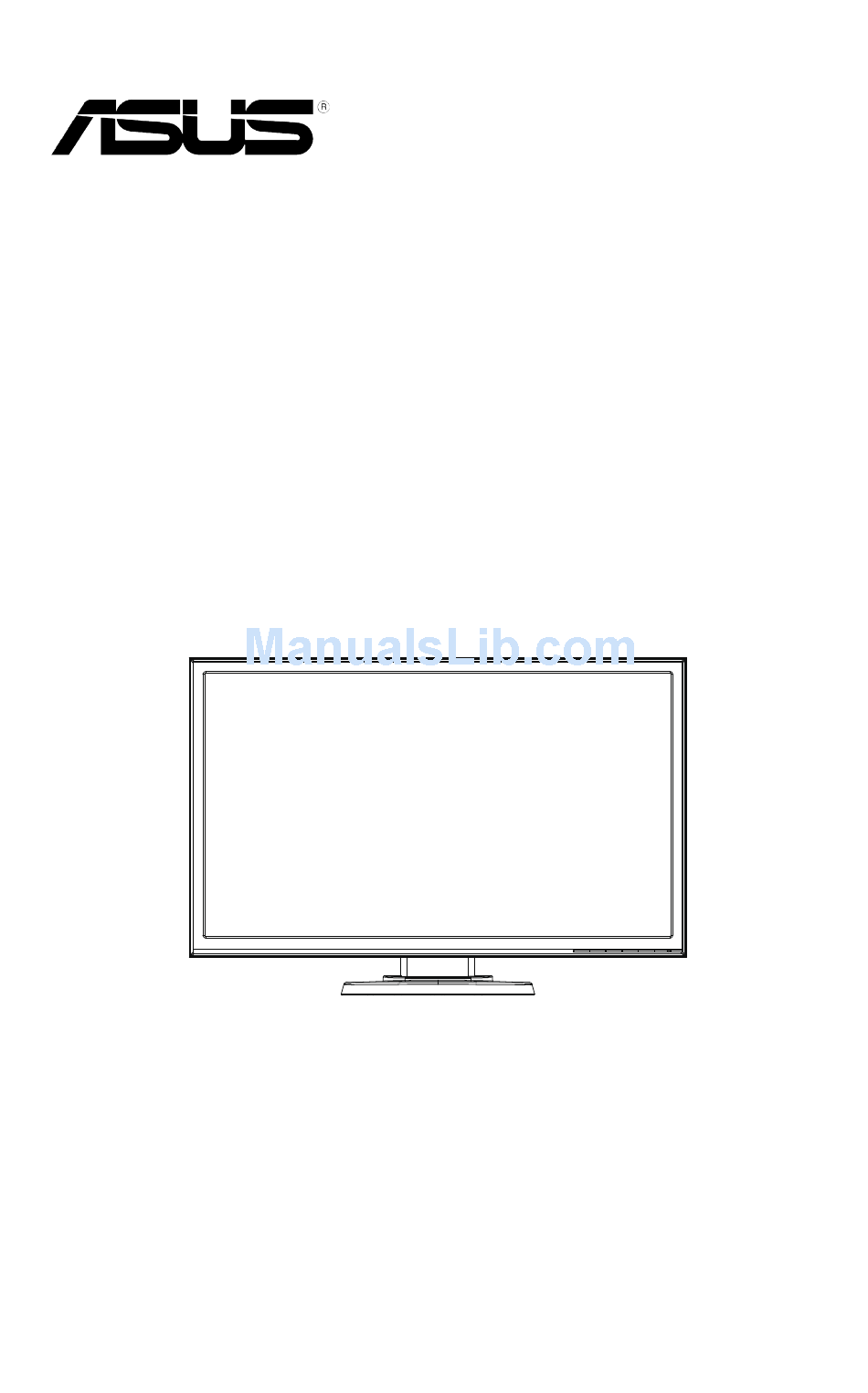

October 2010 VW248TLB Series LED Monitor User Guide... -
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. As an Energy Star Partner, our company has ® determined that this product meets the Energy Star ® guidelines for energy efficiency. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This class B digital apparatus complies with Canadian ICES-003. Energy Saving on Monitor ASUS monitor supports energy saving mode. If the monitor does not detect the Horizontal sync signal and/or Vertical sync signal, it will enter energy saving (standby) mode. -
Page 4: Safety Information
When the monitor enters energy saving (standby) mode, the screen will display blank and the backlight will be turned off, and the Power LED will light “amber”. For the indication of Energy Saving (standby) mode, please refer to your user guide. Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. • Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately. • Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided. • The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. • Use the appropriate power plug which complies with your local power standard. • Do not overload power strips and extension cords. Overloading can result in fire or electric shock. • Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface. -
Page 5: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner. • Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LED. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock. The following symptoms are normal with the monitor: • The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears. • You may find slightly uneven brightness on the screen depending on the desktop pattern you use. • When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours. • When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself! Conventions used in this guide WARNING: Information to prevent injury to yourself when trying to complete a task. -
Page 6: Welcome
Where to find more information Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package. Welcome! ® Thank you for purchasing the ASUS VW248TLB Series LED monitor! The latest widescreen LED monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual experience that the VW248TLB Series brings you! Package contents Check your VW248TLB Series LED package for the following items: LED monitor Monitor base Support CD Quick Start Guide Power cord VGA cable DVI cable Audio cable USB cable • If any of the above items is damaged or missing, contact your retailer immediately. Chapter 1: Product Introduction... -
Page 7: Assembling The Monitor Base
Assembling the monitor base To assemble the monitor base: Place the display flat on a cloth on the table, assemble the base according to the drawing and use a coin to turn the screw tight. Adjust the monitor to the angle that is most comfortable for you. • We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. ASUS LED Monitor VW248TLB Series... -
Page 8: Monitor Introduction
Monitor introduction 1.4.1 Front of the LED monitor Button: • Automatically adjust the image to its optimized position, clock, and phase by long pressing this button for 2-4 seconds (for VGA mode only). • Use this hotkey to switch from six video preset modes (Scenery Mode, Standard Mode, Theater Mode, Game Mode, Night View Mode, and sRGB Mode) with SPLENDID™ Video Intelligence Technology. • Exit the OSD menu or go back to the previous menu as the OSD menu is active. Button: • Press this button to decrease the value of the function selected or move to the next function. • This is also a hotkey for Volume adjustment. MENU Button: • Press this button to enter/select the icon (function) highlighted while the OSD menu is activated. Button: • Press this button to increase the value of the function selected or move to the previous function. • This is also a hotkey for Brightness adjustment. Input Select Button: Use this hotkey to switch from VGA, DVI input signals. • Chapter 1: Product Introduction... -
Page 9: Rear Of The Led Monitor
Power Button: • Press this button to turn the monitor on/off. Power Indicator Status Description Blue Amber Standby mode 1.4.2 Rear of the LED monitor Screw holes for VESA Wall Mount AC-IN port Line-in port DVI port VGA port USB upstream USB downstream x 2 ASUS LED Monitor VW248TLB Series... -
Page 10: Detaching The Arm/Stand (For Vesa Wall Mount)
Detaching the arm/stand (for VESA wall mount) The detachable stand of the VW248TLB Series LED monitor is specially designed for VESA wall mount. To detach the arm/stand: Lower the monitor to its lowest height, and then inset the monitor height adjustment lock. Have the front of the monitor face down on a table. Use a screwdriver to remove the two screws on the VESA cover,the slide out the arm/base to detach it from themonitor. • W e recommend that you cover the table surface with soft cloth to prevent damage to the monitor. • Hold the stand of the monitor when you remove the screws. • The VESA wall mount kit ( 100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 20 Kg (Screw size: M4 x 12 mm). ASUS LED Monitor VW248TLB Series... -
Page 11: Adjusting The Monitor
Adjusting the monitor • F or optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • H old the stand to prevent the monitor from falling while changing its angle. • Y ou can tilt the monitor’s from -5º to 15º, swivel from left-to-right for 45º each side, and lift the monitor’s height for about 110 mm. -5º~15º 45 º º 0 º Chapter 2: Setup... -
Page 12: Osd (On-Screen Display) Menu
Press and to change the settings of the selected function. To exit the OSD menu, press the button. Repeat step 2 and step 3 to adjust any other function. 3.1.2 OSD Function Introduction Splendid This function contains six sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. VW248 Splendid Scenery Mode Color Standard Mode Image Theater Mode Input Select Game Mode System Setup Night View Mode sRGB Move Menu Exit • Scenery Mode: This is the best choice for scenery photo displaying with SPLENDID™ Video Intelligence Technology. ASUS LED Monitor VW248TLB Series... - Page 13 • Standard Mode: This is the best choice for document editing with SPLENDID™ Video Intelligence Technology. • Theater Mode: This is the best choice for movie watching with SPLENDID™ Video Intelligence Technology. • Game Mode: This is the best choice for game playing with SPLENDID™ Video Intelligence Technology. • Night View Mode: This is the best choice for playing dark-scene game or watching dark-scene movie with SPLENDID™ Video Intelligence Technology. • sRGB • In the Standard Mode, the Saturation, Color Temp., SkinTone, Sharpness, and ASCR functions are not user-configurable. • In the sRGB, the Saturation, Color Temp., SkinTone, Sharpness, Brightness, Contrast and ASCR functions are not user-configurable. Color Select the image color you like from this function. VW248 Splendid Brightness Color Contrast Image Saturation Input Select Color Temp. User Mode System Setup Skin Tone Natural...
- Page 14 Image You can adjust the image Sharpness, Aspect Control, ASCR, Position (VGA only), and Focus (VGA only) from this main function. VW248 Splendid Sharpness Aspect Control Full Color Image ASCR Input Select Position System Setup Focus Move Menu Exit • Sharpness: Adjust the picture sharpness. The adjusting range is from 0 to 100. • Aspect Control: Adjust the aspect ratio to “Full”, “4:3”. • ASCR: Select ON or OFF to enable or disable dynamic contrast ratio function. • Position: Adjust the horizontal position (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100 (Only available for VGA input). • Focus: Reduce Horizonal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock) separately. The adjusting range is from 0 to 100 (Only available for VGA input). • Phase adjusts the phase of the pixel clock signal. With a wrong phase adjustment, the screen shows horizontal disturbances.
- Page 15 All Reset Color Image Input Select System Setup Move Menu Exit • Splendid Demo Mode: Activate the demo mode for the Splendid function. • Volume: The adjusting range is from 0 to 100. is a hotkey to activate this function. • ECO Mode: Power-saving mode • OSD Setup: Adjust the horizontal position (H-Position),and the vertical position (V-Position) of the OSD. The adjusting range is from 0 to 100. In the OSD Timeout selection, you can adjust the OSD timeout from 10 to 120. • Language: There are eleven languages for your selection,including English, German, Italian, French, Dutch, Spanish, Russian,Traditional Chinese, Simplified Chinese, Japanese, and Korean. • Information: Display the monitor information. • All Reset: Select “Yes” to revert all settings to the factory default mode. ASUS LED Monitor VW248TLB Series...
-
Page 16: Specifications Summary
3.2 Specifications summary Model VW248TLB Panel Size 24”W (61.0 cm) True Resolution 1920x1080 (Full HD) Brightness (Typ.) 250 cd/m Contrast Ratio (Typ.) 1000:1 ASUS Smart Contrast 10000000:1 Ratio (ASCR) Viewing Angle 170°(H)/160°(V) (CR≥10) Color Saturation (NTSC) Display Colors 16.7 M Response Time 5ms (On/Off) Power Consumption ON Mode: <42W, Standby Mode: <0.3W, Off Mode: <0.3W Stereo Speaker 2W x 2 RMS DVI input D-Sub input Audio Line-in USB input Upstream x 1, Downstream x 2 Voltage Rating AC 100-240V Tilt -5° ~ +15° Swivel 45° ~ -45° Height Adjustment... -
Page 17: Troubleshooting (Faq)
• Adjust the H-Position or V-Position settings via OSD (for VGA input only). Screen image bounces or a wave • Make sure the signal cable is properly connected to pattern is present in the image the monitor and the computer. • Move electrical devices that may cause electrical interference. Screen image has color defects • Inspect the signal cable and make sure that none of (white does not look white) the pins are bent. • Perform All Reset via OSD. • Adjust the R/G/B color settings or select the Color Temperature via OSD. Screen image is blurry or fuzzy • Press the button for 2~4 seconds to automatically adjust the image (for VGA input only). • Adjust the Phase and Clock settings via OSD. No sound or sound is low • Ensure that the audio cable is properly connected to the monitor and the computer. • Adjust the volume settings of both your monitor and computer. • Ensure that the computer sound card driver is properly installed and activated. ASUS LED Monitor VW248TLB Series... -
Page 18: Supported Timing List
Supported Timing List Resolution Refresh Rate Horizontal Frequency 640x480 60Hz 31.469 kHz 640x480 72Hz 37.861 kHz 640x480 75Hz 37.5 kHz 640x480 67Hz 35 kHz 640x350 70Hz 31.469 kHz 720x400 70Hz 31.469 kHz 800x600 56Hz 35.156 kHz 800x600 60Hz 37.879 kHz 800x600 75Hz 46.875 kHz 832x624 75Hz 49.725 kHz 848x480 60Hz 31.02 kHz 1024x768 60Hz...
