Related Manuals for Electrolux EUN 12300
Summary of Contents for Electrolux EUN 12300

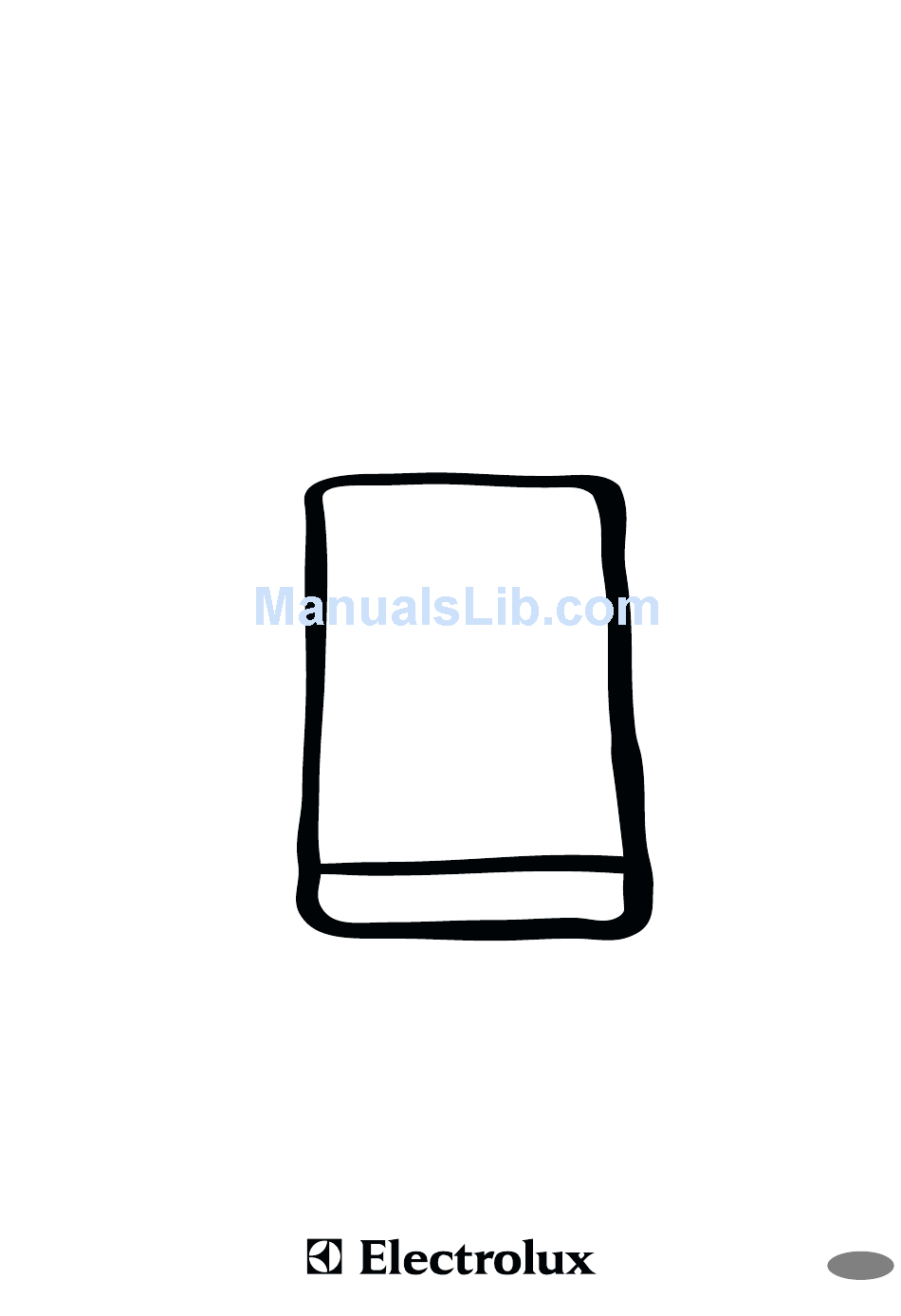

- Page 1 INSTRUCTION BOOKLET EUN 12300 2222 753-55...
-
Page 2: Important Safety Instructions
• Do not remove items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns. • Bottles and cans must not be placed in the freezer as they can burst when the contents freeze. • Manufacturers’ recommended storage times should be adhered to. -
Page 3: At The End Of The Appliance Life
Servicing • This product should be serviced by an authorised engineer and only genuine spare parts should be used. • Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. -
Page 4: Table Of Contents
Contents Instructions for the User Important Safety Instructions ....2 Operation ....... .5 Before use / Starting your appliance . -
Page 5: Operation
, this shows that the appliance is on. The freezer is switched off by turning knob position « ». Temperature control The temperature inside the freezer is regulated by a thermostat with different temperature positions and one «OFF» ( ) position. Position «1» = minimum cold Position «6»... -
Page 6: Freezing Fresh Food / Frozen Food Storage
During the freezing process, ensure that the freezer door remains closed. Frozen food storage When you first start the freezer or if the freezer has been out of use for some time, we advise you to run your appliance for at least two hours in the «fast freeze»... -
Page 7: Normal Operating Sound
• The best way to defrost food is to put it in the refrigerator to thaw slowly. • Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best. -
Page 8: Defrosting
Important In the event of a power failure causing the temperature within your freezer to rise, do not re- freeze the food without checking its condition. ➁ ➁ The following guidelines should assist you: to the «... -
Page 9: Maintenance And Cleaning Internal Cleaning
Maintenance and Cleaning Warning Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply. Important This appliance contains hydrocarbons in cooling unit maintenance recharging must therefore only be carried out by authorised technicians. Internal cleaning Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). -
Page 10: Something Not Working
Symptom No power to appliance The temperature in the freezer is too high The freezer door will not open The compressor runs continuously Excessive frost and ice has built up. -
Page 11: Service And Spare Parts
“Something Not Working.” Customer Care Department For general enquiries concerning your Electrolux appliance or for further information on Electrolux products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.electrolux.co.uk... -
Page 12: Guarantee Conditions
Standard guarantee conditions We, Electrolux, undertake that if within 12 months of the date of purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •... -
Page 13: Technical Specifications
Technical specifications POWER SUPPLY VOLTAGE AND FREQUENCY RATED CURRENT AVERAGE DAILY UNITS ELECTRICITY(*) GROSS CAPACITY NET CAPACITY STAR RATING (*)This figure is based on standard test results in accordance with European Standard EN153 (Actual consumption will depend on how the appliance is used and where it is located). Installation Warning IF YOU ARE DISCARDING AN OLD... -
Page 14: Electrical Connection
Electrical Connection WARNING THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted. -
Page 15: Building-In
Building in Dimensions of the recess Height of housing mm 880 Depth of housing mm 550 Width of housing mm 560 It is necessary that the cabinet has a ventilation recess with the following dimensions: Depth 50 mm Width For appropriate venting, follow indications in the figure. - Page 16 4. Snap vent grill (B) and hinge cover (E) into position. Apply blanking covers (C-D) as indicated. 5. Separate parts Ha, Hb, Hc, Hd as shown in the figure. 6. Place guide (Ha) on the inside part of the furniture door, up and down as shown in the figure and mark the position of external holes.
- Page 17 10. Place the small square on the guide again and fix it with the screws supplied. Should the alignment of the furniture door be necessary, use the clearance of slots. At the end of this procedure, it is necessary to check if the door of the furniture closes properly.
- Page 20 © Electrolux plc 2006 ELECTROLUX HOME PRODUCTS OPERATIONS EUROPE...
