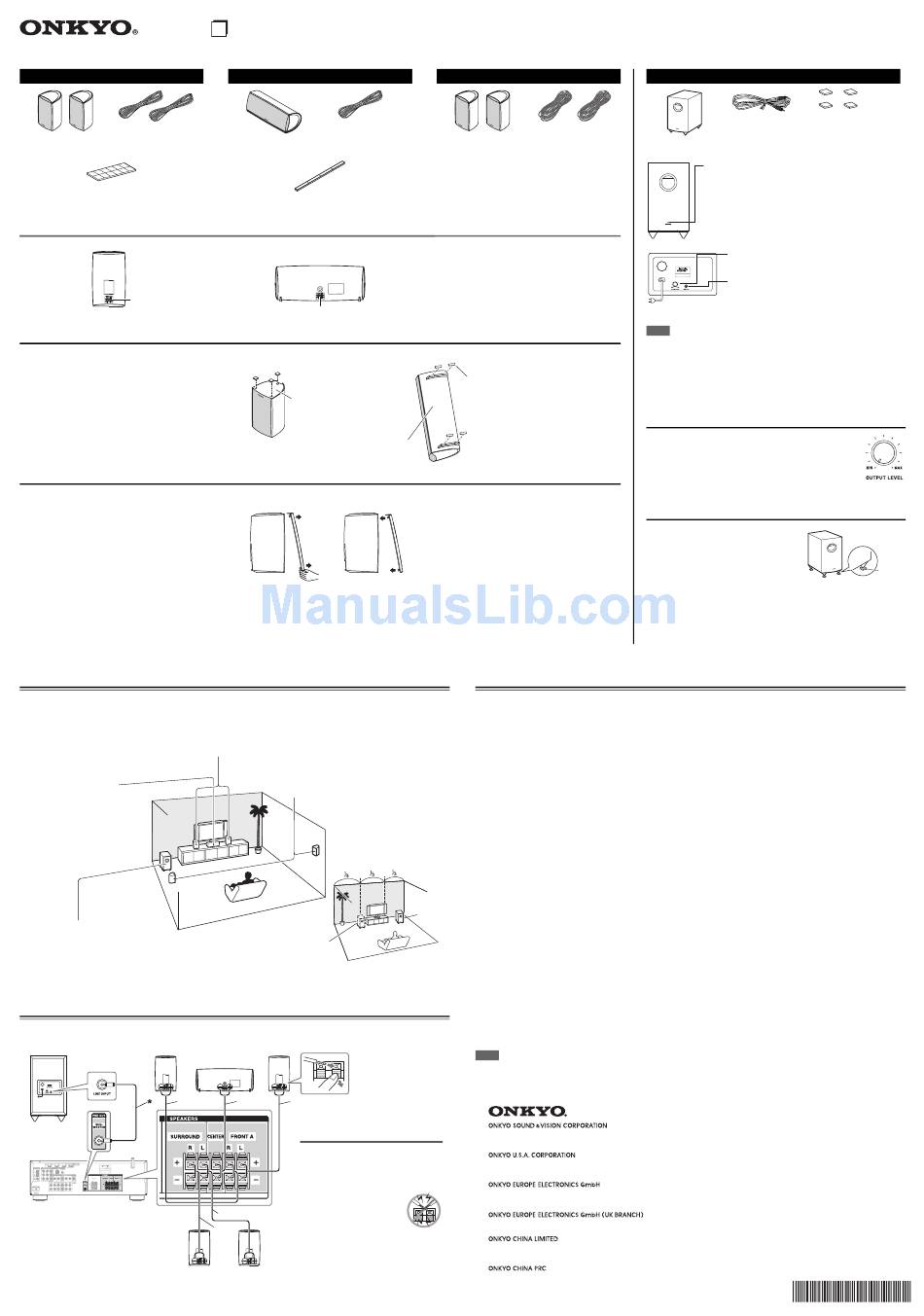

Onkyo SKS-HT690 Owner's Manual

5.1ch Home Theater Speaker Package 5.1ch Home Theater Speaker Package
Front speaker (SKF-690)
(White) (Red)
Front speakers Speaker cables 11 ft.
(3.5 m)
12 rubber stoppers* (For Front/Surround speakers)
* Configuration of the rubber stoppers may be different from the figure, such as being 2 sheets instead of 1 sheet, but the total number will be same.
SKF-690
Speaker terminals
SKR-690
Using the Rubber Stoppers for a More Stable Platform
We recommend using the supplied rubber stoppers to achieve
the best possible sound from your speakers.
The rubber stoppers prevent the speakers from moving,
providing a more stable platform.
Attaching and detaching the speaker grilles
The front, center and surround speakers have detachable grilles.
See the right illustrations to attach or detach them.
Enjoying Home Theater
The Home Theater means that you can enjoy surround sound with a real sense of movement in your own home — just like being in
a movie theater or concert hall.
Front left and right speakers (SKF-690)
They should be positioned facing the listener at about ear level,
and equally spaced from the TV. Angle them inward slightly so as
to create a triangle, with the listener at the apex.
Center speaker (SKC-690)
Position it close to your TV
(preferably on top) facing forward at
about ear level, or at the same height
as the front left and right speakers.
Subwoofer (SKW-780)
The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects)
channel and bass from the satellite speakers when a crossover is specified.
The volume and quality of the bass output from your subwoofer will depend
on its position, the shape of your listening room, and your listening position.
In general, a good bass sound can be obtained by installing the subwoofer in
a front corner, or at one-third the way along the front wall, as shown.

Connecting the Speakers

Powered Front right
subwoofer speaker
780
Red
* Using the supplied RCA cable,
connect the subwoofer's LINE
INPUT to your AV receiver's
SUBWOOFER PRE OUT jack.
Surround right
speaker
E HTP-690/SKS-HT690
n
Center speaker (SKC-690)
(Green)
Speaker cable 10 ft.
Center speaker (3.0 m)
4 rubber stoppers *
SKC-690
Speaker terminals
Rubber stoppers
Bottom of the
SKF-690
SKR-690
Bottom of the
SKC-690
Removal Replacement
Surround left and right speakers (SKR-690)
Position them at the sides of the listener, or
slightly behind, about 2 to 3 feet (60 to
100 cm) above ear level. Ideally they should be
equally spaced from the listener.
1/3 of wall
position
Front left
speaker
Center speaker
Green White
Speaker Connection
Precautions
Read the following before connecting your
speakers:
• Turn off your receiver before making any
connections.
• Pay close attention to speaker
wiring polarity. Connect
Blue positive (+) terminals to only
positive (+) terminals, and
Gray
negative (–) terminals to only negative (–)
terminals. If the speakers are wired
incorrectly, the sound will be out of phase
and will sound unnatural.
Surround left
• Be careful not to short the positive and
speaker
negative wires. Doing so may damage
your amp.
Surround speaker (SKR-690)
(Blue) (Gray)
Speaker cables 26 ft.
Surround speakers
(8.0 m)
Rubber stoppers

Specifications

■
Powered Subwoofer (SKW-780)
Type Bass-Reflex
Input sensitivity/Impedance 550 mV/20 kΩ
Rated output Power (FTC) 120 watts minimum continuous power, 4
ohms, driven at 100 Hz with a maximum
total harmonic distortion of 1 %
Frequency response 25 Hz to 150 Hz
Cabinet capacity 1.3 cubic feet (37 L)
Dimensions (W × H × D) 10-13/16" × 19-15/16" × 16-3/16"
(275 mm × 507 mm × 411 mm)
(incl. projection)
Weight 25.6 lbs. (11.6 kg)
Drivers unit 10" (25 cm) Cone Woofer × 1
Power supply AC 120 V, 60 Hz
Power consumption 163 W
Other Auto Standby function
Non-magnetic shielding
■
Front Speakers (SKF-690)
Type 2 Way Closed Box
6 Ω
Impedance
Maximum input power 130 W
Sensitivity 79 dB/W/m
Corner Frequency response 70 Hz to 50 kHz
position
Crossover frequency 7 kHz
Cabinet capacity 0.032 cubic feet (0.9 L)
Dimensions (W × H × D)
4" × 6-11/16" × 4-1/8"
(102 mm × 170 mm × 105 mm)
(incl. grille and projection)
Weight 2.2 lbs (1.0 kg)
Drivers unit 3-1/4" (8 cm) Cone Woofer × 1
1" (2.5 cm) Balanced Dome Tweeter × 1
Terminal Spring type color coded
Grille Detachable
Insert nut Available (1/4-20UNC)
Other Magnetic shielding
Note
For non-magnetic shielded speakers:
Try moving the speakers away from your TV or monitor. If discoloration should occur, turn off your TV or monitor, wait 15 to 30
minutes, and then turn it back on again. This normally activates the degaussing function, which neutralizes the magnetic field,
thereby removing any discoloration effects.
2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: 072-831-8023 Fax: 072-831-8163
http://www.onkyo.com/
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: 800-229-1687, 201-785-2600 Fax: 201-785-2650
http://www.us.onkyo.com/
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: +49-8142-4401-0 Fax: +49-8142-4401-555
http://www.eu.onkyo.com/
The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK
Tel: +44-(0)1628-473-350 Fax: +44-(0)1628-401-700
Unit 1 & 12, 9/F, Ever Gain Plaza Tower 1, 88, Container Port Road, Kwai Chung,
N.T., Hong Kong. Tel: 852-2429-3118 Fax: 852-2428-9039
http://www.ch.onkyo.com/
1301, 555 Tower, No.555 West NanJin Road, Jin an, Shanghai,
China 200041, Tel: 86-21-52131366 Fax: 86-21-52130396
SN 29400785
(C) Copyright 2011 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved.
Powered subwoofer (SKW-780)
4 floor pads
RCA cable 10 ft.
(3.0 m)
Subwoofer
■
Front
Standby/On indicator
Red: Subwoofer in standby mode
Blue: Subwoofer on
With the Auto Standby function, the SKW-780
automatically turns on when an input signal is
detected in Standby mode. When there's no input
signal for a while, the SKW-780 automatically enters
Standby mode.
■
Rear
OUTPUT LEVEL control
This control is used to adjust the volume of
the subwoofer.
780
LINE INPUT
This RCA input should be connected to the
subwoofer pre out on your AV receiver with
To AC outlet supplied RCA cable.
Note
• The Auto Standby function turns the subwoofer on when the input signal exceeds a
certain level. If the Auto Standby function does not work reliably, try slightly increasing
or decreasing the subwoofer output level on your receiver.
• If the Standby/On indicator lights (both red and blue LEDs) several seconds or minutes
after the sound output stopped, this means that the amp protection circuit has been
activated. In this case, set the OUTPUT LEVEL control to the center position, and
disconnect the power cord from the AC outlet. Wait at least 10 seconds, and then
reconnect the power cord. If that doesn't solve the issue, contact your Onkyo dealer.
Setting the Subwoofer Level
To set the level of the subwoofer, use the OUTPUT LEVEL
control. Set it so that bass sounds are evenly balanced with the
treble sounds from the other speakers. Because our ears are less
sensitive to very low bass sounds, there's a temptation to set the
level of the subwoofer too high. As a rule of thumb, set the
subwoofer level to what you think is the optimal level, and then back it off
slightly.
Using the Floor Pads for Subwoofer
If the subwoofer is placed on a hard floor
(wood, vinyl, tile, etc.) and playback is very
loud, the subwoofer's feet may damage the
flooring. To prevent this, place the supplied
pads underneath the subwoofer's feet. The pads
also provide a stable base for the subwoofer.
■
Center Speaker (SKC-690)
Type 2 Way Closed Box
6 Ω
Impedance
Maximum input power 130 W
Sensitivity 82 dB/W/m
Frequency response 70 Hz to 50 kHz
Crossover frequency 7 kHz
Cabinet capacity 0.046 cubic feet (1.3 L)
Dimensions (W × H × D)
10-7/8" × 4-5/16" × 4-5/16"
(277 mm × 110 mm × 110 mm)
(incl. grille and projection)
Weight 3.7 lbs (1.7 kg)
Drivers unit 3-1/4" (8 cm) Cone Woofer × 2
1" (2.5 cm) Balanced Dome Tweeter × 1
Terminal Spring type color coded
Grille Detachable
Insert nut Available (1/4-20UNC)
Other Magnetic shielding
■
Surround Speakers (SKR-690)
Type Full Range Closed Box
6 Ω
Impedance
Maximum input power 130 W
Sensitivity 80 dB/W/m
Frequency response 80 Hz to 20 kHz
Cabinet capacity 0.032 cubic feet (0.9 L)
Dimensions (W × H × D)
4" × 6-11/16" × 4-1/8"
(102 mm × 170 mm × 105 mm)
(incl. grille and projection)
Weight 2.0 lbs (0.9 kg)
Drivers unit 3-1/4" (8 cm) Cone × 1
Terminal Spring type color coded
Grille Detachable
Insert nut Available (1/4-20UNC)
Other Magnetic shielding
Specifications and appearance are subject to change without
prior notice.
* 2 9 4 0 0 7 8 5 *
Pad
