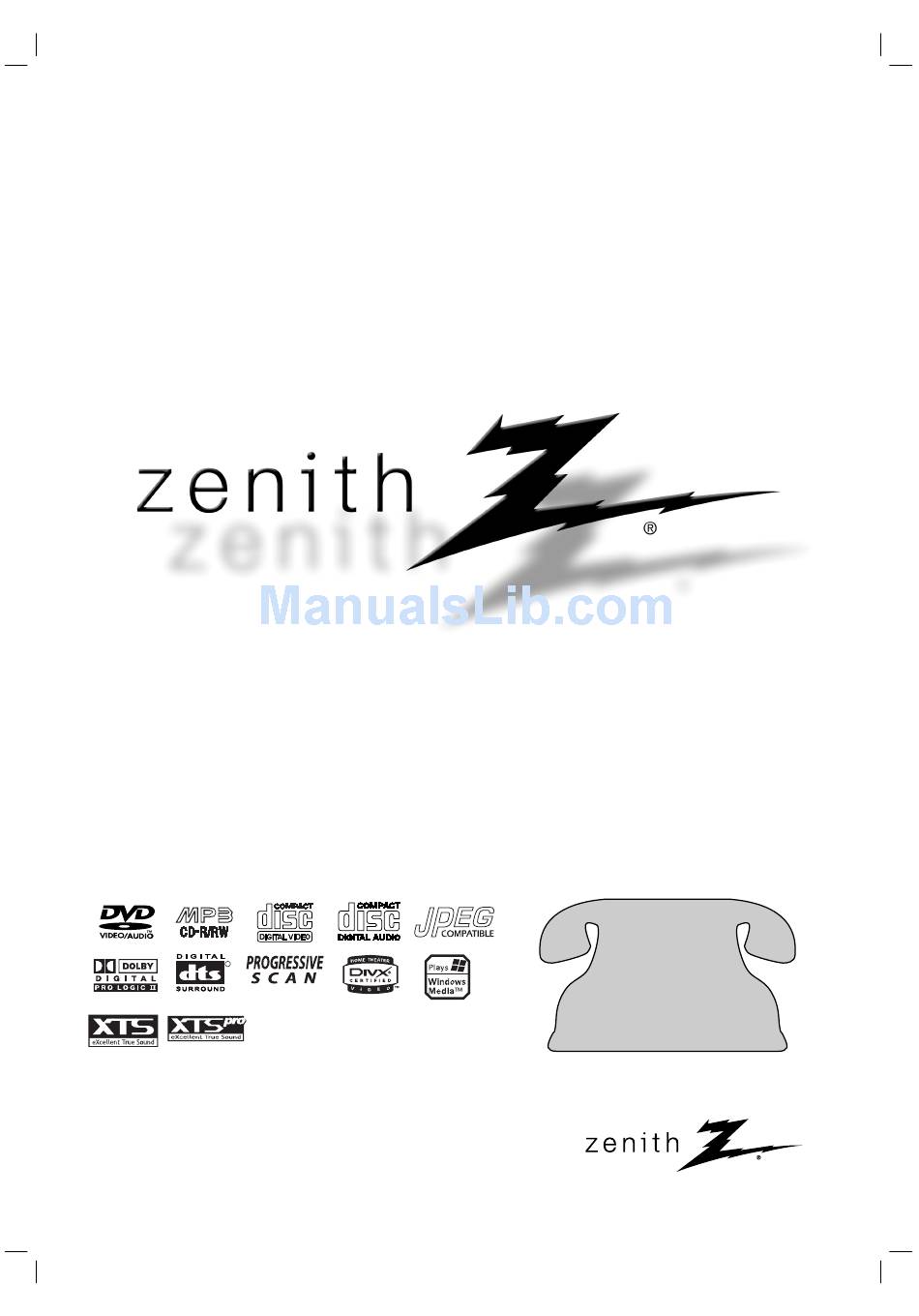

- Page 1 LH-E750SG NA1CLLA_ENG Installation and Operating Guide | Warranty Model Number I DVT654 I 5 Disc DVD HOME THEATER SYSTEM (Speakesr: LHS-75SGS, LHS-75SGC, LHS-75SGW) For service/ support Call: Toll Free Number 1-800-243-0000 © Copyright 2006, LG Electronics U.S.A., Inc.
- Page 2 REGULATORY INFORMATION: CAUTION FCC Part 15 This product has been tested and found to comply with the RISK OF ELECTRIC SHOCK DO NOT OPEN limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide CAUTION: TO REDUCE THE RISK reasonable protection against harmful interference when the OF ELECTRIC SHOCK...
-
Page 3: Introduction
IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS MANUAL FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. -
Page 4: Table Of Contents
Contents REPEAT A-B ......25 REPEAT ....... . .25 Introduction . -
Page 5: Symbol Used In This Manual
Introduction About the Symbol Display To ensure proper use of this product, please read this owner’s manual carefully and retain for future “ ” may appear on your TV display during reference. operation and indicates that the function explained in this owner’s manual is not available on that specific This manual provides information on the operation DVD video disc. -
Page 6: Types Of Playable Discs
Types of Playable Discs (8 cm / 12 cm disc) DVD audio discs (8 cm / 12 cm disc) Video CD (VCD) (8 cm / 12 cm disc) Audio CD (8 cm / 12 cm disc) Manufactured under license from Dolby In addition, this unit plays DivX file, DVD -R, DVD +R, Laboratories. -
Page 7: Disc-Related Terms
Disc-related terms PBC: Playback Control (Video CD only) DVD ±R / DVD ±RW Playback control is available for Video CD (VCD) DVD -R and DVD +R are two different standards for version 2.0 disc formats. PBC allows you to interact recordable DVD drives and discs. -
Page 8: Front Panel
Front Panel S SKIP/SEARCH T T /TUNING -/+ POWER button and indicator Go to beginning of current chapter/ Switches the unit ON and OFF. track or go to NEXT chapter/track. Green when the unit is turns on. Tunes FM and AM stations. Red when the unit is at standby. -
Page 9: Display Window
Display Window DISC INDICATORS Flashes when a disc is loaded in the disk tray. Indicates sound mode is DOLBY PRO LOGIC or DOLBY PRO LOGIC II. Indicates encoding format of the current disc. Indicates the unit is playing back a disc or indicates the unit is pause playback of a disc temporarily. -
Page 10: Remote Control
Remote Control POWER EJECT ALL Opens and closes all disc tray. Turns DVD Home Theater System ON and OFF. DISC SEL. Select the DVD Home Theater System’s To select desired a disc. function mode to DVD. INPUT FM/AM Selects the receiver’s input source. 0-9 numerical buttons Select FM or AM band as the listening choice. -
Page 11: Rear Panel
Rear Panel AC Power Cord Plug into the power source. SPEAKER CONNECTORS Connect the six supplied speakers to these terminals. MONITOR OUT Connect to a TV with video inputs. AV IN (VIDEO IN/AUDIO IN (Left/Right)) Connect the audio/video output of an external source (Audio system, TV/Monitor, etc.). -
Page 12: Installation And Setup
Installation and Setup TV Connections Make one of the following connections, depending on Progressive Scan (ColorStream ® pro) connection the capabilities of your existing equipment. If your television is a high-definition or “digital ready” television, you may take advantage of the Tips: DVD/CD Receiver’s progressive scan output for the Depending on your TV and other equipment you... -
Page 13: Audio Connection To Optional Equipment
Audio Connection to Optional Equipment Connect the DVD/CD receiver to your optional equipment for audio output. 1. Connect a VCR to the AV1 connectors. 2. Connect a additional VCR to the AV2 connectors. 3. Connect an optical output of a Digital Device (Cable Box, etc) to the OPTICAL IN connector. 4. -
Page 14: Antenna Connections
Antenna Connections Connect the supplied FM/AM antenna for listening to the radio. Connect the AM Loop antenna to the AM antenna connector. Connect the FM Wire antenna to the FM antenna connector. Notes: To prevent noise pickup, keep the AM Loop antenna away from the DVD/CD receiver and other components. Be sure to fully extend the FM wire antenna. -
Page 15: Speaker System Connection
Speaker System Connection Connect the speakers using the supplied speaker cords. To obtain the best possible surround sound, adjust the speaker parameters (volume, distance, etc.). Notes: Be sure to match the speaker cable to the appropriate terminal on the components: + to + and – to –. If the cables are reversed, the sound will be distorted and will lack base. -
Page 16: Speaker Positioning
Speaker Positioning In the case of normal position use the 6 speakers (2 front speakers, center speaker, 2 rear speakers and subwoofer). If you want to play DTS digital surround or Dolby Digital surround, you should connect a subwoofer. • Front speakers According to your listening position set up the speakers for equal distance. -
Page 17: Mini Glossary For Audio Stream & Surround Mode
Mini Glossary for Audio Stream & Sound Mode Surround Mode You can enjoy surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to listen to. Allows you to enjoy 5.1(or 6) discrete channels of high quality Each time you press SOUND button, the sound mode is digital audio from DTS program sources such as discs, DVD and compact discs, etc.bearing the trademark. -
Page 18: On-Screen Display
On-Screen Display Example: On-Screen Display during playing DVD Video You can display the general playback status on the TV screen. Some items can be changed using the menu. Items Selection Method To use the on-screen display: b / B, Numbers Title Number 1 / 3 ENTER... -
Page 19: Initial Settings
Initial Settings DISPLAY DISPLAY By using the Setup menu, you can make various TV Aspect 16 : 9 adjustments to items such as picture and sound. You Display Mode Widescreen can also set a language for the subtitles and the Progressive Scan Setup menu, among other things. -
Page 20: Progressive Scan
AUDIO Note: If your TV does not accept the Progressive • Each DVD disc has a variety of audio output options. Scan format, the picture will appear scrambled if Set the receiver’s AUDIO options according to the you try Progressive Scan on the DVD/CD receiver. type of audio system you use. -
Page 21: Lock (Parental Control)
LOCK (Parental Control) Password (Security Code) You can enter or change password. LOCK Rating Unlock 1. Select Password on the LOCK menu then press B. Password Country Code 2. Follow step 2 as shown left (Rating). “Change” or “New” is highlighted. 3. -
Page 22: Others
OTHERS DivX(R) VOD DivX The PBC, Auto Play and B.L.E. settings can be You can display the DivX DRM (Digital Right changed. Management) Registration code for your unit only. OTHERS DivX(R) Video On Demand Your registration code is : XXXXXXXX Auto Play B.L.E. -
Page 23: Operation
Operation Playback Setup TO SELECT A PLAYBACK DISC Press DISC and press desired disc button (DISC 1-5) Turn on the TV and select the video input source on the remote control. connected to the DVD Home Theater System. Tip: You can also use the disc number play buttons on the TO INSERT DISCS unit. -
Page 24: Playing A Dvd Or Video Cd
Operation Playing a DVD or Video CD General Features Note: DVD-V Unless stated otherwise, all operations described • Use the b B v V buttons to select the title/chapter use the remote control. Some features may also be you want to view, then press ENTER to start. Press available on the Setup menu. -
Page 25: Still Picture And Frame-By-Frame Playback
STILL PICTURE AND FRAME-BY-FRAME REPEAT DVD-V DVD-A DivX PLAYBACK You can play a title/chapter/all/track/group on a disc. DVD-V DVD-A DivX Press REPEAT during playback to select a desired repeat mode. 1. Press PAUSE/STEP on the remote control during playback. Advance the picture frame-by-frame by DVD Video Discs - Repeat Chapter/Title/Off pressing PAUSE/STEP repeatedly. -
Page 26: Zoom
Special DVD Features ZOOM DVD-V DVD-A DivX Use zoom to enlarge the video image. CHECKING THE CONTENTS OF DVD 1. Press ZOOM during playback or still playback to DISCS: MENUS activate the Zoom function. The square frame DVDs may offer menus that allow you to access appears briefly in the right bottom of the picture. -
Page 27: Dvd Audio Discs
DVD Audio Discs Moving to another GROUP Some DVD Audio discs divide content into different DVD Audio is a new disc format building on the groups. Your player enables you to quickly access success of DVD to provide high quality, different groups during playback via the on-screen uncompressed, multi-channel audio for a new display. -
Page 28: Playing An Audio Cd Or Mp3/Wma Disc
Playing an Audio CD or MP3/WMA Disc The DVD/CD receiver can play MP3/WMA formatted MP3 / WMA disc compatibility with this player is recordings on CD-ROM, CD-R, or CD-RW discs. limited as follows: • Sampling frequency: within 8 - 48 kHz (MP3), Audio CD within 32 - 48kHz (WMA) Once you insert an audio CD a menu appears on the... -
Page 29: Audio Cd And Mp3 / Wma Disc Features
Audio CD and MP3 / WMA Disc REPEAT A-B Features 1. To repeat a sequence during disc playback press A-B at your chosen starting point. The Repeat icon and “A” appear on the menu screen. PAUSE 2. Press A-B again at your chosen end point. The Repeat icon and “A-B”... -
Page 30: Programmed Playback
Programmed Playback REPEAT PROGRAMMED TRACKS 1. Press REPEAT when playing a disc. The repeat icon appears. The program function enables you to store your favorite tracks from any disc in the player memory. A 2. Press REPEAT to select a desired repeat mode. program can contain 30 tracks. -
Page 31: Playing A Divx Movie Disc
Playing a DivX Movie Disc DivX disc compatibility with this player is limited as follows: Using this DVD/CD receiver you can play DivX disc. • Available resolution size of the DivX file is under 1. Insert a disc and close the tray. The MOVIE menu 720x576 (W x H) pixel. -
Page 32: Viewing A Jpeg Disc
Viewing a JPEG Disc TO ROTATE PICTURE JPEG Press v / V during showing a picture to rotate the Using this DVD/CD receiver you can view Kodak picture clockwise or counter clockwise. PICTURE CDs and discs with JPEG files. TO LISTEN TO MP3/WMA MUSIC 1. -
Page 33: Playing A Dvd Vr Format Disc
Playing a DVD VR format Disc Maintenance and Service This unit will play DVD-R/RW discs recorded using Refer to the information in this chapter before the DVD-Video format that have been finalized using contacting a service technician. a DVD-recorder. HANDLING THE UNIT •... -
Page 34: 5.1 Speaker Setup
5.1 Speaker Setup This chapter includes important reference information Distance to help you set your DVD/CD receiver. If you connected speakers to your DVD/CD receiver, setting the Distance lets the speakers know how far Speaker Setup the sound has to travel to reach your set listening point. -
Page 35: Additional Features
TV screen. Check whether the video quality has improved. If not, repeat the above procedure The unique sound quality of the LG Technology until picture quality is improved. creates the optimum sound for you to play the perfect... -
Page 36: Sleep Timer Setting
Additional Features (Continued) Dimmer Sleep Timer Setting This function will change the brightness of the display You can set the DVD/CD Receiver to turn off window on the front panel during in power-on status. automatically at a specified time. Press the DIMMER repeatedly. 1. -
Page 37: Presetting The Radio Stations
Presetting the Radio Stations Listening to the Radio You can preset 50 stations for FM and AM (MW). Preset radio stations in the DVD/CD Receiver’s Before tuning, make sure that you have turned down memory first (see “Presetting radio stations” on the the volume. -
Page 38: Controlling Your Tv With The Supplied Remote
You can control the sound level, input source, and code number you have set may be reset to the power switch of non-LG TVs as well. If your TV is default setting. Set the appropriate code number listed in the table below, set the appropriate again. -
Page 39: Reference
Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Abkhazian 6566 Fiji 7074 Lingala 7678 Singhalese 8373 Afar 6565 Finnish 7073 Lithuanian 7684... -
Page 40: Troubleshooting
Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Correction Cause Symptom • Plug the power cord securely into the No power. • The power cord is disconnected. wall outlet. • Insert a disc. (Check that the DVD or, The power is on, but •... - Page 41 Cause Correction Symptom • The antenna is positioned or connected • Connect the antenna securely. Radio stations cannot poorly. be tuned in. • Adjust the antennas and connect an external antenna if necessary. • The signal strength of the stations is too •...
-
Page 42: Specifications
Specifications Power supply Refer to main label Power consumption Refer to main label Mass 5.5 kg External dimensions (W x H x D) 435 x 54 x 350 mm Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal Operating humidity 5% to 85% Laser Semiconductor laser, wavelength 650 nm... - Page 43 For nearest Authorized Service Center, Where to buy, Product Assistance, or Customer Assistance Or visit our website at http://www.zenithservice.com Marketed and Distributed by LG Electronics U.S.A., Inc. Zenith Part No. 206-04009 1000 Sylvan Avenue. Englewood Cliffs, NJ. GS# 3834RH0080H Printed in Indonesia...
