Custom Shop
14.87
Sides
Preliminary Specifications:
System:
Frequency Range (-10 dB): 33 Hz - 20 kHz
Frequency Response (±3 dB): 42 Hz - 18 kHz
Horizontal Coverage Angle (-6 dB): 95° averaged 500 Hz to 16 kHz
Vertical Coverage Angle (-6 dB): 60° averaged 500 Hz to 16 kHz
Directivity Factor (Q): 10 averaged 500 Hz to 16 kHz
Directivity Index (DI): 10 dB averaged 500 Hz to 16 kHz
Calculated Maximum SPL
Nominal Impedance: 8 ohms (Passive crossover mode)
Power Rating
Recommended Amplifier Power: 800 watts
Recommended Controller: DSC260
Transducers:
Low Frequency: 2226H, 380 mm (15 in) dia., 100 mm (4 in) edge
Nominal Impedance: 8 Ohms
Power Rating: 600 watts AES, 2400 watts peak
Calculated Maximum SPL
Recommended Amplifier Power: 800 watts
High Frequency: 2447J; 100 mm (4") diaphragm and voicecoil
Nominal Impedance: 16 Ohms
Input Power Rating: 75 W AES; 300 W Peak
Calculated Maximum SPL: 136 dB @ 1 m (3.3')
Recommended Amplifier: 200 W
Physical:
Environmental Specifications: Mil-Std 810, IPX4 per IEC 529
Suspension Attachment: 12 points, accept M10 threaded hardware
Input Connector: 2 x NL4 Neutrik SpeakOn connector
Dimensions (H x W x D): 470 mm x 864 mm x 378 mm
Net Weight: 38.1 kg (84 lb)
Rear
Top/Bottom
34
30°
Front
Sensitivity
2
: 97 dB SPL, 1W @ 1m (3.3 ft)
2
: 131 dB SPL, 1W @ 1m (3.3 ft)
1
: 600 watts IEC, 2400 watts peak
wound ribbon voice coil
Sensitivity
2
: 97 dB SPL, 1W @ 1m (3.3 ft)
2
: 131 dB SPL, 1W @ 1m (3.3 ft)
dia., 38 mm (1.5") throat dia.; 2381 horn
Sensitivity
2
: 111 dB, 1 W @ 1 m (3.3')
Enclosure: Trapezoidal, 15
top & bottom angles, 18 mm
o
birch plywood
Finish: Black DuraFlex coating
(white or custom color optional)
Grille: Black powder coated 18 gauge
perforated steel grille with foam backing (white or
custom color optional)
(18.5 in x 34 in x 14.87 in)

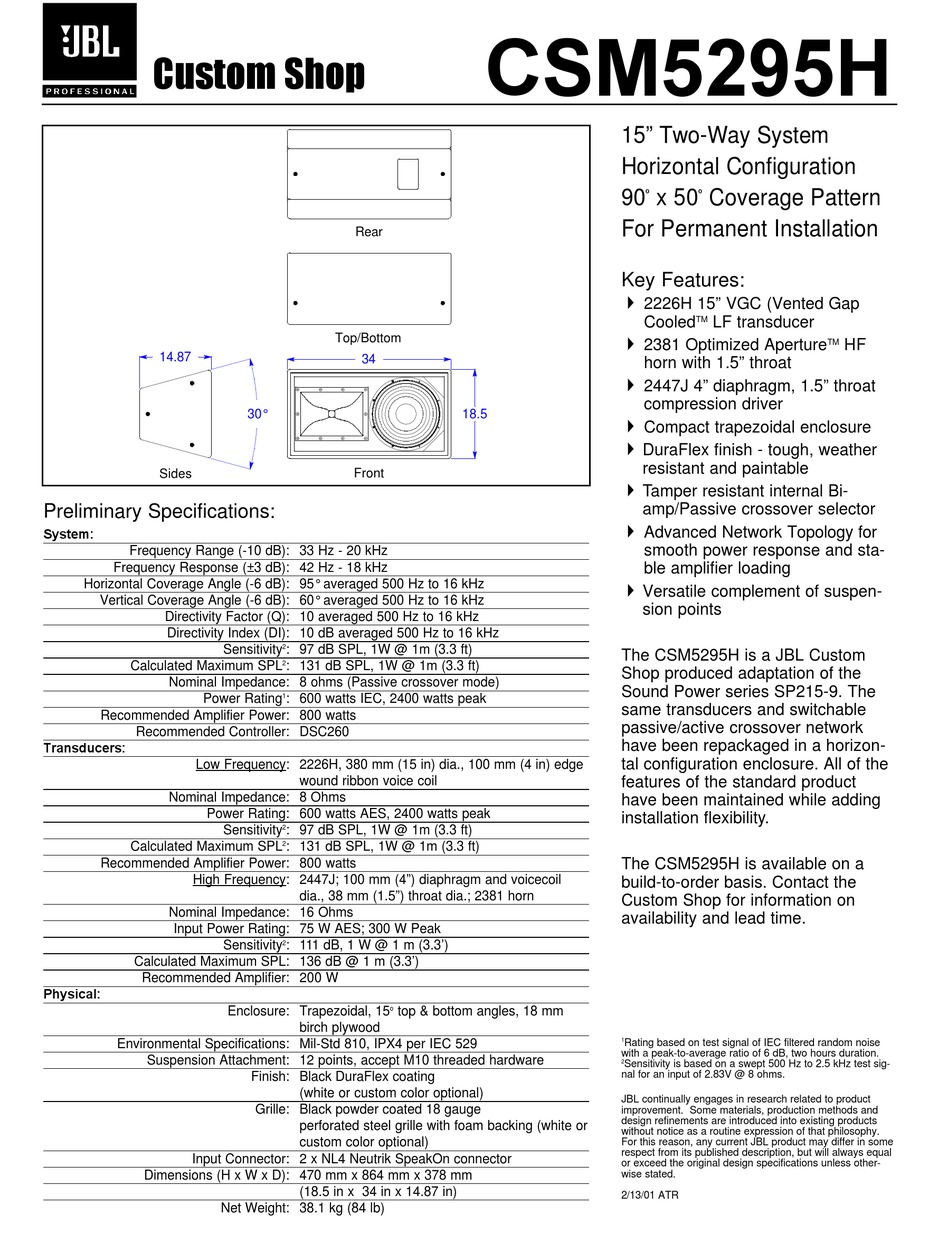

CSM5295H
15" Two-Way System
Horizontal Configuration
90
For Permanent Installation
Key Features:
4
4
4
18.5
4
4
4
4
4
The CSM5295H is a JBL Custom
Shop produced adaptation of the
Sound Power series SP215-9. The
same transducers and switchable
passive/active crossover network
have been repackaged in a horizon-
tal configuration enclosure. All of the
features of the standard product
have been maintained while adding
installation flexibility.
The CSM5295H is available on a
build-to-order basis. Contact the
Custom Shop for information on
availability and lead time.
1
Rating based on test signal of IEC filtered random noise
with a peak-to-average ratio of 6 dB, two hours duration.
2
Sensitivity is based on a swept 500 Hz to 2.5 kHz test sig-
nal for an input of 2.83V @ 8 ohms.
JBL continually engages in research related to product
improvement. Some materials, production methods and
design refinements are introduced into existing products
without notice as a routine expression of that philosophy.
For this reason, any current JBL product may differ in some
respect from its published description, but will always equal
or exceed the original design specifications unless other-
wise stated.
2/13/01 ATR
O
x 50
O
Coverage Pattern
2226H 15" VGC (Vented Gap
Cooled
LF transducer
TM
2381 Optimized Aperture
horn with 1.5" throat
2447J 4" diaphragm, 1.5" throat
compression driver
Compact trapezoidal enclosure
DuraFlex finish - tough, weather
resistant and paintable
Tamper resistant internal Bi-
amp/Passive crossover selector
Advanced Network Topology for
smooth power response and sta-
ble amplifier loading
Versatile complement of suspen-
sion points
HF
TM
