Intel DZ77SL-50K Specification

Technical product specification
Hide thumbs
Table of Contents

Advertisement

Quick Links

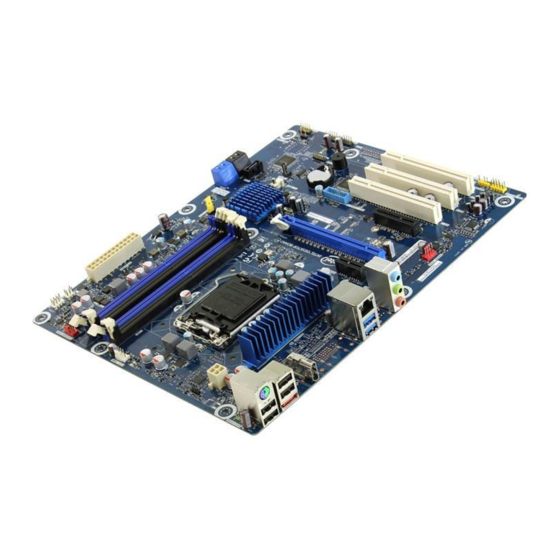

Intel® Desktop Board
DZ77SL-50K
Technical Product Specification
April 2012
Part Number: G58188-001
The Intel Desktop Board DZ77SL-50K may contain design defects or errors known as errata that may cause the product to deviate from published
specifications. Current characterized errata are documented in the Intel Desktop Board DZ77SL-50K Specification Update.

Advertisement

Table of Contents
loading

Related Manuals for Intel DZ77SL-50K

Summary of Contents for Intel DZ77SL-50K

  • Page 1 Part Number: G58188-001 The Intel Desktop Board DZ77SL-50K may contain design defects or errors known as errata that may cause the product to deviate from published specifications. Current characterized errata are documented in the Intel Desktop Board DZ77SL-50K Specification Update.

  • Page 2: Revision History

    “undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. Intel desktop boards may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are available on request.
  • Page 3 Board Identification Information Basic Desktop Board DZ77SL-50K Identification Information AA Revision BIOS Revision Notes SLZ7710H.86A.0055 G39622 Notes: The AA number is found on a small label on the component side of the board. The Z77 processor used on this AA revision consists of the following component:...
  • Page 4 Intel Desktop Board DZ77SL-50K Technical Product Specification...

  • Page 5: Intended Audience

    Intended Audience The TPS is intended to provide detailed, technical information about Intel Desktop Board DZ77SL-50K and its components to the vendors, system integrators, and other engineers and technicians who need this level of information. It is specifically not intended for general audiences.
  • Page 6 Intel Desktop Board DZ77SL-50K Technical Product Specification Other Common Notation Used after a signal name to identify an active-low signal (such as USBP0#) Gigabyte (1,073,741,824 bytes) GB/s Gigabytes per second Gb/s Gigabits per second Kilobyte (1024 bytes) Kilobit (1024 bits)

  • Page 7: Table Of Contents

    1.3  Processor ..................16  1.3.1  Graphics Subsystem ............. 17  1.4  System Memory ................19  1.4.1  Memory Configurations ............20  ® 1.5  Intel Z77 Express Chipset ............... 22  1.5.1  Direct Media Interface (DMI) ..........22  1.5.2  Display Interfaces ..............22  1.5.3 ...
  • Page 8 Intel Desktop Board DZ77SL-50K Technical Product Specification 2.4  Mechanical Considerations ..............57  2.4.1  Form Factor ................. 57  2.5  Electrical Considerations ..............58  2.5.1  Power Supply Considerations ..........58  2.5.2  Fan Header Current Capability ..........59  2.5.3  Add-in Board Considerations ..........59 ...
  • Page 9 11. System Memory Map ............... 43  12. Component-side Connectors and Headers Shown in Figure 10 ....46  13. Front Panel Audio Header for Intel HD Audio ........47  14. Front Panel Audio Header for AC ’97 Audio .......... 47  15. Front Panel USB 2.0 Headers ............47 ...
  • Page 10 Intel Desktop Board DZ77SL-50K Technical Product Specification 22. Front Panel CIR Receiver (Input) Header ..........49  23. LPC Debug Header ................50  24. Processor Core Power Connector............51  25. Main Power Connector ..............51  26. Front Panel Header ................52 ...

  • Page 11: Product Description

    Note: PCI Express 3.0 is only supported by 3 generation Intel Core processor family processors • 8-channel (5+1) Intel High Definition Audio via the Realtek* ALC662 audio Audio codec • 8-channel (7.1) Intel HD Audio via the High Definition Multimedia Interface*...
  • Page 12 ― Four ports implemented with stacked back panel connectors (black) ― Four front panel ports implemented through two internal headers • Six Serial ATA (SATA) ports: ― Two SATA 6.0 Gb/s interfaces through the Intel Z77 Express Chipset with ® Intel Rapid Storage Technology RAID support (blue) ―...

  • Page 13: Board Layout

    Product Description 1.1.2 Board Layout Figure 1 shows the location of the major components on Intel Desktop Board DZ77SL-50K. Figure 1. Major Board Components...
  • Page 14 Intel Desktop Board DZ77SL-50K Technical Product Specification Table 2 lists the components identified in Figure 1. Table 2. Components Shown in Figure 1 Item/callout from Figure 1 Description Conventional PCI add-in card connector Conventional PCI add-in card connector Conventional PCI add-in card connector Front panel USB 3.0 connector (blue)

  • Page 15: Block Diagram

    Product Description 1.1.3 Block Diagram Figure 2 is a block diagram of the major functional areas of the board. Figure 2. Block Diagram...

  • Page 16: Online Support

    95 W Thermal Design Power (TDP). The processors listed above are only supported when falling within the wattage requirements of Intel Desktop Board DZ77SL-50K. See the Intel web site listed below for the most up-to- date list of supported processors.

  • Page 17: Graphics Subsystem

    Product Description 1.3.1 Graphics Subsystem The board supports graphics through either the processor Intel HD Graphics or a PCI Express x16 add-in graphics card. 1.3.1.1 Processor Graphics ® The board supports integrated graphics through the Intel Flexible Display Interface ®...

  • Page 18: Pci Express X16 Graphics

    Intel Desktop Board DZ77SL-50K Technical Product Specification 1.3.1.2 PCI Express x16 Graphics generation Intel Core processor family processors support PCI Express 3.0, 2.x, and 1.x and 2 generation Intel Core processor family processors support PCI Express 2.x and 1.x: •...

  • Page 19: System Memory

    Serial Presence Detect • DDR3 1066 MHz to +2667 MHz SDRAM DIMMs Note: DDR3 1600 MHz DIMMs are only supported by 3 generation Intel Core processor family processors • XMP version 1.3 performance profile support for memory speeds up to +2667 MHz...

  • Page 20: Memory Configurations

    Intel Desktop Board DZ77SL-50K Technical Product Specification 1.4.1 Memory Configurations The 3 generation Intel Core processor family and 2 generation Intel Core processor family processors support the following types of memory organization: • Dual channel (Interleaved) mode. This mode offers the highest throughput for real world applications.

  • Page 21: Memory Channel And Dimm Configuration

    Product Description Figure 3 illustrates the memory channel and DIMM configuration. Figure 3. Memory Channel and DIMM Configuration NOTE For best memory performance always install memory in the blue DIMM sockets if installing only two DIMMs on your board.

  • Page 22: Intel ® Z77 Express Chipset

    PCH. The display data from the frame buffer is processed in the display engine of the processor and sent to the PCH over the Intel FDI where it is transcoded as per the display protocol and driven to the display monitor.

  • Page 23: Hdmi Port Status Conditions

    Product Description 1.5.2.3 High Definition Multimedia Interface* (HDMI*) The HDMI port supports standard, enhanced, or high definition video, plus multi- channel digital audio on a single cable. It is compatible with all ATSC and DVB HDTV standards and supports eight full range channels at 24-bit/96 kHz audio of lossless audio formats such as Dolby* TrueHD or DTS* HD Master Audio.

  • Page 24: Usb

    (LS) traffic on the bus. The board supports up to eight USB 2.0 ports and four USB 3.0 ports. The Intel Z77 Express Chipset provides the USB controller for the 2.0/3.0 ports. The port arrangement is as follows: •...

  • Page 25: Sata Raid

    NOTE In order to use supported RAID and Intel Smart Response Technology features, you must first enable RAID in the BIOS. Also, during Microsoft Windows XP installation, you must press F6 to install the RAID drivers. See your Microsoft Windows XP documentation for more information about installing drivers during installation.

  • Page 26: Real-Time Clock Subsystem

    Intel Desktop Board DZ77SL-50K Technical Product Specification Real-Time Clock Subsystem A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When the computer is not plugged into a wall socket, the battery has an estimated life of three years. When the computer is plugged in, the standby current from the power supply extends the life of the battery.

  • Page 27: Audio Subsystem

    (ctrl panel) Default Back panel – Pink Default 1.8.1 Audio Subsystem Software The latest audio software and drivers are available from Intel’s World Wide Web site. For information about Refer to Obtaining audio software and drivers Section 1.2, page 16...

  • Page 28: Audio Connectors And Headers

    Intel Desktop Board DZ77SL-50K Technical Product Specification 1.8.2 Audio Connectors and Headers The board contains audio connectors and headers on both the back panel and the component side of the board. The component-side audio headers include front panel audio (a 2 x 5-pin header that provides mic in and line out signals for front panel audio connectors).

  • Page 29: Lan Subsystem

    LAN software and drivers http://downloadcenter.intel.com ® 1.9.1 Intel 82579V Gigabit Ethernet Controller The Intel 82579V Gigabit Ethernet Controller supports the following features: • 10/100/1000 BASE-T IEEE 802.3 compliant • Energy Efficient Ethernet (EEE) IEEE802.3az support (Low Power Idle [LPI] mode) •...

  • Page 30: Lan Subsystem Software

    Intel Desktop Board DZ77SL-50K Technical Product Specification 1.9.2 LAN Subsystem Software LAN software and drivers are available from Intel’s World Wide Web site. For information about Refer to Obtaining LAN software and drivers http://downloadcenter.intel.com 1.9.3 RJ-45 LAN Connector with Integrated LEDs Two LEDs are built into the RJ-45 LAN connector (shown in Figure 5).

  • Page 31: 1.10 Hardware Management Subsystem

    Power monitoring of +12 V, +5 V, +3.3 V, 3.3 Vstandby, V_SM, +VCCP, and PCH V • SMBus interface 1.10.2 Fan Monitoring ® Fan monitoring can be implemented using Intel Desktop Utilities or third-party software. For information about Refer to The functions of the fan headers Section 1.11.2.2, page 36 1.10.3...

  • Page 32: Thermal Monitoring

    Intel Desktop Board DZ77SL-50K Technical Product Specification 1.10.4 Thermal Monitoring Figure 6 shows the locations of the thermal sensors and fan headers. Item Description Rear chassis fan header Thermal diode, located on the processor die Processor fan header Front chassis fan header Thermal diode, located on the Intel Z77 PCH Figure 6.

  • Page 33: 1.11 Power Management

    Product Description 1.11 Power Management Power management is implemented at several levels, including: • Software support through Advanced Configuration and Power Interface (ACPI) • Hardware support: ⎯ Power connector ⎯ Fan headers ⎯ LAN wake capabilities ⎯ Instantly Available PC technology ⎯...

  • Page 34: Power States And Targeted System Power

    Intel Desktop Board DZ77SL-50K Technical Product Specification 1.11.1.1 System States and Power States Under ACPI, the operating system directs all system and device power state transitions. The operating system puts devices in and out of low-power states based on user preferences and knowledge of how devices are being used by applications.

  • Page 35: Hardware Support

    Product Description 1.11.1.2 Wake-up Devices and Events Table 10 lists the devices or specific events that can wake the computer from specific states. Table 10. Wake-up Devices and Events These devices/events can wake up the computer… …from this state Note 1) Power switch S3, S4, S5 (Note 1)

  • Page 36: Power Connector

    Intel Desktop Board DZ77SL-50K Technical Product Specification LAN wake capabilities and Instantly Available PC technology require power from the +5 V standby line. NOTE The use of Wake from USB from an ACPI state requires an operating system that provides full ACPI support.

  • Page 37: Lan Wake Capabilities

    Product Description 1.11.2.3 LAN Wake Capabilities CAUTION For LAN wake capabilities, the +5 V standby line for the power supply must be capable of providing adequate +5 V standby current. Failure to provide adequate standby current when implementing LAN wake capabilities can damage the power supply. LAN wake capabilities enable remote wake-up of the computer through a network.

  • Page 38: Wake From Usb

    Intel Desktop Board DZ77SL-50K Technical Product Specification 1.11.2.5 Wake from USB USB bus activity wakes the computer from an ACPI S3 state. NOTE Wake from USB requires the use of a USB peripheral that supports Wake from USB. 1.11.2.6 PME# Signal Wake-up Support When the PME# signal on the Conventional PCI bus is asserted, the computer wakes from an ACPI S3, S4, or S5 state (with Wake on PME enabled in the BIOS).

  • Page 39: Location Of The Standby Power Led

    Product Description 1.11.2.12 +5 V Standby Power Indicator LED The +5 V standby power indicator LED shows that power is still present even when the computer appears to be off. Figure 7 shows the location of the standby power LED. CAUTION If AC power has been switched off and the standby power indicator is still lit, disconnect the power cord before installing or removing any devices connected to the...
  • Page 40 Intel Desktop Board DZ77SL-50K Technical Product Specification...

  • Page 41: Technical Reference

    Technical Reference Memory Resources 2.1.1 Addressable Memory The board utilizes 32 GB of addressable system memory. Typically the address space that is allocated for Conventional PCI bus add-in cards, PCI Express configuration space, BIOS (SPI Flash device), and chipset overhead resides above the top of DRAM (total system memory).

  • Page 42: Detailed System Memory Address Map

    Intel Desktop Board DZ77SL-50K Technical Product Specification Figure 8. Detailed System Memory Address Map...

  • Page 43: Memory Map

    Technical Reference 2.1.2 Memory Map Table 11 lists the system memory map. Table 11. System Memory Map Address Range Address Range Size Description (decimal) (hex) 1024 K - 33550336 K 100000 – 7FFC00000 32764 MB Extended memory 960 K - 1024 K F0000 - FFFFF 64 KB Runtime BIOS...

  • Page 44: Back Panel Connectors

    Intel Desktop Board DZ77SL-50K Technical Product Specification 2.2.1 Back Panel Connectors Figure 9 shows the location of the back panel connectors for the board. Item Description PS/2 ports USB 2.0 ports USB 2.0 ports eSATA connector HDMI connector LAN port USB 3.0 ports...

  • Page 45: Component-Side Connectors And Headers

    Technical Reference 2.2.2 Component-side Connectors and Headers Figure 10 shows the locations of the component-side connectors and headers. Figure 10. Component-side Connectors and Headers...
  • Page 46 Intel Desktop Board DZ77SL-50K Technical Product Specification Table 12 lists the component-side connectors and headers identified in Figure 10. Table 12. Component-side Connectors and Headers Shown in Figure 10 Item/callout f rom Figure 10 Description Conventional PCI add-in card connector...

  • Page 47: Front Panel Audio Header For Intel Hd Audio

    Technical Reference 2.2.2.1 Signal Tables for the Connectors and Headers Table 13. Front Panel Audio Header for Intel HD Audio Signal Name Signal Name [Port 1] Left channel Ground [Port 1] Right channel PRESENCE# (Dongle present) [Port 2] Right channel...

  • Page 48: Front Panel Usb 3.0 Connector

    Intel Desktop Board DZ77SL-50K Technical Product Specification Table 16. Front Panel USB 3.0 Connector Signal Name Description Vbus Power IntA_P1_SSRX− USB3 ICC Port1 SuperSpeed Rx− IntA_P1_SSRX+ USB3 ICC Port1 SuperSpeed Rx+ Ground IntA_P1_SSTX− USB3 ICC Port1 SuperSpeed Tx− IntA_P1_SSTX+ USB3 ICC Port1 SuperSpeed Tx+ Ground IntA_P1_D−...

  • Page 49: Chassis Intrusion Header

    Technical Reference Table 19. Chassis Intrusion Header Signal Name Intruder# Ground Table 20. Processor, Front, and Rear Chassis (4-Pin) Fan Headers Signal Name (Note) Ground +12 V FAN_TACH FAN_CONTROL Note: These fan headers use Pulse Width Modulation control for fan speed. Table 21.

  • Page 50: Lpc Debug Header

    Intel Desktop Board DZ77SL-50K Technical Product Specification Table 23. LPC Debug Header Signal Name Signal Name CK_33M_DEBUG PLTRST# LFRAME# LAD0 LAD1 LAD2 LAD3 +3.3 V +3.3 V Key (no pin) +3.3 V 2.2.2.2 Add-in Card Connectors The board has the following add-in card connectors: •...

  • Page 51: Processor Core Power Connector

    Main power – a 2 x 12 connector. This connector is compatible with 2 x 10 connectors previously used on Intel Desktop boards. The board supports the use of ATX12V power supplies with either 2 x 10 or 2 x 12 main power cables. When using a power supply with a 2 x 10 main power cable, attach that cable to the main power connector, leaving pins 11, 12, 23, and 24 unconnected.

  • Page 52: Connection Diagram For Front Panel Header

    Intel Desktop Board DZ77SL-50K Technical Product Specification 2.2.2.4 Front Panel Header This section describes the functions of the front panel header. Table 26 lists the signal names of the front panel header. Figure 11 is a connection diagram for the front panel header.

  • Page 53: 2.2.2.5 Alternate Front Panel Power/Sleep Led Header

    Technical Reference 2.2.2.4.3 Power/Sleep LED Header Pins 2 and 4 can be connected to a one- or two-color LED. Table 27 shows the possible states for a one-color LED. Table 28 shows the possible states for a two-color LED. Table 27. States for a One-Color Power LED LED State Description Power off/sleeping...

  • Page 54: Connection Diagram For Front Panel Usb 2.0 Headers

    Intel Desktop Board DZ77SL-50K Technical Product Specification 2.2.2.6 Front Panel USB 2.0 Headers Figure 12 is a connection diagram for the front panel USB 2.0 headers. NOTE • The +5 V DC power on the USB headers is fused. •...

  • Page 55: Jumper Block

    Technical Reference Jumper Block CAUTION Do not move the jumper with the power on. Always turn off the power and unplug the power cord from the computer before changing a jumper setting. Otherwise, the board could be damaged. Figure 13 shows the location of the jumper block. The 3-pin jumper block determines the BIOS Setup program’s mode.

  • Page 56: Bios Setup Configuration Jumper Settings

    Intel Desktop Board DZ77SL-50K Technical Product Specification Table 30. BIOS Setup Configuration Jumper Settings Function/Mode Jumper Setting Configuration Normal The BIOS uses current configuration information and passwords for booting. Configure After the POST runs, Setup runs automatically. The maintenance menu is displayed.

  • Page 57: Mechanical Considerations

    Technical Reference Mechanical Considerations 2.4.1 Form Factor The board is designed to fit into an ATX-form-factor chassis. Figure 14 illustrates the mechanical form factor for the board. Dimensions are given in inches [millimeters]. The outer dimensions are 12 inches by 9.60 inches [304.80 millimeters by 243.84 millimeters].

  • Page 58: Electrical Considerations

    Intel Desktop Board DZ77SL-50K Technical Product Specification Electrical Considerations 2.5.1 Power Supply Considerations CAUTION The +5 V standby line from the power supply must be capable of providing adequate +5 V standby current. Failure to do so can damage the power supply. The total amount of standby current required depends on the wake devices supported and manufacturing options.

  • Page 59: Fan Header Current Capability

    Failure to ensure appropriate airflow may result in reduced performance of both the processor and/or voltage regulator or, in some instances, damage to the board. For a list of chassis that have been tested with Intel desktop boards please refer to the following website: http://www3.intel.com/cd/channel/reseller/asmo-na/eng/tech_reference/53211.htm...
  • Page 60 Intel Desktop Board DZ77SL-50K Technical Product Specification CAUTION Ensure that the ambient temperature does not exceed the board’s maximum operating temperature. Failure to do so could cause components to exceed their maximum case temperature and malfunction. For information about the maximum operating temperature, see the environmental specifications in Section 2.8.

  • Page 61: Thermal Considerations For Components

    For processor case temperature, see processor datasheets and processor specification updates Intel Z77 Express Chipset To ensure functionality and reliability, the component is specified for proper operation when Case Temperature is maintained at or below the maximum temperature listed in Table 34.

  • Page 62: Reliability

    Issue 2; Method I Case 3 50% electrical stress, 55 ºC ambient. The MTBF prediction is used to estimate repair rates and spare parts requirements. The MTBF data is calculated from predicted data at 55 ºC. The MTBF for the Intel Desktop Board DZ77SL-50K is 255,651 hours.

  • Page 63: Overview Of Bios Features

    Overview of BIOS Features Introduction The board uses an Intel BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated using a disk-based program. The SPI Flash contains the BIOS Setup program, POST, the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.

  • Page 64: Bios Flash Memory Organization

    Intel Desktop Board DZ77SL-50K Technical Product Specification Table 37 lists the BIOS Setup program menu features. Table 37. BIOS Setup Program Menu Bar Configura- Maintenance Main tion Performance Security Power Boot Exit Clears Displays Configures Configures Sets Configures Selects Saves or...

  • Page 65: System Management Bios (Smbios)

    6. After the operating system loads the USB drivers, all legacy and non-legacy USB devices are recognized by the operating system, and Legacy USB support from the BIOS is no longer used. ® 7. Additional USB legacy feature options can be access by using Intel Integrator Toolkit.

  • Page 66: Bios Updates

    Intel Desktop Board DZ77SL-50K Technical Product Specification To install an operating system that supports USB, verify that Legacy USB support in the BIOS Setup program is set to Enabled and follow the operating system’s installation instructions. BIOS Updates The BIOS can be updated using either of the following utilities, which are available on the Intel World Wide Web site: ®...

  • Page 67: Custom Splash Screen

    The Intel Integrator’s Toolkit that is available from Intel can be used to create a custom splash screen. NOTE If you add a custom splash screen, it will share space with the Intel branded logo. Refer to For information about Intel Integrator Toolkit http://developer.intel.com/design/motherbd/software/itk/...

  • Page 68: Boot Options

    Intel Desktop Board DZ77SL-50K Technical Product Specification Boot Options In the BIOS Setup program, the user can choose to boot from a hard drive, optical drive, removable drive, or the network. The default setting is for the optical drive to be the first boot device, the hard drive second, removable drive third, and the network fourth.

  • Page 69: Adjusting Boot Speed

    It is possible to optimize the boot process to the point where the system boots so quickly that the Intel logo screen (or a custom logo splash screen) will not be seen. Monitors and hard disk drives with minimum initialization times can also contribute to a boot time that might be so fast that necessary logo screens and POST messages cannot be seen.

  • Page 70: 3.10 Bios Security Features

    Intel Desktop Board DZ77SL-50K Technical Product Specification 3.10 BIOS Security Features The BIOS includes security features that restrict access to the BIOS Setup program and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup program and for booting the computer, with the following restrictions: •...

  • Page 71: 3.11 Bios Performance Features

    3.11 BIOS Performance Features The BIOS includes the following options to provide custom performance enhancements when using 3 generation Intel Core processor family and 2 generation Intel Core processor family processors in an LGA1155 socket. • Processor Maximum Non-Turbo Ratio (processor multiplier can only be adjusted down) •...
  • Page 72 Intel Desktop Board DZ77SL-50K Technical Product Specification...

  • Page 73: Error Messages And Beep Codes

    Error Messages and Beep Codes Speaker The board-mounted speaker provides audible error code (beep code) information during POST. For information about Refer to The location of the onboard speaker Figure 1, page 13 BIOS Beep Codes Whenever a recoverable error occurs during POST, the BIOS causes the board’s speaker to beep an error message describing the problem (see Table 42).

  • Page 74: Front-Panel Power Led Blink Codes

    Intel Desktop Board DZ77SL-50K Technical Product Specification Front-panel Power LED Blink Codes Whenever a recoverable error occurs during POST, the BIOS causes the board’s front panel power LED to blink an error message describing the problem (see Table 43). Table 43. Front-panel Power LED Blink Codes...

  • Page 75: Port 80H Post Codes

    Error Messages and Beep Codes Port 80h Power On Self Test (POST) Codes During the POST, the BIOS generates diagnostic progress codes (POST codes) to I/O port 80h. If the POST fails, execution stops and the last POST code generated is left at port 80h.

  • Page 76: Port 80H Post Codes

    Intel Desktop Board DZ77SL-50K Technical Product Specification Table 46. Port 80h POST Codes Port 80 Code Progress Code Enumeration ACPI S States 0x00,0x01,0x02,0x03,0x04,0x05 Entering S0, S2, S3, S4, or S5 state 0x10,0x20,0x30,0x40,0x50 Resuming from S2, S3, S4, S5 Security Phase (SEC)
  • Page 77 Error Messages and Beep Codes Table 46. Port 80h POST Codes (continued) Port 80 Code Progress Code Enumeration PEI after MRC 0x2A Start to Program MTRR Settings 0x2B Done Programming MTRR Settings PEIMs/Recovery 0x31 Crisis Recovery has initiated 0x33 Loading recovery capsule 0x34 Start recovery capsule/ valid capsule is found CPU Initialization...
  • Page 78 Intel Desktop Board DZ77SL-50K Technical Product Specification Table 46. Port 80h POST Codes (continued) Port 80 Code Progress Code Enumeration 0x60 BDS driver entry point initialize 0x61 BDS service routine entry point (can be called multiple times) 0x62 BDS Step2...
  • Page 79 Error Messages and Beep Codes Table 46. Port 80h POST Codes (continued) Port 80 Code Progress Code Enumeration Removable Media 0xB8 Resetting removable media 0xB9 Disabling removable media 0xBA Detecting presence of a removable media (IDE, CDROM detection etc.) 0xBB Enabling/configuring a removable media DXE Core 0xE4...
  • Page 80 Intel Desktop Board DZ77SL-50K Technical Product Specification Table 47. Typical Port 80h POST Sequence POST Code Description Initializing a chipset component Reading SPD from memory DIMMs Detecting presence of memory DIMMs Configuring memory Testing memory Loading recovery capsule Entered DXE phase...

  • Page 81: Regulatory Compliance And Battery Disposal Information

    Electromagnetic Compatibility (EMC) standards • Product certification markings 5.1.1 Safety Standards Intel Desktop Board DZ77SL-50K complies with the safety standards stated in Table 48 when correctly installed in a compatible host system. Table 48. Safety Standards Standard Title CSA/UL 60950-1 Information Technology Equipment –...

  • Page 82: European Union Declaration Of Conformity Statement

    European Union Declaration of Conformity Statement ® We, Intel Corporation, declare under our sole responsibility that the product Intel Desktop Board DZ77SL-50K is in conformity with all applicable essential requirements necessary for CE marking, following the provisions of the European Council Directive 2004/108/EC (EMC Directive), 2006/95/EC (Low Voltage Directive), and 2002/95/EC (ROHS Directive).

  • Page 83: Product Ecology Statements

    当的重复使用处理。 请参考http://www.intel.com/intel/other/ehs/product_ecology 了解此计划的详情，包括涉及产品之范围、回收地点、运送指导、条款和条件等。 Deutsch Als Teil von Intels Engagement für den Umweltschutz hat das Unternehmen das Intel Produkt-Recyclingprogramm implementiert, das Einzelhandelskunden von Intel Markenprodukten ermöglicht, gebrauchte Produkte an ausgewählte Standorte für ordnungsgemäßes Recycling zurückzugeben. Details zu diesem Programm, einschließlich der darin eingeschlossenen Produkte, verfügbaren Standorte, Versandanweisungen, Bedingungen usw., finden Sie auf der...
  • Page 84 Français Dans le cadre de son engagement pour la protection de l'environnement, Intel a mis en œuvre le programme Intel Product Recycling Program (Programme de recyclage des produits Intel) pour permettre aux consommateurs de produits Intel de recycler les produits usés en les retournant à...
  • Page 85 Regulatory Compliance and Battery Disposal Information Russian В качестве части своих обязательств к окружающей среде, в Intel создана программа утилизации продукции Intel (Product Recycling Program) для предоставления конечным пользователям марок продукции Intel возможности возврата используемой продукции в специализированные пункты для должной...

  • Page 86: China Rohs

    The China Ministry of Information Industry (MII) stipulates that a material Self Declaration Table (SDT) must be included in a product’s user documentation. The SDT for Intel Desktop Board DZ77SL-50K is shown in Figure 16. Figure 16. Intel Desktop Board DZ77SL-50K China RoHS Material...

  • Page 87: Emc Regulations

    Regulatory Compliance and Battery Disposal Information 5.1.5 EMC Regulations Intel Desktop Board DZ77SL-50K complies with the EMC regulations stated in Table 49 when correctly installed in a compatible host system. Table 49. EMC Regulations Regulation Title FCC 47 CFR Part 15,...
  • Page 88 • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to the equipment not expressly approved by Intel Corporation could void the user’s authority to operate the equipment. Tested to comply with FCC standards for home or office use.

  • Page 89: Energy Star* 5.0, E-Standby, And Erp Compliance

    ENERGY STAR requirements. Intel has worked directly with these two governmental agencies in the definition of new requirements. Intel Desktop Board DZ77SL-50K meets the following program requirements in an adequate system configuration, including appropriate selection of an efficient power supply: •...

  • Page 90: Regulatory Compliance Marks (Board Level)

    Intel Desktop Board DZ77SL-50K Technical Product Specification 5.1.7 Regulatory Compliance Marks (Board Level) Intel Desktop Board DZ77SL-50K has the regulatory compliance marks shown in Table 50. Table 50. Regulatory Compliance Marks Description Mark UL joint US/Canada Recognized Component mark. Includes adjacent UL file number for Intel Desktop Boards: E210882.

  • Page 91: Battery Disposal Information

    Regulatory Compliance and Battery Disposal Information Battery Disposal Information CAUTION Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations. PRÉCAUTION Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect.
  • Page 92 Intel Desktop Board DZ77SL-50K Technical Product Specification PRECAUCIÓN Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del fabricante.
  • Page 93 Regulatory Compliance and Battery Disposal Information AWAS Risiko letupan wujud jika bateri digantikan dengan jenis yang tidak betul. Bateri sepatutnya dikitar semula jika boleh. Pelupusan bateri terpakai mestilah mematuhi peraturan alam sekitar tempatan. OSTRZEŻENIE Istnieje niebezpieczeństwo wybuchu w przypadku zastosowania niewłaściwego typu baterii.
  • Page 94 Intel Desktop Board DZ77SL-50K Technical Product Specification 小心 如果更換的電池類型不正確，可能會有爆炸的危險。請盡可能將電池送至回收處。請依照當地的環保 規範來處理使用過的電池。 주의 배터리를 잘못된 종류로 교체할 경우 폭발 위험이 있습니다. 가능한 경우 배터리는 재활용해야 하며, 수명이 다한 배터리를 폐기할 때는 각 지역의 환경법을 따라야 합니다. THẬN TRỌNG Có nguy cơ xảy ra nổ nếu thay pin không đúng loại. Pin cần được tái chế nếu có thể...
  • Page 95 Regulatory Compliance and Battery Disposal Information...
