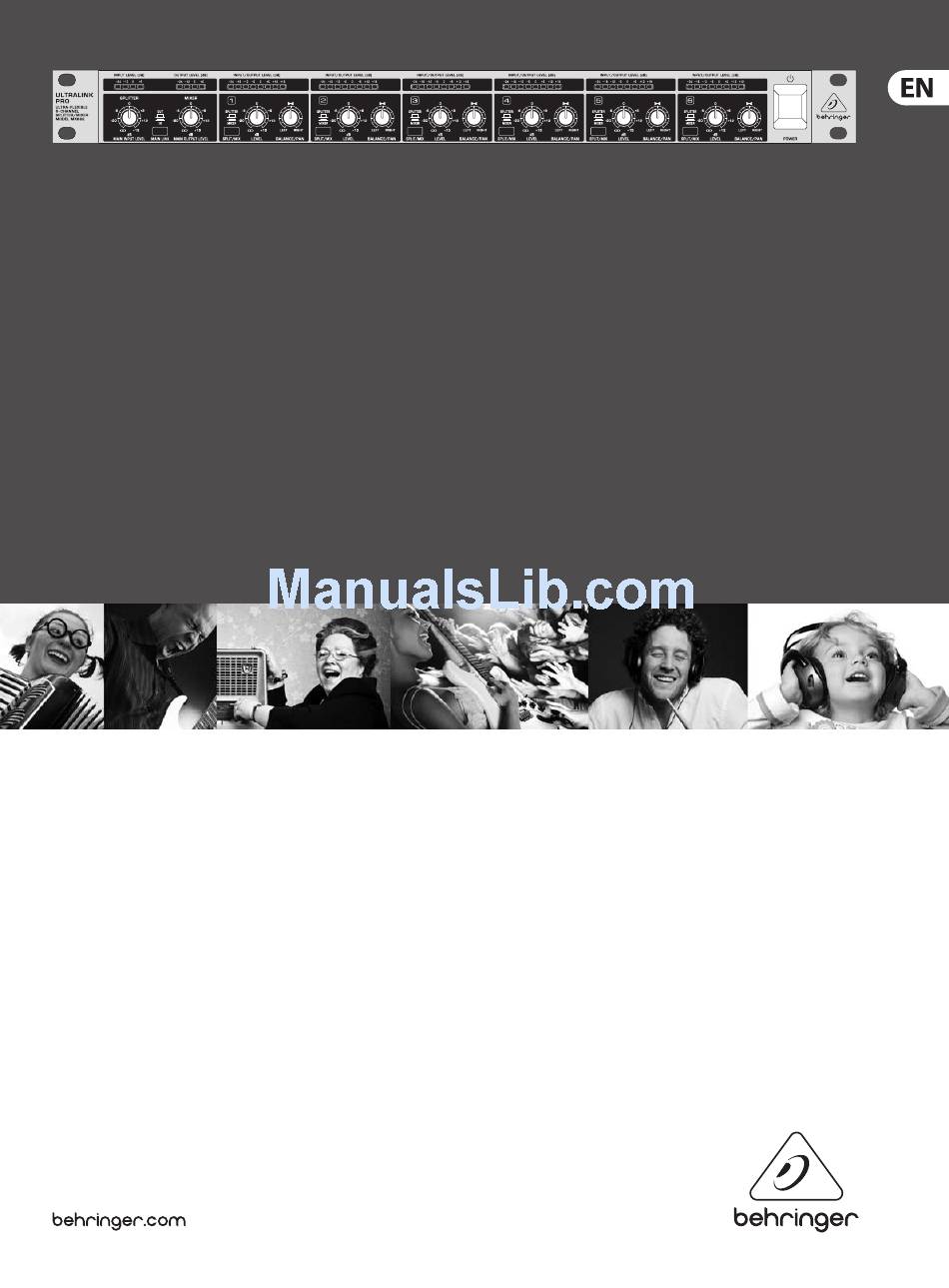

ULTRALINK PRO MX882 User Manual Table of Contents Important Safety Instructions ........3 Legal Disclaimer ............. 3 Limited Warranty ............3 1. Introduction ............... 5 2. The Design Concept ..........5 2.1 High quality components and design......5 2.2 Inputs and outputs ............5 2.2.1 Balanced inputs and outputs ........
A list of authorized resellers can dangerous voltage inside the moving the cart/apparatus be found on BEHRINGER’ s website behringer. com under enclosure - voltage that may be suffi cient to constitute a combination to avoid “Where to Buy”, or you can contact the MUSIC Group offi ce risk of shock.
ULTRALINK PRO MX882 User Manual • connection or operation of the unit in any way “Support” at behringer. com. If your country is not (3) This warranty does not detract from the seller’ s listed, please check if your problem can be dealt with...

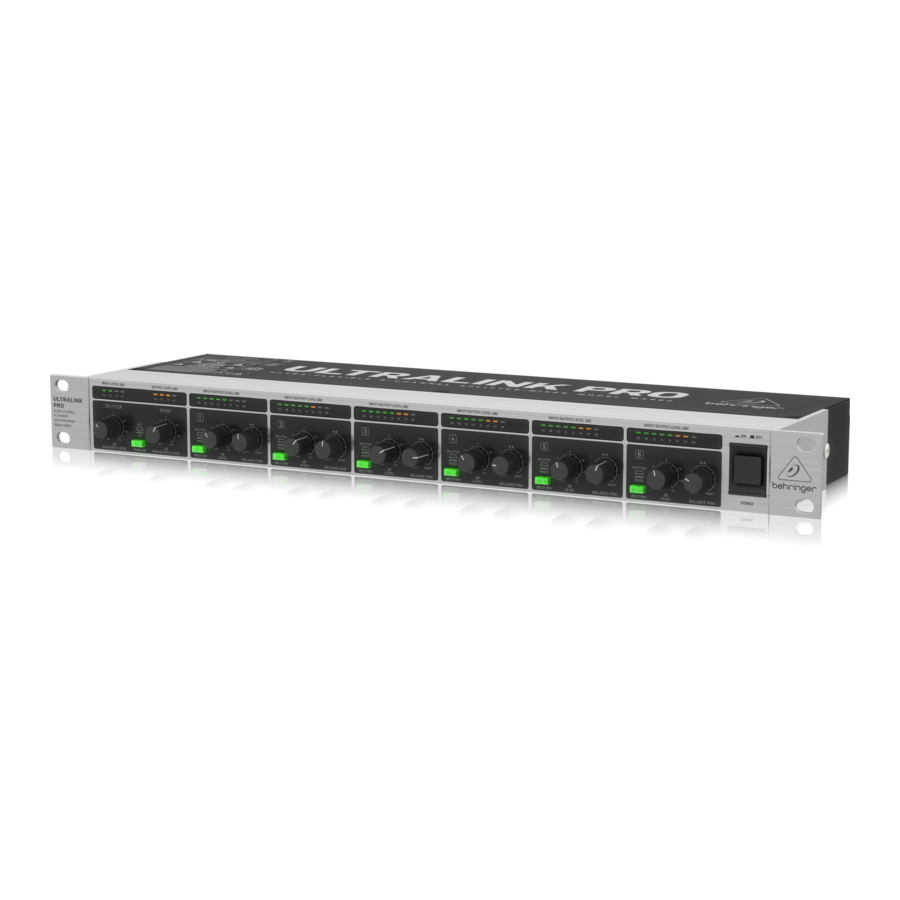

ULTRALINK PRO MX882 User Manual 1. Introduction Typical applications With the BEHRINGER ULTRALINK PRO you have purchased an ultra-flexible The ULTRALINK PRO MX882 is one of the most flexible systems of its type. “problem solver” in signal distribution applications, designed to meet The following applications can be realized:...
(-ve) 3.1 Rack mounting hot (+ve) The BEHRINGER ULTRALINK PRO fits into one standard 19" rack unit of space For connection of balanced and unbalanced plugs, (1 3/4"). Please allow at least an additional 4" depth for the connectors on the ring and sleeve have to be bridged at the stereo plug.
4. Control Elements Fig. 4.1: ULTRALINK PRO front panel The Behringer ULTRALINK PRO has six identical channels. Each channel is of +15 dB—allows for converting, e.g., home recording levels (-10 dBV) equipped with two rotary controls, one button and eight LEDs. Moreover there is into studio levels (+4 dBu).
ULTRALINK PRO MX882 User Manual 5. Block Diagram Fig. 5.1: Block diagram of the BEHRINGER ULTRALINK PRO MX882 MAIN Section MIX Mode Both main inputs interface via the MAIN INPUT LEVEL control with the input In MIX mode, the input signals of the mono channels are “collected” via the bus as well as with the main outputs.
For this you the individual signal sources are connected to the mono inputs on the BEHRINGER have to depress the MAIN LINK switch. However, as these inputs do not feature ULTRALINK PRO.
In this mode, the output signal from the mixer is applied to the main inputs of are routed through channels 1+2, 3+4, and 5+6. This kind of application is the BEHRINGER ULTRALINK PRO. If the SPLIT/MIX switches are set to “SPLIT”, particularly useful for tape duplication systems.
6.3 Application as a matching amplifier Fig. 6.3: Block diagram of the MATCHING AMPLIFIER function The BEHRINGER ULTRALINK PRO can also be used as a multiple matching In this application, the ULTRALINK PRO is operated in MIX mode. The output amplifier.
Shipping Weight approx. 3.5 kg System Specifications BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and Frequency response 5 Hz to 200 kHz, +/-3 dB appearance may differ from those listed or shown.
