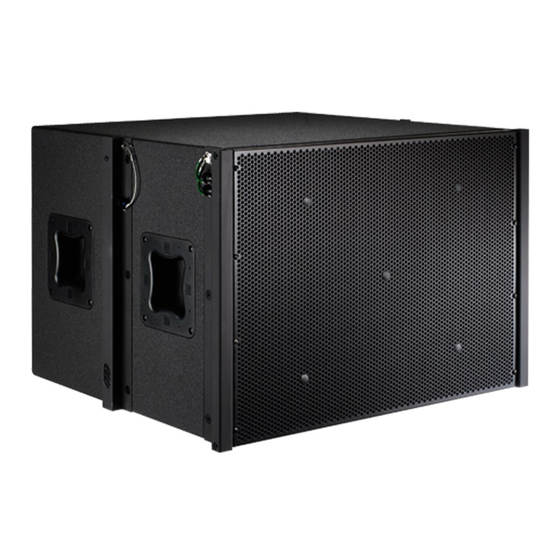

Electro-Voice XCS312 Technical Specifications

Key Features:

• Triple 12" Cardioid Very Compact Line-Array Bass Element
• Three DVX3120 12" Low Frequency Transducers
• 1500 Watt Continuous, 6000 Watt Peak
• Versatile Integration in Main Arrays
• Self-contained Rigging Hardware
• LAPS Aiming and Prediction Software Compatible

General Description:

The Electro-Voice® XCS312 is designed for high-level low
frequency extension to 40 Hz in a cardioid configuration. It uses
three DVX3120 forced air-cooled 12" transducers capable of
long, linear excursion and high power handling in a two channel
configuration. XCS312's are designed to be used with a ratio
of four XLD281 or XLD291 full range systems for each XCS312
subwoofer. The XLVC family consists of two full-range Line Array
Elements with dual woofers, two full-range Line Array Elements
with single woofers and a two subwoofer systems. The dual-
woofer Line Array Element includes the XLD281 with a 120°
horizontal coverage pattern and the XLD291 with a 90° horizontal
coverage pattern. The single-woofer Line Array Element includes
the XLE181 with a 120° horizontal coverage pattern and the
XLE191 with a 90° horizontal coverage pattern. The XCS312
cardioid subwoofer module has the same rigging footprint as the
XLD281 and XLD291 allowing it to be directly arrayed above,
or below XLD281 or XLD291 full range systems. LAPS model-
ing software quickly provides array configurations and rigging
information. XCS312 subwoofers can be used as the base for
ground-stack applications, or by using EV's XGS-4 Ground-stack
Kit for XLVC. XLVC delivers unprecedented performance in appli-
cations ranging from live reinforcement to performing arts venues,
to houses of worship.
XCS312
Triple 12" Cardioid
Controlled-Coverage
Bass Element

Technical Specifications:

Freq. Response (-3 dB) :
1
Freq. Range (-10 dB) 1 :
Max Calculated SPL 1 :
Rigging:
Power Handling:
Sensitivity 1 :
Highpass Freq. :
2
Recommended Crossover Freq:
Coverage:
LF Front:
LF Rear:
Recommended Amplifier:
Connectors:
Enclosure Material:
Grille:
Environmental Spec:
Dimensions (H x W x D):
Net Weight:
Shipping Weight:
1 Half Space Measurement. SPL Adjusted for 1W at 63 Hz at 1m.
2 Use EV or KT Signal Processing or Download Presets from Electro-Voice Website.
Compact
45 Hz
40 Hz
130 dB Cont., 136 dB Peak
Fully Captive Aluminum, 1° Increments,
8 Elements with 8 to 1 Safety Factor
1500W Cont., 6000W Peak
(1 channel 1000W, 1 channel 500W)
100 dB
40 Hz
100 Hz
200°
2 x 12" (305mm) DVX3120, 4 ohms
1 x 12" (305mm) DVX3120, 8 ohms
EV CP3000S
2 x NL8
Birch Plywood w/EVCoat
TM
Galvannealed Steel with Powdercoat Paint
IEC 529 IP24, MIL 810
508mm x 726mm x 677mm
(20.00" x 28.58" x 26.64")
67.1 kg (148 lbs)
73.0 kg (161 lbs)
