Corega CG-WLBARGMO User Manual

Miso wireless broadband router
Hide thumbs Also See for CG-WLBARGMO:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
CG-WLBARGMO
MISOWireless broadband Router

User Manual

Advertisement

Table of Contents
loading

Related Manuals for Corega CG-WLBARGMO

Summary of Contents for Corega CG-WLBARGMO

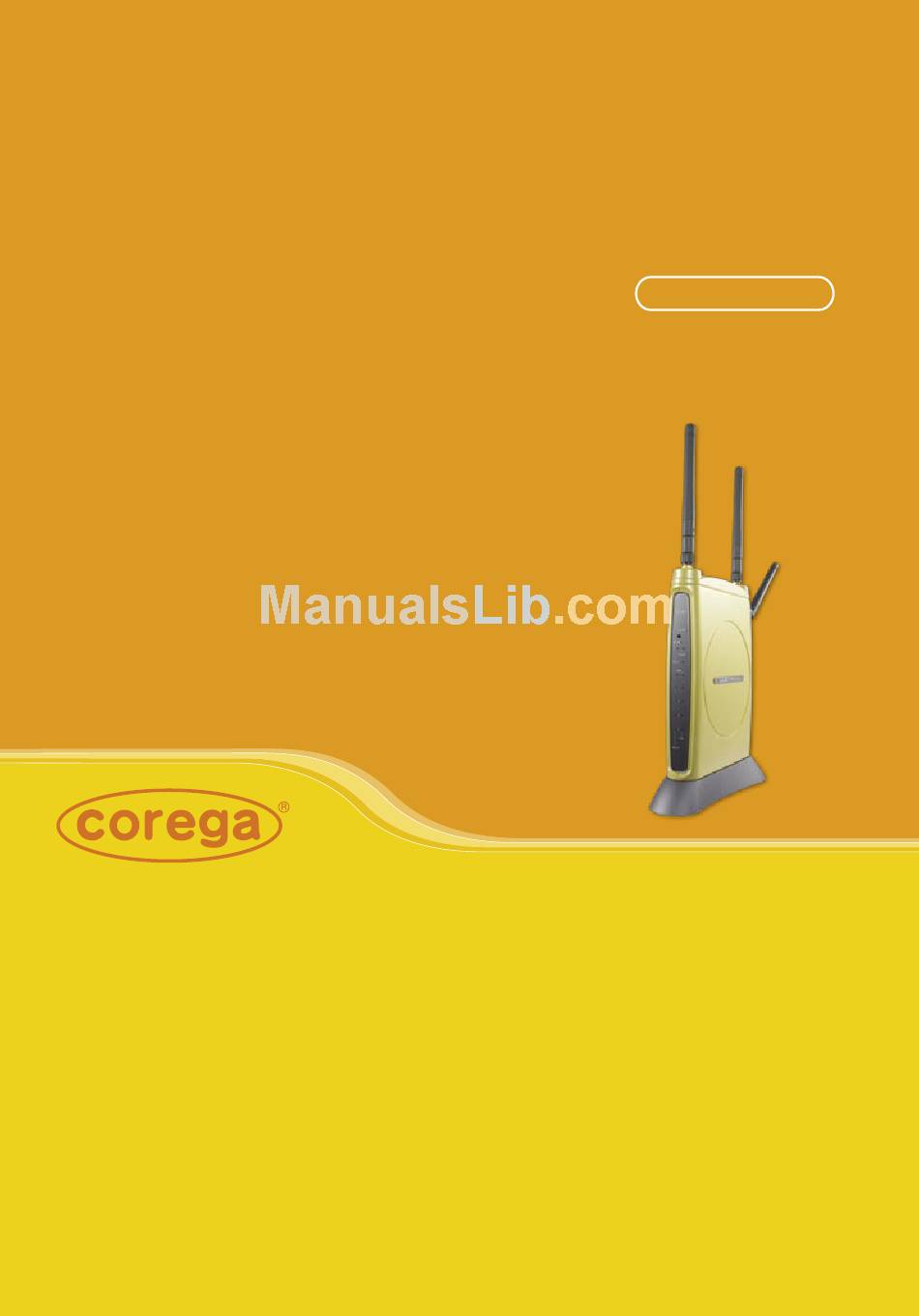

  • Page 1: User Manual

    CG-WLBARGMO MISOWireless broadband Router User Manual...

  • Page 3: Table Of Contents

    Contents 1. Product Introduction 1.1 Package Contents 1.2 Features 1.3 Hardware Introduction Product Installation 2.1 Hardware Installation 2.2 Installation Procedure ...6 3. PC Setting 3.1 TCP/IP Configuration 3.1.1 Windows XP O/S 3.1.2Windows 2000 O/S 3.1.3 Windows 98/95/ME O/S 3.1.4MacOS8.x~9.xO/S 3.1.5MacOSXO/S 3.2 Browser Configuration 3.2.1 Windows O/S 3.2.2 Mac O/S...
  • Page 4 Contents WLBARGMO Manual <Mode> <WAN setting (internet)>...30 <WAN setting/ Dynamic DNS> <WAN setting/Other setting> <LAN setting/LAN IP> <LANsetting/DHCPserver> <LANsetting/PCdatabase> <Wireless setting/802.11g/b setting> <Wireless setting/802.11g/b security setting> <Wireless setting/Access control> <Security setting> <Security setting/Connection control> <Security setting/filter list> <Advanced setting/virtual server> <Advanced setting/Special Applications>...

  • Page 5: Product Introduction

    Product Introduction Corega WLBARGMO is a MISO wireless broadband Router with IEEE802.11g wireless access point standard. Its MIMO XR technique can improve transmit speed and coverage area. The maximum transmit length is up to 450m and the coverage area can be six times more than general 802.11g products. It also has 3 antennas which can improve transmit quality.

  • Page 6: Hardware Introduction

    WLBARGMO Manual 1.3 Hardware Introduction 1. Initial Button Press this button it will reset to default setting 2. WLAN LED (Green) ON:Connected 3. Power LED (Green) Indicate power status 4.Status LED (Red) Blink:Working normal ON:Firmware upgrade 5. WAN LED (Green) ON:Connected Blink:Transmitting or receiving data...

  • Page 7: Product Installation

    Product Installation 2.1 Hardware Installation Following the steps below to set up WLBARGMO and the connection. (1) Insert the cable connector into the Network Adapter embeded in PC, and insert the other side into one of LAN ports (1~4) of the Router. (2) Insert the connect into the WAN port of the Router and insert the other side into the modem.

  • Page 8: Pc Setting

    PC Setting WLBARGMO Manual 3.1 TCP/IP Configuration The following steps and screenshots maybe dissimilar in different operat- ing systems.This manual takes Windows XP/2000, 95/98/ME, and Mac O/S as examples: 3.1.1 Windows XP O/S (1) Enter [Control Panel] -> click [Network Connection] -> right click and select [Open].
  • Page 9 (3) Click [General] -> click [Internet Protocol (TCP/IP), and click [Properties]. (4) Click [General], select [Obtain an IP Address Automatically], and [Obtain DNS Server address automatically], and press [Advance]. WLBARGMO Manual...

  • Page 10: 2Windows 2000 O/S

    WLBARGMO Manual (5) Click [DNS] tab, unselect [Register this connection’s address in DNS], press [OK]. (6) Go back to [Internet Protocol TCP/IP] and press [OK]. (7) Press [OK] to close [Local Area Connection Properties]. 3.1.2 Windows 2000 O/S (1) Go to [My Computer], and enter [Control Panel], click open [Network and Dial Up Connections].
  • Page 11 (2) Right click [Local Area Connection], and select [Properties] *Note: Please check if TCP/IP had been installed in the [Local Area Connection]. (3) Click [Internet protocol (TCP/IP)] and click [Properties]. WLBARGMO Manual...
  • Page 12 WLBARGMO Manual (4) Select [Obtain an IP address automatically], and [Obtain DNS server address automatically]. And click [Advance]. (5) Click [DNS] tab in [Advance TCP/IP setting] page, and unselect [Register this connection’s DNS address, and press [OK]. 10 10...

  • Page 13: Windows 98/95/Me O/S

    3.1.3 Windows 98/95/ME O/S The configurations in all Windows 98/95/ME are the same, and this manual takes Windows 98 as an example. (1) Enter [Control Panel], and double click [Network]. (2) Click [Configuration] tab, and select [TCP/IP], click [Properties]. (3) Select [IP Address], and select [Obtain IP address automatically. Press [OK].

  • Page 14: 4Macos8.X~9.Xo/S

    WLBARGMO Manual (4) Click [Gateway] tab, remove all the gateways, and press [OK] to close the window. (5) Go to [Network] and press [OK] to close the page. (6) The [Restart the windows] screen will pop-up, press [OK] to restart the PC. If the PC is not shown this message, restart the PC manually.

  • Page 15: Browser Configuration

    3.2 Browser Configuration 3.2.1 Windows O/S The following examples are for Windows XP O/S, skip this chapter if you are using Windows 2000/98/ME. (1) Open Internet Explorer (IE 6.0), select [Tools] menu and click [Internet Options]. If a [Dial-up Connection] window is pop-up, close it, and do not connect to the Internet now.

  • Page 16: Mac O/S

    WLBARGMO Manual (3) Unselect all three options in the [Local Area Network LAN Setting]. (4) Press [OK] in the [Internet Options]. 3.2.2 Mac O/S (1) Open Internet Explorer (IE 5.0) Go to [Edit] in the menu bar, select [Internet Explorer Preferences]. (2) Select [Proxies] options in [Network] on the left-side configuration items.

  • Page 17: Network Configuration

    Network Configuration 4.1 Quick Network Configuration Basic configuration is required before connection your computer to the inter- net via WLBARGMO.The connection methods may be differed by your contract to the ISP. Please reconfirm your connection conditions with your ISP prior to configure this router.The configuration procedures are as follow: *Note: Anti-virus or Firewall software may prevent this router from being set-up properly.
  • Page 18 WLBARGMO Manual (5) Click [Quick Installation Setting]. (6) When seeing this screen shot, click on [Next]. (7) Select your connection type. Please make sure that your ADSL connection type is correct as you enter; the correct information can be obtained from the documents given by your ISP.

  • Page 19: 1Autoobtainip(Dhcp)

    4.1.1 Auto obtain IP (DHCP) (1) If you are subscribing to auto obtain IP service ( or DHCP Dynamic IP) from your ISP, such as Cable Modem that obtain an IP automatically for connection, please select [Auto obtain IP(DHCP)]. Click on [Next]. (2) Press [MAC address clone] to obtain the Ethernet card’s MAC address.Then press [Next].
  • Page 20 (5) Open the web browser (IE 6.0), and test with any website for testing the connection. * Note: if the connection to the website fails. Restart your Cable Modem, and check the installation of CG-WLBARGMO properly, such as the LAN/WAN connections. After verifying that, restart this chapter again for installation. 18 18...

  • Page 21: Fixed Ip

    4.1.2 Fixed IP (1) If you are subscribing Fixed IP connection from your ISP, then select [Fixed IP], and click on [Next]. (2) Enter the network setting provided by your ISP.Then click on [Next]. WLBARGMO Manual...
  • Page 22 WLBARGMO Manual (3) Click on [Save] to perform connection tests. (4) Within seconds, the result of the connection test will be appeared in the dialogue box to indicate the connection status. When [Connection OK] appears, click on [Close]. 20 20...

  • Page 23: Dynamic Ip (Pppoe)

    (5) Open the web browser (IE 6.0), and test with any website for testing the connection. *Note: If the connection to the website fails. Please make sure the data you entered are correct , or any mistake occured in the process of the installation, such as the LAN/WAN connections.
  • Page 24 WLBARGMO Manual (3) Click on [Save] to perform connection tests. (4) Within seconds, the result of the connection test will be appeared in the dialogue box to indicate the connection status. When [Connection OK] appears, click on [Close]. 22 22...

  • Page 25: Establishing Wireless Internet Connection

    (5) Open the web browser (IE 6.0), and test with any website for testing the connection. *Note: If the connection to the website fails. Please make sure the data you entered are correct , or any mistake occured in the process of the installation, such as the LAN/WAN connections.
  • Page 26 WLBARGMO Manual (2) Go [Control Panel] -> [Network connection] again ->Right click [Wireless network connection] ,select [Available wireless network connection], choose one available network e.g. ) corega , and click [Connect]. (3) Connection status will appear in the bottom right of the screen. 24 24...
  • Page 27 <Windows XP (SP2) O/S> (1) Go [Control Panel], double click on [Network connection], right click on [Wireless Networks Connection], select [properties], click on [Wireless Network] tab, select [Use Windows to configure my wireless networks setting] , and press [OK]. (2) Go [Control Panel] -> [Network connection] again -> right click [Wireless network connection] , select [Available wireless network connection], e.g.
  • Page 28 WLBARGMO Manual (3) Connection status will appear in the bottom right of the screen. *Note: The wireless connection has been established now. Please go to corega’s website at http://www.corega-asia.com to check the connection to the Internet. 26 26 26...

  • Page 29: Wireless Security Configuration

    Wireless Security Configuration To prevent from unlawful access to your network, you are recommended to perform wireless security setting.Type [192.168.1.1] in the browser’s address bar, press [Enter]. Enter the function menu, ad click on [802.11g/b Security set- ting] item. And select WEP or WPA setting. 5.1 WEP Setting In order to prevent your information from being hacked, it is recommended to use WEP encryption when using wireless connection.

  • Page 30: Wpa Setting

    WLBARGMO Manual 5.2 WPA Setting WPA is encrypted by a periodic update, making it more difficult to be hacked. Home users and company users are recommended to use <WPA-PSK> and <WPA-EAP> respectively. <WPA-PSK> (1) Select [WPA2-PSK] or [WPA/WPA2-PSK] in the column of [Authentication] (Recommended).

  • Page 31: Wpa-Eap

    <WPA-EAP> (1) Select [WPA2-EAP] or [WPA/WPA2-EAP](Recommended). in the column of [Authentication] a. [WPA2-EAP]: The 2nd generation encryption skill performs stricter protec- tion than before. Before selection, please check the function availability of your network adapter, or select b. b. [WPA/WPA2-EAP]: If selected, encryption type will be defined automati- cally according to the corresponding wireless network adapter.

  • Page 32: Function Introduction

    Function Introduction WLBARGMO Manual The chapter will briefly introduce all functions of this product, and spell them out. Log in the management program and the below interface will appear. 6.1 Features <Mode> Mode Wireless Function <WAN setting (internet)> The internet setting can be configured, according to your internet connection type, [Link connection speed] - default setting is recommended.
  • Page 33 A. For [PPPoE]: Username Please enter username, given by your ISP. Password Please enter password, given by your ISP. Confirm Please type your password again. password Connection [Auto Reconnect]: always on line (recommended). type [On Demand]: connect when accessing to Internet. [manual connection]: manually connecting to internet.
  • Page 34 WLBARGMO Manual B.For auto obtain IP (DHCP) : Type Press [MAC address clone] to obtain the Ethernet card's MAC address. Host name Please refer to your ISP internet service information, add/edit [Host name]. MTU value Maximum Transmission Unit.deafault setting:1500 Byte. Multi-NAT Setup corresponding sets of internal IP and public IP 32 32...

  • Page 35: Wan Setting/ Dynamic Dns

    C. For fixed IP WAN IP address Please refer to your ISP internet service Subnet mask information. Default gateway Maximum Transmission Unit. Deafault setting :1500 Byte. DNS server When [Manual Connection] is enable, two DNS server addresses can be inserted: DNS1 and DNS2 Multi-NAT Setup corresponding sets of external IP and public <WAN setting/ Dynamic DNS>...

  • Page 36: Wan Setting/Other Setting

    WLBARGMO Manual (1) select enable dynamic DNS services. (2) Select one DDNS Provider. (3) enter login name. (4) enter login password. (5) Domain name. (6) Click [Save]. *Note: Corega does not provide DDNS service. Please register on one DDNS provider web site before you setup this function. <WAN setting/Other setting>...

  • Page 37: Lansetting/Dhcpserver

    <LAN setting /DHCP server> (1) Select [Enable] to enable DHCP server function. Default is [enable]. (2) Enter DHCP servers start IP and end IP. (3) Then click on save button to save the setting. <LAN setting/PC database> the following table display the current connected users information, you can add/edit/delete users data.

  • Page 38: Wireless Setting/802.11G/B Setting

    WLBARGMO Manual <Wireless setting/802.11g/b setting> ESSID Mode Channel TX Burst Hidden AP 36 36 ESSID is a name that makes wireless adapter identify this Router .The default ESSID is [corega]. • 802.11b/g: auto connect in either 802.11b or 802.11g. • 802.11g: connect in 802.11g mode. When there is interruption, other channels can be selected.

  • Page 39: Wireless Setting/802.11G/B Security Setting

    <Wireless setting/802.11g/b security setting> This section contains WEP,WAP-PSK, WPA2-PSK, WPA-EAP and WPA2-EAP encryption setting, please refer to Chapter 5 to get detail information. <Wireless setting/Access control> Wireless Configure wireless communication between clients. to wireless [Enable]/[Disable]: enable or disable wireless connection communication between clients.

  • Page 40: Security Setting

    WLBARGMO Manual <Security setting> Configuring firewall and no response to WAN Ping requests. <Security setting/Connection control> This function can limit or control some certain networking services: (1) Enter the range of limited IP address. (2) Select one of limit/stop networking services. (3) Select one of protocol.

  • Page 41: Security Setting/Filter List

    <Security setting/filter list> This function can forbid users to access certain website on the Internet: (1)Enter the forbidden URL or keywords (2) Then click [save] to complete the configuration. All the forbidden data will be displayed in the table below. <Advanced setting/virtual server>...

  • Page 42: Advanced Setting/Dmz

    WLBARGMO Manual <Advanced setting/DMZ> If the online game’s port range is unknown, or its parameter is different every login, DMZ function is recommended. While this function starts, select the us- ers, being allowed to connect with, then click [Save]. *Note: 1.The PC becomes vulnerable to being hacked if DMZ function starts.

  • Page 43: Advancedsetting/Routingtable/Routingtable

    <Advanced setting/Routing Table/Routing Table> All routing logs are displayed in the table. <Advanced setting/UPnP > Activating this function can detect the device or software of LAN, supporting UPnP. For example: online games supporting UPnP or Windows Messenger (Ver. 4.7 or above), MSN Messenger (Ver.

  • Page 44: Management

    WLBARGMO Manual <Management> Admin login name Admin login password Password comfirmation Connection Timeout Back to default setting Reboot Save Setting Load Setting Language Firmware update Time Setup Remote control PING testing Time Setup Select one of the time setup models. If user is in [Day light saving] region, please select [enable].

  • Page 45: Firmware Update

    Firmware update (1) Click [Browse] to open the data folder. Follow the route that the firmware saves to select the file. (2) After selection, click [Firmware update]. (3) When the countdown starts, do not click any button. The update will complete soon afterward.

  • Page 46: Status

    WLBARGMO Manual The activation processes are as follows: (1) Select [Enable]. (2) Indicate 1 ~ 9600 for parameters of port range. e.g. ) 8080 (Recommended keeping default values). (3) Click on [Save] after completing settings. e.g. ) Assume the port value is 8080, enter IP address as the type : [http:// xxx.xxx.xxx.xxx: 8080] to access the management program by remote control.

  • Page 47: Status/Log Display/System Log

    <Status/Log Display/system log> System log is displayed in the table. <Status/Log Display/E-mail function> An E-mail address can be set below. Special incidents will be recorded and sent to the appointed E-mail address. After entering all information, click [Save] to save and complete the setting. WLBARGMO Manual...

  • Page 48: Faq

    WLBARGMO Manual When the installation fails or the connection doesn’t succeed, it’s recommend- ed to take the following actions. (1) Find your problem in the troubleshooting collection. (2) Search on our official website at http://www.corega-asia.com for the latest information of this product. (3) Go to our official website at http://www.corega-asia.com->click [Support] ->select the [Online Customer Support] item->fill the form page and note following information.
  • Page 49 (8) Has all information provided by your ISP been entered correctly? (9) Are the settings of your web browser correct? Q2. Can not access the management program A: Please confirm the following settings. (1)Is the TCP/IP address correct?(Please refer to 3.1) (2)Is the cardbus successfully installed? (Right click [my computer] select [properties]->click[device manager], if a [x] appears symbol on the network adapter icon, please re-install the product.)
  • Page 50 WLBARGMO Manual <Windows XP/ 2000> (1) Click [Start] => [Programs] => [Command prompt]. (2) Input [ipconfig] => [Enter]. (3) Confirm IP address (which sould be 192.168.1.x). If the IP is incorrect, please enter 1-byte character as [ipconfig /renew] => Press [Enter]. <Windows Me/ 98/ 95>...

  • Page 51: Sepcifictaion

    Specifications Compliance Standard Interface 　 Frequency Band Transmission speed Transmission Power Coverage Area Transmission method Protocol Security Antenna Type Antenna Gain Power Requirement Power Current Power Consumption Operating Storage Support OS Case Material Dimension Weight WLAN:IEEE802.11, IEEE802.11b, IEEE802.11g LAN:IEEE802.3, IEEE802.3u, IEEE802.3x WAN:10/100Mbps x 1 Port (RJ-45, Auto MDI/MDI-X) LAN:10/100Mbps x 4 Ports (RJ-45, Auto MDI/MDI-X) 2.412~2.472 GHz...
  • Page 52 Established in 1996, corega 100% founded by Allied Telesis Group in Yokoha- ma, Japan. corega’s core products consists of 10/100/1000 Ethernet products, Wireless Networking Products(802.11 a/b/g series), broadband access routers, Bluetooth series and other networking peripheral, such as IP camera and USB Phone.

  • Page 53: Federal Communication Commission Interference Statement

    Appendix WLBARGMO Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation.
  • Page 54 memo...
  • Page 56 www.corega.com.tw www.corega-asia.com corega Taiwan Inc. 7F., No. 10, Lane 345,YangGuang St. Nei-Hu Chiu, Taipei City 114, Taiwan R.O.C. TEL: +886-2-8751-9164 FAX: +886-2-8751-9174 PN: T30-UM8411-00 Rev.B...
