HP Pro 2000 Illustrated Parts & Service Map

Illustrated Parts & Service Map

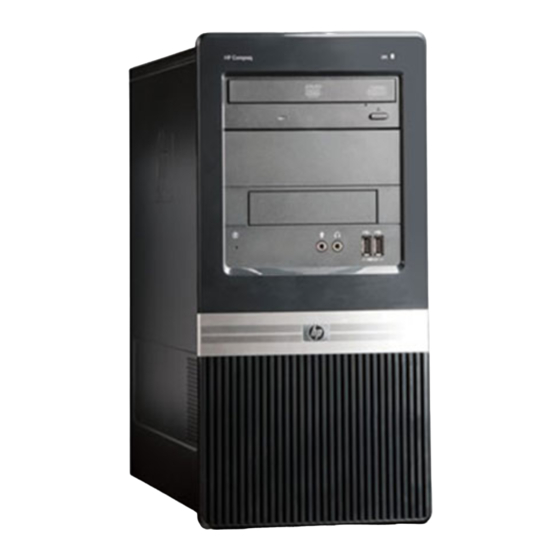

HP Pro 2000/2080 Business PC

Microtower Chassis

©
2009 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein. Intel, Pentium,
Intel Inside, and the Intel logo are trademarks or registered trademarks of the
Intel Corporation and its subsidiaries in the U. S. and other countries.
Document Number 597663-001.
Key Specifications
Processor Type Intel® Core™ 2 Duo and Core™ 2 Quad, Intel Pentium® dual
core, Intel Celeron®
RAM Type DDR3-SDRAM DIMMs, PC2-10600 (1333 MHz) non-ECC
Maximum RAM Supported 4 GB
Expansion Slots •
•
•
Graphics Adapter Intel Graphics Media Accelerator X4500
Chipset Intel G41Express
Drive Support •
•
•
I/O Interfaces (6) USB 2.0 ports; (2) front, (4) rear, (2) PS/2, (1) RJ-45, (1)
VGA, (1) DVI-D, (1) serial port, (1) audio in, (1) audio out, (1)
microphone
Operating Systems •
•
•
•
•

Spare Parts

System Unit
1 Access panel
2 Power supply, 300W, PFC
* Power supply, 300W, 85% (APJ only)
* Power supply, 250W, PFC
3 Chassis
4 Front bezel
* Front bezel for use in China
HP Pro 2000/2080 Illustrated Parts & Service Map, MT chassis 597663-001
1st Edition November 2009.
(2) PCI 2.3
(1) PCIe-x16
(1) PCIe-x1
(2) external 5.25-inch optical disk drives
(1) external 3.5-inch drive
(2) internal 3.5-inch hard disk drives
Windows 7
Windows Vista
Windows XP Professional
SuSE Linux Enterprise Desktop 11
FreeDOS
Cables
1 Front I/O assembly
2 Power switch/LED assembly
3 SATA cable, 8.66-inch (22-cm), 2 straight ends
* DMS-59 to dual DVI cable
*Not shown
Mass Storage Devices (not illustrated)
Blu-ray Disc ROM with SuperMulti DVD±R/RW DL Drive
DVD±RW and CD-RW SuperMulti DL Combo Drive with LightScribe
DVD-ROM drive
500-GB SATA hard drive,
320-GB hard drive
250-GB SATA hard drive
250-GB external USB hard drive
320-GB external USB hard drive
160-GB SATA hard drive
Miscellaneous Parts
1 Chassis fan
2 Internal speaker
3 Heatsink with alcohol pad and factory-applied thermal grease
* Media card reader
* Hood sensor
* USB powered speakers
586372-001
* Hard drive conversion bracket
508467-001
* PCI slot cover lock
575437-001
* Printer port
508466-001
* Foot kit
not spared
* Serial port
591599-001
* Mouse, USB
591606-001
* Mouse, optical
* Mouse, laser
* Rear I/O cover
*Not shown
508463-001
508464-001
591600-001
463024-001
581060-001
581059-001
581058-001
586720-001
586969-001
586719-001
586383-001
591387-001
586718-001
438741-001
463316-001
592506-001
480032-001
534484-001
571536-001
397117-001
580507-001
465339-001
530593-001
530599-001
537749-001
537748-001
570580-001
592507-001
page 1
