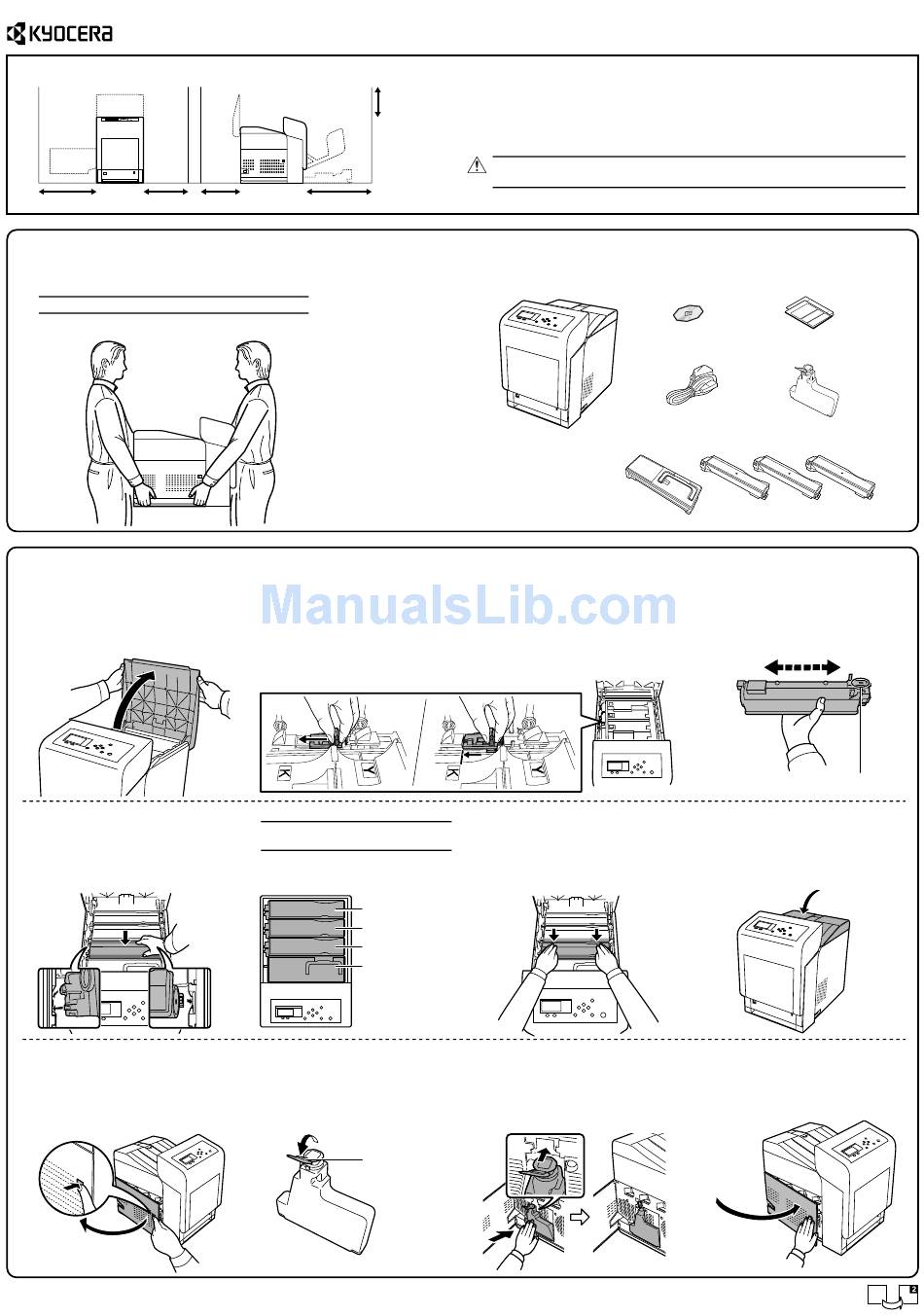

Kyocera FS-C5400DN Installation Manual

FS-C5400DN
Clearance
400 mm (15-3/4") 250 mm (9-13/16")
1
Unpacking
1
Unpack the printer and all its included components.
Important:
The printer must be carried by two persons.
2

Installing the Toner Container and Waste Toner Box

1
Open the top cover until it stops.
4
Place the new toner container in the
printer with the markings facing
upward.
7
Open the left cover.
200 mm (7-7/8") 600 mm (23-5/8")
2
Before installing the toner container, open the slide lever (yellow-colored) on the
developer unit. The toner container cannot be installed until the slide lever is open.
Proceed as follows:
To open the slide lever, squeeze and hold the lever (1), and slide the lever all the way
toward the direction of the arrow indicated (2) on the lever. When the slide lever is
open, install the toner container.
(1)
Note:
Ensure the toner container is in the
correct location for that color.
Magenta (M)
Cyan (C)
Yellow (Y)
Black (K)
8
Open the cap of the waste toner box.
Cap

Installation Guide

Environment
• Temperature: 10 to 32.5 °C (50 to 90.5 °F) The humidity should be 70 % or less when the
400 mm
temperature is 32.5 °C (90.5 °F)
(15-3/4")
• Humidity: 15 to 80 %RH The temperature should be 30 °C (86 °F) or less when the humidity
is 80 %
• Power Supply: 120 V AC, 60 Hz, 9.7 A / 220 to 240 V AC, 50/60 Hz, 4.9 A
CAUTION: Be sure to provide enough space around printer. Prolonged use
without sufficient clearance may cause overheating.
2
Check the parts and components.
Printer
(2)
5
Push down on the container until it
clicks firmly into place.
Follow the procedure above to install
the other color toner containers.
9
Position the bottom of the waste toner
box in the receptacle and push the box
down until it snaps firmly into place.
CD-ROM Manuals and Other
Printed Materials
Power Cord Waste Toner Box
Toner Containers (4)
3
Hold the toner container with the
markings (caution notes, etc.) facing
downward and shake it 5 or 6 times as
shown.
Toner Supply Opening
6
Close the top cover.
10
Close the left cover.
