Summary of Contents for Eizo FlexScan L675

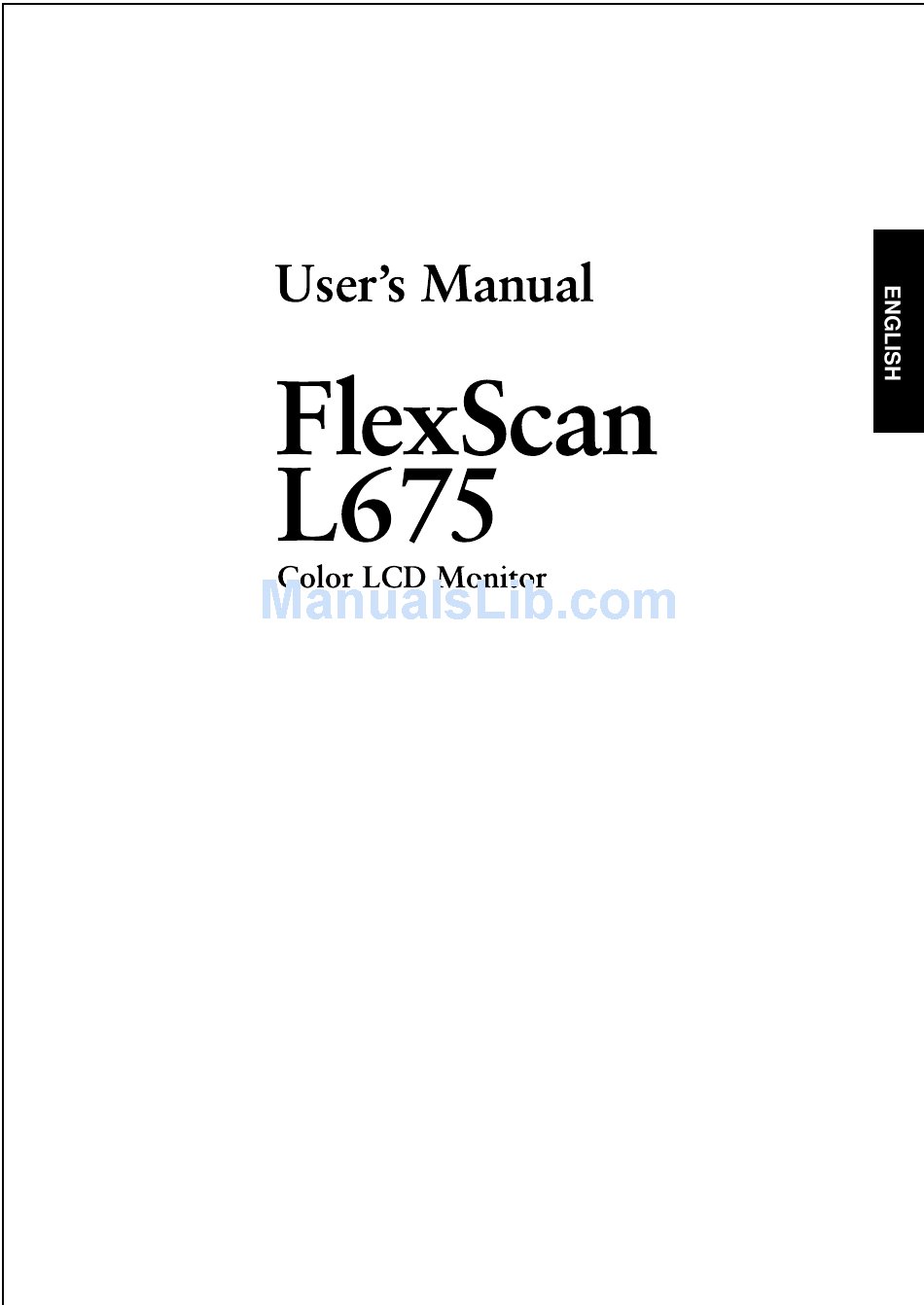

  • Page 1 ®...

  • Page 2: Safety Symbols

    Eizo Nanao Corporation. Eizo Nanao Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to Eizo Nanao Corporation's receipt of said information.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS ... 4 INTRODUCTION ... 10 1-1. Features ... 10 1-2. Package Contents ... 11 1-3. Controls & Connectors ... 12 CABLE CONNECTION ... 14 2-1. Before connecting ... 14 2-2. Connecting up ... 15 ScreenManager ... 18 3-1.

  • Page 4: Precautions

    PRECAUTIONS IMPORTANT ´ This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. ´...
  • Page 5 • Keep small objects or liquids away from the unit. Small objects accidentally falling through the ventilation slots into the cabinet or spillage into the cabinet may result in fire, electric shock, or equipment damage. If an object or liquid falls/spills into the cabinet, unplug the unit immediately.
  • Page 6 ´ To disconnect the power cord, grasp the plug firmly and pull. Never tug on the cord, doing so may cause damage and could result in fire or electric shock. ´ The equipment must be connected to a grounded main outlet. Failure to do this may reslut in an electric shock.
  • Page 7 ´ Do not touch a damaged LCD panel directly with bare hands. The liquid crystal which leaks from the panel is poisonous if it enters the eyes or mouth. If any part of the skin or body comes in direct contact with the panel, please wash thoroughly.
  • Page 8 ´ Do not touch the plug with wet hands. Touching the plug with wet hands is dangerous and can cause electrical shock. ´ Use an easily accessible power outlet. This will ensure that you can disconnect the power quickly in case of a problem.

  • Page 9: Lcd Panel

    Suggestions for Maximizing Comfort ´ To lessen the chance of possible injury and to increase your comfort and productivity while you operate the unit, we suggest the followings: * Avoid less favorable body positioning. Sit back on the chair with your back straight.

  • Page 10: Introduction

    1. INTRODUCTION Thank you very much for choosing an EIZO Color LCD Monitor. 1-1. Features p.46) • DVI Digital input (TMDS • 1280 x 1024 resolution Horizontal scanning frequency of 27-82 kHz Vertical scanning frequency of 50-85 Hz (1280 x 1024 ~75Hz) Vertical (Digital) of 60Hz (VGA text: 70Hz) •...

  • Page 11: Package Contents

    Please contact your local dealer for assistance if any of the listed items are missing or damaged. • LCD Monitor • Signal Cable (FD-C04) • EIZO LCD Utility Disk • Quick Reference • Please retain the packing materials for future transference. • Power Cord • Signal Cable (FD-C16) •...

  • Page 12: Controls & Connectors

    1-3. Controls & Connectors Front Main Power Switch Input Signal Selection Button Auto Adjustment Button Enter Button Control Buttons Power Button Power Indicator Indicated color Green Yellow Flasing Yellow Slowly flashing Yellow ScreenManager™ Regarding the power indicator for the “Off Timer”, see page 21. 1.
  • Page 13 Rear Height Adjustable Stand (Detachable) (10) DVI-I Input Connector x 2 (11) Power Terminal Cover for the Optional Peripheral (12) USB Port (4 Downstream) (13) USB Port (1 Upstream) (14) Power Connector (15) Security Lock Slot The LCD monitor has the capability of the Portrait/Landscape display.For the Portrait display, use the software for the portrait.

  • Page 14: Cable Connection

    2. CABLE CONNECTION 2-1. Before connecting Before connecting your monitor to the PC, change the display screen settings (resolution and frequency) in accordance with the charts below. Analog Input o i t • About Plug & Play of the monitor When your computer and display support VESA DDC, the suitable resolution and the refresh rate are set by just plugging your display into the computer without any manual settings.

  • Page 15: Connecting Up

    2-2. Connecting the signal cable • Be sure that the power switches of both the PC and the monitor are OFF. Plug the signal cable into the DVI-I connector at the rear of the monitor and the other end of the cable into the video connector on the After connecting, secure the connection with the screw-in fasteners.
  • Page 16 Plug the power cord into the power connector on the rear of the monitor. • Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may cause in fire or electric shock.
  • Page 17 Plug the other end of the power cord into a power outlet. ´ The equipment must be connected to a grounded main outlet. Not doing so may cause in fire or electric shock. Turn on the monitor’s power and then switch on the PC’s power. Whenever finished, turn off the PC and the monitor.

  • Page 18: Screenmanager

    3. ScreenManager 3-1. How to use the ScreenManager As shown on the display, the ScreenManager is used to adjust the LCD monitor. ScreenManager consists of main menus and sub menus. Adjustments are made using the Enter and Control buttons (up, down, right and left) located on the front panel. S IG N A L A U T O Auto Adjustment Button...

  • Page 19: Screenmanager Adjustments And Settings

    Position Resolution Smoothing Contrast/Brightness Signal Filter* Color- Range Adjustment* Management Standard Mode Custom Mode PowerManager DVI DMPM** VESA DPMS* EIZO MPMS* Others Screen Size Border Intensity Off Timer Input Priority Beep Menu Settings Reset Information Information Language English, German, French, Spanish, Italian, Swedish and Japanese *1 Due to the inspection on the factory, the usage time may not “0 hour”...

  • Page 20: Useful Functions

    Auto adjustment button once again and turn the power back on. EIZO Logo Disappearing function When switching on the power button on the front panel, the EIZO logo is displayed for a while. If you desire to undisplay this logo, use this function.

  • Page 21: Off Timer

    Off Timer The off timer function causes the monitor to automatically enter a power off state after a predetermined amount of time has lapsed. This function was created to reduce afterimage p.46) characteristics that are particular to LCD monitors when the monitor screen is left on for a long period without use.

  • Page 22: Adjustment

    Install the “Screen adjustment program”. Having read the “readme.txt” file, install and run the “Screen adjustment program” in the enclosed EIZO LCD utility disk. Step by step adjustment is provided by the wizard guide. • If the user’s operating system has no utility disk (e.g. OS/2), we recommend setting the desktop pattern to that as shown in the diagram below.
  • Page 23 Adjust by using “Screen” menu in the ScreenManager. (1) Vertical bars appear on the screen. Use the “Clock” Select the “Clock” and eliminate the vertical bars by using the right and left of the control buttons. Do not continuously press the control buttons, as the adjustment value will change quickly and make it difficult to locate the most suitable adjustment point.
  • Page 24 (3) The screen position is incorrect. The correct displayed position of LCD monitor is decided because the number and the position of the pixels are fixed. The “Position” adjustment moves the image to the correct position. Select “Position” and adjust the position of the upper left corner of the image by using the up, down, right and left buttons in order to align the screen.
  • Page 25 Set the Output signal range (Dynamic Range) of the signal. Use the “Range Adjustment”. This controls the level of output signal range to display the whole color gradation (256 colors). Select the “Range Adjustment”in the color menu. [Auto] Push the Auto adjustment button on the front panel while displaying the “Range adjustment”...
  • Page 26 Digital Input The monitor displays the digital input image correctly based on its pre-setting data. However, if the image position is not incorrect or larger than the actual image screen, please adjust the following adjustment items using the “Screen” menu of the ScreenManager.

  • Page 27: Displaying The Low Resolutions

    4-2. Displaying a low resolutions Enlarge the screen size when displaying a low resolution. Select “Screen Size” Select the “Screen Size” in the others menu and select the screen size by using the up and down buttons. • Full • Enlarged •...
  • Page 28 Smooth the blurred texts of the enlarged screen. Use the “Smoothing” adjustment. Select the suitable level from 1 ~ 5 (Soft ~ Sharp). Select “Smoothing” in the screen menu and adjust by using the right and left buttons. • “Smoothing” is disabled when the screen is displayed in the following resolution. * 1280 x 1024 * The image size is doubled both in horizontally and vertically (i.e.

  • Page 29: Color Adjustment

    4-3. Color Adjustment The “ColorManagement”menu in the ScreenManager enables to change the color of the screen. Before the Color adjustment • Allow the LCD monitor to stabilize for at least 20 minutes before making color adjustments. • After finishing each adjustment in the custom mode, select “Save” icon to resister the adjustment.
  • Page 30 To change the saturation. Use the “Saturation” adjustment. The “Saturation” can be selected from -16 to 16. Setting the minimum level (-16) turns the image to the monochrome. To register the adjustment, select the “Save” icon and then push the enter button. •...

  • Page 31: Power-Save Setup

    Select “VESA DPMS” in the “PowerManager” menu. [Power saving system] Operate the mouse or keyboard to return to a normal screen. 2. To set the power save with ScreenSaver software (EIZO MPMS). [Procedure] Set the PC’s appropriate ScreenSaver settings or blank the screen (totally black screen).

  • Page 32: Digital Input

    • EIZO MPMS should be used with Macintosh “EnergySaver”. Digital Input This monitor complies with the DVI DMPM [Procedure] (1) Set the PC’s power saving settings. (2) Select “DVI DMPM” in the “PowerManager” menu. [Power saving system] Power saving through the PC’s off mode is only supported when “Manual” is selected on the ScreenManager’s “Input Priority”.

  • Page 33: Making Use Of Usb (Universal Serial Bus)

    5. MAKING USE OF USB (Universal Serial Bus) This monitor provides a hub which supports the USB standard. When connecting to a USB compliant PC or another hub, the monitor functions as a hub to which the USB compliant peripherals can be easily connected. Required system environment •...
  • Page 34 After setting up, the monitor’s USB hub is available for connecting USB compliant peripherals to the downstream ports of the monitor. Example of connection: Printer 5. MAKING USE OF USB (Universal Serial Bus) Digital Camera Cable Monitor Keyboard Downstream Scanner Keyboard Digital Camera Scanner...

  • Page 35: Connecting Two Pcs To The Monitor

    6. CONNECTING TWO PCs to THE MONITOR Two PCs can be connected to the monitor through the Signal 1 and the Signal 2 on the back of the monitor. Connecting Examples • Analog x Digital Video Output Connector DVI Digital graphics board •...
  • Page 36 Selecting the active input The Input signal selection button on the front panel can be used to select either Signal 1 or Signal 2 as the active input at any time. Every time the button is pressed, the input changes. When the switching the signal, the displaying signal kind (signal 1 or 2/Analog or digital) is displayed for a few seconds.

  • Page 37: Attaching An Arm Stand

    7. ATTACHING AN ARM STAND The LCD monitor can be used with an arm stand by removing the tilt stand and attaching the arm stand to the LCD monitor. NOTE ´ Use an arm stand that satisfies the followings. • When using the LCD monitor with an arm stand, the arm stand must be VESA approved : * Use an arm stand with a 100 mm x 100 mm hole spacing on the arm mounting pad.
  • Page 38 Attach an arm stand to the LCD monitor securely. ´ When attaching an arm stand, please refer to the user’s manual of the arm stand and install the unit securely with the enclosed screws. Not doing so may cause the unit to come unattached, which may result in injury or equipment damage.

  • Page 39: Troubleshooting

    8. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. No picture problems Imaging problems USB problems See No.19 ~ No.20 Other problems See No.15 ~ No.18 Problems 1. No picture • Indicator status: Off •...
  • Page 40 Problems 3. Display position is incorrect. 4. Screen image is smaller or larger than the actual screen images. 5. Vertical bars of distortion appear. 6. Horizontal bars of distortion appear. 7. Letters and lines appear blurred. 8. Distortion appears like the figure below.
  • Page 41 Problems 11. The screen has defective pixels (e.g. slightly light or dark). 12. Fingerprints remain on the screen. 13. The “Smoothing” can not be selected. 14. The noise appears on the screen. 15. The utility disk is unable to be opened (for Macintosh only).
  • Page 42 Check that the USB cable is correctly connected. Check the downstream ports by connecting the peripherals to other downstream ports. If the problem is solved by doing this, contact an EIZO dealer. Try executing the following method. -Restarting the PC...

  • Page 43: Cleaning

    9. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. • Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel. Cabinet To remove stains, wipe the cabinet with a soft, lightly moistened cloth using a mild detergent.

  • Page 44: Specifications

    USB specification USB standard Communication speed Downstream power supply USB ports * With EIZO optional speaker & USB attached. 10. SPECIFICATIONS 46 cm (18.1 inch), TFT color LCD panel with Anti- Glare Hard Coating Viewing Angle: Horizontal: 160º, Vertical: 160º...

  • Page 45: Default Setting

    Default setting Default setting are as follows: Beeper settings Short beep Long beep 4 short beeps 2 short beeps every15 sec. i l g · ScreenManager item selected. · ScreenManager parameter adjusted to minimum or maximum limit. · Input signal selection button pressed. ·...

  • Page 46: Glossary

    EIZO MPMS EIZO MPMS, “EIZO Monitor PowerManager Signaling”, also enables power saving on the monitor side. EIZO MPMS recognizes video signals from the PC when the PC is in a power saving mode, and reduces energy consumption of the monitor.

  • Page 47: Range Adjustment

    The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The EIZO L675 consists of 1280 horizontal pixels and 1024 vertical pixels. At a resolution of 1280 X 1024, all pixels are used and the image is displayed as a full screen.

  • Page 48: Index

    Dimensions --------------------------------- iv Displaying the low resolutions -------- 27 DVI -------------------------------------- 10,46 DVI-DMPM ------------------------ 19,32,46 EIZO LCD utility disk -------------- 11, 22 EIZO Logo Disappearing function ---- 20 EIZO MPMS --------------------- 19, 31,46 Gain -------------------------------- 19, 30,46 GLOSSARY ------------------------------- 46...
  • Page 49 USB ----------------------------- 10,31,33,44 VESA DPMS ---------------------- 19,31,47 12. INDEX...
  • Page 50 MEMO 12. INDEX...
  • Page 51 APPENDIX / ANHANG / ANNEXE Preset Timing Chart for Analog input Timing-Übersichten für Analog Eingang Synchronisation des Signaux pour Analog numerique Based on the signal diagram shown below 23 factory presets have been registered in the monitor's microprocessor. Der integrierte Mikroprozessor des Monitors unterstützt 23 werkseitige Standardeinstellungen (siehe hierzu die nachfolgenden Diagramme).

  • Page 52: Appendix

    Mode 640 x 480 720 x 400 Macintosh 640 x 480 Macintosh 832 x 624 Macintosh 1152 x 870 VESA 640 x 480 VESA 640 x 480 VESA 640 x 480 VESA 800 x 600 VESA 800 x 600 VESA 800 x 600 VESA 800 x 600...

  • Page 53: Appendix Iii

    C: Back Porch D: Blanking Period µs/ µs/ Line Line 1.907/ 1.048/ 6.356/ 1.430/ 1.907/ 1.111/ 6.356/ 1.556/ 3.175/ 1.114/ 7.407/ 1.286/ 3.911/ 0.784/ 5.586/ 0.865/ 1.440/ 0.568/ 3.040/ 0.655/ 3.810/ 0.528/ 5.587/ 0.634/ 3.810/ 0.427/ 6.349/ 0.533/ 2.222/ 0.578/ 5.333/ 0.670/ 3.556/...

  • Page 54: Top View

    Dimensions Abmessungen Dimensions 399 (15 .7 ) 361 (14 .2 ) 3(0.1) 325 .5(12 .8) FRONT VIEW VORDERANSICHT VUE DE FACE Pin Assignment Pin-Belegung Affectation des Broches * DVI-I Connector * USB ports Upstream (Series B connector) APPENDIX 3(0.1) 65(2.6) 39(1.5) 38(1.5) 208 .5(8.2)
  • Page 55 [Applicable to gray (standard color version only).] Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture.
  • Page 56 [Applicable to gray (standard color version only).] Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances.

  • Page 57: Fcc Declaration Of Conformity

    Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. -AC Cord -Shielded Signal Cable (enclosed) This Class B digital apparatus complies with Canadian ICES-003.
