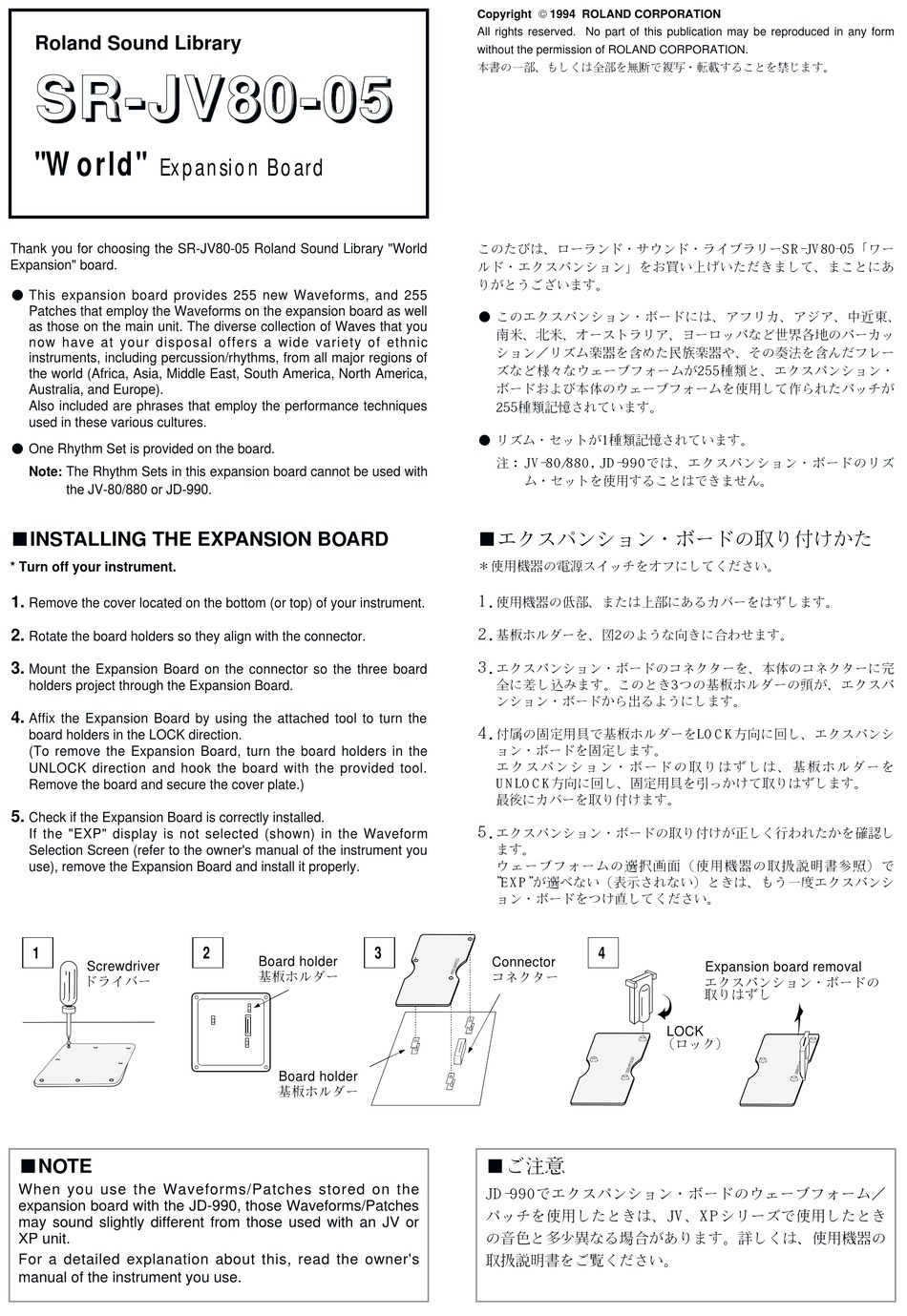

Roland World SR-JV80-05 Owner's Manual

Roland Sound Library
S S R R - - J J
S S R R - - J J
"World"
Expansion Board
Thank you for choosing the SR-JV80-05 Roland Sound Library "World
Expansion" board.
This expansion board provides 255 new Waveforms, and 255
Patches that employ the Waveforms on the expansion board as well
as those on the main unit. The diverse collection of Waves that you
now have at your disposal offers a wide variety of ethnic
instruments, including percussion/rhythms, from all major regions of
the world (Africa, Asia, Middle East, South America, North America,
Australia, and Europe).
Also included are phrases that employ the performance techniques
used in these various cultures.
One Rhythm Set is provided on the board.
Note: The Rhythm Sets in this expansion board cannot be used with
the JV-80/880 or JD-990.

INSTALLING THE EXPANSION BOARD

* Turn off your instrument.
1.
Remove the cover located on the bottom (or top) of your instrument.
2.
Rotate the board holders so they align with the connector.
3.
Mount the Expansion Board on the connector so the three board
holders project through the Expansion Board.
4.
Affix the Expansion Board by using the attached tool to turn the
board holders in the LOCK direction.
(To remove the Expansion Board, turn the board holders in the
UNLOCK direction and hook the board with the provided tool.
Remove the board and secure the cover plate.)
5.
Check if the Expansion Board is correctly installed.
If the "EXP" display is not selected (shown) in the Waveform
Selection Screen (refer to the owner's manual of the instrument you
use), remove the Expansion Board and install it properly.
1
Screwdriver
NOTE
When you use the Waveforms/Patches stored on the
expansion board with the JD-990, those Waveforms/Patches
may sound slightly different from those used with an JV or
XP unit.
For a detailed explanation about this, read the owner's
manual of the instrument you use.
V V 8 8 0 0 - - 0 0
V V 8 8 0 0 - - 0 0
2
Board holder
Board holder
Copyright
All rights reserved. No part of this publication may be reproduced in any form
without the permission of ROLAND CORPORATION.
5 5
5 5
3
Connector
1994 ROLAND CORPORATION
4
Expansion board removal
LOCK
