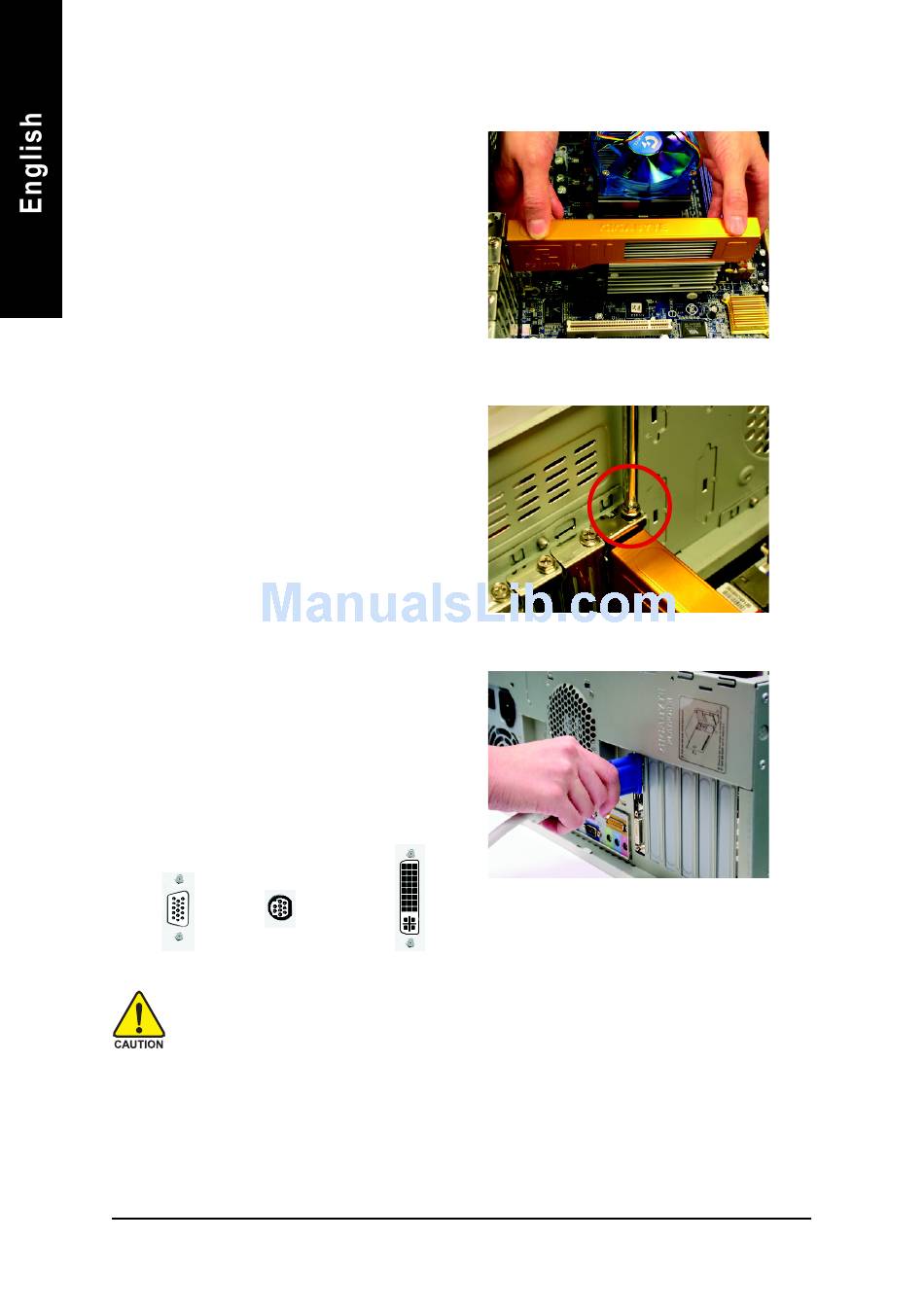

To install your new graphics card:
1. Locate the PCI Express x16 slot. If
necessary, remove the metal cover from this
slot; then align your graphics card with the
PCI Express x16 slot, and press it in firmly
until the card is fully seated.
* Please make sure that the gold edge
connectors of the graphics card is securely
inserted.
2. Replace the screw to fasten the card in place,
and replace the computer cover.
3. Plug the display cable into your card; then
turn on the computer and monitor. If your
graphics card came with a DVI-I connector,
you can connect a flat panel display to the
appropriate connector, as shown below...
To D-Sub Monitor To TV / VCR
To avoid system instability, do not touch the graphics card when it is runnnig.
You are now ready to proceed with the installation of the graphics card driver. Please
refer to next chapter for detailed instructions.
