Page 1: Operating Instructions

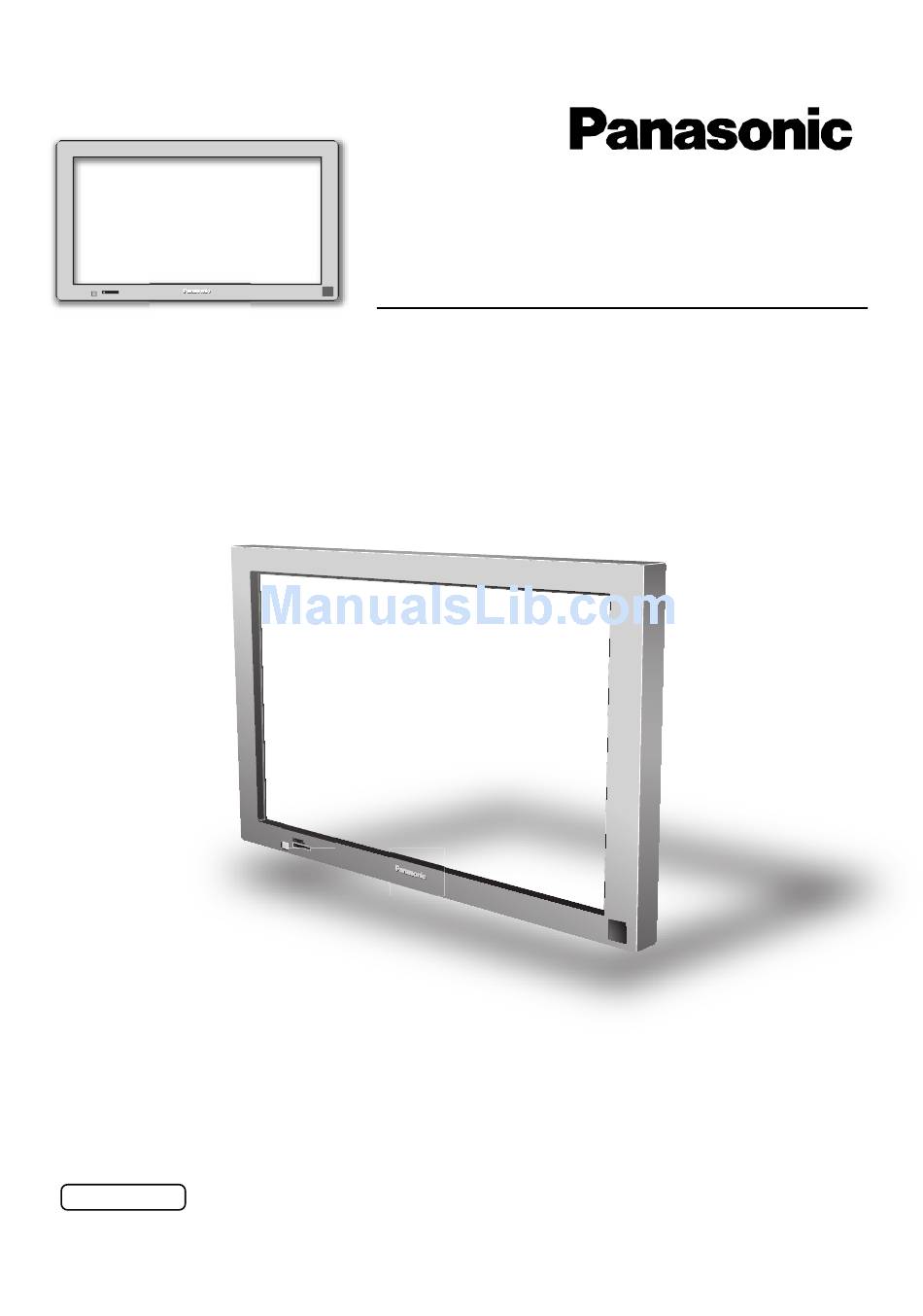

® Operating Instructions Touch Panel TY-TP65P8-S Model No. Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference. English TQZW433... -
Page 2: Table Of Contents
Table of Contents Warnings and precautions ............3 Warnings ................. 3 Precautions ..............3 Cautions when in use ............4 Setup location ..............4 Maintenance ..............5 If something abnormal happens ........5 Accessories ................6 Touch panel unit ................ 6 Setup procedure ................ -
Page 3: Warnings And Precautions
Warnings and precautions Warnings Do not allow the equipment to get wet. • If liquid splashes onto the equipment, wipe off with a dry cloth. In the unlikely event that liquid gets inside the product, unplug the USB cable and contact your dealer. Using the product with liquid still inside may cause a fire, electric shock or malfunction. -
Page 4: Cautions When In Use
Warnings and precautions Cautions when in use Always keep the touch panel clean • This optical touch panel utilizes infrared rays and may operate incorrectly if the infrared transmissive part becomes soiled. Use a soft dry cloth to clean the infrared transmissive part once every day. Use a power supply within the rated voltage range •... -
Page 5: Maintenance
Warnings and precautions Maintenance Be sure to unplug the USB cable before cleaning the equipment. Clean the inside of the equipment once a year. • The equipment is of semi-sealed construction, so dust may eventually accumulate inside. This may cause poor operation due to a reduction in the level of infrared light available for touch detection. -
Page 6: Accessories
Accessories Check that all accessories are included. Quantities are indicated in parentheses. Operating Instruction USB cable (1) Mounting brackets [A] (5) Mounting screws Books (7) Length: 2 m (6.56 ft) for [A] (10) • English • French • German • Spanish •... -
Page 7: Setup Procedure
Setup procedure Attachment of the touch panel to ....P 8 the plasma display Connection between the computer ....P 10 and the plasma display Installation of USB Driver ....P 11 Installation of Touch Panel Driver ....P 21 Setup Program ....P 23... -
Page 8: Attachment Of The Touch Panel To The Plasma Display
Attachment of the touch panel to the plasma display Attach the mounting bracket (1) Orientate the mounting bracket [A] so that the side lined with cushion faces the touch panel. (2) During attachment of the touch panel to the display, Touch panel M o u n t i n g lift the bracket to its highest point so that it does not... - Page 9 Attachment of the touch panel to the plasma display Lower the tentatively fastened mounting bracket. [A] Loosen the tentatively fastened bracket mounting screws, and lower the mounting bracket. Fasten mounting brackets. [A] Fasten mounting brackets [A] to the display. Fasten the touch panel. Fasten the touch panel to the display.
-
Page 10: Connection Between The Computer And Plasma Display
Connection between the computer and plasma display Connection with computer USB connector USB cable Plasma Display (Rear view) Computer OFF ON Touch Panel Check that the USB power supply of the computer being used is rated at 500 mA. (1) Connect the plasma display and computer with the VGA cable. (2) Turn on power in the following sequence: 1: Plasma Display, 2: Computer. -
Page 11: Installation Of The Usb Driver
Installation of the USB Driver Function The control software provides the following functionality. • Supplies a software interface for application programs that simulates the output of a mouse. This is achieved by converting touch panel output data into that which is compatible with the protocol used by the Microsoft serial mouse input. -
Page 12: In Case Of Windows 98Se
Installation of the USB Driver In case of Windows 98 SE Install USB Driver First, PC is started, and then Windows is started. The CD-ROM with USB driver software is inserted into the CD-ROM drive. Next, touch panel and PC are connected with a USB cable. (see page 10) When a USB cable is connected, “Add New Hardware Wizard”... - Page 13 Installation of the USB Driver Setup is completed when all the files of the driver are copied. Click to close this wizard. The new hardware window is displayed again, and the driver for the assumed COM port is installed. COM port number is confirmed with “Device Manager” Click on [Start] [Settings] [Control Panel]...
-
Page 14: In Case Of Windows Me
Installation of the USB Driver In case of Windows ME In case of Windows ME Install USB Driver First, PC is started, and then Windows is started. The CD-ROM with USB driver software is inserted into the CD-ROM drive. Next, touch panel and PC are connected with a USB cable. (see page 10) When a USB cable is connected, it is recognized as a new hardware, and a message is indicated. - Page 15 Installation of the USB Driver COM port number is confirmed with “Device Manager” Click on [Start] [Settings] [Control Panel] Double-click on “the system” icon of the control panel, and open the properties of the system. The properties of the system opens. Next, click on the “Device Manager”...
-
Page 16: In Case Of Windows 2000
Installation of the USB Driver In case of Windows 2000 Install USB Driver First, PC is started, and then Windows is started. The CD-ROM with USB driver software is inserted into the CD-ROM drive. Next, touch panel and PC are connected with a USB cable. (see page 10) When a USB cable is connected, it is recognized as a new hardware, and a message is indicated. - Page 17 Installation of the USB Driver “Driver Files Search Results” is indicated. Click on this button. Driver software is set up, and “Completing the Found New Hardware Wizard” is indicated. Click Finish to close this wizard. It is recognized as new hardware once again, and the screen on the left is displayed.
-
Page 18: In Case Of Windows Xp
Installation of the USB Driver In case of Windows XP Install USB Driver First, PC is started, and then Windows is started. The CD-ROM with USB driver software is inserted into the CD-ROM drive. Next, touch panel and PC are connected with a USB cable. (see page 10) When a USB cable is connected, the wizard of the driver setup starts. - Page 19 Installation of the USB Driver COM port number is confirmed with “Device Manager” Click on [Start] [Settings] [Control Panel] Double-click on “the system” icon of the control panel, and open the properties of the system. The properties of the system opens. Next click on the “Hardware”...
- Page 20 Installation of the USB Driver About the COM port When it is set up, the USB driver is recognized as a COM port of the PC. Specify this COM number when you don't use an automatic connection. The setup number varies in the use environment of the PC. Notes for Installation of USB driver (Windows 2000/XP) After the installation of the driver is completed, a new hardware wizard will not be displayed even if a USB cable is...
-
Page 21: Installation Of The Touch Panel Driver
Installation of the Touch Panel Driver Install Touch Panel Driver The CD-ROM contains two different types of control CD-ROM (Installer) software installers (one for Windows 98SE and Windows Windows 98SE ME, and one for Windows 2000 and Windows XP). Start \English\Win9x_me\setup.exe Windows Me the set-up file corresponding to the OS you are using. -
Page 22: Uninstallation Of The Touch Panel Driver
Uninstallation of the Touch Panel Driver Delete “tpdrv” from the “Add/Remove Programs” of the “Control Panel”. In case of Windows 2000 (1) Click on [Start] [Settings] [Control Panel] (2) Double-click on [Add or delete applications]. (3) Click on the [Uninstall] tab. (4) Select “tpdrv”... -
Page 23: Setup The Program
Setup program The setup program is to set communication ports and various operation modes and to carry out calibration or so on. Performing setup in the initial state saves the modified contents in “tpdrv.ini” setting file in “C:\Program Files\tpdrv” folder. Those contents are still valid at the time of the next startup. Setup of a basic Mode (see page 24) Pressing any button displays the setting window... - Page 24 Setup program Setup of basic settings This sets the COM port of connecting PC. The port being used for connection with the touch panel is selected. Communication Port When “Auto connect” is chosen, driver software detects it automatically, and it is set up. If it isn't possible to connect automatically, choose a connecting port.
- Page 25 Setup program Palm Touch (1) Off Please select this mode in case of touching display by finger or touch pen. (2) On Please select this mode in case of touching display by plam. Setup of Touch Pen ID ID of the optional touch pen is selected on the touch panel side.
-
Page 26: Calibration Mode
Setup program Calibration Mode Pressing the [Calibration] button on the main window activates the calibration screen to carry out calibration of the detection of the Touch Panel and PC (in order to place the mouse cursor at the touched position). Briefly touch the center of the target displayed on the screen in order as they appear. - Page 27 Setup program Calibration Mode Touch on the center of the target. (To terminate, press any key) Touch on the center of the target. (To terminate, press any key)
- Page 28 Setup program Calibration Mode In case of special setting Calibration Screen is indicated in order as follows. To continue the calibration, click on the mouse. (To terminate, press any key)
- Page 29 Setup program Calibration Mode Left click on upper left corner of the display. (To terminate, press any key) Left click on lower right corner of the display. (To terminate, press any key)
- Page 30 Setup program Calibration Mode Can you see three targets within the display area? Left click Right click (To terminate, press any key) Touch on the center of the target. (To terminate, press any key)
- Page 31 Setup program Calibration Mode Touch on the center of the target. (To terminate, press any key) Touch on the center of the target. (To terminate, press any key)
-
Page 32: User Setting
Setup program User Setting The following window is displayed by pushing the user setting button of the Touch Panel setting program menu. Click Mode (See next page) Double click Time Time interval when double-clicking is set up. Time between the first touch and the second touch is set. - Page 33 Setup program Click Mode Drag Touching the touch panel with your finger corresponds to the holding down operation of the left mouse button. Release of your finger from the touch panel corresponds to the release operation from the left mouse button. Therefore at the time of releasing the finger from the touch panel, click event occurs.
-
Page 34: Troubleshooting
Troubleshooting Before requesting repairs Please check the following points. Symptom Check No response at all to Check the USB cable Check that the USB cable is securely connected. input Check extraneous light Check whether there is (or might be) any equipment in the surrounding area that uses a powerful light source or infrared light. -
Page 35: Specifications
Specifications Model Number TY-TP65P8-S Type Optic Touch Panel Power Source Voltage DC + 5 V 10 % Electric current DC + 5 V Max 400 mA Supply system from USB Bus Power (DC + 5 V Max 500 mA) Touch Panel Detection system Infrared obstruction detection system Panel window (W... -
Page 36: External Dimensions
Warranty conditions are managed by distributors to meet the standards set by each country. For details, contact your dealer where you made your purchase. Model Number Serial Number Matsushita Electric Industrial Co., Ltd. Web Site : http://www.panasonic.co.jp/global/ 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. Printed in Japan M0305T0...
