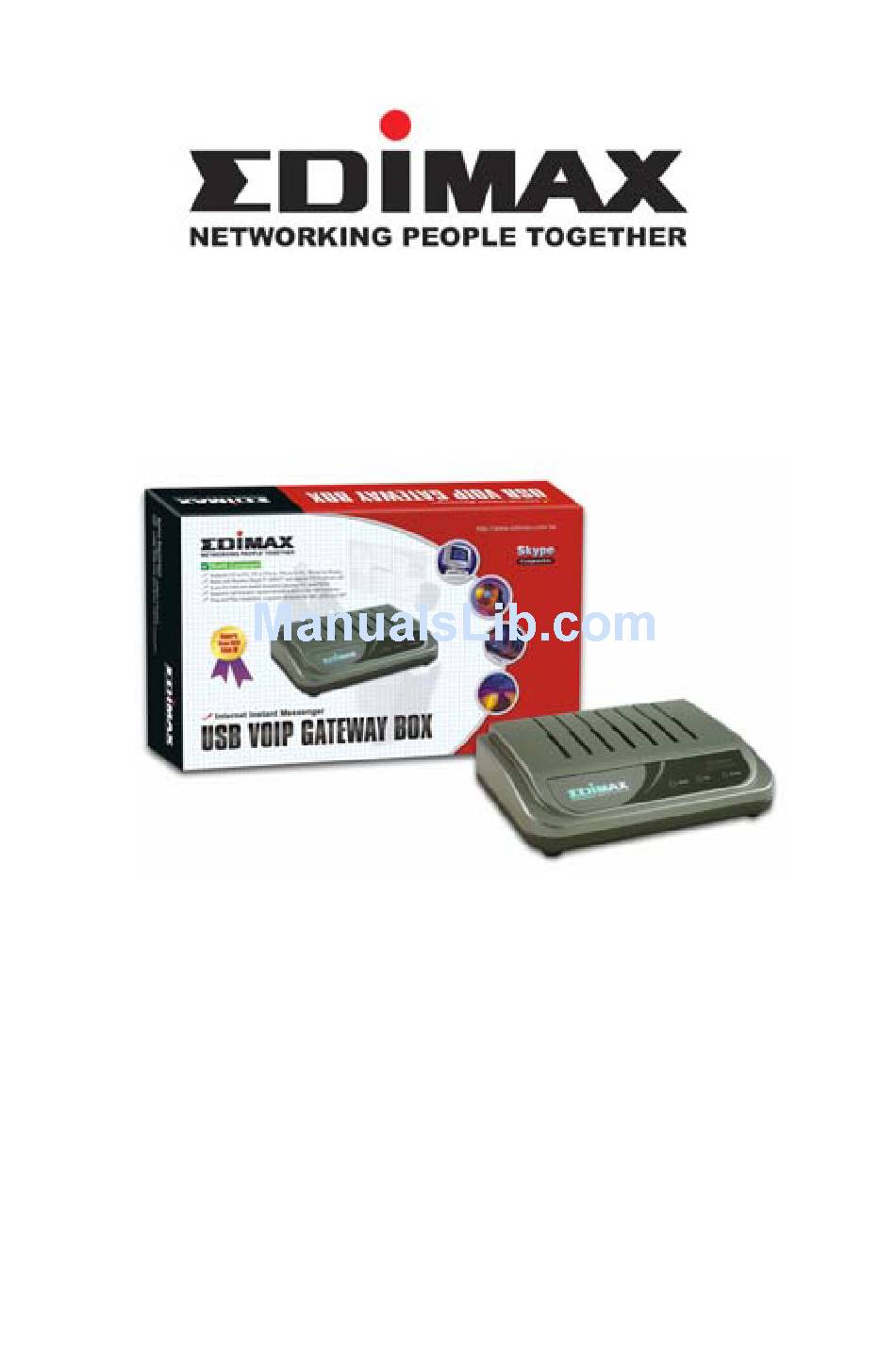

- Page 1 USB VoIP Gateway Box Version 1.0 July, 2006...
- Page 2 Č ý : Č ý Anglického průvodce rychlou instalací naleznete na přiloženém CD s ovladači Finden Sie bitte das englische QIG beiliegend in der Treiber CD (German) ñ ñ Incluido en el CD el QIG en Ingles. ç ç Veuillez trouver l’anglais QIG ci-joint dans le CD driver Incluso nel CD il QIG in Inglese.
-
Page 3: System Architecture
English System Architecture ADSL Modem Dial-Up ADSL (Static IP or PPPoE) Behind NAT / Router Wireless or other network 1. Install Software 1.1 Install Skype Software Step1. Go to www.skype.com to download Skype install file. Step2. Install Skype and open a new Skype account step by step. - Page 5 1.2. Install Skype Gateway Box Step 1. Connect RJ-11 phone line and USB cable as diagram. Step 2. Connect the USB cable to the PC. Windows will start installing the Skype Gateway Box driver automatically. If the driver installation is ready, The LED will change from “Ready”...
- Page 6 1.3 Install Middleware Step 1. Insert the “Driver & Utility CD” in to your CD-ROM drive, the system will auto run the middleware installation program. Step 2. Click “Middleware” then select “Click To Setup”, and the PC will start installing step by step. The system will create an icon of Middleware.
- Page 7 3. Using Skype Gateway Box 3.1 Call Contact by Speed-Dial 1. Pick up Handset. (Hear Dial Tone Generated from PSTN) 2. Press the ＊ key to switch Skype mode. (Hear Dial Tone Generated from Middleware) 3. Dial speed-dial number. (Eg: 88) 4.
