Qty.
Part No.
1
25-9219
Left Side Header Primaries #1 & #2
1
25-9220
Right Side Header Primaries #3 & #4
2
25-9221
Slip On Merge Collector
1
25-9361
Right Header Primary #1
1
25-9362
Right Header Primaries #2, #3, & #4
2
37-6560
O2 Sensor Wire Extensions
2
52-9710
O2 Sensor Bungs
2
54-0426
Header Port Flange Gaskets
4
60-8541
5/16"-18 Hex Nuts (Grade C Lock)
Note: Your Edelbrock Victor Series Race Headers include evacuation tubes, O2 sensor bungs, and collector mounting tabs, to be
installed, if needed or required. This allows you to custom-tailor the header for a better fit and finish for your particular needs and
class requirements.
1. Evacuation tubes (if used) can be positioned in the collector where desired for best fit and routing of the hoses (route hoses
away from hot engine components). See diagram for recommended positioning of evacuation tube.
2. Collector mounting tabs should be installed after primary tube tuning has been completed (if applicable).
3. O2 sensor bungs (if used) can be positioned on the header collector where the sensor wires can be routed away from hot
engine components (O2 sensor wire extensions are provided). Drill 3/4" hole and weld bung to collector.
Special Components that may be needed, if applicable:
Note:
Oxygen Sensor Simulators may be purchased from the following: SLP PT #31036; Phone (732) 349-2109;
Mid America Designs, Inc. PT #609132, Phone (217) 347-5591: RPM Outlet, Phone (713) 858-8095.
©2003 Edelbrock Corporation
®
Description

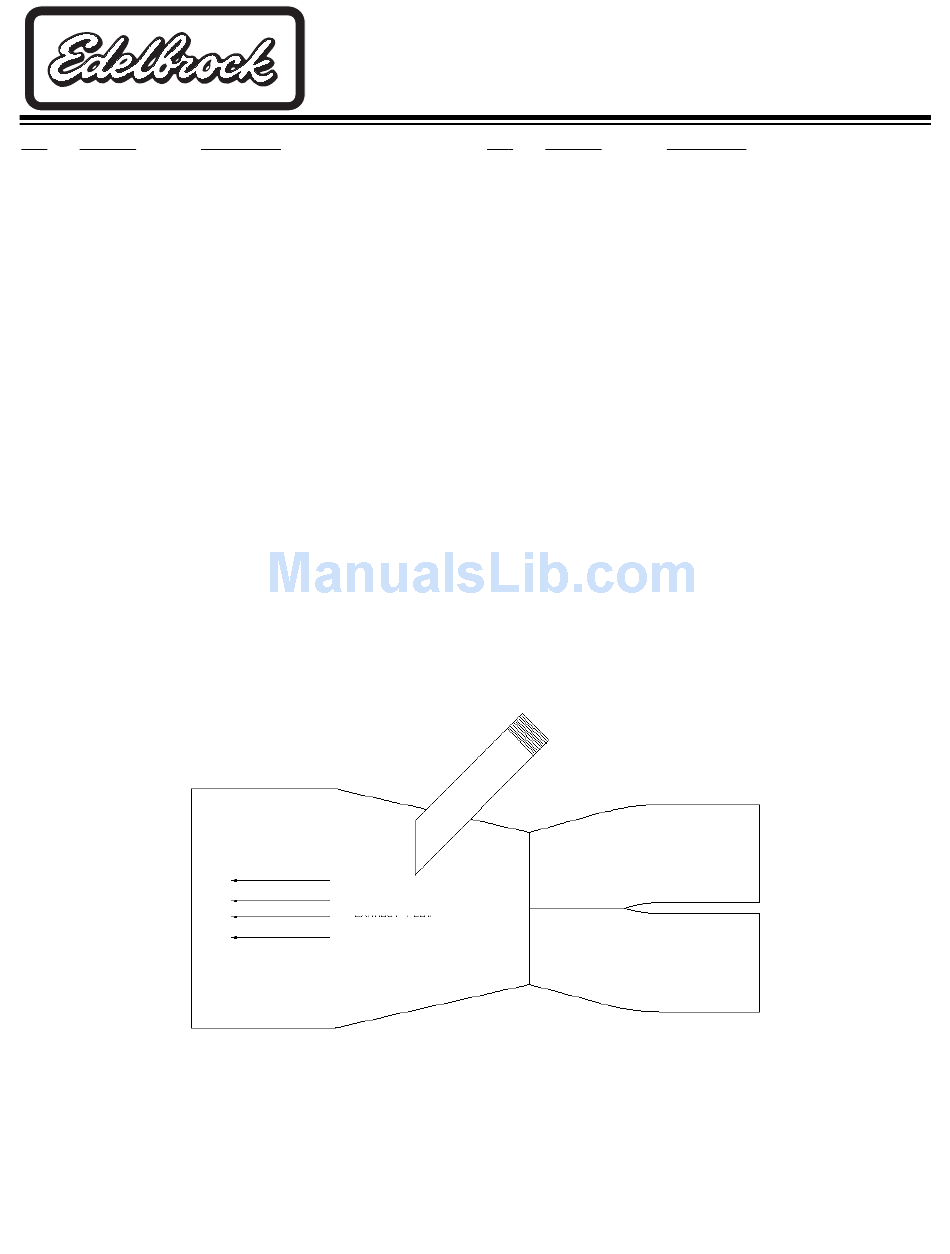

EXHAUST FLOW
As the exhaust flow passes by
the tube, it creates a low
pressure area on the backside,
which translate into vacuum.
Edelbrock Corporation, 2700 California St., Torrance, CA 90503
Tech Line: 1-800-416-8628; Office: 310-781-2222
E-Mail: Edelbrock@Edelbrock.com
EDELBROCK VICTOR SERIES DRAG RACE HEADERS
for 1996-2002 4.6L Ford Mustang
Qty.
Part No.
16
68-0350
4
68-6550
2
79-9749
8
79-9750
8
82-3600
20
82-4620
16
82-8721
Catalog #6560
KIT CONTENTS
Description
8mm x 1.25 x 30mm Hex Bolts (Header Flange)
5/16" - 18 x 1-1/2" Grade 8 Hex Bolt (Collector)
Evacuation Tubes
Collector Mounting Tabs
5/16" AN Washers (Collector)
5/16" Split Lock Washers (Header Flange)
5/16 Hardened Washers (Port Flange)
Rev. 12/03
