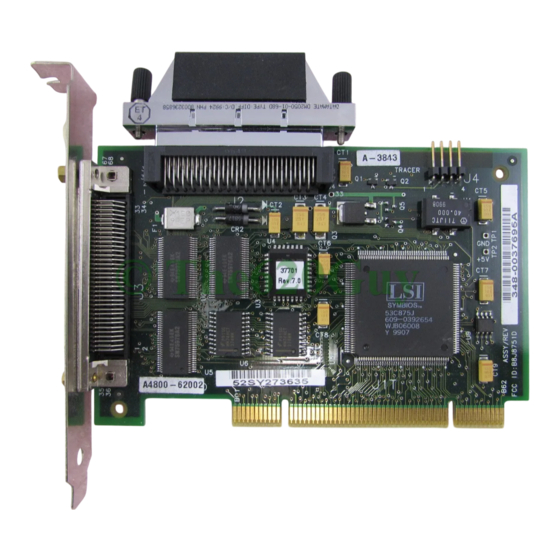

HP A4800A User Manual

Pci ultra scsi host bus adapter
Hide thumbs Also See for A4800A:

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for HP A4800A

Summary of Contents for HP A4800A

  • Page 3 K S +...
  • Page 4 Notice Warranty Safety Notices WARNING Caution FCC Notice Format Conventions Note this font...
  • Page 5 CONTENTS 1 Description and Specifications 2 Unpacking and Inspection 3 Installation...
  • Page 6 4 Maintenance 5 Regulatory Statements Appendix A...
  • Page 7 Appendix B Index...
  • Page 8 viii...
  • Page 9 FIGURES...
  • Page 11 TABLES...
  • Page 13 DESCRIPTION AND SPECIFICATIONS Description Specifications Cable Specifications...
  • Page 14 Description...

  • Page 16: Specifications

    Specifications Characteristic Value Form factor 127 mm x 82.55 mm (5.0 in x 3.25 in) Operating power 5V dc ±5% @ 1.5 A Operating temperature 5 to 55 degrees C (41 to 158 degrees F) Relative humidity 5% to 90% (noncondensing) Maximum dew point temperature 32 degrees C, 89.6 degrees F HP-UX...

  • Page 17: Cable Specifications

    Cable Specifications Description Part Number 10-inch SCSI shielded cable with back shell A4700-67086 68-pin HD SCSI Terminator A4700-67098 Product Description Number Option 5-meter 68-pin HD/68-pin HD Male inline terminator A3401A SCSI cable for V-Class 10-meter 68-pin HD/68-pin HD Male inline terminator A3401A SCSI cable for V-Class 2/5-meter 68-pin HD Male inline terminator SCSI...
  • Page 19 UNPACKING AND INSPECTION...
  • Page 20 Unpacking and Inspection Procedures...
  • Page 21 INSTALLATION Configuration of V-Class Preparation Preinstallation Requirements Overview of Installation on a V-Class System IInstalling the PCI Ultra SCSI HVD Controller on a V-Class System...
  • Page 22 Configuration of V-Class...
  • Page 23 IORR IORF IOLR IOLF...
  • Page 24 I/O cardcage EPIC/SAGA Slots IOLF IOLR IORR IORF...
  • Page 25 # /usr/sbin/ioscan -C disk H/W Path Class Description =========================================== 4/2/0.2.0 disk SEAGATE ST19171W SCSI id | PCI slot SAGA or EPIC number...
  • Page 26 Preparation AUTION...
  • Page 27 Preinstallation Requirements...
  • Page 28 Overview of Installation on a V-Class System Note...
  • Page 29 Installing the PCI Ultra SCSI HVD Controller on a V- Class System AUTION...
  • Page 30 ac input power indicator Main circuit breaker "Push to reset" breakers EXLM001 1/5/98...
  • Page 37 Note...
  • Page 39 Note...
  • Page 41 ext_bus 0/0/0 c720 CLAIMED INTERFACE Ultra Wide SCSI...
  • Page 43 MAINTENANCE General Troubleshooting Diagnostic Tests for V-Class Upgrading Controller Firmware for V-Class SCSI Bus Compatibility Contacting your HP Representative SCSI Sense Codes...
  • Page 44 General Troubleshooting...
  • Page 45 Diagnostic Tests for V-Class Note...
  • Page 47 Parameter to Enter EPIC PCI Slots Description IOLF_B 0 (rear) 0, 1, 2 Left front EIOB, rear EPIC IOLF_A 4 (front) 0, 1, 2 Left front EIOB, front EPIC IOLR_B 1 (rear) 0, 1, 2 Left front EIOB, rear EPIC IOLR_A 5 (front) 0, 1, 2...
  • Page 48 Execution Starting ..Execution Completed...
  • Page 49 Upgrading Controller Firmware for V-Class AUTION...
  • Page 50 SCSI Bus Compatibility Command Description ------- ----------- AUto [BOot|SEArch ON|OFF] Display or set the specified flag BOot [PRI|ALT|<path> <args>] Boot from a specified path BootTimer [time] Display or set boot delay time CLEARPIM Clear PIM storage CPUconfig [<proc>] [ON|OFF] Configure/Deconfigure Processor DEfault Set the sytem to defined values DIsplay...
  • Page 51 EXV VORW UDWH EXV VORW LG PCI device /5.2 = no limit...
  • Page 52 PCI device /5.2 = fast scsi PCI device /5.2 = 7 PCI device /5.2 = 6...
  • Page 53 Contacting Your HP Representative...
  • Page 55 SCSI Sense Codes [+6708 72410001 002a9858 0:7] scsi disk: CHECK CONDITION on disk 0:6:5:0 Read of logical block 509856, count 128 disk sd45a, block 254920, 65536 bytes Valid = 1, Error code = 0x70 Segment number = 0x00, Filemark = 0, EOM = 0, ILI = 0 Sense key = 0x1, "RECOVERED ERROR"...
  • Page 56 SCSI Status Code Name 0x00 good 0x02 check condition 0x04 condition met 0x08 busy 0x10 intermediate 0x14 intermediate - condition met 0x18 reservation conflict 0x22 command terminated 0x28 queue full Sense Key Name no sense recovered error not ready medium error hardware error illegal request unit attention...
  • Page 57 Sense Key Name equal volume overflow miscompare reserved Additional Qualifier Sense Code Code Description 0x00 0x00 no additional sense information 0x00 0x01 filemark detected 0x00 0x02 end-of-partition/medium detected 0x00 0x03 setmark detected 0x00 0x04 beginning of partition/medium detected 0x00 0x05 end-of-data detected 0x00 0x06...
  • Page 58 Additional Qualifier Sense Code Code Description 0x04 0x02 logical unit not ready, initializing command required 0x04 0x03 logical unit not ready, manual intervention required 0x04 0x04 logical unit not ready, format in progress 0x05 0x00 logical unit does not respond to selection 0x06 0x00 reference position found...
  • Page 59 Additional Qualifier Sense Code Code Description 0x11 0x0a miscorrected error 0x11 0x0b unrecovered read error - recommend reassignment 0x11 0x0c unrecovered read error - recommend rewrite the data 0x12 0x00 address mark not found for id field 0x13 0x00 address mark not found for data field 0x14 0x00 recorded entity not found...
  • Page 60 Additional Qualifier Sense Code Code Description 0x18 0x05 recovered data - recommend reassignment 0x18 0x06 recovered data - recommend rewrite 0x19 0x00 defect list error 0x19 0x01 defect list not available 0x19 0x02 defect list error in primary list 0x19 0x03 defect list error in grown list 0x1a...
  • Page 61 Additional Qualifier Sense Code Code Description 0x2a 0x01 mode parameters changed 0x2a 0x02 log parameters changed 0x2b 0x00 copy cannot execute since host cannot disconnect 0x2c 0x00 command sequence error 0x2c 0x01 too many windows specified 0x2f 0x00 commands cleared by another initiator 0x30 0x00 incompatible medium installed...
  • Page 62 Additional Qualifier Sense Code Code Description 0x3b 0x0a read past beginning of medium 0x3b 0x0b position past end of medium 0x3b 0x0c position past beginning of medium 0x3b 0x0d medium destination element full 0x3b 0x0e medium source element empty 0x3d 0x00 invalid bits in identify message 0x3e...
  • Page 63 Additional Qualifier Sense Code Code Description 0x50 0x02 position error related to timing 0x51 0x00 erase failure 0x52 0x00 cartridge fault 0x53 0x00 media load or eject failed 0x53 0x01 unload tape failure 0x53 0x02 medium removal prevented 0x54 0x00 scsi to host system interface failure 0x55 0x00...
  • Page 64 Additional Qualifier Sense Code Code Description 0x61 0x01 unable to acquire video 0x61 0x02 out of focus 0x62 0x00 scan head positioning error 0x63 0x00 end of user area encountered on this track 0x64 0x00 illegal mode for this track 0x65 0x00 reserved...
  • Page 65 REGULATORY STATEMENTS...
  • Page 66 Regulatory Statement...
  • Page 69 89/336/EEC and carries the CE marking accordingly. 1) The Product was tested in a typical configuration with HP 9000 computer system. Roseville, 10/6/98 European Contact: Your local Hewlett-Packard Sales and Service Office or Hewlett-Packard GmbH, Department HQ-TRE, Herrenberger Straße 130, D-71034 Böblingen (FAX: + 49-7031-14-3143)
  • Page 71 APPENDIX A PCI Overview PCI Terminology...
  • Page 73 PCI Physical Characteristics...
  • Page 75 APPENDIX B SCSI Overview SCSI Terminology...
  • Page 77 SCSI Bus Phases...
  • Page 78 Ultra SCSI...
  • Page 79 INDEX...
  • Page 81 Agree Disagree The manual is well organized. The information is technically accurate. Information is easy to find. Step-by-step procedures are easy to perform. There are enough examples and pictures. The examples and pictures are useful. Comments _________________________________________________________________________________ Name: Phone: Title: FAX: Company: E-mail:...
  • Page 82 Fold Here Tape Please Do Not Staple Tape...
  • Page 84 $,...
