Edelbrock 5275 Installation Instructions

Please study these instructions carefully before installing your new trailing arms relocation brackets. If you have any
questions, please contact our Technical Hotline at: 1-800-416-8628, 7:00 am to 5:00 pm, Monday through Friday,
Pacific Standard Time or e-mail us at edelbrock@edelbrock.com. Please fill out and mail your warranty card.
Application: Designed for 1982-2002 Camaro/Firebird vehicles. These trailing arm relocation brackets are designed to
correct the rear suspension trailing arm angle on vehicles that have been lowered.
Suggested Tools for Installation:
K Jack and proper load rated jackstands
K Tire chocks
K Lug wrench
K 18mm socket and combination wrench
K Hand grinder
1. Place vehicle on level surface and place tire
chocks in front of and behind front tires.
2. Support rear of the vehicle on the jackstands
and remove the rear wheels (See Figure. 1).
3. Place a floorjack under the differential and lift up
slightly to remove tension from the trailing arm
bolts. Make sure not to lift the vehicle off the
jackstands (See Figure 1).
NOTE: Keep floorjack under vehicle during
the complete removal and installation
procedure.
CAUTION: Do not remove both trailing arms
at the same time or the axle will rotate and
the trailing arm installation will be much
more difficult.
4. Remove rear bolt of trailing arm and rotate arm
out of the way (See Figure 2).
5. Using the relocation bracket as a reference,
clean the surface of the stock lower trailing arm
mount bracket for welding.
©2005 Edelbrock Corporation
Brochure No. 63-0440
EDELBROCK LOWER TRAILING ARMS RELOCATION BRACKETS
REMOVAL OF STOCK TRAILING ARMS
Page
1 of 2
for 1982-2002 Camaro / Firebird
INSTALLATION INSTRUCTIONS
K Blue Locktite
K Torque wrench
K Grease gun
K Mig welder
Catalog #5275

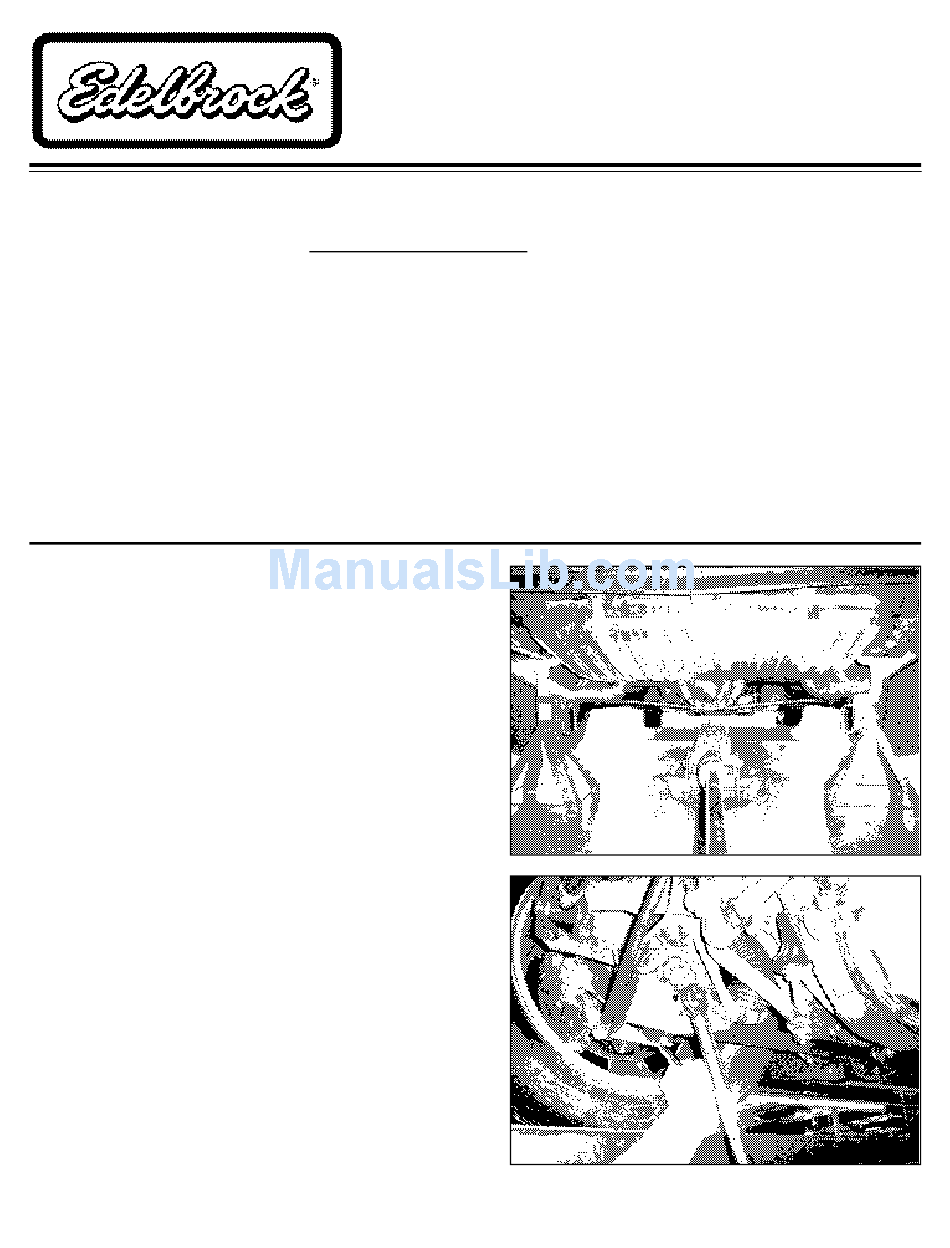

Fig. 1
Fig. 2
Catalog #5275
Rev. 8/05 - DA/mc
