Edelbrock 5213 Installation Instructions
Edelbrock 5213 Installation Instructions

Edelbrock 5213 Installation Instructions

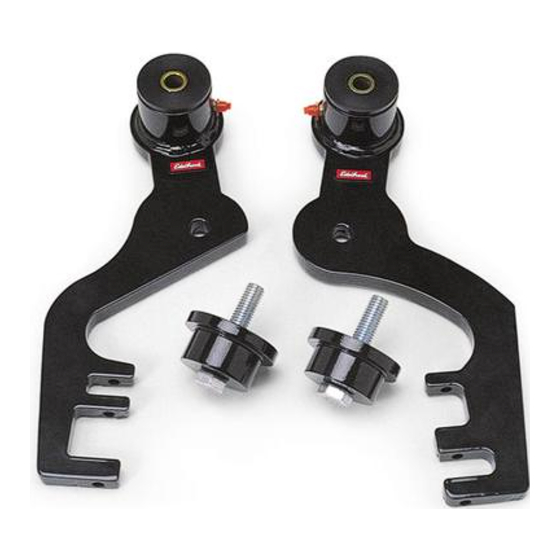

Anti-hop bars for 1964-1972 gm a-body & 1978-1987 gm a/g body

Advertisement

Quick Links

Please study these instructions carefully before installing your new anti-hop bars. If you have any questions, contact our
Technical Hotline at: 1-800-416-8628, 7 am to 5 pm, Monday-Friday, Pacific Standard Time or e-mail us at
Edelbrock@Edelbrock.com.
Tools and Supplies Required:
❑ Jackstands
❑ Tire Chocks
❑ 1/4" Drill Bit
❑ Floor Jack
❑ 7/16" & 3/4" Sockets and Wrenches
Proper installation is the responsibility of the installer. Improper installation will void warranty and may
Caution: Installation requires being under raised vehicle. Support vehicle on level and stable ground using proper load
rated stands.
Note: Differential fill plug will not be accessible after installation. Check/change differential fluid before installation. The
right anti-hop will have to be removed to check fluid. After install, a fill plug style rear cover could be added.
1. Place vehicle on level stable ground (i.e. concrete or driveway). Chock front wheels at front and rear of tire (Fig.1).
2. Raise rear of vehicle and support so to keep rear suspension loaded with vehicle weight. Removing rear tires is not
required but can be helpful.
3. During installation it is critical to maintain pinion angle. To do this, use floor jack to support pinion area of rear end
housing. NOTE: An angle finder can be used to measure pinion angle.
4. Remove left upper trailing arm bolt from rear end bushing and loosen front trailing arm bolt. Rotate trailing arm up
and out of way. On 1978-1987 A/G cars, remove brake line distribution block bolt.
5. Remove pressed-in O.E.M. rubber bushing with caution so as to not damage rear end housing.
6. Install left anti-hop bar with grease fitting facing rear of vehicle. (Left bar in #5213 will be stamped with #25-4027
and #5214 will be stamped with #25-4038). Minor moving of brake line may be required on some years and models.
On #5214 use 5/16" bolt, nut and bracket to relocate line (Fig. 2).
Fig. 1
©
2008 Edelbrock Corporation
Rev. 3/08 - AJ/mc
❑ Torque Wrench (70 lb. min.)
❑ Drill Motor
❑ Grease Gun
❑ Thread Lock Compound
IMPORTANT NOTE:
result in poor performance and engine or vehicle damage.

INSTALLATION INSTRUCTIONS

for 1964-1972 GM A-Body (Catalog #5213)
& 1978-1987 GM A/G Body (Catalog #5214)
INSTALLATION INSTRUCTIONS
Fig. 2
Page 1 of 2
Edelbrock Anti-Hop Bars
Catalog #5213, #5214
Brochure #63-5213
