Optoma HD66 Datasheet

HD66
− Home Theater Projector
Home Theater Projector Delivers the Future

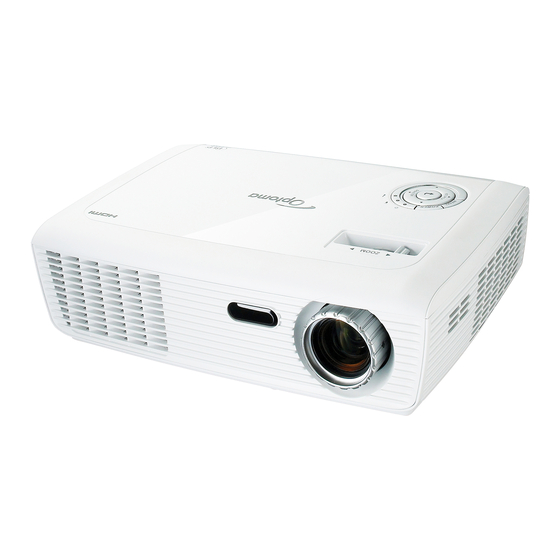

Breathtaking and bold, the Optoma HD66 home theater projector provides
stunningly beautiful widescreen viewing. With 2500 ANSI lumens and
4000:1 contrast, the HD66 delivers subtle details and striking clarity for
pure viewing delight.
* 3D content can be viewed with active LCD shutter glasses when the projector
is connected to a computer with a compatible 3D graphics card. Please visit
www.optoma.com for more information.
Features
®
 DLP by Texas Instruments with BrilliantColor™ Technology
 Bright images and high contrast ratio – 2500 ANSI lumens and
4000:1 contrast ratio (full on/full off)
 Rapid power-on and shutdown – saving you time and money
 Longer lamp life – up to 4000 hrs

Specifications

Display Type
Single 0.65" DMD DLP Technology by
Texas Instruments
Resolution
HD (1280x720)
Maximum Resolution
UXGA (1600 x 1200)
Brightness (Typical)
2500 ANSI Lumens
Contrast Ratio
4000:1 (Full On/Full Off)
Lamp Life and Type*
4000/3000 Hours (STD/Bright)
185W P-VIP
Throw Ratio
1.55 to 1.7 (Distance/Width)
Projection Distance
3.28' to 32.8' (1.0 to 10m)
Image Size (Diagonal)
27.2" to 301" (0.69 to 7.65m)
Offset
112%
Displayable Colors
1.07 Billion
Uniformity
85%
Audio
2-Watt Speaker
Remote Control
IR Remote
* Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness can decrease over time.
© Copyright 2010 Optoma Technology, Inc. All specifications subject to change at any time.
Computer Compatibility
UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA Resized, VESA, PC and
Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)
3D Compatibility
120Hz Frame Sequential 3D for
Resolutions Up to 720p, 60Hz Field
Sequential 3D for Resolutions Up to 480i
Projection Lens
F=2.5-2.67, f=21.8-24mm, 1.1x
Manual Zoom and Focus
User Controls
Complete On-Screen Menu Adjustments
in 23 Languages
I/O Connectors
HDMI, VGA-In, S-Video, Composite
Video, Stereo Audio-In and RS-232
Security
Kensington® Lock Port, Security Bar and
Keypad Lock
Projection Method
Front, Rear, Ceiling Mount, Table Top
Weight
5.1 lbs (2.31kg)
Dimensions (W x H x D)
11.28" x 3.98" x 7.6"
(287 x 101 x 193 mm)
Noise Level (STD/BRIGHT)
28dB/30dB
Keystone Correction
±40° Vertical
Datasheet – HD66
NO FILTER
REQUIRED
Horizontal Scan Rate
15.3 - 91.1 KHz
Vertical Refresh Rate
24 - 120 Hz
Operating Temperature
41 to 104°F (5 to 40°C), 85% Max
Humidity
Power Supply
AC Input 100-240V, 50-60Hz,
Auto-Switching
Power Consumption
255 Watts (Bright), 207 Watts (STD),
<1 Watt (Standby)
Standard Accessories
AC Power Cord, Composite Cable,
VGA to Component Cable, Remote
Control, Batteries for Remote, Lens
Cap, Multilingual CD-ROM User's
Manual, Quick Start Card and
Warranty Card
Optional Accessories
HDMI cable, Ceiling Mount, S-Video
Cable, Composite Video Cable,
RS-232 Cable and Panoview™
Series Screens
Warranty
1 Year Limited Parts and Labor,
90 Days on Lamp
UPC
796435 81 114 3
Accessory Part Numbers
Lamp: BL-FU185A
Remote: BR-3048N
Mount: BM-5001U
Case: BK-4006
