If you have any questions or problems, please call our Technical Hotline at: 1-800-416-8628, 7:00 am – 5:00 pm,
§
Pacific Standard Time, Monday through Friday or e-mail us at edelbrock@edelbrock.com.
DESCRIPTION:
Edelbrock Air Cleaner Assemblies
§
filters, some modifications maybe required. The part numbers listed above with asterisks (*) come with a crankcase
ventilation adapter.
Note: Some Air cleaner kits include the crankcase ventilation adapter, that adapts to the lower side of the air cleaner per
the recess seen in figure #1 (Crankcase ventilation adapter #1205). Other kits may not be applicable.
1. If you wish to use the crankcase ventilation hose fitting, drill two ¼" bolt holes (A) in the recessed area at the rear
of the air cleaner base, then drill several ¼" holes (B) in the larger recess to allow the fitting to breath
(See figure #1). Bolt the fitting to the base with the ¼" nuts, bolts, and washers. Be sure to de-burr drilled holes.
2. Install air horn gasket and carburetor stud on the carburetor and place air cleaner base over carburetor.
3. Install filter and air cleaner lid with wing nut. Check for clearance between the carburetor stud and hood before
closing hood. Trim carburetor stud as needed.
PLEASE complete and mail your warranty card.
"Part #_________" space. THANK YOU.
Edelbrock Corporation 2700 California Street Torrance, California 90503
2001 Edelbrock Corporation
Brochure No. 63-0019

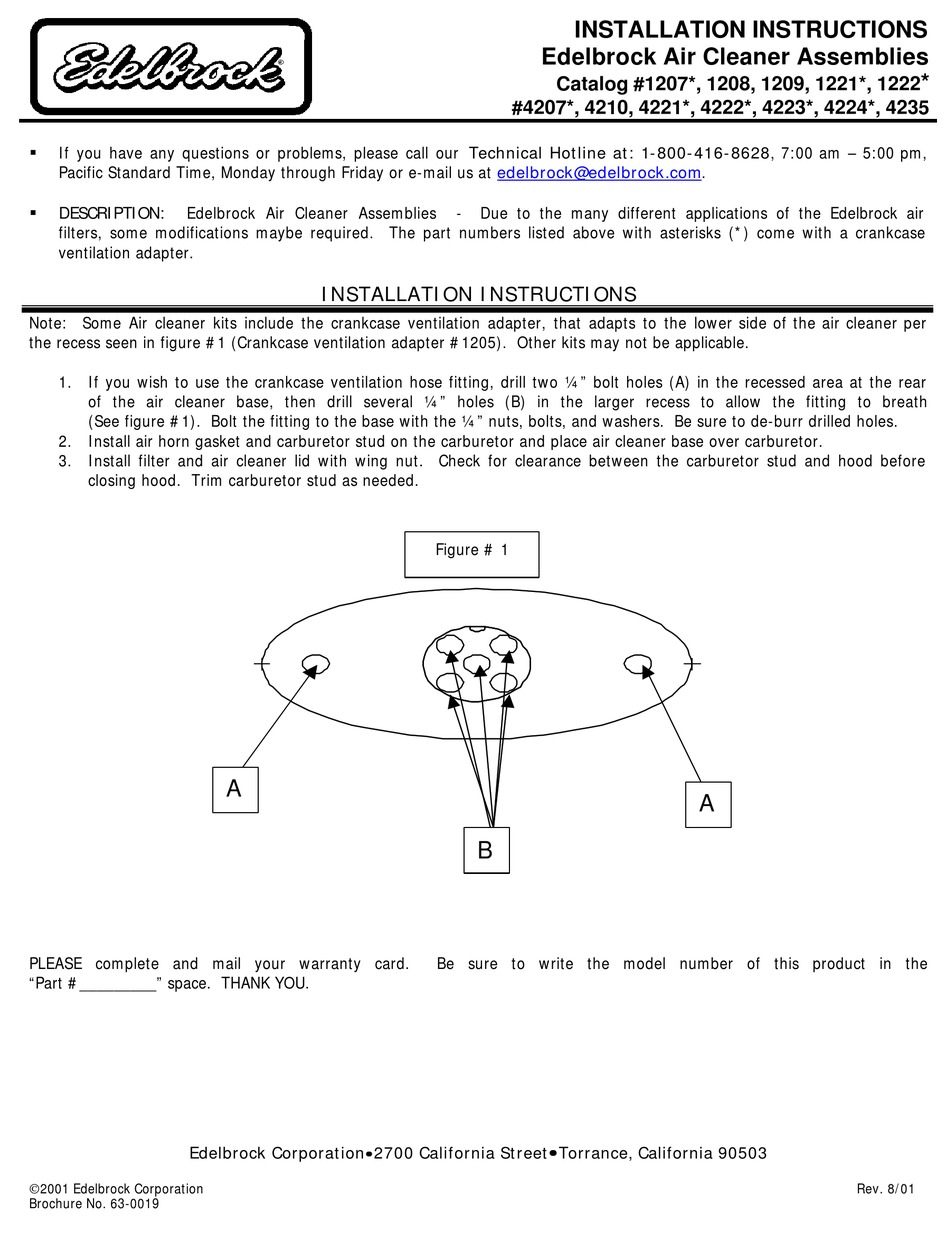

INSTALLATION INSTRUCTIONS
A
INSTALLATION INSTRUCTIONS
Edelbrock Air Cleaner Assemblies
Catalog #1207*, 1208, 1209, 1221*, 1222
#4207*, 4210, 4221*, 4222*, 4223*, 4224*, 4235
-
Due to the many different applications of the Edelbrock air
Figure # 1
B
Be sure to write the model number of this product in the
A
Rev. 8/01
*
