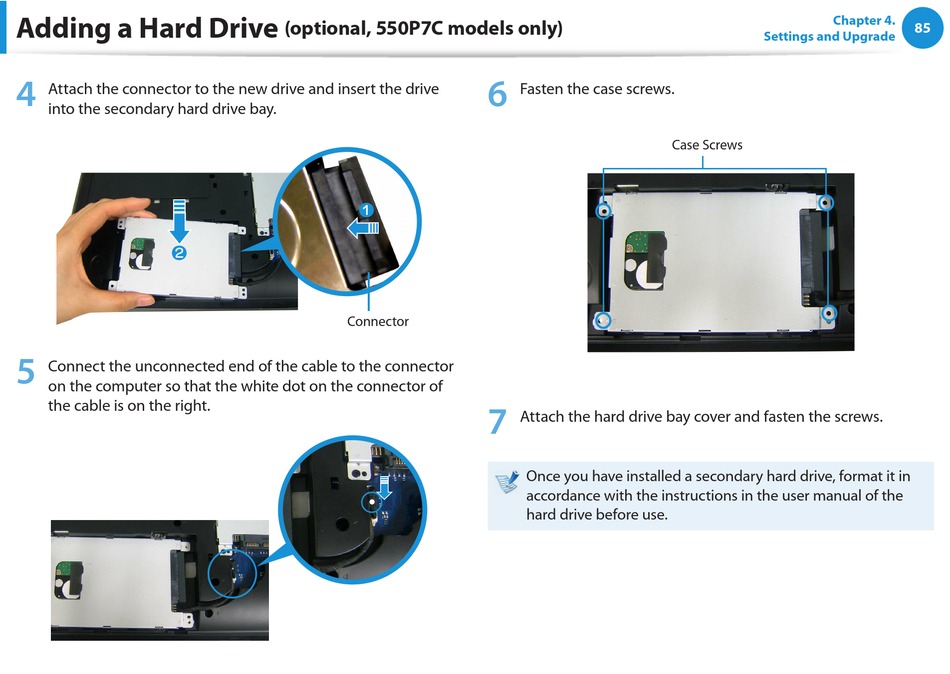

Adding a Hard Drive
4
Attach the connector to the new drive and insert the drive
into the secondary hard drive bay.
x
5
Connect the unconnected end of the cable to the connector
on the computer so that the white dot on the connector of
the cable is on the right.
(optional, 550P7C models only)
z
Connector
6
Fasten the case screws.
7
Attach the hard drive bay cover and fasten the screws.
Once you have installed a secondary hard drive, format it in
accordance with the instructions in the user manual of the
hard drive before use.
Chapter 4.
Settings and Upgrade
Case Screws
85
