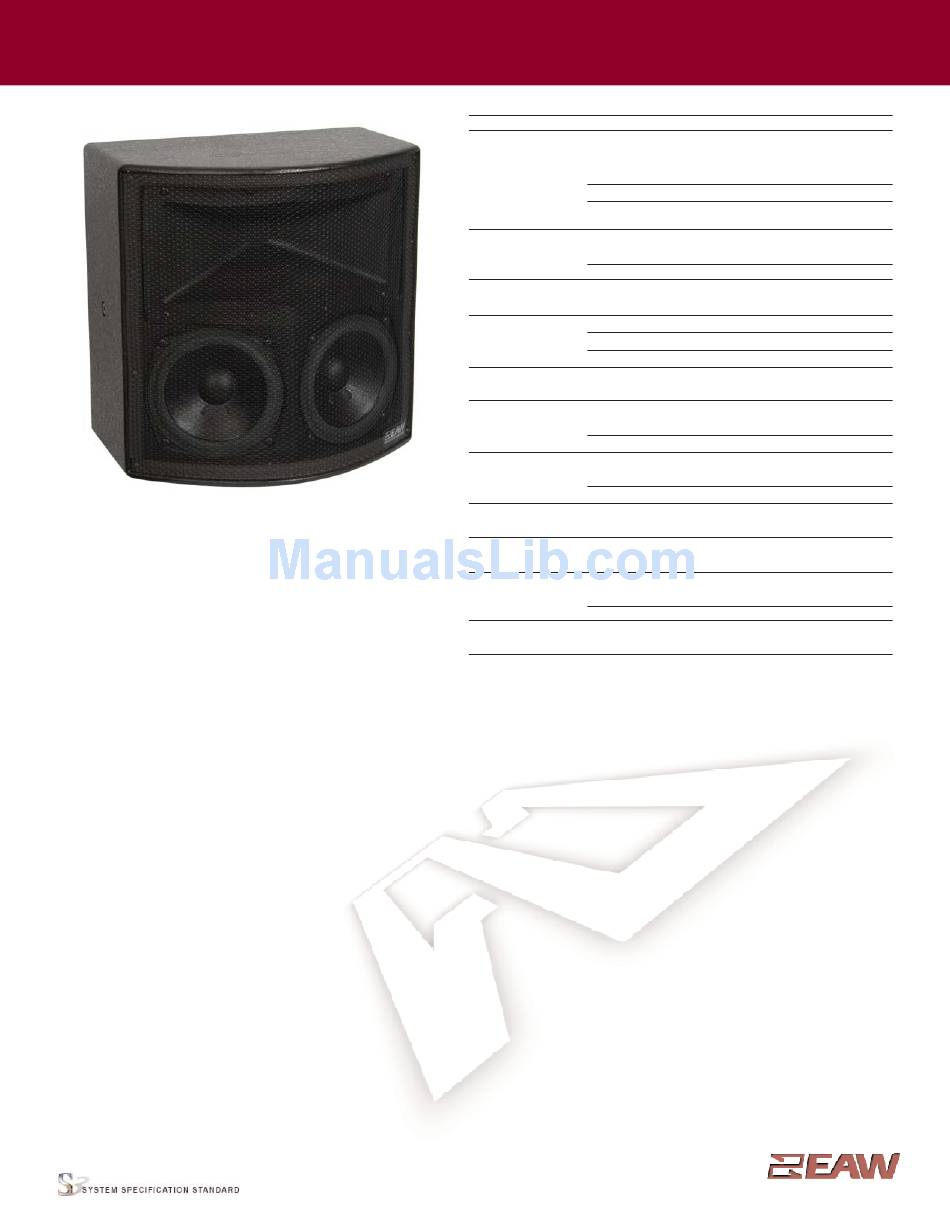

EAW Subwoofer UB22z Specification Sheet

U B 2 2 z S p e c i f i c a t i o n s
DESCRIPTION
• Ultra-compact 2-way system
• Wide projection pattern
• LF on angled baffles to maintain a wide upper/midrange beamwidth
• High output, high definition sound
DESCRIPTION
The UB22z is engineered for extra-wide-angled coverage
(horizontal) from a wall mounted position. This ultra-compact
loudspeaker provides surprisingly high output and exceptional
fidelity for near field applications. It is highly effective as a fill/delay
element in larger overall systems or for foreground/background
music reproduction as a stand-alone loudspeaker or in distributed
systems.
Because they are compact and lightweight, UB22zs install quickly
and easily in difficult spaces. As components of larger overall
systems, the UB22z series can be used to provide underbalcony,
overbalcony, and side box area coverage. Applications as fill/delay
elements include large and small theatres and houses of worship. As
a main system, they can be built into high definition, distributed
systems for use in industrial or retail environments and as
standalone or distributed loudspeakers for boardrooms, restaurants,
offices, and transportation centers.
Foam-backed grilles hide the drivers from view for pleasing
aesthetics. Side mounting points allow enclosures to be mounted in
using accessory brackets. Additional mounting points accept an
OmniMount® 30.0 Series or similar bracket. Standard colors are
black and white. Other colors can be specified as a special order
items.
Six year warranty.
1 To achieve specified performance, the listed external signal processing with EAW-provided settings is required.
2 For recommendations to select power amplifier size refer to : "HOW MUCH AMPLIFIER POWER DO I NEED?" on the EAW web site.
EAW products are continually improved. All specifications are therefore subject to change without notice.
Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / 508 234 6158 fax 508 234 8251 www.eaw.com
2-WAY COMPACT FULL-RANGE
See NOTES TABULAR DATA for details
CONFIGURATION
Subsystem
Transducer
LF 2x 5.25 in cone
HF 1x 1 in exit, 1 in voice
coil compression driver
Operating Mode
Amplifier Channels
Single-amp LF/ HF
1
PERFORMANCE
Operating Range 85 Hz to 20 kHz
Nominal Beamwidth (rotatable)
Horz 120°
Vert 50°
Axial Sensitivity (whole space SPL)
LF/HF 91 dB
Input Impedance (ohms)
Nominal
LF/HF 8
Input Taps (MT versions)
70 V
LF/HF 64 W / 32 W / 16 W
High Pass Filter
High Pass =>55 Hz, 12 dB/octave Butterworth
2
Accelerated Life Test
LF/HF 40 V
Calculated Axial Output Limit (whole space SPL)
Average
LF/HF 114 dB
ORDERING DATA
Description
UB22z 2-Way Full-Range Loudspeaker Black
UB22z 2-Way Full-Range Loudspeaker White
UB22zMT w/64 W Xfmr Black
UB22zPL-WP Weather-protected
UB22zMTPL-WP Weather-protected w/64 W Xfmr 0013735
Optional Accessories
Aluminum U-bracket Kit Black
Aluminum U-bracket Kit White
Loading
Sealed
CD horn
External Signal Processing
HPF
85 Hz to 20 kHz
Minimum
7.5 @ 280 Hz
100 V
64 W / 32 W
200 W @ 8 ohm
Peak
120 dB
Part Number
0013733
0017844
0013734
0013736
0015342
0015830
Part Number: RD0392 (A) UB22z July 2006
