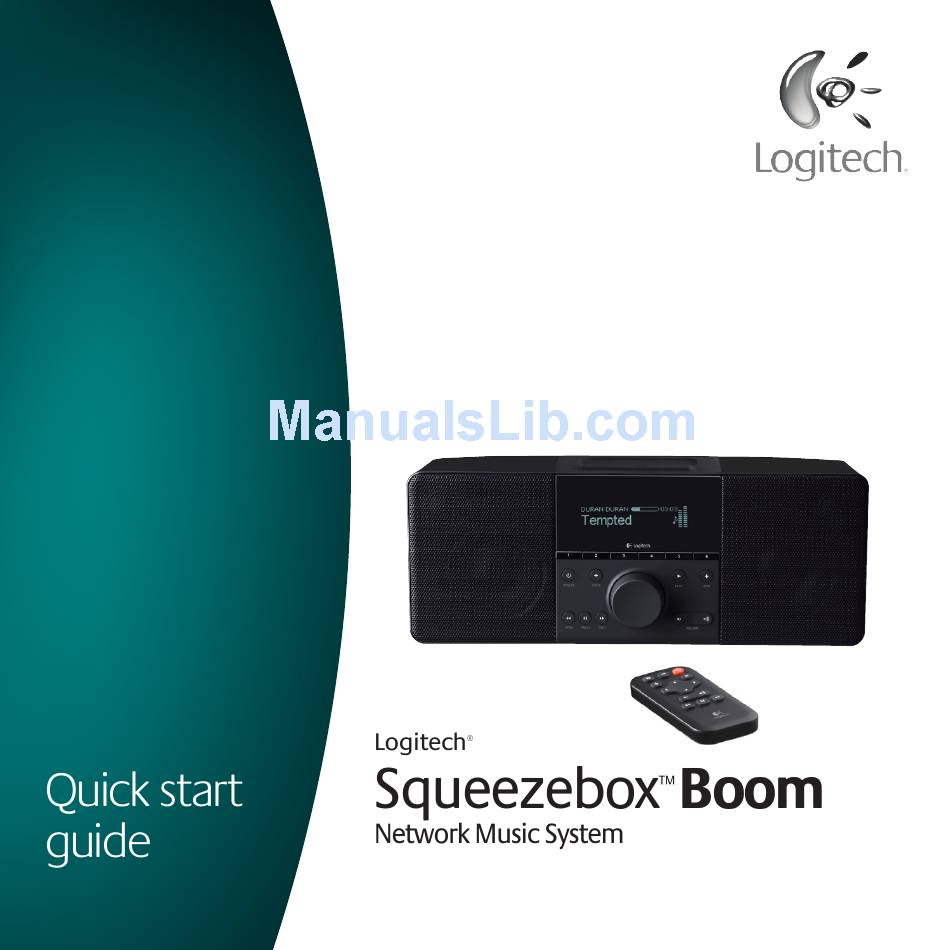

Logitech Squeezebox Boom Thank you! Thank you for purchasing a Logitech® Squeezebox™ Boom, part of our family of Squeezebox network music players and network music systems. We hope you have as much fun using it as we did creating it for you. Squeezebox Boom is an all-in-one network music player that delivers clean, rich sound anywhere in your home. This guide covers the basics, but Squeezebox Boom has a lot more interesting and useful features you’ll enjoy discovering. A complete user guide is available at slimdevices.com/documentation, and it includes tips, tricks, shortcuts, and extensive troubleshooting advice. Getting help We’ve designed Squeezebox Boom to be easy to set up. If you can connect a computer to your home network, you should have little trouble setting up Squeezebox Boom. However, if you run into a problem during installation, you have a variety of options for obtaining expert assistance: • B asic troubleshooting is included in this guide. More extensive information can be found in the Squeezebox Boom User Guide, available for downloading at slimdevices.com/documentation. • A n extensive list of frequently asked questions can be found at www.logitech.com/support. Click the Troubleshooting button, select wireless music systems, and follow the on-screen instructions. 2 ...
Quick start guide • T elephone support is available Monday through Friday, from 9:00 AM to 7:00 PM, Pacific time, at the following numbers: +1 (877) 887-8889 (Toll-free in North America) +1 (646) 454-3237 (For all other countries) • Email our support team. Visit www.logitech.com/support and select Email Support to fill out our online email form. You will receive a reply within one business day. Package contents • S queezebox Boom network music player • P ower supply with plug adapter • I nfrared remote with battery • ...
Logitech Squeezebox Boom Getting to know Squeezebox Boom Using the remote turns the Squeezebox Boom on or POWER off. returns the display to the Home HOME screen. Pressing again from the Home HOME screen displays Now Playing and allow you to LEFT, RIGHT, UP, DOWN navigate through track lists, music services, configuration menus, and more. and scroll through the menu. DOWN RIGHT selects the item, and returns to the LEFT previous menu. Press to begin listening to the selected PLAY track, artist, album, genre, or playlist. This ...
Page 5
Quick start guide Press to add the selected track, artist, album, genre or playlist to the end of the current playlist. , , and control the playback of your music. Press REWIND PAUSE FORWARD Forward to skip to the next song, to skip back. Press to pause or resume REWIND PAUSE the music. Press and hold or to scan through the song that’s REWIND FORWARD currently playing. and VOLUME UP VOLUME DOWN has two purposes. During normal use, it activates the sleep timer to turn the SLEEP power off after a period of time you specify between 15 and 90 minutes. SLEEP also acts as a snooze button, resetting the alarm for nine minutes after it has been activated. ...
Logitech Squeezebox Boom Using the front panel turns Boom on or off. POWER The wheel allows you to scroll quickly through menus, track lists, music services, and more. Turn the wheel to scroll, and then press the wheel to select an option. When the music is playing, the wheel also controls the volume. Press to begin listening to the selected track, artist, album, genre, or playlist. PLAY This action replaces your current playlist. If you want to add to the end of your current playlist, press the button. Press to return to the previous menu. BACK 6 ...
Page 7
Quick start guide , and control the playback of your music. REWIND PAUSE FORWARD and VOLUME VOLUME DOWN allow you quick access to your favorite tracks, Internet radio PRESET BUTTONS stations, playlists, or albums. Tap one of the preset buttons to select a favorite; press and hold to assign the button to the currently selected item. has two purposes. During normal use, press and hold to activate the SLEEP SLEEP sleep timer to turn the power off after a period of time you specify. When the alarm is sounding, the works as a snooze button. SLEEP ...
Page 8
Logitech Squeezebox Boom Using the back connectors A. Line in. Ideal for connecting an MP3 player, portable CD player, or other audio device with a 3.5mm line level output and enjoying Squeezebox Boom’s advanced driver design and acoustics. Headphone or subwoofer out. Connect headphones for private listening, or a powered subwoofer to add bass reinforcement. C. Ethernet. If you prefer to use an ethernet connection, you can connect Squeezebox Boom to your network using your own ethernet cable. Power. Be sure to use only the power supply provided with Squeezebox Boom. 8 ...
Page 9
Quick start guide Make a note of your network settings If you can connect a computer to your wireless network, you should have little trouble setting up your Squeezebox Boom. Gathering information about your network now will make it easier to configure your Squeezebox Boom. Network name (SSID): Security Key: If your network is secured, you will need to enter the security key during setup. Squeezebox Boom detects the types of security keys used on 802.11 wireless networks: WEP (64- and 128-bit), WPA, and WPA2. If you are using WEP security, you’ll need to specify 64- or 128-bit; if you’re unsure of the type of encryption, the following information may help: • WEP keys are entered in hexadecimal (using only numbers 0 to 9 and letters A to F). 64-bit WEP keys are exactly 10 digits in length; 128-bit keys are exactly 26 digits. • WPA and WPA2 keys are between 8 and 64 characters long and use any combination of numbers 0 through 9, both upper- and lower-case letters and some punctuation symbols. If you cannot determine how your network security is set up, contact your network provider or the party who installed your wireless router. ...
Page 10
Logitech Squeezebox Boom Create an online account and download software A word about music sources All players and controllers in the Squeezebox family must be connected to a music source in order to function. There are two possible music sources: SqueezeNetwork™ and SqueezeCenter™. SqueezeNetwork SqueezeNetwork is a free, Internet-based service provided by Logitech. It allows you to connect to a wide variety of services, including Internet radio guides and network music services, like Rhapsody® and Pandora® Radio. You can even store your own music collection in an online MP3tunes Music Locker so you can listen to your music when your computer is turned off. Please note that some music services may charge a separate fee for use; we provide free trials so you may try them first. SqueezeCenter SqueezeCenter is the application you run on a computer connected to your local network to deliver your personal music collection to the Squeezebox players in your home. If you are planning to upload your personal music to an MP3tunes Music Locker, or you are only going to listen to Internet radio or use a music service, you do not need SqueezeCenter. If you choose to use SqueezeCenter, it will automatically connect to your SqueezeNetwork account whenever you select an Internet radio station or music service. 10 ...
Quick start guide Set up a SqueezeNetwork account To get the most from your Squeezebox Boom, we recommend that you set up an account by visiting www.squeezenetwork.com and using the sign-up wizard. If you already have an account, instructions for adding your new Squeezebox Boom to your account can be found later in this guide. Download and install SqueezeCenter (optional) After you complete the SqueezeNetwork sign-up process, you are asked to download SqueezeCenter. If you will be running SqueezeCenter to access your personal music collection, select the version for your computer’s operating system (e.g., Windows®, Mac® OS, or Linux), and download the software. Save it to a location you can find easily, like your desktop. Once the download is complete, double-click on the file and follow the on-screen directions for installing SqueezeCenter. When you are finished, SqueezeCenter is ready to deliver music to your Squeezebox Boom. For more information on SqueezeCenter and SqueezeNetwork, please download the Squeezebox Boom User Guide at slimdevices.com/documentation. ...
Page 12
Logitech Squeezebox Boom Set up Squeezebox Boom and connect it to your network Slide open the battery compartment door on the remote to expose the battery, peel the protective tab from the battery, and then close the battery compartment door. Optional: If you’d prefer to connect to your network using a wired connection, connect your own ethernet cable now. Slide the plug adapter into the power supply and make sure it snaps into place. Plug the barrel connector into the AC input on Squeezebox Boom’s rear panel. Plug the power supply into an electrical outlet. Squeezebox Boom will automatically power on. Press on the remote, or press the scroll wheel on the front panel. (As covered RIGHT in Getting to know Squeezebox Boom, the and buttons on the DOWN remote perform the same function as turning the wheel left or right. Pressing RIGHT on the remote performs the same function as clicking the wheel. For the rest of this section, we’ll refer to using the various buttons on the remote, but you can use the scroll wheel as well.) You’ll see a menu giving you the choice of connecting via a wired or wireless network. Use the ...
Page 13
Quick start guide If you’ve connected to your wireless network, you will see a menu for selecting your region, and then choosing your wireless network by name. If you are using a security-enabled wireless network, you’ll need to enter the security key you wrote down previously. When Squeezebox Boom informs you that it has connected to your wireless network, press to continue. RIGHT If the display informs you that Squeezebox Boom was unable to connect to your network, press on the remote (or the button on the front panel) to return LEFT BACK to the network setup menus. Confirm that you’ve entered your security key correctly and that you’re connecting to the correct network. If it still can’t connect, please see Troubleshooting. The next menu will ask you if you’d like to obtain an IP address automatically via DHCP, or if you’d like to assign an IP address manually to your Squeezebox Boom. The majority of home networks use DHCP, so if you’re in doubt, select the automatic option. When it confirms that it has obtained an IP address, press RIGHT to advance to the next menu. Select your music source Once your Squeezebox Boom has successfully connected to your network, you will see a menu asking you to select your music source. One option is to connect to SqueezeNetwork. If you’ve opted to download and install SqueezeCenter (as covered in Create an online account and download software) and your computer is turned on, you’ll also see your computer’s name as an option. ...
Logitech Squeezebox Boom If you select SqueezeNetwork, a PIN will be displayed. It is your Squeezebox Boom’s unique identifying number, used to register the player using your SqueezeNetwork account. Visit www.squeezenetwork.com, log in, and select Players > Add Player. Enter your PIN and you’ll be ready to use your Squeezebox Boom to tap into the vast selection of content provided via SqueezeNetwork. Play some music You’re almost done! Playing an Internet radio station is a good way to check that everything is working correctly. Go to the Home screen by pressing on the remote. HOME Press on the remote (or spin the scroll wheel to the right) until Internet Radio DOWN appears, and then press (or press the wheel). RIGHT Staff Picks. Select Scroll to Best of Internet Radio and select it. Scroll to Slim Showcase: Miles Davis and press PLAY Adjust the volume. If you would like to add this station to your favorites, press and hold one of the preset buttons.
Quick start guide Set up an alarm (optional) If you’ll be using Squeezebox Boom near your bedside, you can use the alarm clock feature to wake you to your favorite online music source. In the event of a network failure, Squeezebox Boom will substitute an alarm tone, so you’ll still be on time even if you lose your Internet connection. From the Home screen, select Alarm. On the next menu you’ll have options for turning the alarm on or off, choosing an alarm time (or even different alarm times for different days of the week), and an online music source from your list of favorites. What’s Next? Squeezebox Boom has lots of interesting and useful features that we don’t have room to describe in this guide. One way to learn about them is to just start exploring. But if you’d like to read about your new Squeezebox Boom, documentation is available. The complete Squeezebox Boom User’s Guide is available for download at slimdevices.com/documentation. SqueezeCenter, the music server application you run on your computer to access your personal music collection, includes extensive documentation you can access by clicking the ? icon on the interface. Finally, you can visit slimdevices.com, where you will be able to participate in our active online forums, obtain a wide range of user-contributed information from our wiki, as well as download plug-ins – called Extras – to add new features and functions to SqueezeCenter and your Squeezebox Boom. We hope you enjoy your new Squeezebox Boom! ...
Logitech Squeezebox Boom Troubleshooting In most cases, setting up Squeezebox Boom is easy and trouble free. If you encounter some network or connection issues, however, please refer to this troubleshooting section for help and advice. Some of the more common setup problems are covered here. If you should need additional assistance, please see Getting Help earlier in this guide. If you don’t see your wireless network in the setup menu Squeezebox Boom finds all wireless networks in range and displays them by their network name (also known as their SSID). In particularly network-heavy environments, you may need to scroll to see the entire list. The first step is to make sure that your network is operational and you’re within range and free from potential sources of interference. If you suspect that other networks are preventing devices from reliably connecting to your network, you can try changing the channel upon which your wireless router operates. For assistance with this and other router configuration options, see your router’s documentation or contact your router’s vendor for support. If your network’s name still does not appear, your wireless router might be configured to not broadcast its SSID. If this is intentional (e.g., for security purposes), you can enter your network’s SSID manually. Scroll to the bottom of the list of available networks and select Enter another network…. 16 ...
Page 17
Quick start guide If your network name appears, but the Squeezebox Boom cannot connect This can have a number of causes. Here are some things to try: • Confirm that your wireless network is operating properly by trying to connect with your network using another device, like a computer. If no devices can connect, check your cable connections and verify that your wireless router (and modem, if applicable) are responsive. Cycling the power for the router and modem is often helpful. For detailed troubleshooting, see your wireless router’s documentation, or contact your router’s vendor for assistance. • Confirm that you’ve entered your network’s security key correctly and that you’ve selected the correct network security type. Note Squeezebox Boom follows the 802.11 standard and uses hexadecimal keys for WEP encryption. 64-bit and 128-bit WEP keys are 10 characters and 26 characters, respectively. If the key you’ve entered into Squeezebox Boom is only five or 13 characters long, then you have an ASCII encryption key, which must be converted to hexadecimal. There are several web sites that offer free tools for converting ASCII WEP keys to hexadecimal. • If your wireless router uses a common network name (SSID) like NETGEAR or LINKSYS, there may be more than one wireless network in range that has the same name as yours. Your Squeezebox Boom might be attempting to connect to the wrong network. Consider changing your network’s SSID to something that’s uniquely identifiable. ...
Page 18
Logitech Squeezebox Boom • Check whether your wireless router is using MAC filtering. MAC filtering provides an extra level of security by ensuring that no unknown computers or other devices can connect to your wireless network without prior authorization. If you cannot turn off MAC filtering, you (or your local network expert) can add Squeezebox Boom’s MAC address to the router’s table of allowed devices. You can find your Squeezebox Boom’s MAC address printed on a label on the bottom of the unit. If Squeezebox Boom fails to get an IP address The most common way of setting up a wireless network is to have the wireless router issue IP addresses on demand via a DHCP service. If your Squeezebox Boom displays a message stating that it cannot get an IP address, try these steps: • Check your wireless router’s configuration to confirm that it’s assigning IP addresses via DHCP. If your wireless router does not use DHCP for security purposes, you can assign your Squeezebox Boom a static IP address. For assistance with this advanced network setup, contact your wireless router’s vendor or the person who installed your wireless network. • If your network uses WEP encryption, make sure you’ve correctly entered the network security key into Squeezebox Boom. In some cases, an incorrect WEP security key can appear as a DHCP failure. • Cycle your wireless router’s power. If Squeezebox Boom cannot locate your computer or connect to SqueezeCenter During normal operation if SqueezeCenter is running on a computer that’s connected to ...
Page 19
Quick start guide 1. SqueezeCenter isn’t running. • I f you have not yet downloaded and installed SqueezeCenter, visit slimdevices.com to begin. • T o check SqueezeCenter’s status on Windows, hover your mouse pointer over the SqueezeCenter icon at the bottom right of the display, near the clock. If SqueezeCenter Running doesn’t float, right-click the icon and select Start SqueezeCenter. System Preferences, and • T o check SqueezeCenter’s status on Mac OS X, launch then click on SqueezeCenter. If SqueezeCenter is running, you’ll see a button labeled Stop Server. If the button displays Start Server, click it to launch. 2. A firewall may be preventing Squeezebox Controller from communicating with your computer. For Windows: SqueezeCenter’s installation utility adds the appropriate exceptions to Windows’ ...
Page 20
Logitech Squeezebox Boom Click Security Center. • If you are using Windows XP, click Windows Firewall under Manage security settings for username. Windows Firewall on the left, and • If you are using Windows Vista, click then click Change Settings. If a confirmation dialog box appears, click Continue. Exceptions tab. Click the Add Port and add an exception for three ports: Click • Name : SqueezeCenter Discovery • Port number : 3483 • Protocol: UDP • Name : SqueezeCenter Control • Port number: 3483...
Page 21
Quick start guide For Mac OS X 10.4 (Tiger): Sharing, and then click Firewall. Open System Preferences and select New… to create a new rule. Click Other. For Port Name, select 3483, 9000 For TCP Port Number(s), enter 3483 For UDP Port Number(s), enter For Description, enter SqueezeCenter Click OK, and ensure that the box for the new SqueezeCenter rule is checked. For Mac OS X 10.5 (Leopard): Security, and then click Firewall. Open System Preferences and select Set Access for specific services and applications. Click Show All at the top to view all of your preferences, and then select Click ...
Page 22
Logitech Squeezebox Boom For Third-Party Firewalls: If you’re using firewall software provided by a third party, such as ZoneAlarm Pro, add exceptions for three ports: • Name : SqueezeCenter Discovery • Port number : 3483 • Protocol : UDP • Name : SqueezeCenter Control • Port number : 3483 • Protocol : TCP • Name : SqueezeCenter Web • Port number : 9000 • Protocol : TCP 3. Your computer and Squeezebox Boom may not be on the same network segment.
Page 23
Quick start guide To check the IP address of the computer running SqueezeCenter, open SqueezeCenter’s web interface, click Settings, and then the Status tab. The IP address will be listed under the SqueezeCenter Information section. To check the IP address of the Squeezebox Boom, go to Settings > Information > Player Information from the Squeezebox Boom’s home screen. Scroll through the Player Information screen until you see the IP address. An IP address is four sets of numbers. Two IP addresses are on the same segment if the first three sets of numbers match. For example, these addresses are on the same segment: 192.168.1.110 and 192.168.1.114 But these two are not; notice that the third set of numbers does not match: 192.168.1.110 and 192.168.16.103 If Squeezebox Boom and your computer are not on the same network segment, you will need to configure your wireless network so that both are on the same segment and connect to the same DHCP server for their IP addresses. You may need to consult the party who installed or maintains your network for assistance. ...
Logitech Squeezebox Boom Safety information CAUTION ELECTRIC SHOCK HAZARD • Do not use this apparatus near water. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not push objects into apparatus vents or slots because fire or electric shock hazards could result. • Maintain a minimum distance of at least 6 inches around apparatus for sufficient ventilation. • Ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table clothes, curtains, etc. • No naked (open) flame sources, such as lighted candles, should be placed on or near the apparatus. • Place apparatus in a stable location so it will not fall causing product damage or bodily harm. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one wider than the other. The wide blade is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or ...
Page 25
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. UL Safety: Your product has been UL tested. It should only be used with other UL listed devices. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Radio Frequency Interference Requirements- Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la NMB-003 du Canada. Radio Transmitters This device complies with RSS 210 of Industry & Science Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Marking: The Term “IC:” before the radio certification only signifies that Industry Canada technical specifications were met. Logitech Compliance For additional compliance information, go to http://www.logitech.com/compliance. [EN] Use of this product is authorized in the following countries: [FR] L’utilisation de ce produit est autorisée dans les pays suivants: ...
Page 26
Logitech Squeezebox Boom [DE] Verbrauch dieses Produktes wird in den folgenden Ländern autorisiert: AT, CY, BE, BGR*, DK, UK, FI, FR**, DE, GR, HU, IE, LU, NL, PT, ES, SE, IS, LI, NO, CH, CZ, PL, RO, SK, SI, EE, LV, LT, MT [EN] * General license require for outdoor use; ** For indoor use only [FR] * Permis général requis pour l’usage extérieur; ** Pour l’usage d’intérieur seulement [DE] * Allgemeine Lizenz erfordert für im Freiengebrauch; ** Für nur Innengebrauch Battery Warning Caution: risk of explosion and personal injury if batteries are replaced by incorrect type. Do not open, mutilate, or expose to conducting materials (metal), moisture, liquid, fire, or heat (above 54° C or 130° F). Doing so may cause batteries to leak or explode, resulting in personal injury. Dispose of spent, leaking, or damaged batteries according to manufacturer instructions and local laws. Do not use or charge batteries (lithium-ion rechargeables) if leaking, discolored, or deformed. Do not mix battery types. Do not charge alkaline batteries. Do not leave rechargeable batteries discharged or unused for extended periods. Battery life varies with usage. When replacing, remove all spent batteries, and do not mix old batteries with new. When device is not in use for extended periods, remove batteries to avoid leakage and store away from children in a cool, dry place at room temperature. Power Supply Warning Caution electric shock hazard! Warning: to reduce risk of electric shock, do not expose power supply to rain, moisture, liquid, or heat sources (e.g., radiators, heat registers, stoves, amplifiers, etc.) For indoor use only. Do not use any other power supply with product. Do not use a damaged power supply or attempt to repair one. Inspect power supply regularly for cable, plug, or casing damage. Operating and Storage Conditions Operating Conditions: 0.0 ~ +40.0(degree C), 10~90% (Non-condensing) Non-Operating Conditions: -40.0 ~ +70.0 (degree C), 10~95%(Excluding rain) 26 ...
Quick start guide Logitech hardware product limited warranty Logitech warrants that your Logitech hardware product shall be addresses and customer service contact information for Logitech free from defects in material and workmanship for two (2) years, can be found in the documentation accompanying your product beginning from the date of purchase. Except where prohibited by and on the web at www.logitech.com/support. applicable law, this warranty is nontransferable and is limited to the Limitation of liability original purchaser. This warranty gives you specific legal rights, and LOGITECH SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, you may also have other rights that vary under local laws. INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, Remedies INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE OR Logitech’s entire liability and your exclusive remedy for any breach DATA (WHETHER DIRECT OR INDIRECT) OR COMMERCIAL LOSS of warranty shall be, at Logitech’s option, (1) to repair or replace FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR the hardware, or (2) to refund the price paid, provided that the PRODUCT EVEN IF LOGITECH HAS BEEN ADVISED OF THE POSSIBILITY hardware is returned to the point of purchase or such other place OF SUCH DAMAGES. Some jurisdictions do not allow the exclusion as Logitech may direct with a copy of the sales receipt or dated or limitation of special, indirect, incidental or consequential itemized receipt. Shipping and handling charges may apply except damages, so the above limitation or exclusion may not apply to you. where prohibited by applicable law. Logitech may, at its option, Duration of implied warranties use new or refurbished or used parts in good working condition to ...
