Compaq dx2390 Microtower Hardware Reference Manual page 26

NOTE:
to the expansion card.

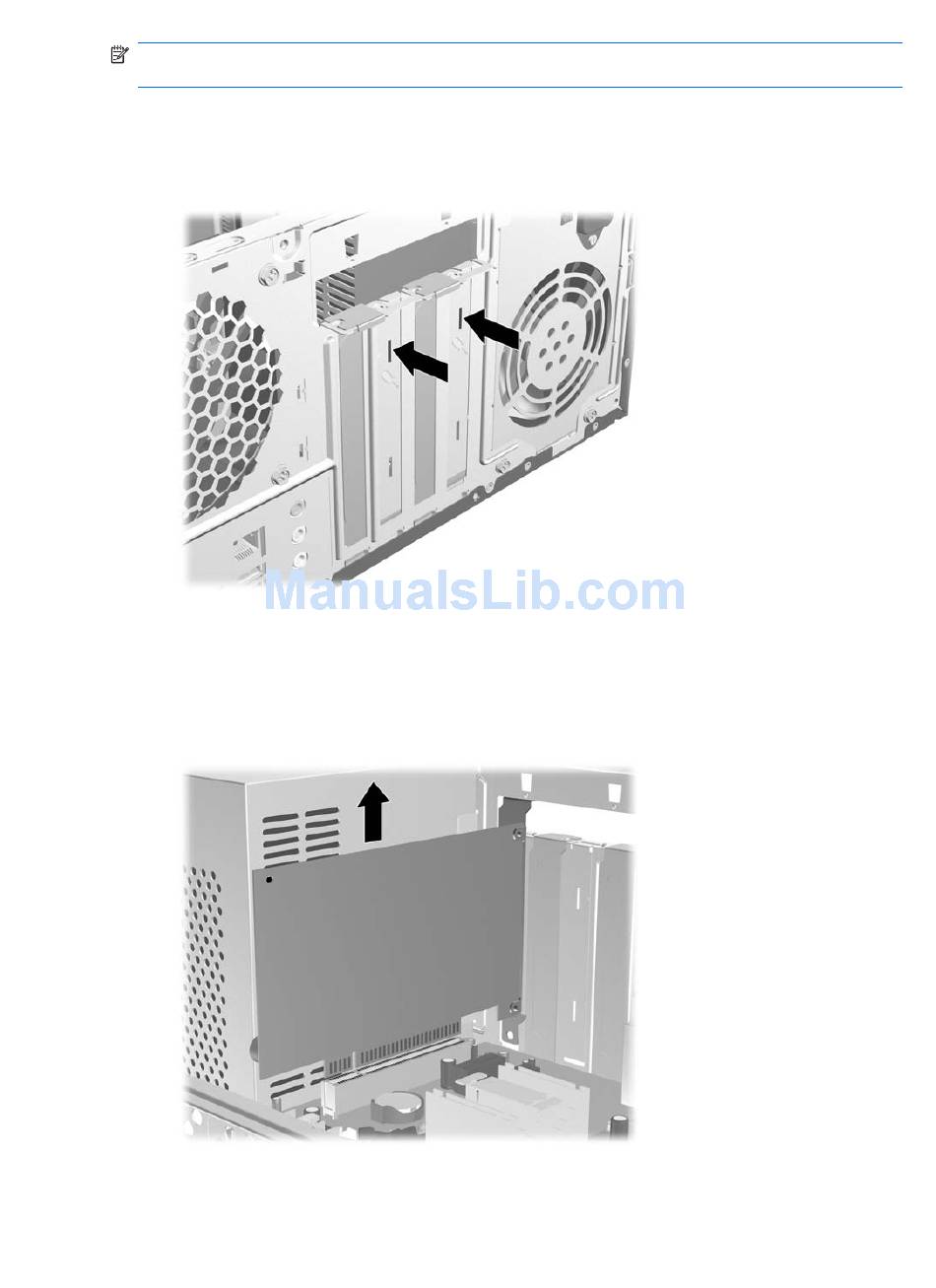

a. If you are installing an expansion card in a vacant socket, you must use a flatblade screwdriver
to pry out the metal shield on the rear panel that covers the expansion slot. Be sure to remove
the appropriate shield for the expansion card you are installing.
Figure 2-10
b. If you are removing a standard PCI card, hold the card at each end and carefully rock it back
and forth until the connectors pull free from the socket. Be sure not to scrape the card against
the other components.
Figure 2-11
20 Chapter 2 Hardware Upgrades
Before removing an installed expansion card, disconnect any cables that may be attached
Removing an Expansion Slot Cover
Removing a Standard PCI Expansion Card
