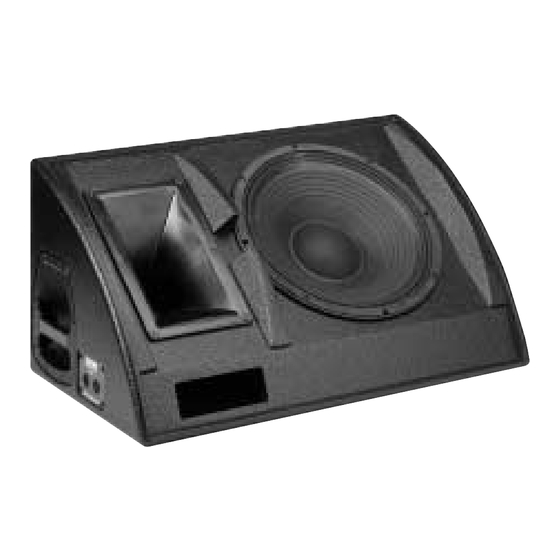

EAW SM15 Specifications

FEATURES
• High output, two-way stage-monitor system
• 1x 15-in LF, vented
• 3-in voice coil/1.4-in exit neodymium HF
(40° x 60° coverage pattern)
• Angles up 53°
APPLICATION
Applications include:
•Concert Tours
•Major Televised Events
•Large Houses of Worship •Live Music Clubs
PERFORMANCE
Frequency Response (Hz)
±3 dB 75 Hz to 17 kHz
-10 dB 50 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
LF 98
HF 110
Impedance (Ohms)
LF 8
HF 8
Power Handling (Watts, Contimuous)
LF 800
HF 200
Recommended High-Pass Frequency
24 dB/Octave 50 Hz
Calculated Maximum Output (dB SPL)
LF Peak 133.0
HF Peak 139.0
LF Long Term 127.0
HF Long term 133.0
Nominal Coverage Angle, -6 dB Points (degrees)
Horizontal 40
Vertical 60
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
•Corporate Events
•Cathedrals
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS SM15
PHYSICAL
LF Subsystem 1x 15-in, vented
HF Subsystem 3-in voice coil/1.4-in exit
System Configuration Full range floor monitor
Powering Mode Bi-amplified
Cabinet Type (shape) Stage monitor
Enclosure Materials Baltic birch plywood
Finish Wear-resistant textured black
Connectors 4x Neutrik NL4 Speakon (2 per
Grille Powder coated perforated steel,
Dimensions
Height 14.9
Width 29.8
Depth 17.2
Weights
Net Weight 73.00
Shipping Weight 78.00
FAX 508 234 8251
SM15/2 pp
neodymium compression driver
on constant directivity horn
paint
side)
foam backed
Inches Millimeters
377
756
436
Pounds Kilograms
33.20
35.50
info@eaw.com www.eaw.com
October 2001 Printed in USA
