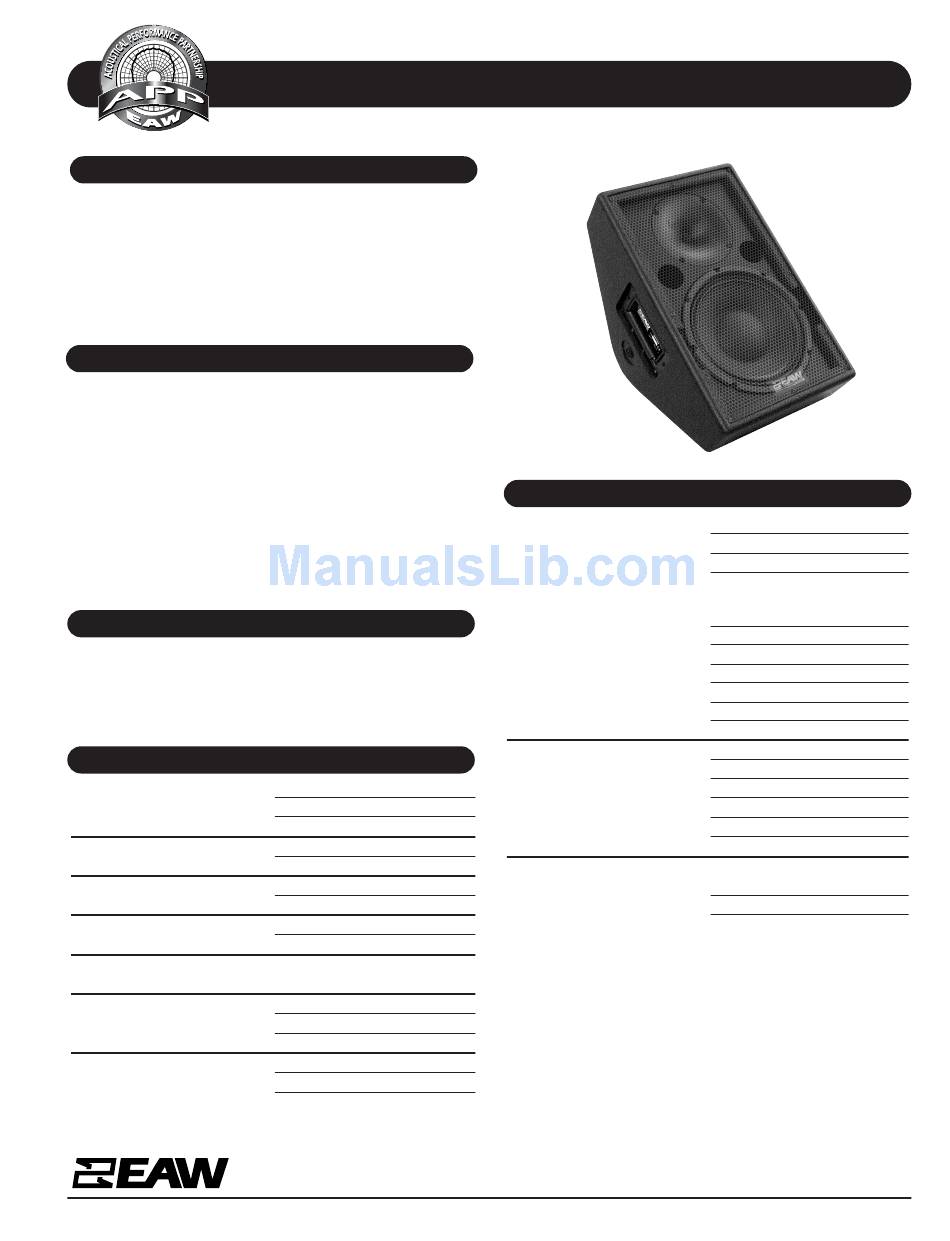

EAW SM109z Specifications

FEATURES
• Compact 2-way, 10-in stage monitor/PA
• Dual purpose loudspeaker: stage monitor and PA
• Rubber feet included for floor use plus a pole mount cup
for stand mounting
• Passive crossover and EQ for economical single
amplifier operation
• Dual Neutrik NL4 connectors for input and loop
through connection
• Integral handle strategically placed for easy transport
DESCRIPTION
The SM109z is a compact, professional loudspeaker configured
for dual-purpose stage monitor and PA use. It is designed for
applications with limited space requiring high quality moni-
toring. The enclosure is fitted with a pole cup for upright use,
increasing the SM109z's usefulness as a main PA loudspeaker.
The conical HF waveguide provides wide-angle projection,
important in smaller venues where a single monitor must
often cover several performers. As a PA loudspeaker, this same
pattern is ideal for meetings and presentations. Portable
usage is enhanced by the heavy-duty enclosure construction,
steel grille, and integral handle. Two Neutrik NL4 jacks provide
reliable input and loop through connections. The SM109z car-
ries a six year warranty.
APPLICATION
Applications Include:
• Houses of worship
• TV studios
• Meeting rooms
PERFORMANCE
Frequency Response (1 W @ 1m)
±3 dB 100 Hz to 19 kHz
-10 dB 80 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
Full Range 95
Impedance (Ohms)
Full Range 8
Power Handling (Watts)
Full Range 300
Recommended High-Pass Frequency
(24 dB/octave) 70 Hz
Calculated Maximum Output (dB SPL)
Full Range Peak 126
Full Range Long Term 120
Nominal Coverage Angle / -6 dB points (degrees)
Conical 100
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
• Club Bands
• Theatres
• Classrooms
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS SM109z
PHYSICAL
Part Number 0001307
Configuration 2-way, full-range floor monitor
LF Subsystem 1x 10-in, vented
HF Subsystem 1-in exit/1.4-in voice coil
Powering Mode Passive LF/HF crossover
Enclosure Materials Exterior grade Baltic birch plywood
Finish Wear resistant textured black paint
Connectors 2x Neutrik NL4 Speakon
Mounting Hardware Pole mount cup
Grille Powder coated perforated steel
Dimensions
Height 14.88
Height w/feet 15.5
Width 12.25
Depth 18.00
Floor Angle 37°
Weights
Net Weight 30
Shipping Weight 33
FAX 508 234 8251
SM109z/0004644/001/2 pp
compression driver on Wave
Guide Plate™
inches millimeters
378
394
311
457
pounds kilograms
13.7
15.0
info@eaw.com www.eaw.com
September 2002 Printed in USA
