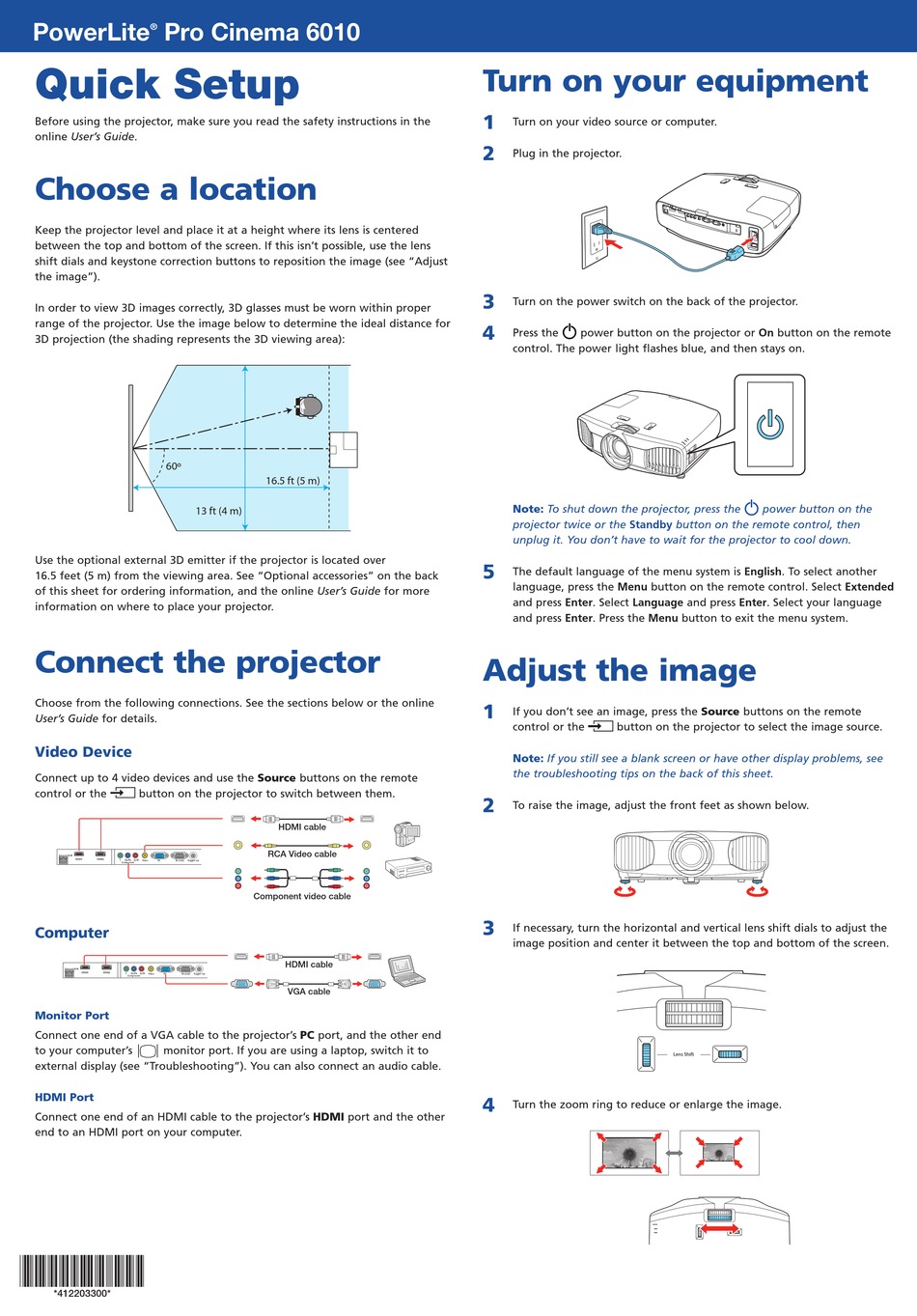

PowerLite Pro Cinema 6010
®

Quick Setup

Before using the projector, make sure you read the safety instructions in the
online User's Guide.

Choose a location

Keep the projector level and place it at a height where its lens is centered
between the top and bottom of the screen. If this isn't possible, use the lens
shift dials and keystone correction buttons to reposition the image (see "Adjust
the image").
In order to view 3D images correctly, 3D glasses must be worn within proper
range of the projector. Use the image below to determine the ideal distance for
3D projection (the shading represents the 3D viewing area):
60º
Use the optional external 3D emitter if the projector is located over
16.5 feet (5 m) from the viewing area. See "Optional accessories" on the back
of this sheet for ordering information, and the online User's Guide for more
information on where to place your projector.
Connect the projector
Choose from the following connections. See the sections below or the online
User's Guide for details.

Video Device

Connect up to 4 video devices and use the Source buttons on the remote
control or the button on the projector to switch between them.
Computer
Monitor Port
Connect one end of a VGA cable to the projector's PC port, and the other end
to your computer's monitor port. If you are using a laptop, switch it to
external display (see "Troubleshooting"). You can also connect an audio cable.
HDMI Port
Connect one end of an HDMI cable to the projector's HDMI port and the other
end to an HDMI port on your computer.
*412203300*
*412203300*
16.5 ft (5 m)
13 ft (4 m)
HDMI cable
RCA Video cable
Component video cable
HDMI cable
VGA cable
Turn on your equipment
1
Turn on your video source or computer.
2
Plug in the projector.
3
Turn on the power switch on the back of the projector.
4
Press the power button on the projector or On button on the remote
control. The power light flashes blue, and then stays on.
Note: To shut down the projector, press the
projector twice or the Standby button on the remote control, then
unplug it. You don't have to wait for the projector to cool down.
5
The default language of the menu system is English. To select another
language, press the Menu button on the remote control. Select Extended
and press Enter. Select Language and press Enter. Select your language
and press Enter. Press the Menu button to exit the menu system.

Adjust the image

1
If you don't see an image, press the Source buttons on the remote
control or the button on the projector to select the image source.
Note: If you still see a blank screen or have other display problems, see
the troubleshooting tips on the back of this sheet.
2
To raise the image, adjust the front feet as shown below.
3
If necessary, turn the horizontal and vertical lens shift dials to adjust the
image position and center it between the top and bottom of the screen.
4
Turn the zoom ring to reduce or enlarge the image.
power button on the
