12.

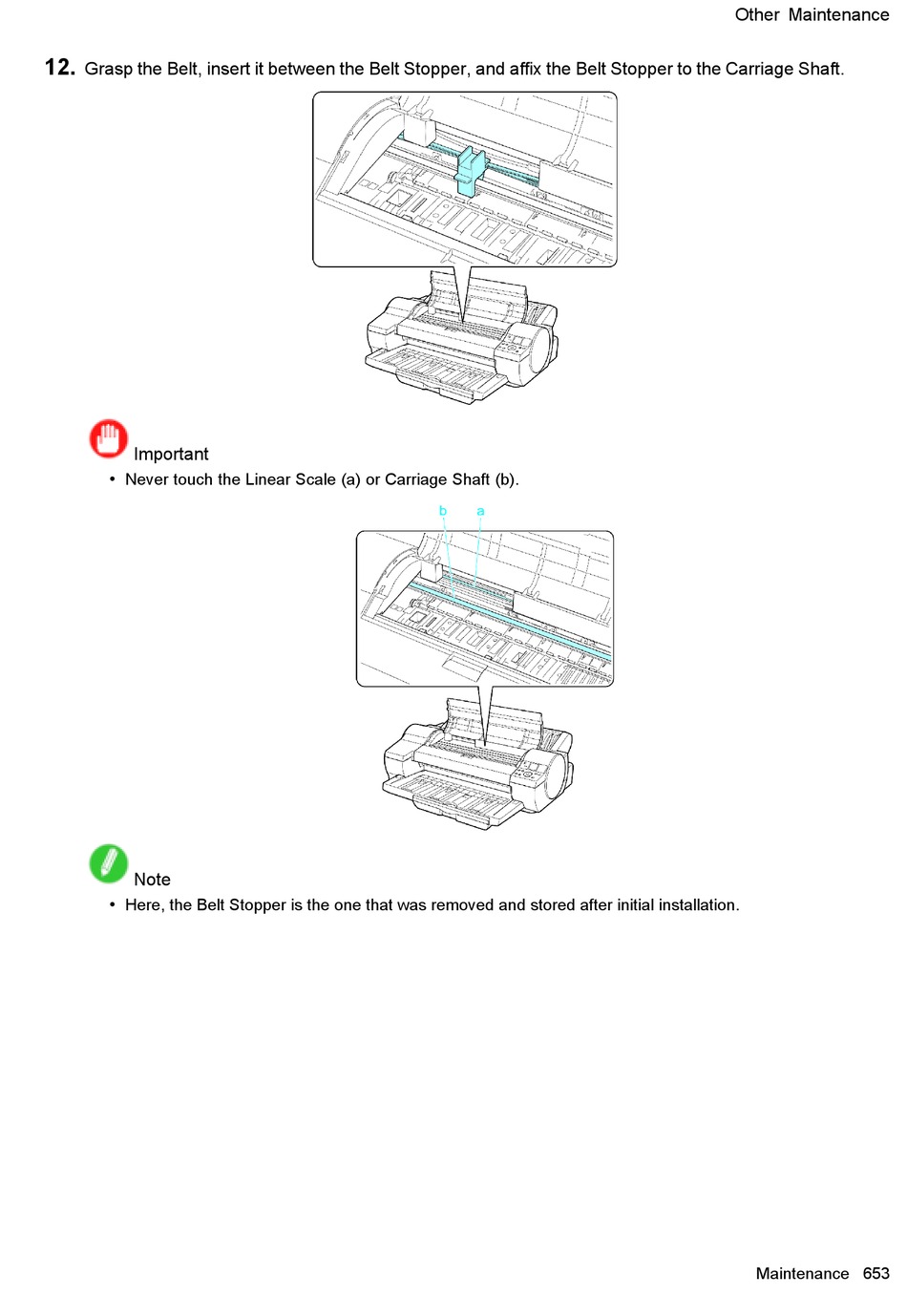

Grasp the Belt, insert it between the Belt Stopper, and afx the Belt Stopper to the Carriage Shaft.
Important
•
Never touch the Linear Scale (a) or Carriage Shaft (b).
Note
•
Here, the Belt Stopper is the one that was removed and stored after initial installation.
Other Maintenance
