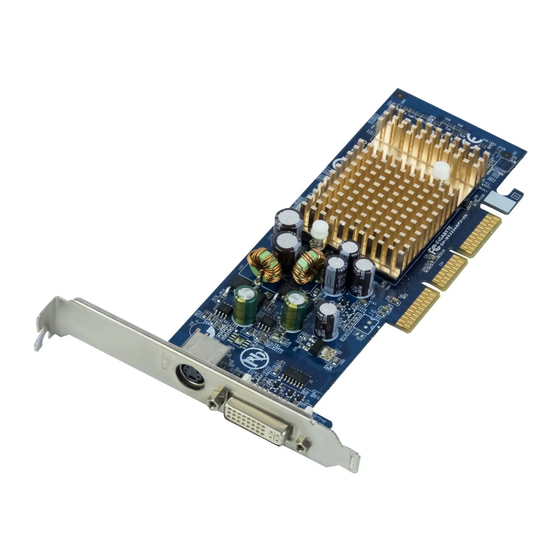

Gigabyte GV-N62256DP2-RH User Manual

Geforce 6200 graphics accelerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GV-N62256DP2-RH
GeForce
6200 Graphics Accelerator
™
User's Manual
Rev. 101
12MD-N622P2R-101R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.
Copyright
© 2007 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any from
without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Please do not remove any labels on VGA card, this may void the warranty of this VGA card
Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.
The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a
commitment to update the information contained herein.
Macrovision corporation product notice:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte GV-N62256DP2-RH

Summary of Contents for Gigabyte GV-N62256DP2-RH

  • Page 1 * The WEEE marking applies only in European Union's member states. Copyright © 2007 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any from without the expressed, written permission of GBT.

  • Page 2: Table Of Contents

    5.1. How to Reflash the BIOS ................30 5.1.1. Reflash BIOS in MS-DOS mode ................. 30 5.1.2. Reflash BIOS in Windows mode ................30 5.2. Resolutions and Color Depth Table (In Windows XP) ....... 31 ® GV-N62256DP2-RH Graphics Accelerator - 2 -...

  • Page 3: Introduction

    1. Introduction 1.1. Features Powered by NVIDIA GeForce 6200 Graphics Processing Unit (GPU) • ® ™ Supports AGP 8X • Integrated with 256 MB DDR2 memory • Supports DirectX 9.0c • Support AV / S-Video output • Supports TV-Out and D-Sub (by adapter) connectors •...

  • Page 4: Hardware Installation

    AV Output Projector NTSC / PAL TV S-Video Output TV-Out NTSC / PAL TV Projector DVI-I Connector DVI Output Digital LCD Monitor DVI-I to D-Sub Connector Analog LCD Monitor Analog CRT Monitor VGA Output GV-N62256DP2-RH Graphics Accelerator - 4 -...
  • Page 5 DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON THE CARD. In order to ensure your graphics card working correctly, please use official Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem on the graphics card. - 5 -...

  • Page 6: Hardware Installation

    3. Remove any existing graphics card from your computer. Or, if your computer has any on-board graphics capability, you may need to disable it on the motherboard. For more information, see your computer documentation. GV-N62256DP2-RH Graphics Accelerator - 6 -...
  • Page 7 To install your new graphics card: 1. Locate the AGP slot. If necessary, remove the metal cover from this slot; then align your graphics card with the AGP slot, and press it in firmly until the card is fully seated. 2.

  • Page 8: Software Installation

    • If you install the graphics card drivers for the motherboard, which consist of SIS or VIA chipsets, please install the appropriate driver program for that motherboard. Or please contact your motherboard nearest dealer for motherboard driver. GV-N62256DP2-RH Graphics Accelerator - 8 -...

  • Page 9: Directx Installation

    3.1.2. DirectX installation Install Microsoft DirectX to enable 3D hardware acceleration support for Windows 2000 or ® Windows XP to achieve better 3D performance. ® Note: For software MPEG support in Windows 2000 or Windows XP, you must install ® ®...
  • Page 10 Installing the components. Step 4. Click "Finish" to restart computer. Then the DirectX 9 installation is completed. GV-N62256DP2-RH Graphics Accelerator - 10 -...

  • Page 11: Driver Installation

    3.1.3. Driver Installation A. New hardware found After the graphics card is inserted into your computer at the first time, the windows will automatically detect a new hardware in the system and pop out a "New Hardware Found" message. The following is the step-by-step installation guide. Step 1: Found new hardware wizard: Video controller (VGA Compatible) Click the Next button to install the driver.
  • Page 12 Step 1. When autorun window show up, click Install Display Driver item. Step 2. Click the "Next" button. Windows installs the driver components. Step 3. Click the "Finish" button and restart computer. Then the driver installation is completed. GV-N62256DP2-RH Graphics Accelerator - 12 -...

  • Page 13: Utilities On Driver Cd

    Install GIGABYTE utilities: Step 1. When autorun window show up, please click the Utilities item. Then click the GIGABYTE Utility item. Step 2. Click the Next button. Step 3. Enter your name and company. Step 4. Click the Finish button to restart computer.
  • Page 14 V-Tuner 2 lets you monitor the working frequency of the graphic engine and video memory (Core Clock and Memory Clock). Displays core clock status Displays memory clock status Opens Help page Select choice of skin GV-N62256DP2-RH Graphics Accelerator - 14 -...

  • Page 15: Taskbar Icon

    After installation of the display drivers, you will find a GIGABYTE icon in the system tray. Right-clicking this icon opens the GIGABYTE control panel, which shows a menu composed of shortcut of the graphics card's enhanced and other functions. You may select the Display Properties item, and then click Settings. Click Advanced after clicking Settings.
  • Page 16 VGA Information VGA Info lists the relevant information about your card. Color Adjust Color Adjust allows you to make color adjustments, such as brightness, contrast and gamma values for each or all of RGB colors. GV-N62256DP2-RH Graphics Accelerator - 16 -...
  • Page 17 After installation of the display drivers, you will find a NVIDIA icon in your system tray. Click this icon to open the control panel. Right click the icon. You can adjust the properties of the graphics accelertaor from here. - 17 - Software Installation...

  • Page 18: Display Properties

    3.1.6. Display Properties pages To access Display Properties pages, right-click the GIGABYTE icon in your system tray and select Display Properties or right-click on Desktop and then select Properties. The Display Properties dialog box shows the information of display adapter, color, the range of display area, and the refresh rate.
  • Page 19 "Apply" followed by "OK". Dual-Monitor Setup: You can set the display to output from two monitors on the nView Display Settings page. The GV-N62256DP2-RH support the following modes. (1) Clone Mode: Clone mode indicates that both displays in the display pair show images of the same desktop.
  • Page 20 Primary display. The video overlay controls are automatically activated during playback of any video file type that supports overlay adjustments. The "Adjust Colors" button will access "Color Correction" properties page. GV-N62256DP2-RH Graphics Accelerator - 20 -...
  • Page 21 Tools properties The NVIDIA settings taskbar utility lets you conveniently access various features and presets you've configured in the Display Properties directly from the Windows taskbar. • Shortcut tools: Enabling these options will give you quick access to NVIDIA features. •...
  • Page 22 Restore screens to the menu by dragging them individually, or click Restore Defaults. To begin, check the Enable screen menu editing check box. To return to normal navigation mode, uncheck the check box. GV-N62256DP2-RH Graphics Accelerator - 22 -...

  • Page 23: Nview Properties

    3.1.7. nView Properties pages nView is a set of desktop tools designed to help you be more productive when using your graphics card. With nView you can set up multiple desktops to work with your applications. Multiple desktops give you extra desktop areas on which to run your applications so you won't have to crowd several open application windows on one desktop.
  • Page 24 Profile properties This tab contains a record all nView display settings for easy software setup. nView Windows properties This tab allows you to control of window and dialog box placement when using multiple monitors. GV-N62256DP2-RH Graphics Accelerator - 24 -...
  • Page 25 nView Applications properties This tab allows you to control nView settings depending on different applications. nView Desktops properties This tab allows you to create up to 32 unique desktops. nView User Interface properties This tab allows customization of the nView user interface. - 25 - Software Installation...
  • Page 26 This tab provides dynamic zoom functionality on the desktop. Also enables full screen video playback via the video mirroring control button. nView Hot Keys properties This tab lets you perform various actions with shortcut keys or key combinations. GV-N62256DP2-RH Graphics Accelerator - 26 -...
  • Page 27 nView Mouse properties This tab can modify and extend mouse behavior with kinematic actions. nView Tools properties This tab can improve nView functionality for mobile and desktop users. - 27 - Software Installation...

  • Page 28: Windows ® 2000 Driver Installation

    7. Click Yes to the license agreement. 8. Follow the Wizard's on-screen instructions to complete the installation. Please make sure the Windows 2000 have installed Windows 2000 Service ® ® Pack (or later) before installing the graphics accelerator driver. GV-N62256DP2-RH Graphics Accelerator - 28 -...

  • Page 29: Troubleshooting Tips

    4. Troubleshooting Tips The following troubleshooting tips may help if you experience problems. Contact your dealer or GIGABYTE for more advanced troubleshooting information. Check that the card is seated properly in the AGP slot. Ensure that the display cable is securely fastened to the card's display connector.

  • Page 30: Appendix

    BIOS if it detects the current BIOS on your card is the latest one.) 3. Update BIOS NOT through the Internet a. Download the BIOS ZIP file for your card from GIGABYTE website and extract it to your hard disk (or floppy disk).

  • Page 31: Resolutions And Color Depth Table (In Windows ® Xp)

    5.2. Resolutions and Color Depth Table (In Windows ® GeForce 6200 Single Display Stardard Modes Display Refresh Color Depth (bpp) Screen Rate 8bpp(256 color) 16bpp(65K color) 32bpp(16.7M) Resolution (Hz) Standard mode High mode True mode 320 x 200 60~75 320 x 240 60~75 400 x 300 60~75...
  • Page 32 60~100 1920 x 1080 30~85 1920 x 1200 60~85 1920 x 1440 60~85 2048 x 1536 60~85 * This table is for reference only. The actual resolutions supported depend on the monitor you use. GV-N62256DP2-RH Graphics Accelerator - 32 -...
  • Page 33 - 33 - Appendix...
  • Page 34 GV-N62256DP2-RH Graphics Accelerator - 34 -...
