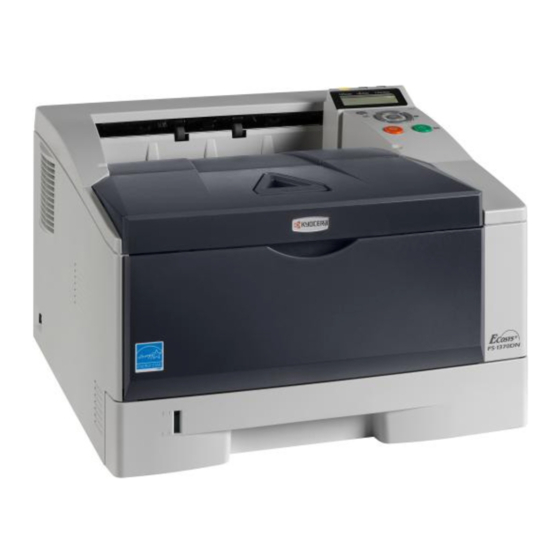

Kyocera FS-1370DN Installation Manual

FS-1370DN
Clearance
300 mm (11-13/16") 300 mm (11-13/16") 200 mm (7-7/8")
1
Unpacking
1
Unpack the printer and all its included
components.
2
Installing the Toner Container
1
Open the top cover.
5
Install the new toner container into the
printer.
200 mm
(7-7/8")
500 mm (19-11/16")
2
Remove the packing item.
2
Turn the lock lever to the unlock
position.
6
Push firmly on the top of the container
at the positions marked PUSH, until
you hear a click.

Installation Guide

Environment
• Temperature: 10 to 32.5 °C (50 to 90.5 °F)
• Humidity: 15 to 80 %RH
• Power Supply: 120 V AC, 60 Hz / 220 to 240 V AC, 50/60 Hz
CAUTION: Be sure to provide enough space around printer. Prolonged use
without sufficient clearance may cause overheating.
Important:
Do not install the printer where temperature or humidity is outside the
recommended range. Print quality may suffer and there will be an increased chance of paper
jams.
3
Check the parts and components.
Printer
3
Take the toner container from the bag.
Shake the new toner container at least
5 times as shown in the figure in order
to distribute the toner evenly inside the
container.
7
Turn the lock lever to the lock position.
CD-ROM Manuals and Other
Printed Materials
Toner Container Power Cord
4
Remove the label from the toner
container.
8
Close the top cover.
