FEATURES
Heavy duty, high efficiency scroll compressor

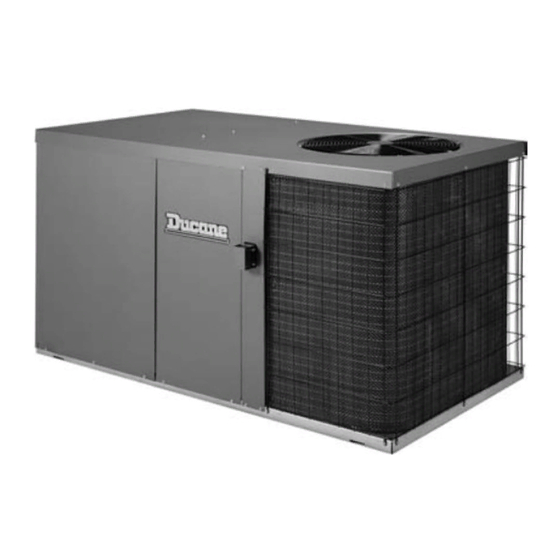

Ducane Package Heat Pump
Copper tubing with enhanced fin coils
R22 refrigerant
2SH13B
Insulated cabinet to minimize heat loss
Wire guard coil protection
Weather protected heavy-duty condenser fan motor
One-piece no leak top design
Easy service access
Insulated compartment to reduce sound
Easy service split-ring design blower with quick plug in
wiring
PSC prelubricated multi-speed motor for low mainte-
nance and maximum efficiency
Dynamically balanced blower wheel with resilient motor
mounts for smooth, quiet operation
Trade available components
Color coded wiring for easy service
Horizontal or down discharge
Warranties: 10 year limited parts warranty available
(5 year compressor). See limited warranty document
for details.
