Acer FP553 User Manual

Lcd color monitor
Hide thumbs Also See for FP553:

Advertisement

Quick Links

Acer LCD Color Monito
r
English

Advertisement

loading

Related Manuals for Acer FP553

Summary of Contents for Acer FP553

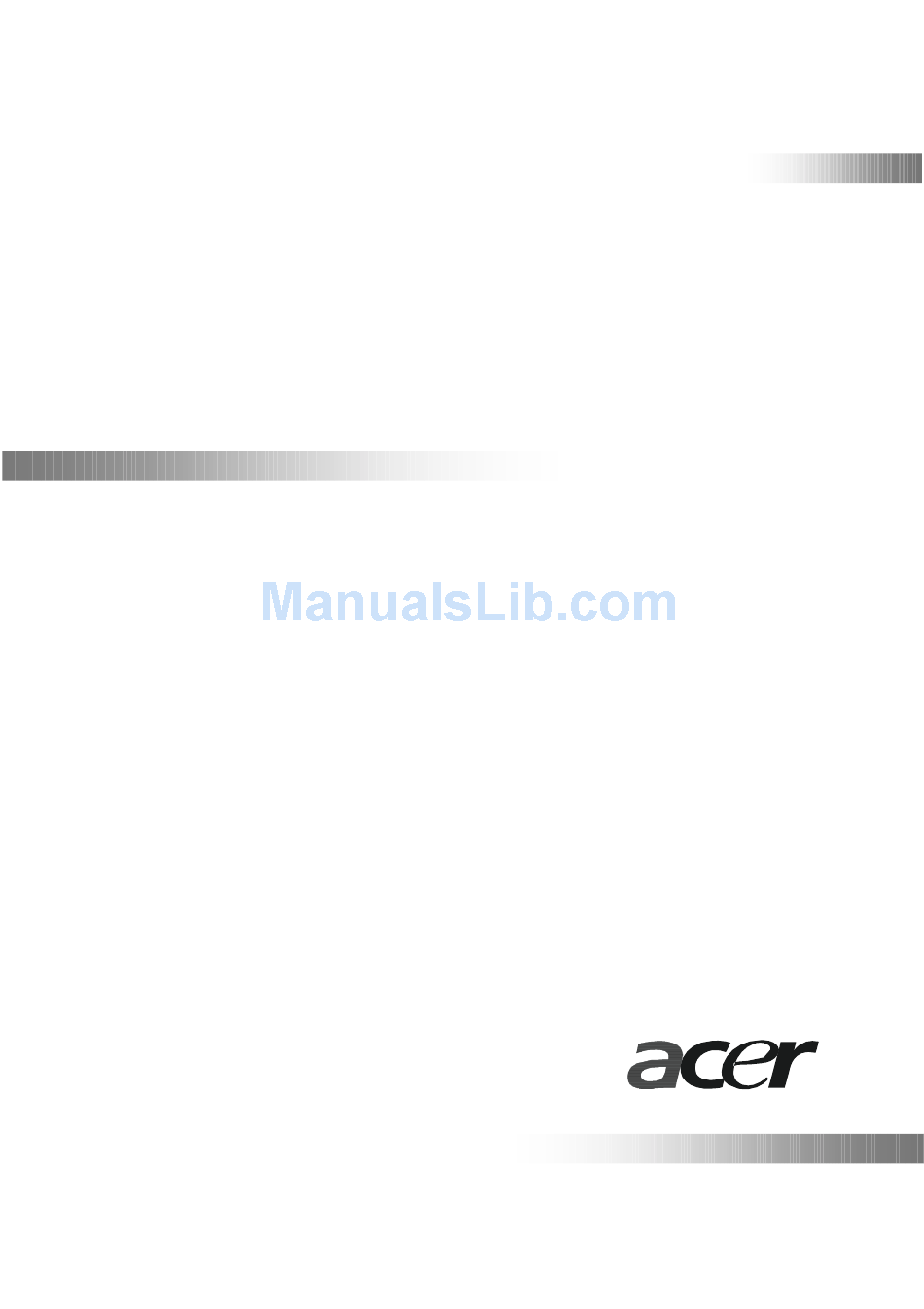

  • Page 1 Acer LCD Color Monito English...

  • Page 2: Table Of Contents

    Copyright © 2001 by Acer Communications & Multimedia Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Commu- nications &...

  • Page 3: Hardware Installation

    Hardware Installation Hardware Installation Hardware Installation Hardware Installation ! Warning!! For the reason of safety you have to pull the base out to prevent from tipping. Make sure that the computer and monitor’s power are both turned off . Please follow the steps to install your LCD monitor.

  • Page 4: Software Installation

    Software Installation Software Installation Software Installation Software Installation a) Microsoft Windows 95 / 98 / 2000 If you are using Windows 95 , Windows 98 or Windows 2000 as an operating system you have to set up the correct monitor driver. Windows 95 The first time you start Windows with a new monitor, the system will detect it and automatically installs the driver for plug and play displays.
  • Page 5 The driver will now be installed. Close all windows to complete the installation. 7. Now a window "Insert Disk" emerges and one file "FP553.cat" cannot be found. Click "Skip File" to continue. This action will not harm your system or monitor. Close the "Display Properties" window and now the driver is installed to your computer.
  • Page 6 Choosing the best resolution Due to the technology of an LCD monitor, it always provides a fixed resolution. For this monitor, it is a resolution of 1024 x 768.This is called the so-called native resolution, which also represents the maximal resolution. Lower resolutions are displayed on a full screen through an interpolation circuit.
  • Page 7 d) Picture Optimisation The easiest way to obtain an optimal picture is by using the iKey function. If you are still not satisfied with the result, you can still attempt to enhance the image by means of manual adjust. 1. Start the auto.exe program from the DISK supplied with the monitor. A test pattern appears.

  • Page 8: Adjusting The Monitor

    Adjusting the Adjusting the monitor monitor Adjusting the Adjusting the monitor monitor ikey Exit Enter Power Power Exit Enter Left Right There are 6 keys for user’s control which includes “Power“, “iKey“, “Exit“, “Enter“ and “Left/Right key“. The following descriptions are the introduction of these keys.

  • Page 9: Frequently Asked

    Frequently Asked Frequently Asked Frequently Asked Frequently Asked Questions (FAQ) Questions (FAQ) Questions (FAQ) Questions (FAQ) The image is blurred: - Read the chapter, Installation/Adjustment and then select the correct resolution, refresh rate and make adjustments based on these instructions. - Do you use a VGA extension cable? Remove the extension cable for the test.

  • Page 10: Need More Help

    No image can be seen: - Is the prompt on the display illuminated in green? If the LED is illuminated in green, then press the "Enter" button on the monitor to access the On Screen Display. If the message "NON PRESET MODE"...

  • Page 11: Operating Mode

    Error rates have to be specified in order to produce LCD panels for a fair price. These error rates are given to us by the panel manufacturers. FP553 Incoming display mode(Input timing) Horizontal...

  • Page 12: Technical Data

    Technical Data Technical Data Technical Data Technical Data                 ! "              # $%& $%&  '&!&(  Screen  iKey   iKey )&$&     && &  * &      '  )&!    ) &&  +    !   ...
