Summary of Contents for Belkin F5U228
Page 1

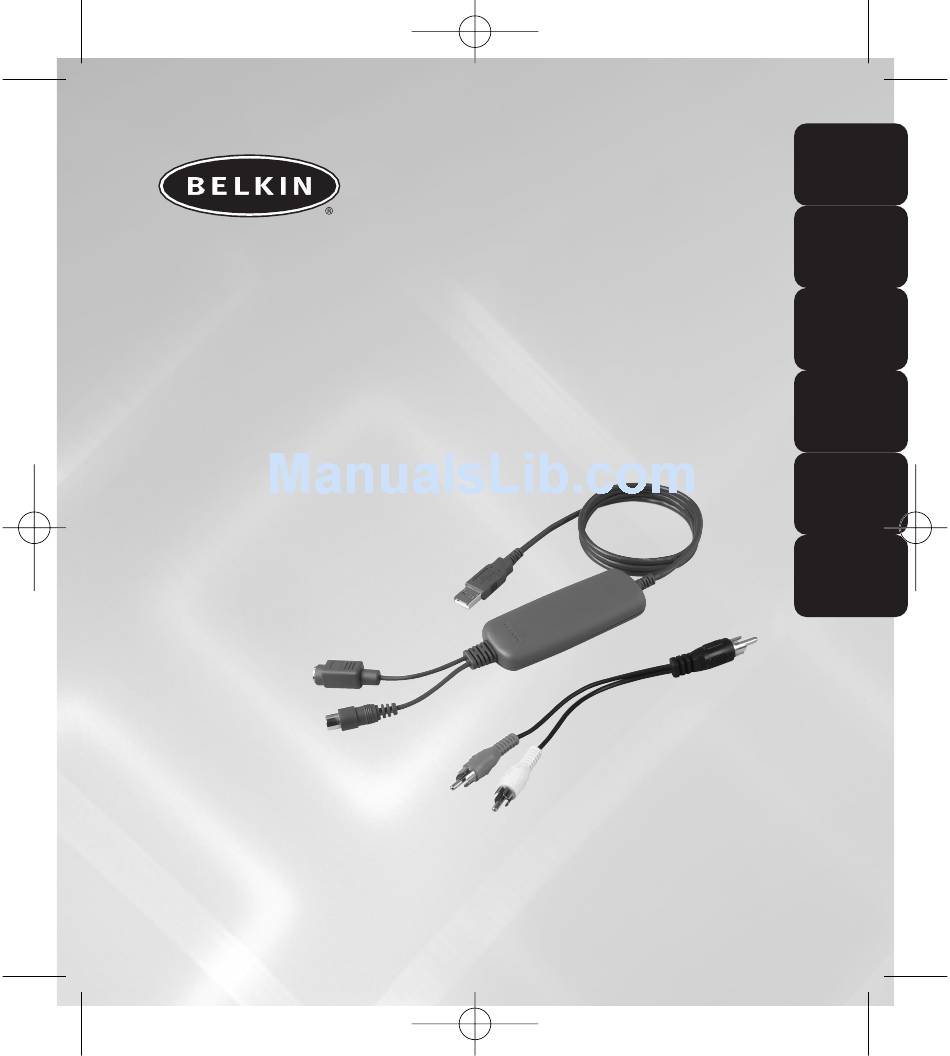

P74200ea_F5U228ea_uk 02-04-2003 16:16 Page 1 Hi-Speed USB 2.0 DVD Creator Capture video from your camcorder, PC camera, and VCRs User Manual F5U228ea...
P74200ea_F5U228ea_uk 02-04-2003 16:16 Page 1 INTRODUCTION Welcome to Belkin USB Hi-Speed Connectivity! Congratulations and thank you for purchasing the Belkin Hi-Speed USB 2.0 DVD Creator. Now you can easily capture video from camcorders, VCRs, and other analog video sources, as well as add professional-quality titles, soundtracks, and stunning effects to your videos.
P74200ea_F5U228ea_uk 02-04-2003 16:16 Page 2 OVERVIEW Features • Compliance with Hi-Speed USB 2.0 specifications • True “Plug and Play” performance • Compatible with composite video and S-video devices • Supports NTSC, PAL, and SECAM video inputs • Supports 30 frames per second at resolutions of 352x240, 640x480, and 720x480 •...
P74200ea_F5U228ea_uk 02-04-2003 16:16 Page 3 OVERVIEW Recommended System Requirements • 1GHz Pentium® 4 processor or equivalent • Available Hi-Speed USB 2.0 port • Windows® 2000 or XP • 128MB RAM • 500MB of free hard-disk space • CD-ROM drive • Sound card, speaker, and microphone required for audio recording...
5. Click “Finish” to complete the driver installation procedure. 6. Plug the F5U228 into a Hi-Speed USB 2.0-compliant USB port. 7. The F5U228 will be detected and the New Hardware Wizard will launch. Note: In Windows XP, the remainder of the installation process is automated.
Page 9
P74200ea_F5U228ea_uk 02-04-2003 16:16 Page 5 INSTALLATION 8. To confirm that the F5U228 has been properly installed, check the Windows Device Manager: a. Right-click on “My Computer”. b. Select “Properties”. c. Select the “Hardware” tab and click on the “Device Manager”...
P74200ea_F5U228ea_uk 02-04-2003 16:16 Page 6 VIDEO CAPTURE QUICK START 1. Launch VideoStudio. 2. Select “Start” from the command bar on top of the VideoStudio display screen. 3. Click the “New Project” icon then select a capture template from the template list. For this example we’ll choose “NTSC VCD”. 4.
Page 11
15. The “Ulead DVD Plug-in - Add Scene” screen will be displayed. Click “Next” to continue. Note: At any time during the VCD authoring process, you may click the “Help” button to access a context-sensitive help file. The F5U228 installation CD also includes a detailed VideoStudio user manual in PDF format.
Page 12
P74200ea_F5U228ea_uk 02-04-2003 16:16 Page 8 VIDEO CAPTURE QUICK START 19. The “Ulead DVD Plug-in - Finish” screen will now be displayed. You may choose to burn your VCD at this time, or to create a disk image file. For this example, choose the default setting of “Record to CD”. Insert a blank, recordable CD into your CD-RW drive, then choose “Create VCD”.
Belkin Corporation warrants this product against defects in materials and workmanship for its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product.
