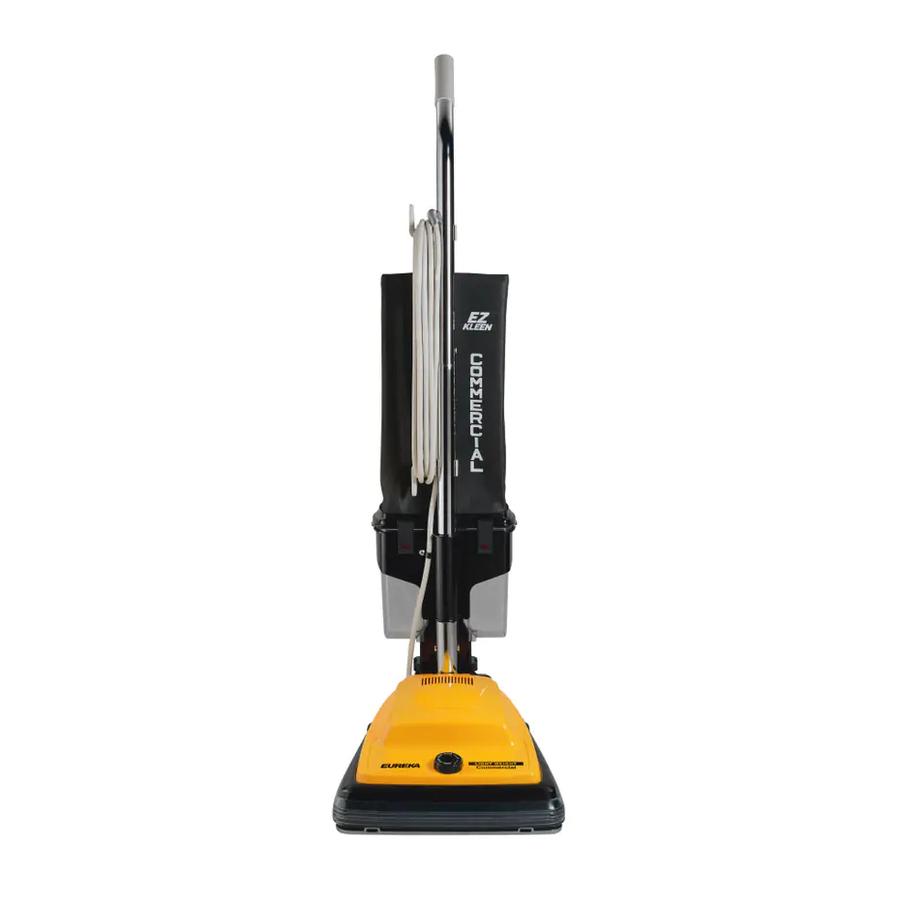

Commercial Upright Vacuum Cleaner WITH ® DUST BAG Owner’s Guide Index Important Safeguards ...... 2 General Information ......6 Assembly ........6-8 Use ........... 9 EZ Kleen Dust Bag ......11 Brush Roll ........12 Brush Roll Belt ....... 13 Headlight ........
IMPORTANT SAFEGUARDS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. WARNING To reduce the risk of fire, electric shock, or injury: • Do not use outdoors or on wet surfaces. •...
Grounding Instructions This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug.
Page 4
CONSEILS DE SÉCURITÉ Lors de l’utilisation d’un appareil électrique, quelques précautions élémentaires doivent être observées, incluant les suivantes: LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER VOTRE ASPIRATEUR. AVERTISSEMENT Pour réduire le risque de feu, de choc électrique, ou de blessure: • Ne pas utiliser à...
Page 5
INSTRUCTIONS VISANT LA MISE À LA TERRE Cet appareil doit être mis à la terre. En cas défaillance ou de panne éventuelles, la mise à la terre fournit au courant un chemin de moindre résistance qui réduit le risque de choc électrique. Cet appareil est pourvu d’un cordon muni d’un conducteur de terre et d’une fiche avec broche de terre.
GENERAL INFORMATION The cleaner is designed to pick up dirt and dust particles. Avoid picking up hard or sharp objects with the cleaner to prevent bag tears, hose clogs, and fan blade breakage with subsequent motor damage. Service Information The instructions in this booklet serve as a guide to routine maintenance. For additional service information telephone our toll free number for the nearest Eureka Authorized Warranty Station.
Page 7
Attach Lower Handle Raise the dust cup support. Push the lower handle (largest end down) through the tube of the dust cup support and into the handle socket at the back of the cleaner. Make Toward Rear sure the notches on the lower handle of Cleaner face the rear of the cleaner (Fig.
Attach Lower Cord Hook Insert the power cord into the lower cord hook (A), as shown. Snap the hook into the lower handle. Pull up on the cord to tighten but leave enough slack near the base so the cord is not strained when the handle is lowered.
HOW TO USE The upright vacuum cleaner is designed to be used on multiple types of carpeting. Do not attempt to use the upright vacuum cleaner on bare floors, as damage to the floor covering may result. Above the floor cleaning tools are available (optional). Handle Adjustment With the tip of the foot, press down to release 1.
Cleaner Height Setting WARNING: Avoid injury. Keep loose clothing, hair, fingers, and all other parts of body away from any moving part (such as the revolving brush). Turn off the switch and unplug the cleaner before changing the cleaner height setting. Adjust the vacuum cleaner height setting to match the carpet pile height.
® EZ Kleen Dust Cup and Bag The cloth bag and the dust cup play a very important role in the efficiency of the vacuum cleaner. The cloth bag allows air to move through the cleaner while it traps dirt inside the cloth bag and the dust cup. When dirt particles cling to the cloth bag they can restrict airflow, If air cannot pass through the cloth bag, no cleaning can take place regardless of how powerful the unit.
Brush Roll As the brush roll rotates, it sweeps and combs the carpet nap. Remove hair and threads from the brush roll so it continues brushing the carpet nap. When the bristles of the brush roll no longer touch a straight edge held across the bottom plate, the brush roll is ineffective because the bristles no longer touch the carpet nap.
Brush Roll Belt The brush roll belt on the upright vacuum cleaner drives the brush to agitate, sweep, and comb the carpet nap. The belt should be checked regularly to be sure it is in good condition. Replace the belt if it is stretching, cracking, or slipping. Cut away any hair or thread wound around the brush roll or the belt pulley because the buildup could cause the belt to rotate unevenly.
Headlight Bulb (Standard on some models) NOTE: Turn off the switch and unplug the electrical cord before replacing headlight bulb. Headlight style varies by model. Locate the notches that release the tabs at either (1) top, (2) side, or (3) bottom of the lens, as illustrated. Place a screwdriver into one notch;...
® THE EUREKA COMMERCIAL LIMITED WARRANTY WHAT THIS WARRANTY COVERS Your EUREKA commercial cleaner is warranted to be free from all defects in material and workmanship in normal use FOR A PERIOD OF ONE YEAR. The warranty is granted only to the original purchaser of the cleaner.
Page 16
OBTAINING WARRANTY SERVICE To obtain warranty service you must return the defective cleaner or cleaner part along with proof of purchase to any Eureka Authorized Warranty Station. You will find the nearest location in the Yellow Pages under “Vacuum Cleaners– Service and Repair”.
