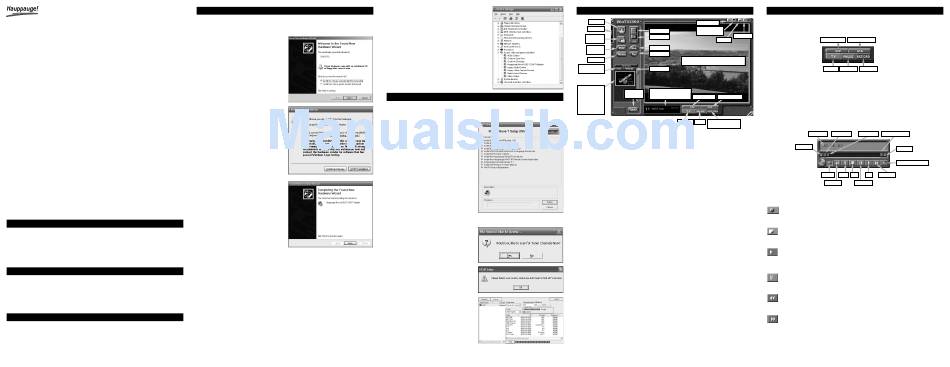

Hauppauge WINTV-NOVA-T USB2 QI Quick Installation Manual

WinTV-NOVA-T-USB2
Quick Installation Guide for Windows XP
© Hauppauge Computer Works, Inc. 2004
Hauppauge Digital Sarl Tel.- Support: +44 (0)207 378 0202
10 Borough High Street Tel.: +44 (0)207 378 1997
Bank Chambers Fax: +44 (0)207 357 9171
London, UK, SE1 9QQ
www.hauppauge.co.uk
Hauppauge Digital Sarl Telephone: 001 631-434-1600
91 Cabot Court Fax: 001 631-434-3198
Hauppauge, NY 11788 Tech Support: 001 631-434-3197
www.hauppauge.com
Hauppauge Digital Asia, Pte. Ltd. Telephone: (+65) 276-9163
Blk 1093, Lower Delta Road #04-05 Fax: (+65) 276-9167
Tiong Bahru Industrial Estate Tech.-Support: (+65) 276-4412
Singapore 169204
Installation Overview WinTV-NOVA-T-USB2
● WinTV-NOVA-T-USB2 unit
● IR remote control-and 2 x AAA Batteries
● WinTV for Windows Installations CD-ROM with:
· WinTV2000 Application
· Remote control-Software
· WinTV Utilities
Connecting the WinTV-NOVA-T-USB2
Please ensure that Windows XP is correctly installed and started before connecting the
WinTV-NOVA-T-USB2 to your computer.
Connect the provided USB cable to the WinTV-NOVA-T-USB2 and connect the other end of
the USB cable to your computer.
Connect your terrestrial antenna to the antenna connection of the WinTV-NOVA-T-USB2.
Insert the batteries Type AAA into the remote control
WinTV-NOVA-T-USB2 Antenna Signal
You will need to ensure that you are located in a area that has Digital Terrestrial coverage.
Please visit www.dtg.org.uk/retailer/coverage.html.
Page 1
Driver-Installation under Windows XP
ote: If you have any anti-virus software enabled, please disable it
N
during the installation of the software.
When you first connect the WinTV-NOVA-T-
USB2 to your computer a Hardware
Assistant will appear, the "USB Device
SOHO-FX2"will be recognized.
Insert the WinTV-NOVA-T Installations-CD-
ROM into your CD drive.
If prompted select "No, not this time" and
select "Next". Select the option "Install the
software automatically" and click "Next".
A window may appear about the
"Hauppauge Nova-USB2-T DVB-T Adapter"
not passing the windows logo testing, select
"Continue Anyway".
When "Completing the Found New
Hardware wizard" window appears click the
"Finish" button to complete the driver instal-
lation.
Note" If any further components are found please repeat the above process until you receive
the message "Found new hardware: Your hardware is installed and configured to use".
Page 2
You will now need to check that the drivers are
installed correctly.
Right Click on My Computer and Left Click on
Properties.
Click on Hardware tab and then Device Manager.
In the Device Manager click on the + symbol on the
Sound Video and Game controllers section. If the
driver is installed correctly you should see the
"Hauppauge Nova-USB2-T DVB-T Adapter
If it has a Yellow mark next to it then this means that
the driver is not installed correctly. You will need to
remove the driver and disconnect the Nova-USB2
from the computer and re-connect it to install the
driver again.
WinTV Software Installation
To s tart the Nova-USB2 software installation, click Start / Run then type your CD-ROM drive
letter (for example: D:\) and then Setup.exe.
Select your language for the installation
"English is default" and Click "Next "
It is recommended to leave the default com-
ponents ticked and select "Install" and fol-
low the on screen instructions.
Once the installation is complete the
WinTV2000 Icon will appear on the desktop
which will allow you to run "Hauppauge
WinTV".
To start the WinTV 2000 application double click on the WinTV 2000 icon.
A message will appear asking you to scan
for tuner channel now, click "YES".
Select channels and country location, for
instance, select "United Kingdon" and then,
select "OK".
If you now click on the the AutoScan icon
the automatic channel scan will start and
find any available services. This may take up
to 5 minutes to complete so please wait until
the channel scan has finished.
If no services are found please ensure that
your aerial is connected to the Nova-t-USB2
and then contact the technical support
department for further asisstance.
Page 3
WinTV ® 2000
TV Mode Full screen TV
Volume Remove toolbars
Channel up
"no title mode"
Close WinTV
Always on Channel down
Minimise
Top
Channel surf
Pref
Configuration
Last channel
Setup Menu Click your right mouse button in the TV window to
remove toolbars.Click again to restore toolbars.
CFG
Freeze picture
Configure Snapshot
Snapshot viewer
window: Current TV channel
Snapshot Still
Click your right mouse button
Double click on each capture
here to see the channel selector One Touch Pause One Touch Record
"thumbnail" to see
image full size.Click
and hold your right
mouse button to see
image options.
TV-Mode Pause Record
Opens the record controls
Changing TV channels
You can change channels by using the channel up or channel down buttons on WinTV2000.
You can also type a channel number (e.g. 27) and WinTV2000 will change to that channel. If
the entered channel does not exist, you will see a black window.
Changing the TV window size
You can change the size of the TV window by grabbing any corner and dragging the video
window to the desired size.
Displaying TV full screen
When you click the Full Screen button, TV will appear full screen on your PC monitor. When
finished watching TV full screen, click on your right mouse button in the TV window.
To Hide the WinTV toolbar (No-title mode)
Simply click your right mouse button in the WinTV's video window for the non-title mode. To
restore the toolbars (the title mode), once again click your right mouse button in the WinTV's
video window. You can set the size of the window differently in each mode.
'Always on Top' mode
With Always on Top, WinTV will always be visable on your Windows desktop on top of any
applications. To turn on Always on Top, click the Always on Top button. It will turn green. To
turn it off click this button again.
Pref button
Click the Pref button to open the preferences menu:
View:
These are the settings for the on screen display of the TV channel and Audio Volume, where
you can enable Close Caption subtitles (if supported in your country TV system broadcasts),
plus controls for the toolbar mode (Title mode), NoToolbar mode (No title) and Full Screen
(TV mode).
Movies:
Here is where you configure the video and audio settings for SoftPVR. You can set the movie
record directory (DVCR Record File Path), the MPEG Quality settings, and the audio settings.
Snap Shot:
Set the size of your captured images, plus single or two field captures for capturing motion or
still image video.
Audio:
Your audio settings are here, default should be WinTV Wave.
Menu button:
Click the Menu button to open the TV Setup menu. Here is the main control for TV chan-
nels, aspect ratio and duplicate controls for other functions:
Suite Manager:
Configure the TV tuner (scanning, naming, fine tuning etc) setting up favourite channel lists.
Configure:
Duplicate configuration menu for audio, MPEG settings etc.
Page 4
Watch, Pause and Record
There are three buttons to control the Watching, Recording and Pausing of TV. Clicking on
the Pause button will cause the Pause menu to roll down from the WinTV2000 application,
while clicking on the Rec button will cause the Record menu to roll down.
One Touch Recording
One Touch Pause
TV Mode Pause Mode Record Mode
The One Touch Pause (OTP) button prepares the WinTV2000 pausing live video.
The One Touch Record (OTR) button will start a record session. If you click OTR more than
once, a record timer will be set and the recording will be done for 15 minutes for each time
the OTR button is clicked. For example, if you click the OTR button 3 times, the WinTV
2000 will record for 30 minutes.
R R e e c c o o r r d d m m o o d d e e
Click on the Record button or the OTR button on the WinTV-2000 application to open the
Record and Playback control bar.
Time counter Skip back 10 Video-Position Skip forward 10 secs
Skip to start
Skip to end
File menu (save / open)
Record Pause Stop Play Fast forward
Fast re wind Slow motion
Time counter
The time is specified in a Hour:Minute:Second format.
Record
Clicking the Record button will automatically generate a file name and start recording your
audio/video program.
Stop
Clicking the Stop button will stop the video you are recording or playing back.
Play
Clicking the Play button will playback from disk the last video file created. When playing a
video, you can rewind, fast forward, replay 10 sec or skip forward 10 sec using the buttons
on the control bar.
Pause
Clicking the Pause button while Playing will pause your audio/video
Rewind button
Clicking the Rewind button will play the video file in reverse. Clicking the Rewind button
again will continue the playing of the video.
Fast forward
Clicking the Fast Foward button one time will fast foward your video at 2X speed. Clicking
the Fast Foward button two times will fast foward your video at 8X speed. Clicking the but-
ton again will continue playing back at normal speed.
