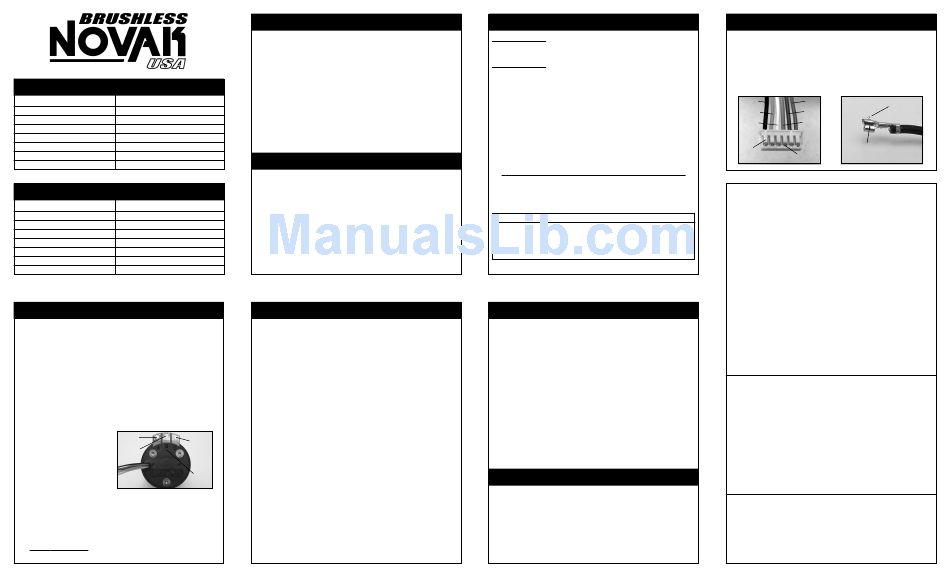

SS5800 MOTOR SPECS
#3400
Motor Diameter 1.41" [35.8 mm]
Motor Length 2.08" [52.8 mm]
Motor Weight 6.40 ounce [181.4 grams]
Motor Power Rating 196 Watts
Motor Kv 5800 RPM/Volt DC
Motor Kt 0.45 Inch-Ounce/Amp
Motor Commutation Sensor-Based Electronic
Motor Magnet Material Neodymium (1pc/multi-pole)
SS4300 MOTOR SPECS
#3401
Motor Diameter 1.41" [35.8 mm]
Motor Length 2.08" [52.8 mm]
Motor Weight 6.40 ounce [181.4 grams]
Motor Power Rating 175 Watts
Motor Kv 4300 RPM/Volt DC
Motor Kt 0.45 Inch-Ounce/Amp
Motor Commutation Sensor-Based Electronic
Motor Magnet Material Neodymium (1pc/multi-pole)
WIRING MOTOR TO ESC
• Solder power wires at motor by stripping 1/8-1/4" of
insulation from the end of the motor power wire (14G).
Tightly twist strands of wire, lightly tin, and insert into proper
solder tab's hole (tabs are identified by lettering that is
engraved in the end cap of the motor--see photo below). Use
soldering iron to apply heat to exposed wire that is extending
past bottom of PCB, and begin adding solder to tip of
soldering iron and to wire. Add just enough solder to form a
clean & continuous joint from the plated area of solder tab
up onto the wire. Use side cutters to trim remaining (now
soldered) wire from below the solder tab (about 1/16" above
PCB)--
make sure no strands of wire have strayed to an adjacent solder tab
as this can result in short-circuiting & damage to the electronics, which
will void the product's warranty.
A
C
B
Be sure to solder wires
to matching tabs at motor
phase
ESC & Motor (A/B/C)
wire
tab I.D.
text
• Note: Power wires can also be soldered flat onto the PCB solder tabs.
Strip 3/16-1/4" of insulation from the end of the new wire.
Tightly twist strands of wire, and tin with solder. Lay the
stripped & tinned end of the wire flat on the PCB solder tab
and use soldering iron to heat the end of the wire, and add
solder to form a clean solder joint between the wire and the tab.
IMPORTANT NOTE: DO NOT OVERHEAT SOLDER TABS
Prolonged/excessive heating of solder tabs will damage PCB.
PRECAUTIONS
• WATER & ELECTRONICS DON'T MIX Never allow water, moisture,
or other foreign materials to get inside motor, or on PCBs.
• CHECK MOTOR SCREWS Remember to check all motor
screws for loosening. The 3 main 4-40 socket head screws on
the shaft end of the motor may become loose after a few
runs of the motor, and will need to be tightened.
• NOVAK MOTORS WITH NOVAK ESCs ONLY The SS series
of motors have been specially designed for use with sensor-
based Novak Brushless ESCs Only! Use any Novak sensored
motor with any Novak brushless ESC as long as the ESC has a
higher wattage rating than the motor.
• INSULATE WIRES Always insulate exposed wiring with heat
shrink tubing to prevent short circuits.
• NO SOLVENTS Exposing the motor to any type of solvents
can damage the exposed material.
SENSOR-BASED DESIGN BENEFITS
• Constant Rotor Position Knowledge Always knowing what
angle the rotor is at, allows instantaneous response and
smooth transitions from neutral to drive.
• Smooth & Controlled Low Speed Driveability Rotor position
is key to smooth acceleration without delivering abrupt and
uncontrolled bursts of power.
• Strong/Consistent Brakes & Starting Torque Rotor position
knowledge results in consistent starts & stops, without hesitation
or inconsistent lag times before acceleration or braking.
• Locked Rotor & Thermal Protection Position & temperature
sensors inside motor provide unparalleled thermal protection
for your investment, letting you to run pack after pack without
worrying about overheating the motor, ESC, or magnets.
HOOK-UP INSTRUCTIONS
1. MOTOR CAPACITORS & SCHOTTKY NOT NEEDED
Novak brushless motors have built-in motor capacitors, and
like all reversible ESCs, does not use an external Schottky
diode--Schottky diodes damage reversible ESCs.
2. CHECK MOTOR SCREW LENGTH
Insert the M3 motor mounting screws that came with your
vehicle through the motor mounting plate in vehicle. You
need to have no more than 1/8" of screw extending past
the vehicle's mounting plate (2-4mm). Too little can strip
the threads in the end bell, and any more will cause short-
circuiting/damage inside the motor & will void warranty.
3. INSTALL PINION GEAR (see GEAR SELECTION on back)
Install pinion gear on motor and position set-screw over flat
on end of shaft. Test fit motor in vehicle to align pinion and
spur gears, then tighten pinion gear on shaft.
4. INSTALL MOTOR IN VEHICLE
• Determine the best routing for sensor harness & motor
power wire. Some off-road cars may require unsoldering
motor to route wires through the shock tower--refer to the
"WIRING MOTOR TO ESC" section.
• Using the M3 motor screws that came with your vehicle,
attach motor to vehicle's motor mount using one of the
three sets of threaded mounting holes--select a mounting
position that will avoid short-circuiting of solder tabs on conductive
surfaces such as aluminum or graphite.
• Check gear mesh for proper amount of play. You want to
have a small amount of free play between the pinion and
spur gears (about the thickness of piece of paper)--check
free play at several positions around the spur gear.
• Avoid using excessive force when tightening motor screws,
as the threaded holes could become stripped.
GEAR SELECTION (Important)
SS5800 Motor
With the SS5800 motor start with 2 teeth lower pinion gear
than you would use with a 27 turn "stock" brush-type motor.
SS4300 Motor
With the SS4300 motor start with 3 teeth lower pinion gear
than you would use with a 27 turn "stock" brush-type motor.
Because of the broader power band of the brushless motor, you
can go with a 1 to 3 tooth higher pinion than the above rec-
ommendations for more top speed, but remember that going
with 3 or more teeth higher will produce excessive speed con-
trol heating. Be sure to check the operating temperature of
the ESC after making any gearing adjustments--the Super Sport
ESC is designed to operate comfortably between 160ºF and 180ºF
(this is warmer than typical brush-type ESC temperatures).
If you had a low turn modified brush-type motor in your vehicle before
switching to the Super Sport system, and you do not change the gearing,
you will be under-geared and the vehicle will be slow at top speed!
You will want the final drive ratio in the vehicle to be:
7.30 : 1 for Touring Cars
9.00 : 1 for Off-Road Buggies
12.30 : 1 for Off-Road Stadium Trucks
Higher final drive ratios give longer run time at the expense of top speed. Lower
ratios result in higher ESC temperatures--too low may result in thermal shut-down.
VEHICLE SPUR SS5800 PINION SS4300 PINION
Losi XXX Buggy 78 21-22 20-21
Losi XXX-4 Buggy 94 21-22 20-21
Losi XXX-T Truck 86 17-18 16-17
Assoc. B3 Buggy 84 23-24 22-23
Assoc. T3 Truck 90 19-20 18-19
Note: The above chart shows basic starting points for gearing on larger
tracks with std. size tires--See our website for extended gearing chart.
Note: Due to lower Kv rating, the SS4300 will not reach RPM limit in Profiles 5&6.
MOTOR MAINTENANCE
• CHECK MOTOR SCREWS Check all motor screws for
loosening at regular intervals, just like other hardware on your
vehicle. Note: The 3 main 4-40 socket head screws on the
shaft end of the motor may become loose after a few runs of
the motor and will need to be tightened. Also check the 3 flat
head screws securing the end cap on the back of the motor.
• CHECK MOTOR BEARING WEAR After extensive use, the
ball bearings in the end bells of your brushless motor may
need to be replaced. While the design of the motor will keep
the majority of the debris out of the bearings, some debris may
get in, and eventually wear will occur. If the shaft will not spin
freely, you may need to replace the motor bearings (replacement
bearing sets are available in Novak accessory kit #5905 and include
bearing replacement instructions--If you do not feel comfortable
changing the bearing on your own, please contact our Customer
Service Dept. for assistance). A small drop of light oil on the
bearings periodically can help extend bearing life--too much oil
will cause problems, so apply sparingly.
ACCESSORIES
BATTERY/MOTOR 14G POWER WIRE
Replacement silicone power wires for your brushless motor system
are available in Novak kits #5500 (36"red/36"black), #5505 (36"
red/36"blue), or #5508 (2 each of 9"red/black/blue/yellow/orange).
REPLACEMENT BEARINGS & FRONT END BELL SET
After extensive use, the ball bearings in the end bells of your
brushless motor may need to be replaced. Replacement motor
bearings & front end bell are available in Novak kit #5905.
SENSOR HARNESS WIRING
Should any of the 26G Teflon wires pull out of the connector
on the end of the motor's sensor harness, replace them into
the appropriate slot in the connector as shown below. The
connector has small plastic tabs that grab a small raised barb
on the back of the metal socket that is crimped onto the ends
of the Teflon wire. The plastic tab should be checked to make
sure it has not deformed excessively before inserting the socket
into the plastic connector housing.
raised
black red
metal
orange blue
barb
white green
metal socket
plastic
on end of Teflon
metal
tabs
sensor harness wires
barbs
SERVICE PROCEDURES
Review instructions before sending motor for service--motor
may appear to have failed when other problems exist.
After reviewing the instructions, if you feel the motor requires
service, please obtain the most current product service options
and pricing by one of the following methods:
WEBSITE: Print a copy of the product SERVICE FORM from the
SERVICE section of Novak website. Fill out the needed information
and return it with the Novak product.
PHONE/FAX/E-MAIL: Contact our customer service department
by phone, fax, or e-mail (see CUSTOMER SERVICE section below),
and they will supply you with current service options.
WARRANTY SERVICE: For warranty work, you MUST CLAIM
WARRANTY on the product SERVICE FORM and include a valid,
itemized cash register receipt with purchase date on it, or an
invoice from previous service work. If warranty provisions have
been voided, there will be service charges.
ADDITIONAL NOTES:
• Brushless ESC & Motor should be returned together.
• Hobby dealers or distributors are not authorized to replace
Novak products thought to be defective.
• If a hobby dealer returns your product for service, submit a
completed product SERVICE FORM to the dealer and make
sure it is included with the items.
PRODUCT WARRANTY
Novak brushless motors are guaranteed to be free from defects in materials
or workmanship for a period of 120 days from the original date of purchase
(verified by dated, itemized sales receipt). Warranty does not cover incorrect
installation, components worn by use, cross-connection of battery/motor
power wires, overheating solder tabs, damage resulting from thermal overload,
splices to sensor harness, damage from disassembling motor, tampering with
internal electronics, allowing water, moisture, or any other foreign material to
enter motor or get onto the PC board, allowing exposed wiring or solder tabs
to short-circuit, or any damage caused by a crash, flooding, or act of God.
In no case shall our liability exceed the product's original cost. We reserve
the right to modify warranty provisions without notice.
Because Novak Electronics, Inc. has no control over the connection and use
of the motor or other related electronics, no liability may be assumed nor
will be accepted for damage resulting from the use of this product. Every
motor is thoroughly tested and cycled before leaving our facility and is, there-
fore, considered operational. By the act of connecting/operating speed control,
the user accepts all resulting liability.
NOVAK CUSTOMER SERVICE
M-Th: 8am-5pm (PST) Fr: 8am-4pm
(closed every other Friday)
(949) 833-8873 • FAX (949) 833-1631
e-mail: cs@teamnovak.com web: www.teamnovak.com
©2003 Novak Electronics, Inc. • All Rights Reserved • No part of these
instructions may be reproduced without the written permission of Novak
Electronics, Inc. • All Novak motors are designed & assembled in the U.S.A.
Printed in the U.S.A. 12/2003 • #IM-3400-1
