Technical manual
SOLAR

4.4.3 Technical data

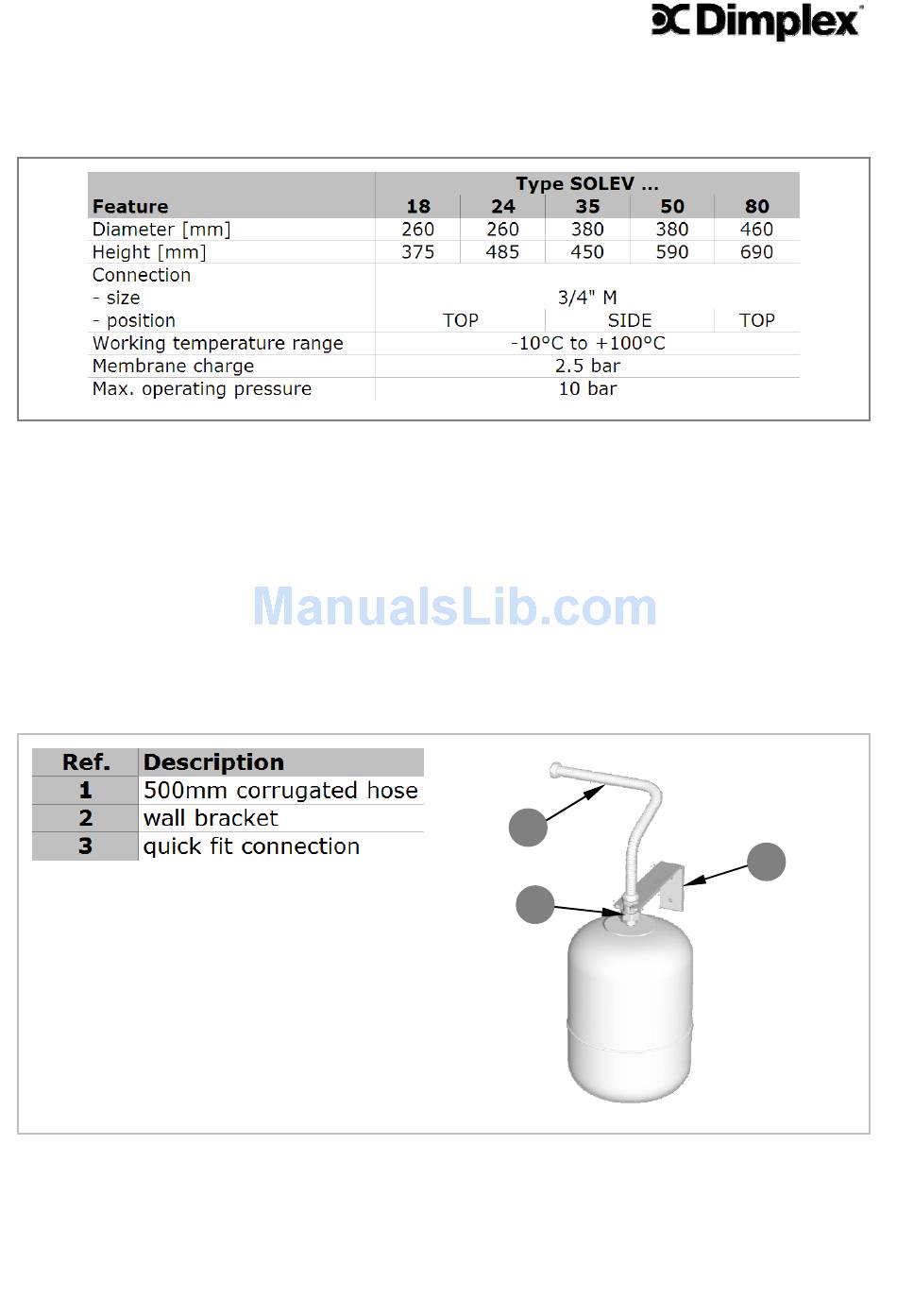

Figure 35 – Technical data Dimplex SOLEV expansion vessels

4.5 Dimplex expansion vessel fixing kit SOLVK1

4.5.1 General description

The expansion vessel fixing kit SOLVK1 aids with the installation, maintenance and de-
commissioning of the solar thermal system. The product consists of (see Figure 36):
- expansion vessel wall bracket (suitable for vessels of up to 440mm)
- 500mm corrugated stainless steel hose with ¾" flat seal connections
- quick fit connection
01
02
03
Figure 36 – Components Dimplex solar expansion vessel fixing kit SOLVK1
Page 35 of 72
ST0133 – A 02/09
