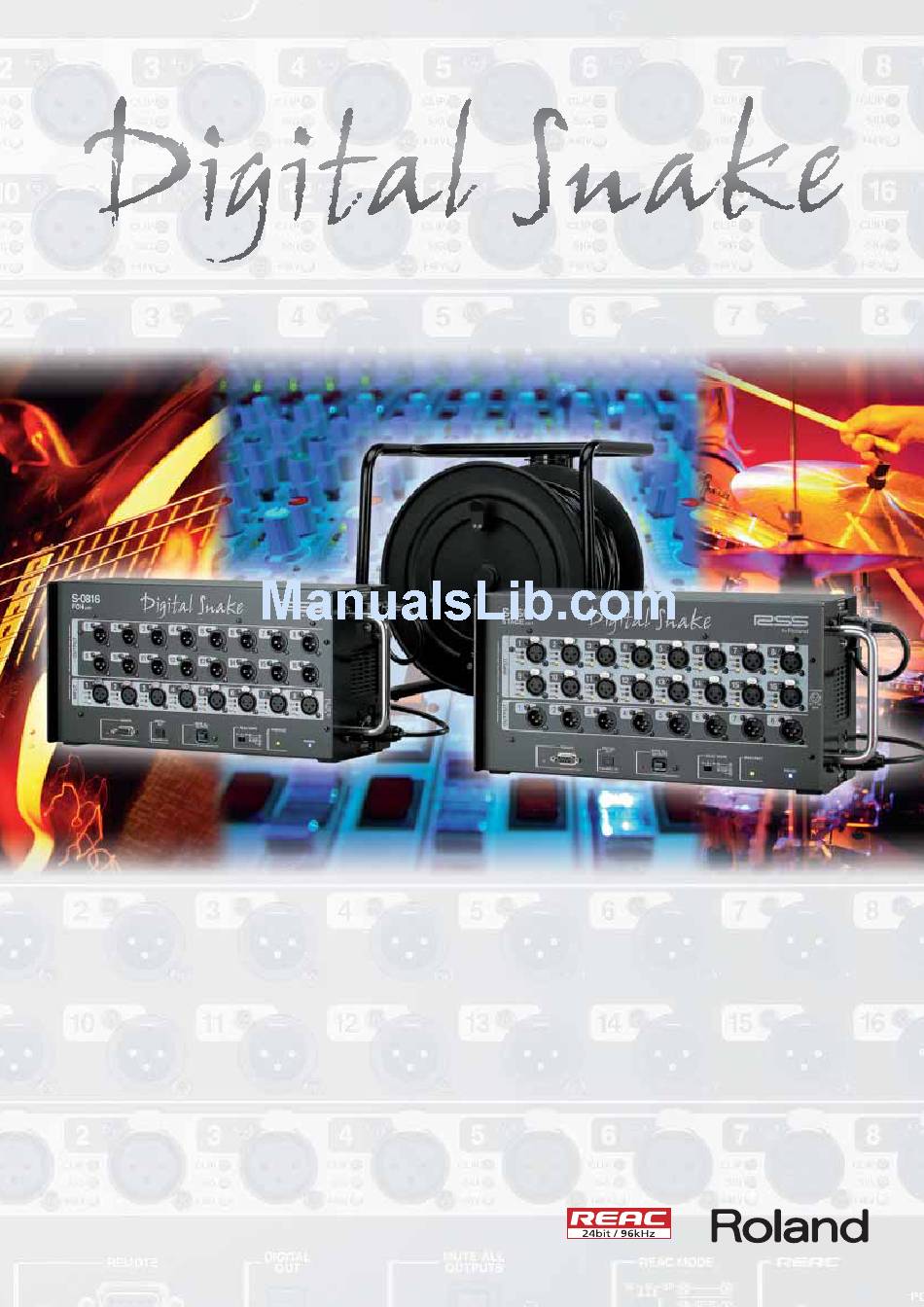

- Page 1 Digital Audio Transfer System C o m p a c t , P o r t a b l e D i g i t a l S n a k e S y s t e m S-1608 Stage Unit S-0816 FOH Unit...
- Page 2 REAC - The Audio Quality Sta Analog Output Terminals Analog Input Terminals On board 24bit/96kHz On board 24bit/96kHz AD DA converters. converters and high quality mic pre-amps with phantom power supply. S-1608 Stage Unit The S-1608 and S-0816 Digital Snake are compact versions of the popular S-4000 Digital Snake system. Easy to use and quick to install, the S-1608/0816 Digital Snake system is a small format audio snake solution that offers the highest quality audio signal available in a portable snake system.
- Page 3 andard for Digital Snake Systems REMOTE Terminal (RS-232C) Digital Output (Optical) Mute All Output Button Mode Selection Switch Outputs source audio to the Slave and Split devices Connector for either the dedicated Output the audio signal input When this button is pressed Master It receives Input from the Slave device.
- Page 4 Specifications Number of Channels S-1608 : 16 in 8 out S-0816 : 8 in 16 out AD and DA Conversion 24 bit / 96 kHz Frequency Response -2 dB / +0 dB (@ +4 dBu, 20 Hz to 20 kHz) Total Harmonic Distortion + Noise 0.05 % or less (Pad: On, Input Gain: +4 dBu, 22Hz to 20 kHz) Dynamic Range...
