D-Link DSL-300G Quick Installation Manual

D-Link DSL-300G Quick Installation Manual

Quick installation guide
Hide thumbs Also See for DSL-300G:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual See also: User Manual
Configure your computer's Ethernet network interface to "Obtain an IP Address automatically". Please
refer to Configuring IP Settings on Your Computer section in the Manual or User's Guide page 5
(on CD) if you are not sure how to do so. Once that is done, you could then insert the DSL-300G CD
into your CD-ROM drive. For computers running non-Windows operating systems, follow the
instructions for your OS that configure the computer to receive an IP address from the modem, that is,
configure the computer to be a DHCP client, and then refer to Configure the DSL-300G Modem
section below.
Now you have set your computer to "Obtain an IP Address automatically", continue with the following
instructions to run the installation utility:

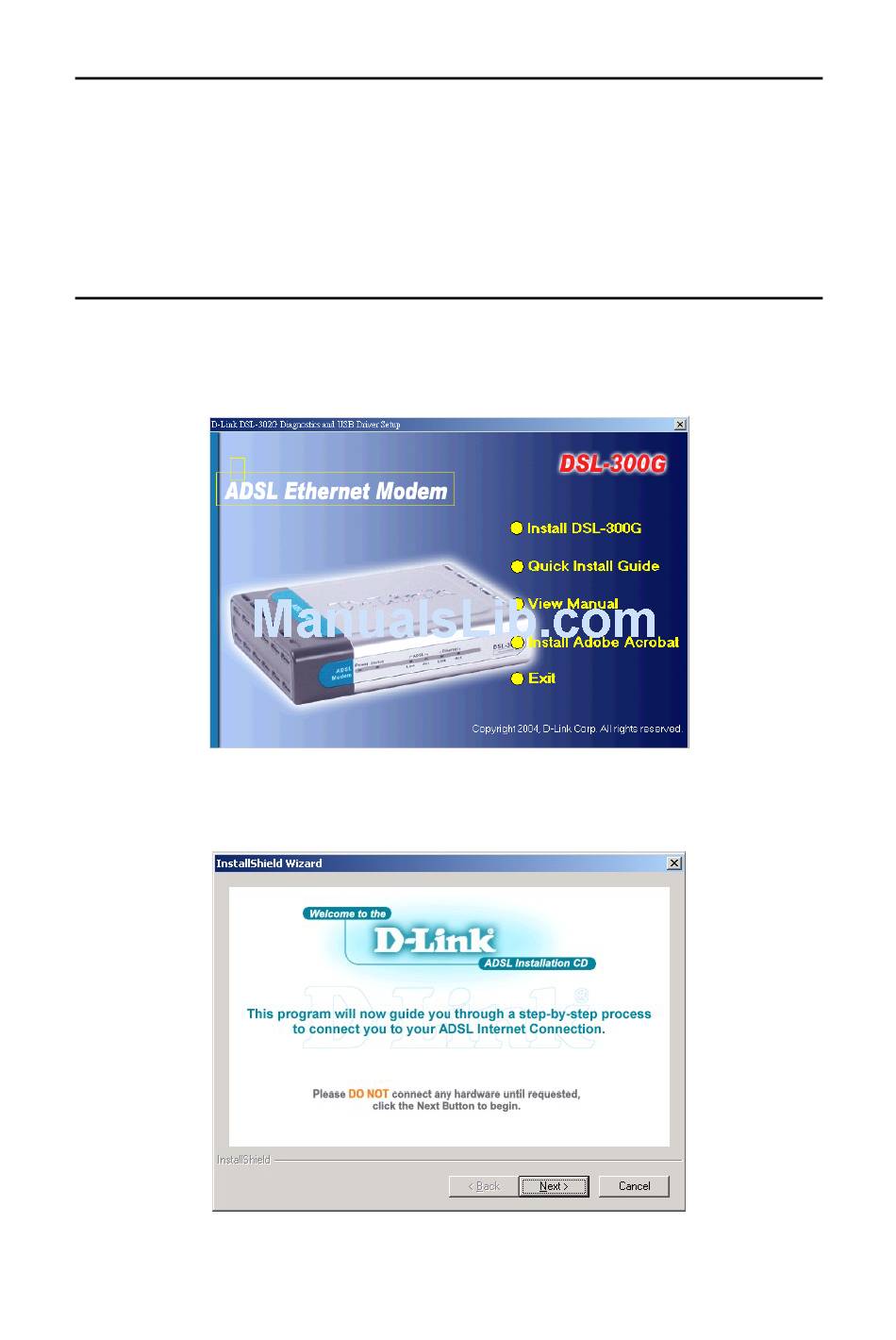

1. Insert the DSL-300G CD into the CD-ROM drive. Within a few seconds you should see the
following dialog box:
2.
Click on Install DSL-300G to launch the installation process. If you do not see the auto-run
dialog box pictured above, explore the CD and then double-click the application file
autorun.exe.
3.
Click the Next button in the first InstallShield dialog box.
4. Enter your name and company information, then click Next.
DSL-300G Quick Installation Guide
Run the Installation Utility
1

Advertisement

loading

Related Manuals for D-Link DSL-300G

Summary of Contents for D-Link DSL-300G

  • Page 1 Configuring IP Settings on Your Computer section in the Manual or User’s Guide page 5 (on CD) if you are not sure how to do so. Once that is done, you could then insert the DSL-300G CD into your CD-ROM drive. For computers running non-Windows operating systems, follow the...
  • Page 2 5. Click Next to use the folder listed or enter a different folder name. 6. Connect the power cord as instructed. Click Next. 7. Connect the Ethernet cable. Click Next.
  • Page 3 8. Connect the ADSL cable. Click Next. 9. Select your ADSL connection type by ticking the appropriate box. Most users will use the default PPPoA or PPPoE connection type. Click Next. 10. Record down all three steps shown in this dialog box for the rest of your configuration. You could keep them for future reference too.
  • Page 4 11. Click Finish. 12. Now, look for a new DSL-300G Config icon like the one shown below on your computer’s desktop: 13. Your computer should be connected to the DSL-300G through the Ethernet port. Double-click on the DSL-300G Config icon to configure your all ADSL account details, like user name and password.
  • Page 5 Configure using Web Browser - for PPPoA or PPPoE Connection 1. Double-click on DSL-300G Config icon on your Windows desktop; or open up a web browser and type in http:// followed by the default LAN IP address of the modem, 10.1.1.1 in the address bar of the browser.
  • Page 6 Configure using Web Browser - for Bridge Connection 1. Double-click on DSL-300G Config icon on your Windows desktop; or open up a web browser and type in http:// followed by the default LAN IP address of the modem, 10.1.1.1 in the address bar of the browser.
