FXAlgs #724-6, 728: Distortion
FXAlgs #724-6, 728: Distortion
FXAlg #724 Ñ Mono Distortion
FXAlg #725 Ñ MonoDistort + Cab
FXAlg #726 Ñ MonoDistort + EQ
FXAlg #728 Ñ StereoDistort+EQ
Allocation Units: 1 for Mono Distortion; 2 for MonoDistort + Cab; 2 for MonoDistort + EQ;
Mono Distortion sums its stereo input to mono, performs distortion followed by a hipass filter and sends the result
as centered stereo.
L Input
R Input
MonoDistort + EQ is similar to Mono Distortion except the single hipass filter is replaced with a pair of second-order
hipass/lowpass filters to provide rudimentary speaker cabinet modeling. The hipass and lowpass filters are then
followed by an EQ section with bass and treble shelf filters and two parametric mid filters.
L Input
R Input
StereoDistort + EQ processes the left and right channels separately, though there is only one set of parameters for
both channels. The stereo distortion has only one parametric mid filter.
L Input
R Input
Algorithm Reference-94
Small distortion algorithms
3 for StereoDistort + EQ
Distortion

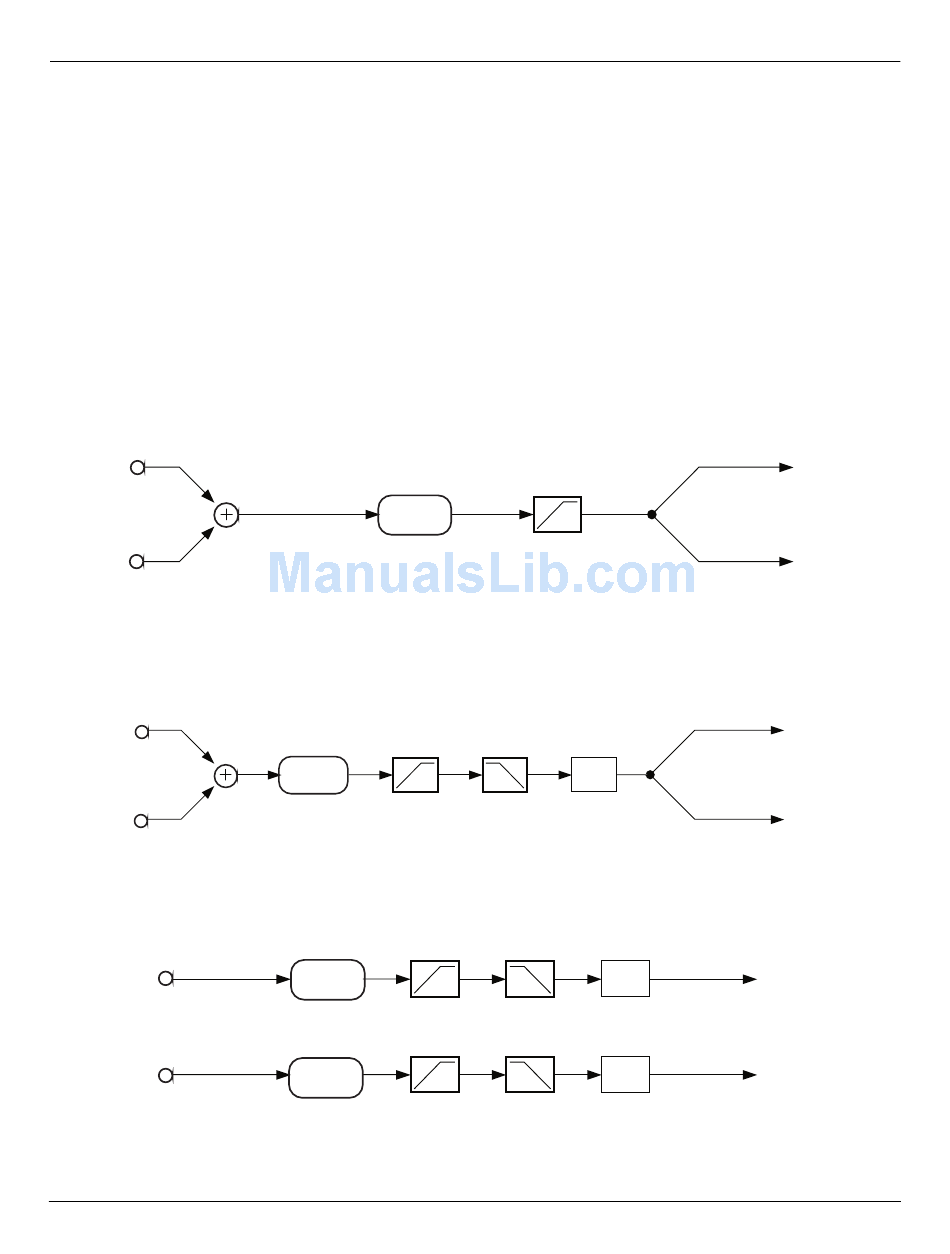

Block diagram of Mono Distortion
Cabinet
Distortion
Block diagram of MonoDistort + EQ
Distortion
Distortion
Block diagram of StereoDistort+EQ
EQ
EQ
EQ
L Output
R Output
L Output
R Output
L Output
R Output
